Summary of Contents for DAPAudio ACX-34

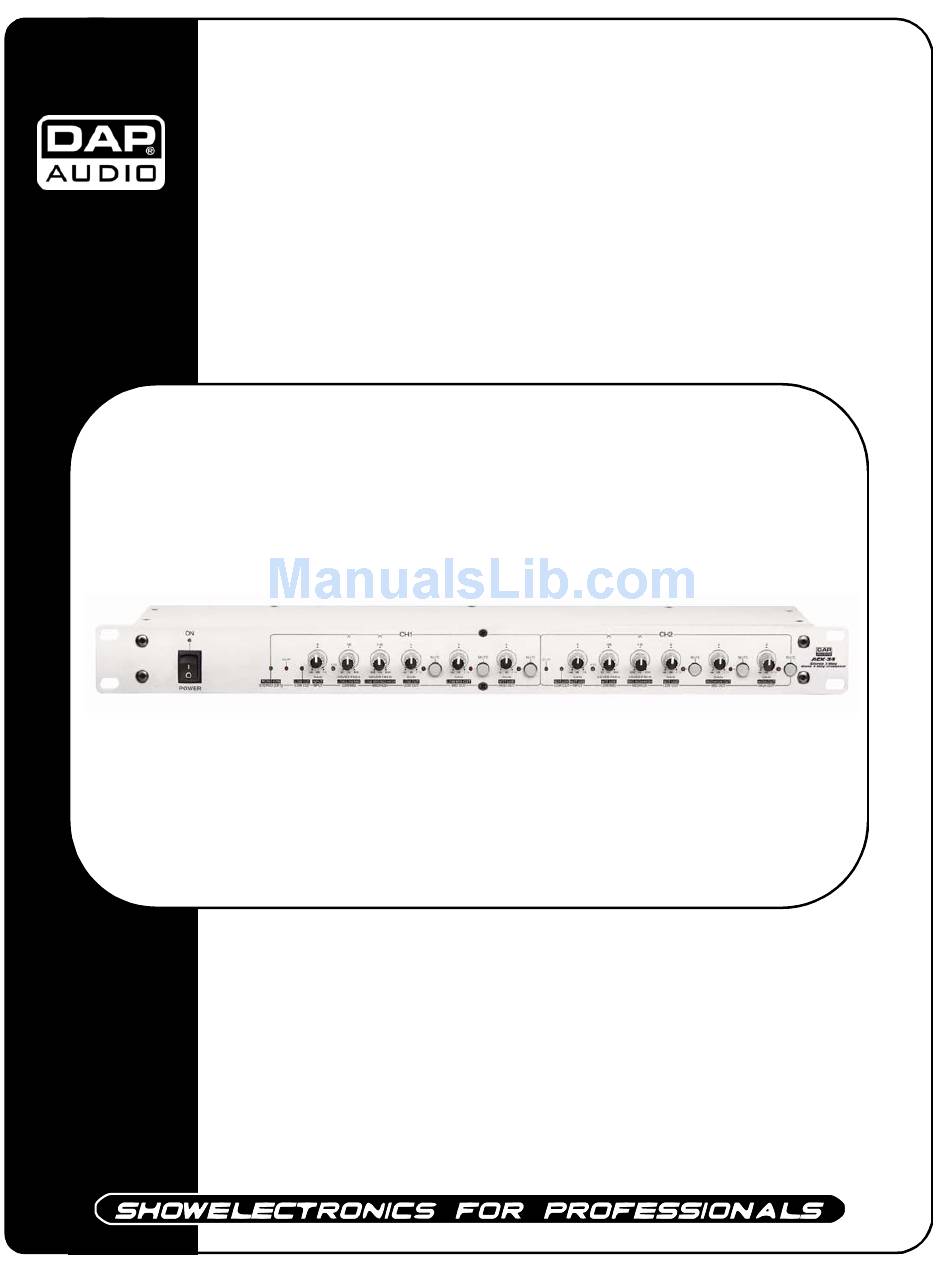

- Page 1 ACX-34 ORDERCODE D1936...
- Page 2 Congratulations! You have bought a great, innovative product from DAP Audio. The DAP Audio ACX-34 brings excitement to any venue. Whether you want simple plug-&-play action or a sophisticated show, this product provides the effect you need. You can rely on DAP Audio, for more excellent audio products.
-
Page 3: Table Of Contents
DAP Audio DAP Audio ACX-34 Product Guide Warning..…...................………………………………………….. Safety-instructions………………………………………………………………………………………….…. Operating Determinations……………………………………………………………………………………. Description..…................……….………………………………… Features………………………………………………………………………………….………………….…. Overview Front side..…………………………………………………………………………………..…… Overview Back side..…………………………………………………………………………………….…… Installation..............……………………………..………………………… Set Up and Operation..............……..…………………………….…… Connection Cables………..………………………………………………………………………..….……… Maintenance………......…........………..………….…….………….….. Troubleshooting………......…........………..………….…….………….….. Product Specifications..............……………….…….…………………. -
Page 4: Warning
WARNING CAUTION! Keep this system away from rain and moisture! FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL CAREFULLY BEFORE YOUR INITIAL START-UP! SAFETY INSTRUCTIONS Every person involved with the installation, operation and maintenance of this system has to: be qualified follow the instructions of this manual CAUTION! Be careful with your operations. -
Page 5: Operating Determinations
For replacement use fuses of same type and rating only. • Prevent distortion! Make sure that all components connected to the ACX-34 have sufficient power ratings. Otherwise distortion will be generated because the components are operated at their limits. •... -
Page 6: Description
This indicator lights when the crossover is switched on. 3. Mode Indication This indicator shows the current mode of the ACX-34. Light on, means it is working in 4-way mono; light off means it is working in 3-way stereo. 4. Clip LED This LED indicates whether the output signal is clipped or not. -
Page 7: Overview Back Side
14. High Mute Button Press the button and the High frequency signal has no output and the Led on the left will light up. ACX-34 DESCRIPTION REAR PANEL: 15. High Frequency Output XLR This jack is the high frequency output connector, it has BAL and UNBAL Mode. The XLR output connector is balanced and wired as Pin 1=Ground, Pin 2=+, Pin 3= -. -
Page 8: Installation
22. Remote Power Supply Input Socket This is the remote AC power supply input socket for the ACX-34. It is a special three cores socket. The model for this power supply adapter is “YH-18A-1000”. In order to make your ACX-34 work in a stable and safe condition, please use this special power supply adapter we provide. -
Page 9: Connection Cables
Connection Cables In this chapter you’ll find the wiring diagrams for the connectors to be used with your crossover. Take care of the connector cables, always holding them by the connectors and avoiding knots and twists when coiling them: This gives the advantage of increasing their life and reliability, which is always to your advantage. -
Page 11: Maintenance
Maintenance The ACX-34 crossover requires almost no maintenance. However, you should keep the unit clean. Disconnect the mains power supply, and then wipe the cover with a damp cloth. Do not immerse in liquid. Keep connections clean. Disconnect electric power, and then wipe the audio connections with a damp cloth. -
Page 12: Product Specifications
Product Specifications Model: DAP Audio ACX-34 Power: AC2x 18V 500mA S / N Rate: > 95dB Frequency response: 10Hz – 40KHz (+/- 0.3dB) THD %: <0.03% Crossover frequency range: 62 Hz – 8,5 KHz Dynamic range: 118dB Input gain: -∞ ~+6dB Low output gain: -∞... - Page 13 2004 Dap Audio.
