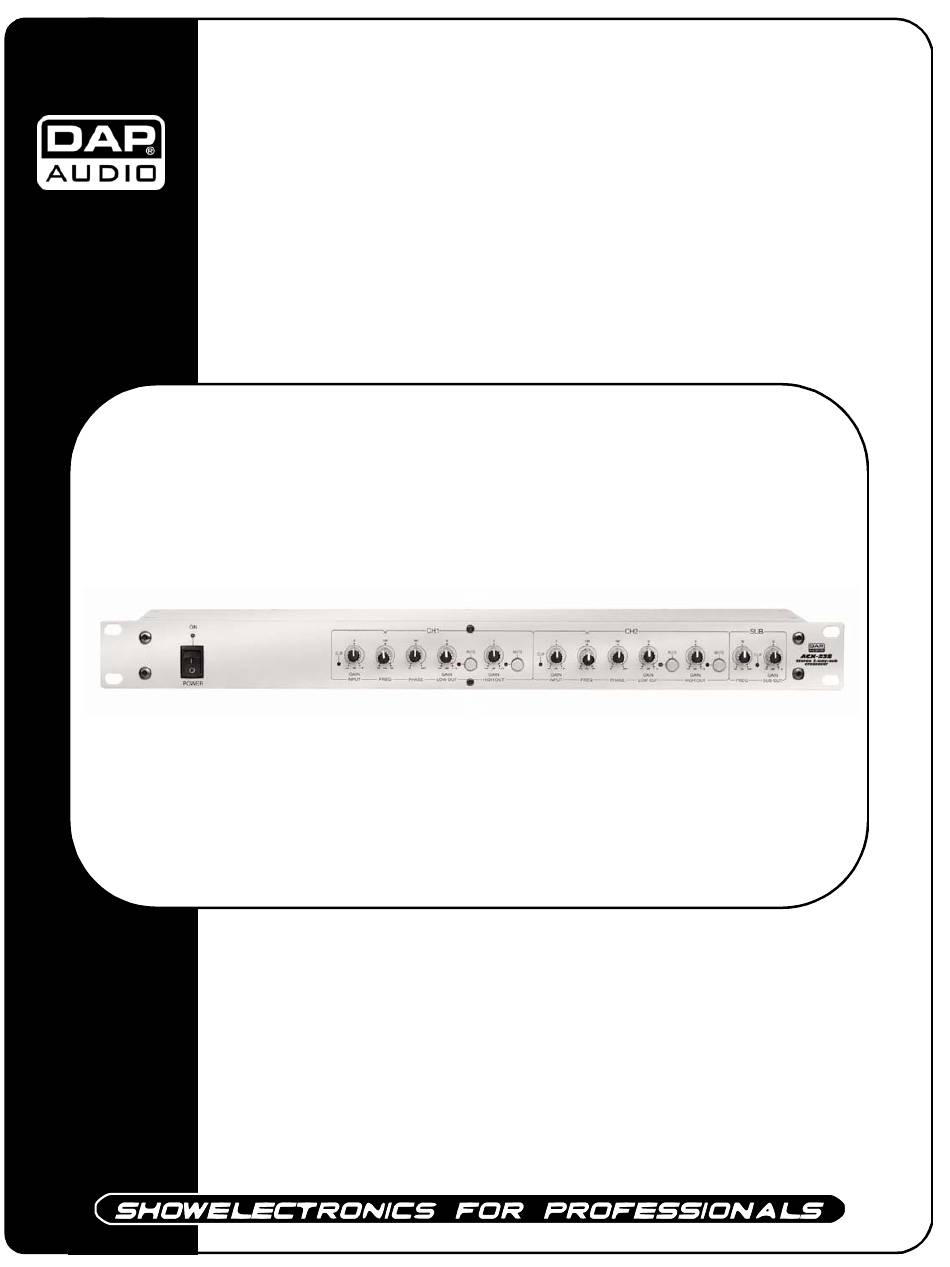

- Page 1 ACX-23S ORDERCODE D1937...
- Page 2 Congratulations! You have bought a great, innovative product from DAP Audio. The DAP Audio ACX-23S brings excitement to any venue. Whether you want simple plug-&-play action or a sophisticated show, this product provides the effect you need. You can rely on DAP Audio, for more excellent audio products.
-
Page 3: Table Of Contents
DAP Audio DAP Audio ACX-23S Product Guide Warning..…...................………………………………………….. Safety-instructions………………………………………………………………………………………….…. Operating Determinations……………………………………………………………………………………. Description..…................……….………………………………… Features………………………………………………………………………………….………………….…. Overview Front side..…………………………………………………………………………………..…… Overview Back side..…………………………………………………………………………………….…… Installation..............……………………………..………………………… Set Up and Operation..............……..…………………………….…… Connection Cables………..………………………………………………………………………..….……… Maintenance………......…........………..………….…….………….….. Troubleshooting………......…........………..………….…….………….….. Product Specifications..............……………….…….…………………. -
Page 4: Warning
WARNING CAUTION! Keep this system away from rain and moisture! FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL CAREFULLY BEFORE YOUR INITIAL START-UP! SAFETY INSTRUCTIONS Every person involved with the installation, operation and maintenance of this system has to: be qualified follow the instructions of this manual CAUTION! Be careful with your operations. -
Page 5: Operating Determinations
For replacement use fuses of same type and rating only. • Prevent distortion! Make sure that all components connected to the ACX-23S have sufficient power ratings. Otherwise distortion will be generated because the components are operated at their limits. •... -
Page 6: Description
Note: Pay attention to the special POWER ON / OFF NO Function, it won’t produce pulse strike to your amplifier and speakers, when you switch ON / OFF the ACX-23S. This practical function can effectively protect your expensive amplifier and speakers in case of an error operation. -
Page 7: Overview Back Side
17. Remote Power Supply Input Socket This is the remote AC power supply input socket for the ACX-23S. It is a special three cores socket. The model for this power supply adapter is “YH-18A-1000”. In order to make your ACX-23S work in a... -
Page 8: Installation
Installation Remove all packing materials from the ACX-23S. Check that all foam and plastic padding is removed. Screw the equipment into a 19" rack. Connect all cables. -
Page 9: Connection Cables
Connection Cables In this chapter you’ll find the wiring diagrams for the connectors to be used with your crossover. Take care of the connector cables, always holding them by the connectors and avoiding knots and twists when coiling them: This gives the advantage of increasing their life and reliability, which is always to your advantage. -
Page 11: Maintenance
Maintenance The ACX-23S crossover requires almost no maintenance. However, you should keep the unit clean. Disconnect the mains power supply, and then wipe the cover with a damp cloth. Do not immerse in liquid. Keep connections clean. Disconnect electric power, and then wipe the audio connections with a damp cloth. -
Page 12: Product Specifications
Product Specifications Model: DAP Audio ACX-23S Power: AC2x 18V 500mA S / N Rate: > 98dB Frequency response: 10Hz – 40KHz (+/- 0.3dB) THD %: <0.05% Crossover frequency range: 70 Hz – 3 KHz Phase correct range: 0° - 360°... - Page 13 2004 Dap Audio.
