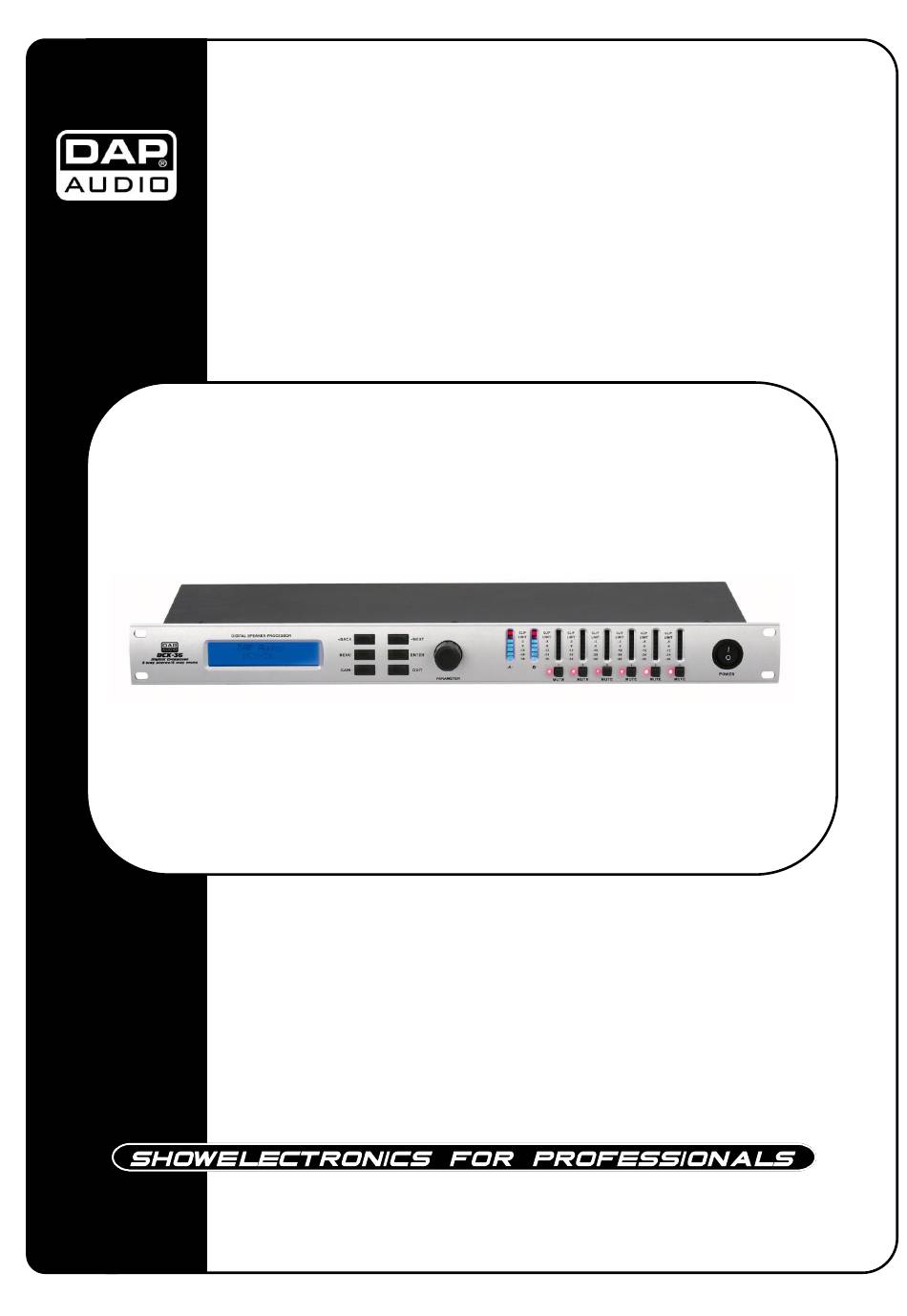

- Page 1 DCX-36 MKII ORDERCODE D2023...
- Page 2 Congratulations! You have bought a great, innovative product from DAP Audio. The DAP Audio DCX-36 MKII brings excitement to any venue. Whether you want simple plug-&-play action or a sophisticated show, this product provides the effect you need. You can rely on DAP Audio, for more excellent audio products.
-
Page 3: Table Of Contents
DAP Audio DAP Audio DCX-36 MKII Product Guide Warning..…...................…………………………………………...... Unpacking Instructions............................Safety-instructions..............................Operating Determinations............................. Return Procedure..............................Claims..................................Description..…................……….…………………………………...... Features………………………………………………………………………………….………………….…..... Overview Front side..…………………………………………………………………………………..……....Overview Back side..…………………………………………………………………………………….……....Installation..............……………………………..…………………………....Set Up and Operation..............……..…………………………….……....X-over submenu………………………………….……...………………………………….……...…………....Safety Options……………………………….……...………………………………….……...………………....System Menu……………………………….……...………………………………….……...………………....Interface Menu……………………………….……...………………………………….……...………………....Parameter Menu……………………………….……...………………………………….……...…………….... -
Page 4: Warning
Save the carton and all packing materials. In the event that a fixture must be returned to the factory, it is important that the fixture be returned in the original factory box and packing. Your shipment includes: • DAP DCX-36 MKII • 1x USB cable – 1,40m • 1x IEC Power cable - 1,75m •... -
Page 5: Operating Determinations
Do not open this device. Risk: hazardous radiation exposure. Only use system indoor, avoid contact with water or other liquids. Avoid flames and do not put close to flammable liquids or gases. Always disconnect power from the mains, when system is not used. Only handle the power-cord by the plug. -
Page 6: Return Procedure
Return Procedure Returned merchandise must be sent prepaid and in the original packing, call tags will not be issued. Package must be clearly labeled with a Return Authorization Number (RMA number). Products returned without an RMA number will be refused. Highlite will not accept the returned goods or any responsibility. Call Highlite 0031-455667723 or mail aftersales@highlite.nl and request an RMA prior to shipping the fixture. -
Page 7: Description
• Phase Invert switch per output • USB interface for remote control including PC software • 2x XLR Input and 6x XLR Output • Clip LED • Software included for easy set-up with DCX-36 MKII Overview Fig. 1 1. LCD-Display 13. -
Page 8: Overview Back Side
31. Input A XLR Female Socket Installation Remove all packing materials from the DCX-36 MKII. Check that all foam and plastic padding is removed. Screw the equipment into a 19" rack. Connect all cables. Always disconnect from electric mains power supply before cleaning or servicing. -
Page 9: Safety Options
Safety options The DCX-36 MKII offers you the possibility to protect your settings from any unauthorized access. 1. Change only: The parameters can be viewed but not be changed. Mute is possible. 2. Changes + View: The parameters cannot be viewed and not be changed. Mute is possible. - Page 10 If you select a Q-factor below 0, you can choose between Hi-shelf and Lo-shelf. 7. Limiter The DCX-36 MKII features a limiter-function with independent limiters (one per output). The limiter serves as an additional clipping protection to avoid speaker damage. The signal level is always limited to the adjusted threshold-level.
-
Page 11: Software Dcx-36
Software DCX Installing the DCX software Make sure the DCX-36 MKII is not connected to your computer. Insert the CD in your computer. First you have to Install the Driver software by clicking on DL2303_Profile_DriverInstaller_1025.EXE. Next you have to install the DCX software by clicking on DCXSetup_V13.EXE. - Page 12 Select the proper Unit and the desired configuration. Make sure the Device ID matches the ID in your DCX-36 MKII (factory set to 1). Now press OK and select RS232 in the Config menu. Your screen will look as the figure below.
-
Page 13: Editing
If you want to use the DCX software for real-time editing, you’ll have to store the new settings to the DCX-36MKII first. If you want to edit a program stored in the DCX-36 MKII, you’ll have to press the Refresh button in the Memory window first, in order to sync the DCX-software with your DCX-36 MKII. - Page 14 Delay Settings Limiter Settings...
- Page 15 Out 1 Settings Filter Settings...
- Page 16 Out 2 Settings Out 3 Settings...
- Page 17 Out 4 Settings Out 5 Settings...
-
Page 18: Memory Management
Out 6 Settings Memory Management Open the Device menu and then select memories. The memory window lets you save and recall memory settings in a convenient way. Press the refresh button to load all DCX programs to the PC program’s memory. Select a program and press the recall button if you want to edit a program by using the remote software. -
Page 21: Connection Cables
Connection Cables Take care of your cables, always holding them by the connectors and avoiding knots and twists when coiling them: This gives the advantage of increasing their life and reliability. Periodically check your cables. A great number of problems (faulty contacts, ground hum, discharges, etc.) are caused entirely by using unsuitable or faulty cables. -
Page 22: Maintenance
Compensation of interference with balanced connections Maintenance DAP Audio DCX-36 MKII requires almost no maintenance. However, you should keep the unit clean. Disconnect the mains power supply, and then wipe the cover with a damp cloth. Do not immerse in liquid. -
Page 23: Product Specifications
Product Specifications Power: 90 – 240 Vac, 50/60 Hz Dimensions : 483 x 165 x 44.5 mm (LxWxH) Weight : 1.86 kg Inputs Inputs: 2 active, balanced Input Impedance: 10 KOhm CMRR: > 50 dB (30 Hz – 20 KHz) Frequency response: 15Hz –... - Page 24 Design and product specifications are subject to change without prior notice. Website: www.Dap-audio.info Email: service@highlite.nl...
- Page 25 2009 Dap Audio.
