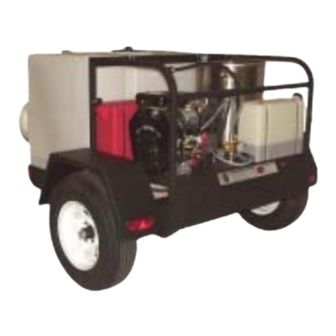

- Page 1 $15.00 OPERATION & MAINTENANCE MANUAL IMPORTANT: CAUTION! TO REDUCE RISK OR INJURY, READ OPERATING INSTRUCTIONS CAREFULLY BEFORE USING POWER WASHERS CPK SERIES HG SERIES SH SERIES SK SERIES SR SERIES ST SERIES © 2007 Hydro Tek...
- Page 2 To get the best use of your pressure washer, please read the manual carefully. It contains all the information necessary for you to operate the unit safely and to get the maximum benefit. This manual also contains many helpful hints about pressure washer mainenance. Tthe following additional accessories can be purchased to make your equiment more flexible for a cleaning effort that is swift and efficient.
-
Page 3: Table Of Contents
TABLE OF CONTENTS INTRODUCTION ..........................4 Statement of Warranty SAFETY WARNINGS ........................5 Electrical Precautions Fire Precautions Ventilation Precautions Spray Injection Precautions Personal Hazard Precautions OPERATING INSTRUCTIONS ....................... 6 Before Start Up Operation Shut Down & Antifreeze Protection SYSTEM INFORMATION ......................... 7 Power System Electric Motor/Gasoline Engine Power Transmission System - direct, &... -
Page 4: Introduction
Hydro Tek product. Hydro Tek warranty period. disclaims all implied warranties, including those of merchantabil- This Warranty does not apply to and Hydro Tek is not ity and fitness for use or a particular purpose. -
Page 5: Safety Warnings
IMPORTANT SAFETY WARNINGS: SAVE THESE INSTRUCTIONS 4. AVOID contact with the exterior of the coil/heat exchanger assembly, exhaust stack and mufflers to prevent burns. 5. DO NOT store fuel or other flammable materials near the burner or any other open flame. 6. -
Page 6: Operating Instructions
OPERATING INSTRUCTIONS BEFORE START UP: damage remove spray nozzle from wand and pull spray gun 1. Read all instructions before using this product. trigger while cranking engine. After start, release trigger and 2. CHECK OIL AND FLUID LEVELS: replace spray nozzle. Be sure nozzle is properly positioned Check pump oil by locating the oil view in quick disconnect before spraying: window or dipstick and fill to the red... - Page 7 If unit is equipped starter shuts down the motor, have an elec- with a downstream chemical injector, connect the chemical trician or an authorized Hydro Tek distributor injection assembly into the high pressure discharge hose check for electrical problems. Voltage reading under load quick connects.
-
Page 8: System Information
If this component ruptures, you reset if the circuit is overloaded. should take the machine in to an authorized Hydro Tek To extend generator life make sure the dealer. Do not plug off and continue to run. -
Page 9: Heating System
(Part # CB105) available at on the heat switch is exceeded. your authorized Hydro Tek dealer. It is necessary The IGNITION TRANSFORMER provides a high voltage to perform this service only when a noticeable pressure drop is detected across the coil. -
Page 10: Hydro Twister
250°F available at 15º, 25° and 40º. The different spray angles of a given size of Hydro Tek dealer. nozzle do not change the output pressure of the machine, just the HYDRO TWISTER (OPTIONAL) impact force and surface coverage of the water spray. -
Page 11: Trailers
SYSTEM INFORMATION TRAILERS: Trailers are designed to match to your washer to increase Lunette Eye assemblies are also available for the hook trailering productivity. They have been field-tested to prove their hitch. reliability in the toughest applications. Special maintenance and trailering considerations: Check with local and state vehicle codes to confirm your brake configuration The unique torsion axle suspension provides the smoothest is compliant. -
Page 12: Trouble Shooting Guide
TROUBLE SHOOTING GUIDE PROBLEM PROBABLE CAUSE* REMEDY Power System: Gasoline Engine Driven Engine will not start or crank over. Battery dead. Charge or replace battery, add electrolyte if battery is new. Dirty battery connection. Clean connections. Battery cables disconnected. Connect or replace damaged cables. Engine, pump, or gearbox is seized. - Page 13 TROUBLE SHOOTING GUIDE PROBLEM PROBABLE CAUSE* REMEDY Check valve in strainer clogged. Inlet injection will not siphon chemical. Clean or replace. Rinse after each use. Chemical valve not open or clogged. Open chemical valve or clean. Strainer not submerged in solution. Submerge strainer and replenish chemical.
- Page 14 120VAC BURNER TROUBLE SHOOTING FLOW CHART BURNER DOES BURNER DOES "NOT" COME ON "NOT" TURN OFF !!CAUTION!! TURN UNIT IS THERE DIESEL FUEL OFF IMMEDIATELY AND IN THE TANK? FUEL REPAIR. INSTALL SPRAY TIP. BURNER REQUIRES 1000 PSI TO OPERATE. IF IS THE SPRAY UNIT IS EQUIPPED W/DUAL LANCE LIGHT ON THE BURNER SWITCH TURNS OFF...
- Page 15 12VDC BURNER TROUBLE SHOOTING FLOW CHART BURNER DOES BURNER DOES "NOT"TURN "NOT" COME ON !!CAUTION!! TURN UNIT OFF IMMEDIATELY AND IS THERE DIESEL FUEL IN THE TANK? FUEL REPAIR INSTALL SPRAY TIP. BURNER REQUIRES 1000PSI TO OPPERATE. IF THE UNIT IS DISCONNECT THE WIRE(S) FROM IS THE SPRAY EQUIPED W/DUAL LANCE WAND CLOSE THE...
-
Page 23: Service Record
SERVICE RECORD MODEL#_______SERIAL# __________ Date of Service Number of Run Hrs. Service Performed Mo./Day/Year Since Last Service... -
Page 24: Service/Maintenance Information
MAINTENANCE INFORMATION PREVENTATIVE MAINTENANCE: equipment. Contact your dealer for maintenance. A small investment in preventative maintenance will add many While your power washer has been produced with hours to the life of your pressure washer. Perform main- quality materials and craftsmanship, you as the owner have certain responsibilities for the correct care of the equip- tenance more often under severe conditions.
