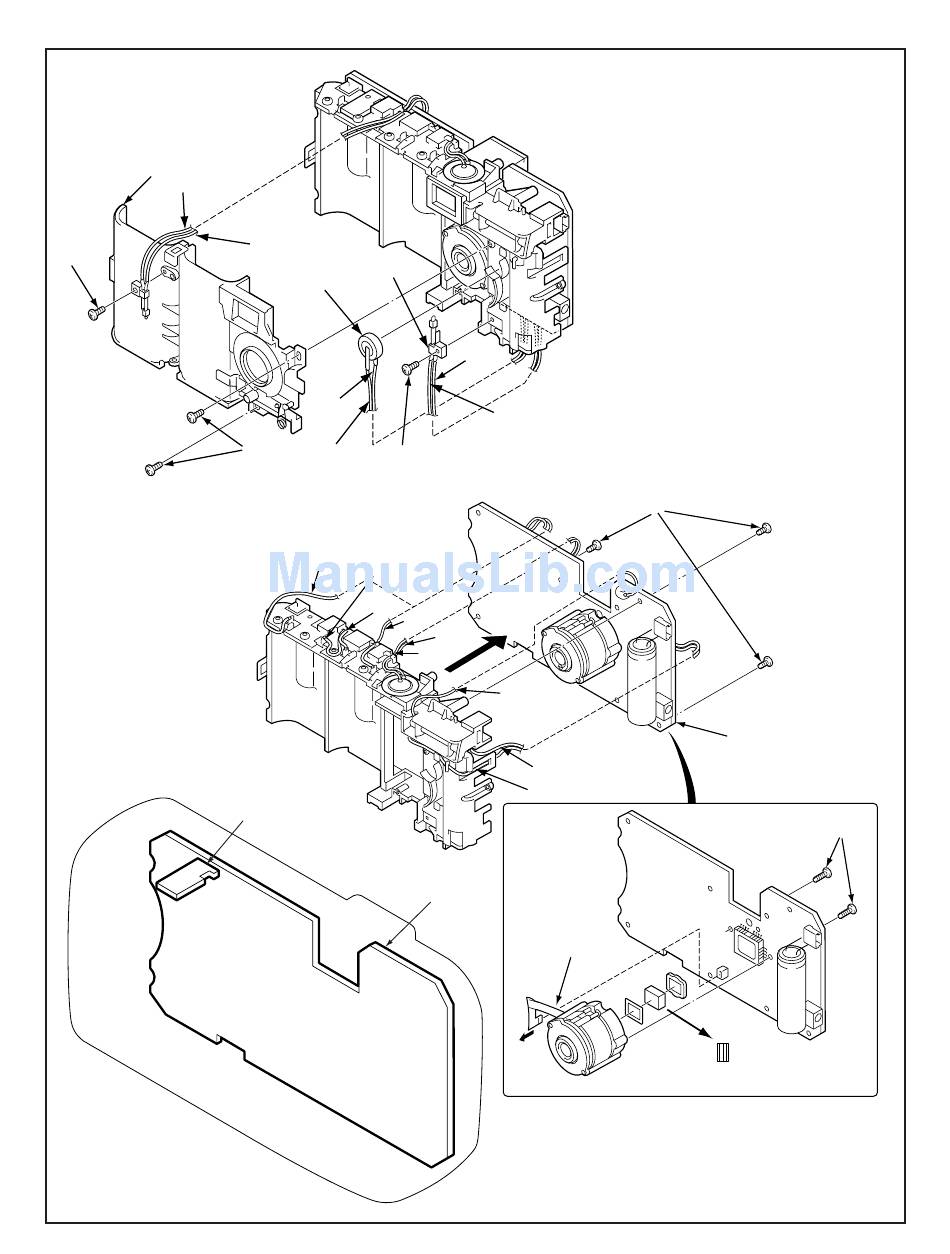

2-2. REMOVAL OF HOLDER CHASSIS, LENS ASSEMBLY, CP1 BOARD AND BOARD LOCATION
3
yellow
1
TB1 board
white
6
4
gray
2
blue
5
red
black
red
black
red
CP1 board
pink
violet
black
gray
black
red
9
– 12 –
1. Screw 1.7 x 3
2. Two screws 1.7 x 4
3. Holder chassis B
4. DL-elect
5. Screw 1.7 x 3
6. Switch leaf
7. Three screws 1.7 x 4
8. Two screws 1.7 x 5
9. FPC
10. CP1 board
7
10
Lens
CCD
8
