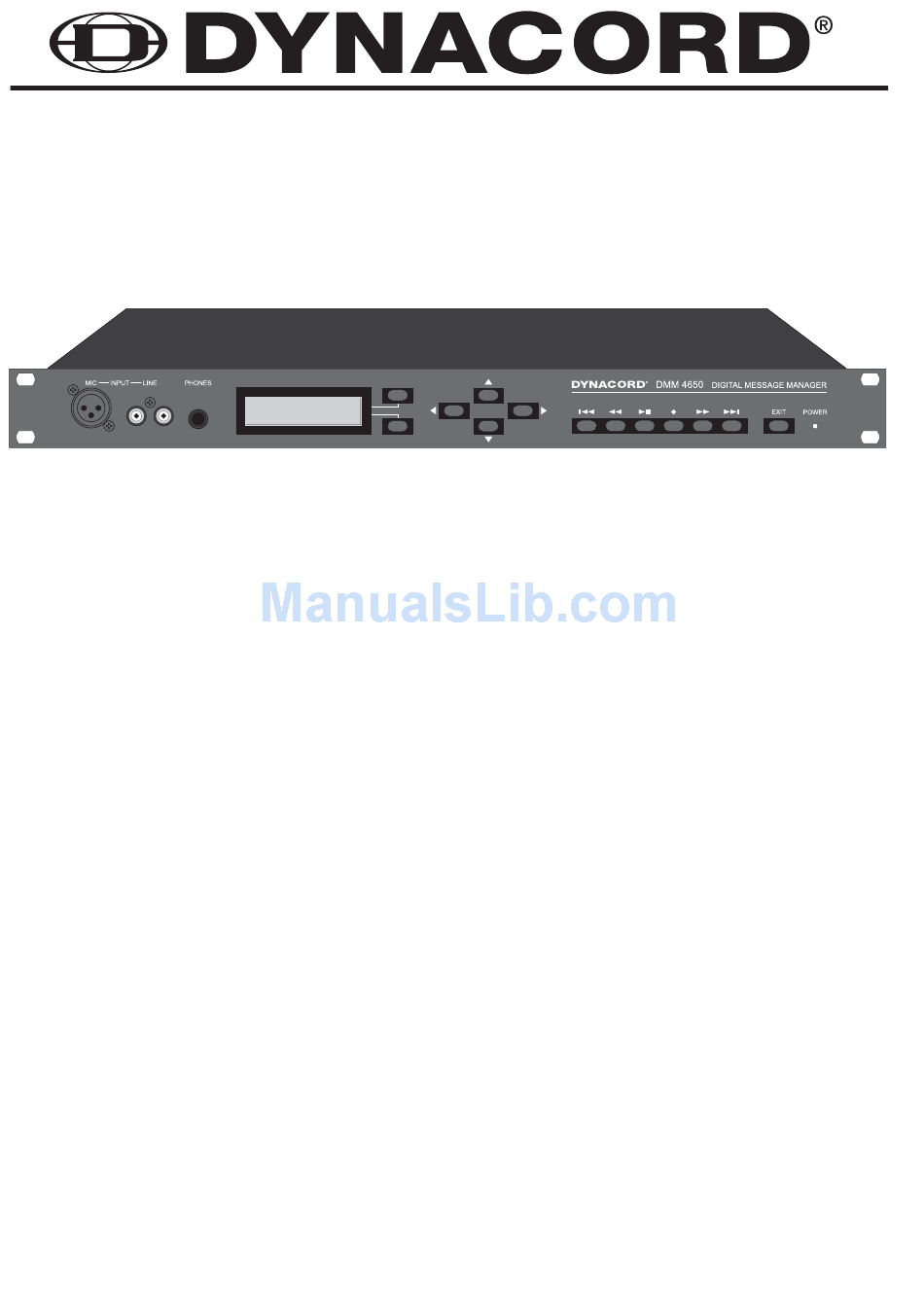

Dynacord DMM 4650 Technical Information
Signal processor
Hide thumbs
Also See for DMM 4650:
- Owners & installation manual (54 pages) ,
- Owner's manual (55 pages)
Table of Contents
Advertisement
Quick Links
Technical Information
Description
The DMM 4650 is a signal processor, allowing an universal generation and
control of audio signals. The main application is for PA racks, but stand-
alone applications are possible as well. The audio signals can consist of
alarm, gong, messages and also random combinations. These programs
were created by Dynacord and stored as presets.
The audio quality of the messages can be selected depending on memory
extension and different user requirements. With maximum memory exten-
sion, a total recording time of 16 minutes is possible. Password protection
is provided. The operation is easy, like cassette recorders or CD players.
A computer interface allows saving and loading of unit confi gurations and
message data.
In order to ensure function reliability, a self-test and a audio data verifi cati-
on is installed. The alarm takes place via an own output "Fault/Error". The
device is maintenance-free because no battery or accumulator is installed.
Installation instructions
The appliance must be protected against:
- drip or splashwater
- direct sun irradiation
- high ambient temperature or direct infl uence of heat sources
- high air humidity
- heavy dust deposits
- strong vibrations
If the unit is brought directly from a cold to a warm place, dampness can
precipitate on the inner parts. The unit may only be put into operation after
it has warmed up to the ambient temperature (approx. after one hour).
Should an object or liquid get into the case, disconnect the unit from
the current sources immediately and have the device checked by a
DYNACORD service center, before further use.
Do not use any sprays to clean the unit, as these can damage it, perhaps
causing it to ignite suddenly.
CONTENTS
Description.................................................... 18
Front Panel................................................... 20
Rear Panel................................................... 20
Specifi cations DMM 4650............................ 21
List Factory Sequeces................................. 22
Installation example..................................... 23
Dimensions.................................................. 35
18
DMM 4650
Advertisement
Table of Contents
Related Manuals for Dynacord DMM 4650
Summary of Contents for Dynacord DMM 4650
-
Page 1: Table Of Contents
DMM 4650 Description CONTENTS The DMM 4650 is a signal processor, allowing an universal generation and control of audio signals. The main application is for PA racks, but stand- Description............ 18 alone applications are possible as well. The audio signals can consist of Front Panel........... -
Page 2: Important Safety Instructions
Due to the differences in each EU country’s management of WEEE, please contact your local distributor. We are committed to facilitate our own electronic-waste-management-system, for the free of charge return of all EVI Audio GmbH products: Telex, Dynacord, Electro-Voice, Midas Consoles, KlarkTeknik and RTS. Arrangements are made with the dealer where you purchased the equipment from, for the returning of all unusable equipment at no cost, to the factory in Straubing, for environmental protective disposal. -
Page 3: Frontpanel
9. POWER 4. MULTIFUNCTIONAL DISPLAY The LED lights up if the DMM 4650 is ready for operation. Back-lit LC display, 2 lines with 16 characters each. Dis- If the LED blinks please call a DYNACORD service cen- ter immediately. -
Page 4: Specifi Cations Dmm 4650
Specifi cations DMM 4650 Operating Voltage 21.6 - 31.2V DC Power consumption max. 18 watts (without retrofi tting kits 90204) Input voltage Input 0.775V/0dBu *Line Input 0.775V/0dBu *Rec Input 0.775V/0dBu *Mic Input 1.4mV/ -54dBu at 600 ohms Max. Input voltage Input 3.8V/+14dBu... -
Page 5: List Factory Sequeces
LIST FACTORY SEQUENCES Sequence Title Description Priority Stopp trigger S 20 “Stop all” Stops all running sequences S 21 “Alarmtxt” Start alarm text (message 00) once S 22 “DIN-ALrm” Start continuous DIN alarm (siren 1200 Hz - 500 Hz, 1 sec. Each) S 23 “DIN-ALrm”... -
Page 6: Installation Example
4-tone gong: Input (impulse) for starting 4-tone gong (G20). Pre-gong: Input (static), key pressed starts pre-gong and enables announcement via DMM 4650, key released fi nishes this sequence. OUTPUTS: All outputs are fl oating relay contacts. System on: Switches on PA system. -
Page 7: Programming Examples For The Dmm 4650
The following examples are based on the assumption that the appliance's mode is set as follows: Software revision 1.1 (page 22), the DMM 4650 is in the factory-preset mode (page 27 and page 36), operation is performed in the user level 3 status (page 10). - Page 8 You have to perform a short test, speaking into the recordlevel microphone with a normal talking level and in an test <min! appropriate distance. Whenever the display changes from "<min" to "norm" the mic level is within the relevant recordlevel range.
- Page 9 Ù The name ("Message") with a maximum length of eight Messg title Ø characters can now be changed as desired. Using the × ‘Message ‘ soft key "A-a" lets you choose between the upper and Ú the lower character set. By pressing the "spc" (space) key you can enter spaces.
- Page 10 Ù Press the indicated cursor key to have the "1" blink. steplist Ø × 1:OutA.1 set Ú Ù Press the indicated cursor key to select relay 2. steplist Ø × 1:OutA.2 set Ú Ù This completes the programming of the relay contact 2 steplist Ø...
- Page 11 After showing a short message that Sequence Sequence storing was successful, the display saved steplist returns to the start-screen of the sequence. Naming The Sequence, Title In case you want to give the new sequence its own name, you have to follow this procedure: Ù...
- Page 12 Ù Pressing the indicated key sets the cursor to the number starttrg B.1 set mark of the input. × Ø H >00,1s dyn S23 Ú Ù Select the input 4 by pressing the indicated cursor key. starttrg B.4 set The bottom line of the display shows the momentary Ø...
- Page 13 You want to activate a factory preset alert using another key than pre-programmed. Summary Employing a previously unused input (e. g. B3) you want to trigger included DIN-alert of the DMM 4650. The functioning of the input A4 which is already utilized for the DIN-alert has to be maintained. The new, additional start-key has been already connected to the port B, input 3 (page 30).
- Page 14 (page 10) and confirm your × **** action with the "ok"-button. Ú If you have entered the correct password, Dynacord DMM4650 Main-Menu the display briefly shows this message and Userlevel 3 System-Setup then returns to the main menu.
- Page 15 Ù Pressing the indicated cursor key displays step 4 which steplist Ø stays unchanged (relay contact B2 for obligatory × 4:OutB.2 set reception activated). Ú Ù Pressing the indicated cursor key displays step 5 which steplist Ø stays unchanged (relay contact B3 for obligatory ×...
- Page 16 Naming The Sequence, Title In case you want to give the new sequence its own name, you have to follow this procedure: Ù Pressing the indicated cursor key enters the title-menu. Sequence Pressing the soft key "ok" prepares the system for the Ø...
- Page 17 Ù Select the input 4 by pressing the indicated cursor key. starttrg B.4 set The bottom line of the display shows the momentary × Ø H >00,1s dyn S26 setting for the port B, input 4, which would start the Ú...
-
Page 18: Dimensions
Abmessungen/Dimensions... - Page 19 Bosch Communications Systems Asia & Pacifi c Rim–Headquarter Asia Americas–Headquarter Americas Europe, Africa & Middle-East Telex Communications, Inc. Headquarter EAME Singapore: Telex Pte. Ltd. 12000 Portland Ave South, 3015A Ubi Road 1 EVI Audio GmbH Burnsville, MN 55337, USA Hirschberger Ring 45, D-94315, 05-10 Kampong Ubi Industrial Estade USA–Ph: 1-800-392-3497 Straubing, Germany...
