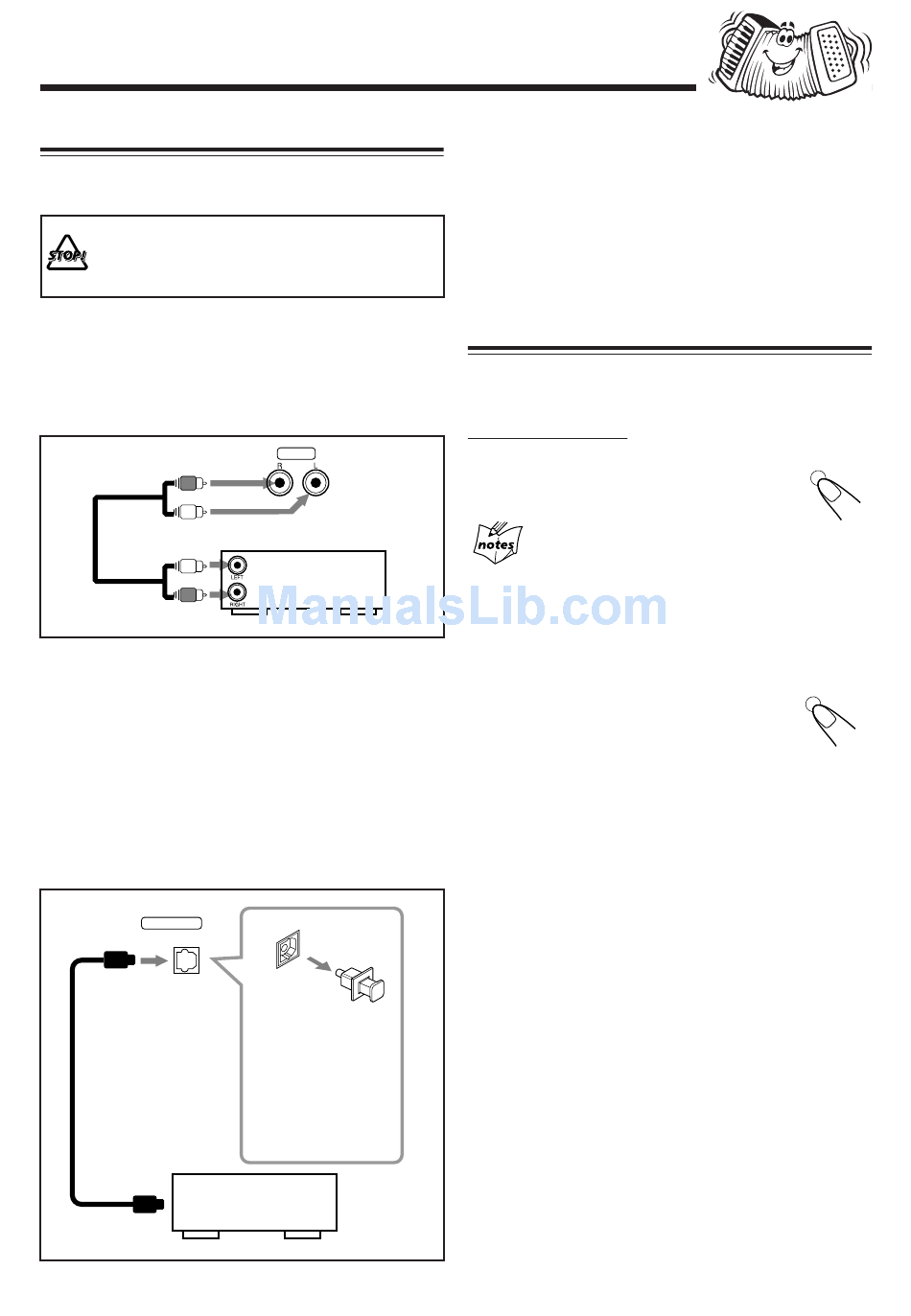

Connecting Other Equipment

You can connect both analog and digital equipment.
• DO NOT connect any equipment while the power
is on.
• DO NOT plug in any equipment until all
connections are complete.
To connect an analog component
Be sure that the plugs of the audio cords are color coded:
White plugs and jacks are for left audio signals, and red ones
for right audio signals.
To audio output
For playing the other equipment through this unit,
connect between the audio output jacks on the other
equipment and AUX IN jacks by using audio cords (not
supplied).
To connect audio equipment with an optical digital
input terminal
You can record CD sound onto the connected digital
equipment.
DIGITAL OUT
[ OPTICAL ]
Audio equipment
with an optical digital
input
To optical
digital input
AUX IN
Audio/video
equipment
Protective
plug
Before connecting
the other equipment,
remove the
protective plug from
the terminal.
Connect an optical digital cord (not supplied) between the
optical digital input terminal on the other equipment and the
DIGITAL OUT [OPTICAL] terminal.
NOW, you can plug in the unit and other
connected equipment FINALLY!

Cancelling the Display Demonstration

When connecting the AC power cord into a wall outlet, the
unit automatically starts display demonstration.
On the unit ONLY:
To cancel the display demonstration, press
DEMO.
When you press other buttons
The display demonstration stops temporarily. It will start
automatically again (if no operation is done for 2 minutes) until you
cancel it by pressing DEMO.
To start the display demonstration manually
Press and hold DEMO again for more than 2
seconds.
– 8 –
CANCEL
/DEMO
CANCEL
/DEMO
