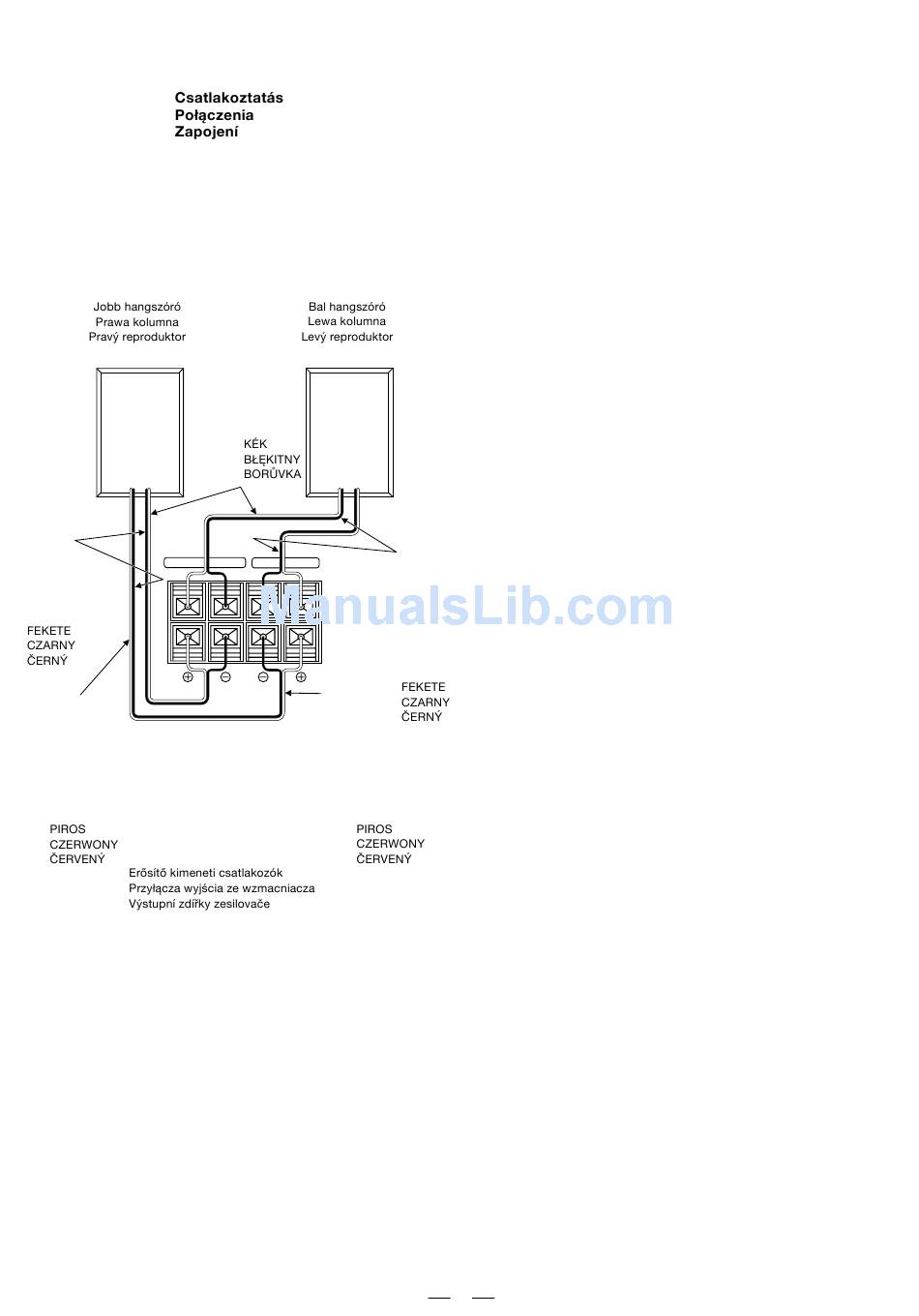

Connection Ansluiting
Anschluß Liitäntä
Raccordement Tilslutning
Aansluiting
Conexión
Collegamento
Right speaker
Rechter Lautsprecher
Enceinte de droite
Rechter spreker
Altavoz derecho
Altoparlante destro
Höger högtalare
Oikea kaiutin
Højre højttaler
R
BLUE
BLAU
BLEU
BLAUW
AZUL
BLU
BLACK
SCHWARZ
NOIR
ZWART
NEGRO
MAIN SPEAKER
NERO
SVART
L
MUSTA
SORT
R
RED
ROT
ROUGE
Amplifier output terminals
ROOD
Ausgang des Verstärkers
ROJO
Bornes de sortie de l'amplificaterur
ROSSO
Uitgangsaansluitengen van de versterker
RÖD
Terminales de salida de amplificador
PUNAINEN
Terminali de uscita dell'amplifcator
RØD
Utgångar på förstärkaren
Vahvistimen ulostuloliittimet
Forstærkerudgangsbøsninger
Left speaker
Linker Lautsprecher
Enceinte de gauche
Linker spreker
Altavoz izquierdo
Altoparlante sinistro
Vänster högtalare
Vasen kaiutin
Venstre højttaler
L
BLA
SININEN
BLA
BLACK
SUBWOOFER
SCHWARZ
NOIR
L ZWART
NEGRO
NERO
SVART
R
MUSTA
SORT
RED
ROT
ROUGE
ROOD
ROJO
ROSSO
RÖD
PUNAINEN
RØD
CONNECTION
• DO NOT use other amplifier to operate this speaker system
except for CA-MXG51R.
• Turn off power to the whole system before connecting the
speakers to the amplifier.
• The maximum power handling capacity of the CA-MXG51R
main speaker is 40 W Subwoofer is 80 W. Excessive input will
result in abnormal noise and possible damage. In cases where
the signals described below are applied to the speakers, even
if the signals are below the maximum allowable input, they
may cause an overload and burn the wiring of the speakers.
Be sure to lower the amplifier volume beforehand.
1) Noise during FM tuning.
2) High level signals containing high frequency components
produced by a tape deck in the fast forward mode.
3) Click noise produced when turning power of other compo-
nents on and off.
4) Click noise produced when connecting or disconnecting
cords with the power on.
5) Click noise produced when the cartridge is replaced with
the power on.
6) Click noise produced when operating amplifier switches.
7) Continuous high frequency oscillation or high pitch electroni-
cally produced musical instrument sound.
8) Howling when using a microphones.
SPECIFICATIONS
Type
Speakers:
Subwoofer
Main woofer
Tweeter
Power Handling Capacity:
Subwoofer
Main Speaker
Impedance:
Subwoofer
Main Speaker
Frequency Range:
Subwoofer
Main Speaker
Sound Pressure Level:
Subwoofer
Main Speaker
Dimensions (W × H × D)
Mass
Design and specifications subject to change without notice.
2
: 3-way 3-speaker Bass-Reflex
Type
Twin Hyper Power-Drive
Subwoofer
: 13.5 cm (5-3/8 in.) cone × 1
: 13.5 cm (5-3/8 in.) cone × 1
: 5.0 cm (2 in.) cone × 1
: 80 W
: 40 W
: 6 Ω
: 4 Ω
: 26 Hz — 92 Hz
: 92 Hz — 20 000 Hz
: 75 dB/W·m
: 88 dB/W·m
: 275 mm × 317 mm × 309 mm
(10-11/16 in. × 12-1/2 in. × 12-3/16 in.)
: 5.0 kg (11.0 lbs) each
