Summary of Contents for CTS SWH-2024D

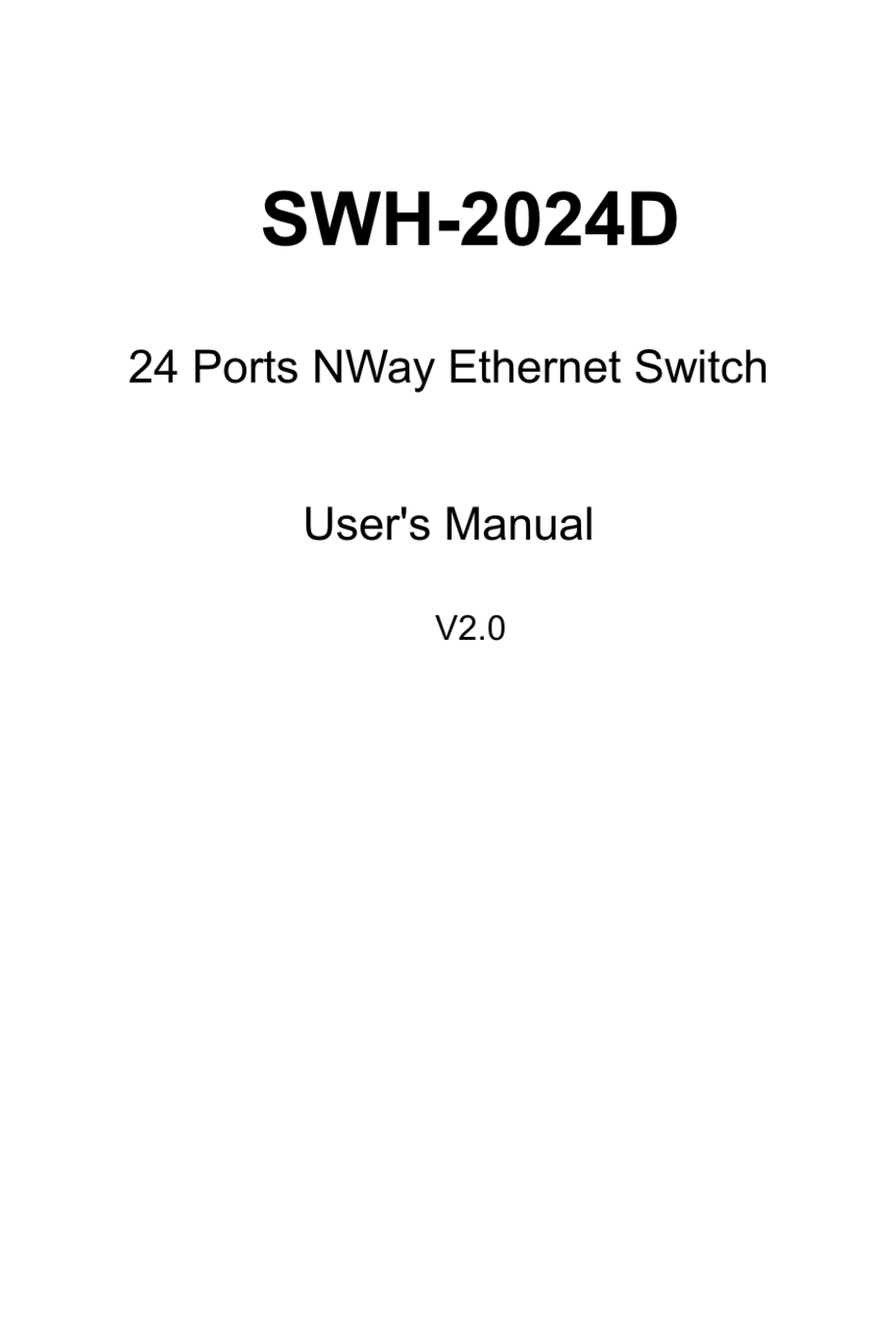

  • Page 1        ...

  • Page 2: Fcc Warning

    FCC Warning This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limitations are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if no installed and used in accordance with the instructions, may cause harmful interference to radio communications.
  • Page 3 VLAN/Trunk Mode Button 2.3.5 Reset Button The Rear Panel 2.4.1 Power Connecting 2.4.2 Console Port 3. Installing And Using SWH-2024D NWay Switching Hub Installing The SWH-2024D NWay Switching Hub 3.1.1 Desktop Installation 3.1.2 Rack-Mount Installation 3.1.3 Installing Network Cables 3.1.3.1 Station Connection with Twisted-Pair Cable 3.1.3.2...

  • Page 4: Unpacking Information

    1. Unpacking Information Thank you for purchasing the SWH-2024D NWay switching hub. Before you start, please check all the contents of this package. The product package should include the following: 1. One SWH-2024D NWay switching hub 2. One power cord 3.

  • Page 5: Introduction To Swh-2024D Nway Switching Hub

    2. Introduction To SWH-2024D NWay Switching Hub 2.1 General Description The device is a powerful, high-performance Fast Ethernet switching hub, with all 24 ports capable of 10 or 100Mbps auto-negotiation operation (NWay) which means the switch could automatically negotiate with the connected partners on the network speed and duplex mode.

  • Page 6: Key Features

    2.2 Key Features The switching hub provides the following key features: !" Complies with 10BASE-T specifications of the IEEE802.3 standard !" Complies with 100BASE-TX specifications of the IEEE802.3u standard !" Twenty-four RJ-45 ports for 100Base-TX and 10Base-T connectivity !" Supports NWay protocol for speed (10/100Mbps) and duplex mode (Half/Full) auto-detection !"...

  • Page 7: System Leds

    2.3.1 System LEDs System LED indicators are located on the front panel for showing the operating status of the whole device. 2.3.1.1 Power LED This indicator lights green when the hub is receiving power; otherwise, it is off. 2.3.1.2 Module/Fiber Link LED When the fiber optional module slide into the system then the module LED will be green.

  • Page 8: Fdx/Col Led

    If the port is connected but the Link/Activity LED is dark, check the following items: 1. The switching hub and the connected device’s power are on or not 2. The port’s cable is firmly seated in its connectors in the switching hub and in the associated device.

  • Page 9: Power Connecting

    2.4.1 Power Connecting For compatibility with electric service in most areas of the world, the switching hub’s power supply automatically adjusts to line power in the range 100~240 VAC and 50~60 Plug the female end of the power cord firmly into the receptacle on the rear panel of the switching hub.

  • Page 10: Installing And Using Swh-2024D Nway Switching Hub

    3. Installing And Using SWH-2024D NWay Switching Hub 3.1 Installing The SWH-2024D NWay Switching Hub The hub does not require software configuration. Users can immediately use any of the features of this product simply by attaching the cables and turning the power on.

  • Page 11: Installing Network Cables

    3.1.3 Installing Network Cables After placing the hub on the desktop, then we need to know how to connect the device to network. 3.1.3.1 Station Connections with Twisted-Pair Cable Connect each station to the hub by a twisted-pair straight cable (10BASE-T or 100BASE-T cables).

  • Page 12: Network Application

    3.1.3.3 Network Application...

  • Page 13: Filtering And Forwarding

    4. Switch Operation MAC Address Table and Learning The switching hub is implemented with a MAC address table which is composed of many entries. Each entry is used to store the address information of network nodes on the network, including MAC address, port ID, etc. The information is the most important base to do packet filtering and forwarding.

  • Page 14: Console Program

    5. Console Program The SWH-2024D Switch has an RS-232 console port for direct console management Pin Description DCD (Data Carrier Detect) RX (Receive) TX (Transmit) DTR (Data Terminal Ready) GND (Ground) DSR (Data Set Ready) RTS (Request To Send) CTS (Clear To Send)
  • Page 15 After power on, the Switch will run the Power-On-Self-Test (POST) as following: CopyRight © 1998, 24 ports 10/100Mbps Switch Console Program (v1.00) •••••••••••••••••••••••••••••••••••••••••••••••••••   ••••••••••••••••••••••••••••••••••••••••••••••••    •••••••••••••••••••••••••••••••••••••••••••••••••   ••••••••••••••••••••••••••••••••••••••••••••••   ••••••••••••••••••••••••••••••••••   •••••••••••••••••••••••••••••••••••••••••••••••••••        ! If any test item is failed then the POST program will stop and please contact your dealer to solve the issue.
  • Page 16 After you login the console program successfully, the first startup screen will show as below CopyRight © 24 ports 10/100Mbps Switch Console Program (v1.00) Port Status/Configuration 2. Unit/VLAN Information 3. Trunk Ports Configuration 4. Password Change 5. Warm Start 6. Factory Reset “TAB”...
  • Page 17 The following is the function keys to navigate the console program screens To do this … Control Key Highlight an item Tab, moves from one item to the other or one field to the other Select an item Enter Toggle between items in a choice field Spacebar Move to next field or item The following are screens for console program.
  • Page 18 Port Speed: The item is showing current link speed between the UTP port and the connected partner The second portion is [Port Configuration] and users could use "SPACE" bar to change the setting. For example: Port Full Duplex: Full-duplex capability of the port could be enabled or disabled. NOTE: When the NWay capability is enabled, the full-duplex mode could not be disabled Port NWay Support: This item is used to setup the NWay capability of the UTP port...
  • Page 19 Unit/VLAN Information CopyRight © 1998, 24 ports 10/100Mbps Switch )    )  +(,  - ,.  / .0123456701234567000001 /  /  / # / & / ! ,.     / .%8 ' / % ' / % ' / #% ' / &% ' / !% ' SAVE EXIT “<”, “>” : Prev/Next Port “TAB” Select item “SPACE” Toggle item From the Unit/VLAN Information screen, you could read the system hardware version and the virtual LAN setting information.
  • Page 20 3. If the trunk is enabled then all the ports belong to that trunk need to be set in the same virtual workgroup. For example: <Assumption> Trunk A is enabled (Trunk A includes port 1, 2, 13, and 14) <VLAN setting> When the virtual LAN is setup, the port 1, 2, 13, and 14 must belong to the same VLAN groups.

  • Page 21: Password Change

    Password Change CopyRight © 1999, 24 ports 10/100Mbps Switch Password Change Current Password: Valid Characters: 0-9, A-Z, a-z New Password: Re-Confirm New Password: NOTE: The maximum length of password is 15 characters and only the following characters are allowed in the password: 0-9, A-Z, a-z Warm Start CopyRight ©...

  • Page 22: Product Specifications

    6. Product Specifications Standard IEEE802.3, 10BASE-T IEEE802.3u, 100BASE-TX Interface RJ-45 x 24 NWay switching ports One uplink port (an alternative to port 24) One slide-in module for fiber connection on the back One RS-232 console port Cable Connections RJ-45 (10BASE-T) : UTP Category 3,4,5 RJ-45 (100BASE-TX) : UTP Category 5 Network Data Rate Auto-negotiation (10Mbps, 100Mbps)
