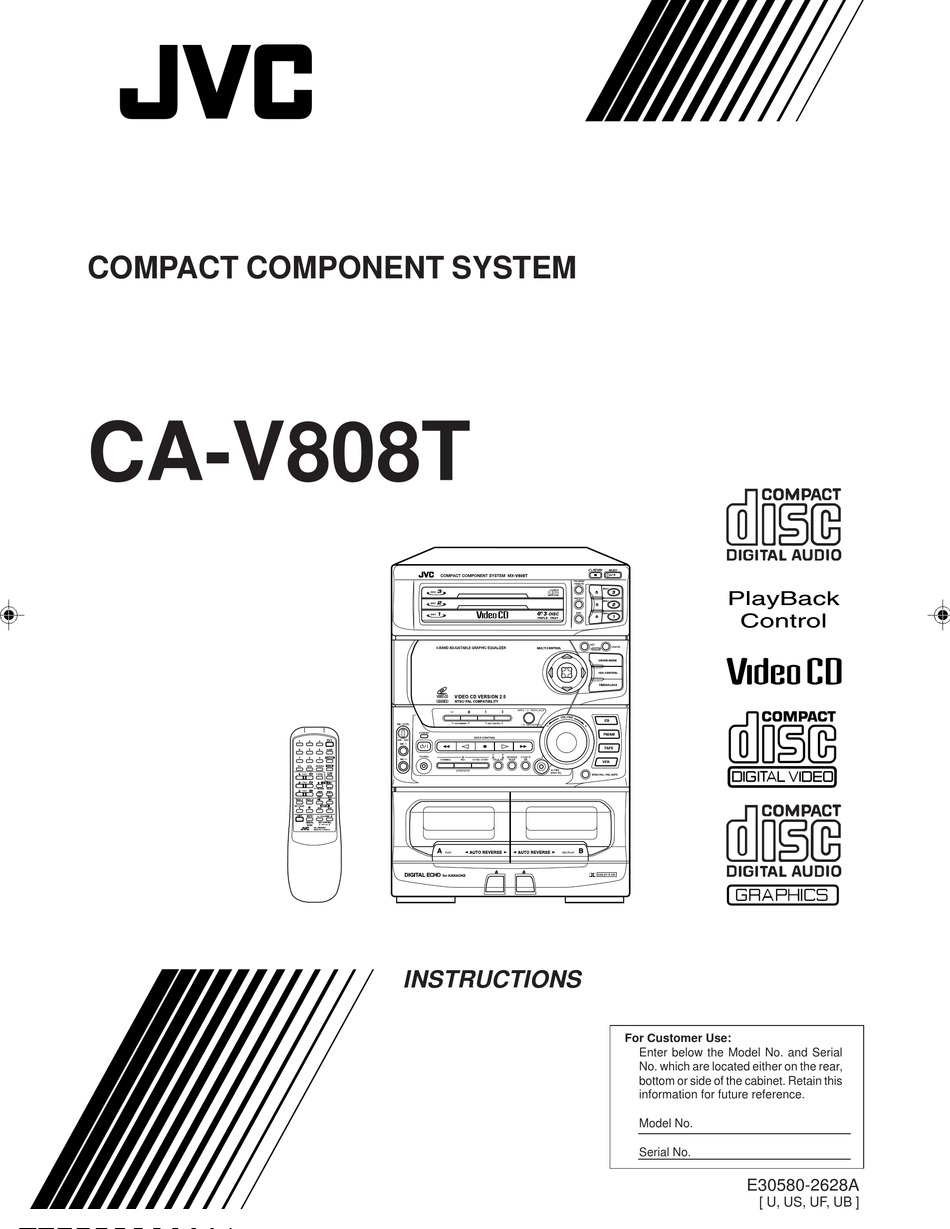

COMPACT COMPONENT SYSTEM
CA-V808T
8
INSTRUCTIONS
MPX / V. REPLACE
/ V. MASKING
For Customer Use:
Enter below the Model No. and Serial
No. which are located either on the rear,
bottom or side of the cabinet. Retain this
information for future reference.
Model No.
Serial No.
'
'
E30580-2628A
[ U, US, UF, UB ]
Advertisement
Table of Contents
Related Manuals for JVC CA-V808T
Summary of Contents for JVC CA-V808T
- Page 1 COMPACT COMPONENT SYSTEM CA-V808T MPX / V. REPLACE / V. MASKING INSTRUCTIONS For Customer Use: Enter below the Model No. and Serial No. which are located either on the rear, bottom or side of the cabinet. Retain this information for future reference.
- Page 2 Advertências, precauções e outras notas IMPORTANT for the U.K. DO NOT cut off the mains plug from this equipment. If the plug fitted is not suitable for the power points in your home or the cable is too short to reach a power point, then obtain an appropriate safety approved extension lead or consult your dealer.
-
Page 3: Laser Product
IMPORTANT FOR LASER PRODUCTS / IMPORTANTE PARA PRODUCTOS LÁSER / IMPOTANTE PARA PRODUTOS LASER / REPRODUCTION OF LABELS / REPRODUCCIÓN DE ETIQUETAS / REPRODUÇÃO DE ETIQUETAS 1 CLASSIFICATION LABEL, PLACED ON REAR ENCLO- SURE 1 ETIQUETA DE CLASIFICACIÓN, PEGADA EN LA PARTE POSTERIOR DE LA CAJA 1 ETIQUETA DE CLASSIFICAÇÃO LOCALIZADA NA PARTE POSTERIOR DA CAIXA DO APARELHO. - Page 4 No se debería colocar nada en las áreas y las distancias que se detallan a continuación. 15 cm 15 cm 1 cm 15 cm 1 cm 15 cm CA-D3S CA-V808T 15 cm 15 cm 15 cm 15 cm CA-D3S CA-V808T 10 cm 10 cm...
-
Page 5: Features
With the One Touch Operation feature of JVC’s COMPU PLAY you can turn on the • CA-V808T and start the radio, the Cassette Deck, or the Video CD Player with a single touch. You can use the MULTI CONTROL stick to set the Video CD Player, Tuner, Timer, and Sound •... -
Page 6: Table Of Contents
Adjusting the Brightness of the Display ... 7 Using the Amplifier ... 8 Turning the Power On and Off ... 8 Turning the CA-V808T On ... 8 Turning the CA-V808T Off ... 8 Adjusting the Volume ... 9 Muting Function ... 9 Sound Modes ... -
Page 7: Getting Started
220V 110V Set the correct voltage for your area with the VOLTAGE SELECTOR switch on the back panel of the CA-V808T. Use a screwdriver to rotate the selector so the number the arrow is pointed at - 240V 127V is the same as the voltage. -
Page 8: Using The Remote Control
Before attaching a 75 ohm coaxial lead (the kind with a round wire going to an outside antenna), disconnect the supplied FM Wire Antenna. CAUTION: To avoid noise, keep antennas away from metallic parts of the CA-V808T, connecting cord and the AC power cord. MPX / V. REPLACE / V. -
Page 9: Connecting The Am Antenna
For each speaker, connect one end of the speaker wire to the speaker terminals on the back of the CA-V808T and the other end to the speaker. 1. Open each of the terminals and insert the speaker wires firmly (be sure to remove the insulation at the end of each wire first), then close the terminals. -
Page 10: Connecting A Tv
Connect the video input jack on the TV and the VIDEO OUT jack, using the video cord (optional). Connecting a VCR Connect a VCR to the VCR terminal. AUDIO OUT Now you can plug the AC power cord into the wall outlet, and your CA-V808T is at your command! ANTENNA (75 ) LOOP... -
Page 11: Demo Mode
DEMO Mode When the CA-V808T is connected to an AC power outlet, a DEMO mode displaying some of the system’s features automatically starts. The DEMO display cycles through the following items repeatedly. • Scrolling display of “DEMO MODE START”. •... -
Page 12: Using The Amplifier
STANDBY The display comes on and the STANDBY indicator goes out. The CA-V808T comes on ready to continue in the mode it was in when the power was last turned off. If the last thing you were doing was listening to a tape in Deck B, you are now ready to listen to a tape again in Deck B, or you can change to another source. -
Page 13: Adjusting The Volume
Sound Modes The CA-V808T has some preset sound effects that give you control of the way your music sounds, so you can tailor it for your room and for the quality of the source. We can give you some idea of how each one affects the music, but the only way to really tell is to try them yourself. -
Page 14: Selecting A Sound Mode
Selecting a Sound Mode —————————————————————— Using the Unit Press the SOUND MODE button. SOUND MODE The currently selected Sound mode appears on the display. The MULTI CONTROL indicators light up to indicate the directions in which you can use the SEA CONTROL controller. -
Page 15: Customizing A Sound Mode
Customizing a Sound Mode ————————————————————— You can change an existing sound mode to suit your own preferences. These changed setting can be stored in the CA-V808T’s sound mode memory. Select the sound mode you want to change. Press the SEA CONTROL button. -
Page 16: Using A Vcr
Using a VCR Listening to a VCR ———————————————————————— By playing the sound from VCR through the CA-V808T, you can gain control over how the music or program sounds. Once the connected equipment is playing through the CA-V808T, you can apply the sound mode effects. -
Page 17: Karaoke (Sing Along) With Conventional Audio Cds Or Tapes
Karaoke (Sing Along) With Conventional Audio CDs or Tapes Singing Along with Karaoke Turn the MIC LEVEL control to MIN. Connect the microphone (not supplied) by plugging it into the MIC jack on the front panel. Press the MPX/V.REPLACE/V.MASKING button. The currently selected mode appears on the display. -
Page 18: Singing Along With Multiplex Karaoke Video Cds Or Cd-Gs
To prevent howling and squealing (feedback) when using the microphone, adjust the MIC LEVEL control and the VOLUME control. Also, try to avoid pointing the microphone towards the speakers. When two microphones are connected, turn the microphone ON/OFF switch for the microphone that is not being used to OFF. -
Page 19: Adjusting Music Key
Adjusting Music Key You can change the key in which the music plays. . Press the KEY CONTROL buttons ( you can change the key on the remote control unit also. . Holding down the SHIFT button, press the KEY CONTROL buttons ( Control. -
Page 20: Using The Tuner
TUNED REPEAT STEREO 15 16 ALL 1 CD AUTO When the CA-V808T is being used, the display shows other items as well. However, we have only shown the items described in this section. SET/DEMO FM/AM MULTI CONTROL indicator TUNER SOUND... -
Page 21: Tuning In A Station
Tuning in a Station Press the FM/AM button (or the TUNER button on the Remote Control) to turn on the radio. FM/AM The Frequency of the previously selected channel appears on the display. Switching between Frequency Bands ————————————————— Press the FM/AM button. Each time you press the button, the band alternates between FM and AM. -
Page 22: To Change The Fm Reception Mode
Repeat steps 1 - 5 for each station you want to store in memory with a preset number. CAUTION: If the Unit is unplugged or if a power failure occurs, the preset stations will be erased after a few days. If this happens, preset the station again. To Change the FM Reception Mode When an FM stereo broadcast is hard to receive or noisy, press the FM MODE button on the FM MODE... -
Page 23: Using The Video Cd Player
Before Using the Video CD Player (important!) Setting TV system The CD player of the CA-V808T can play back video CDs or CD graphic discs (CD-G) as well as audio CDs. Before enjoying video CDs or CD graphic discs, you must select NTSC, PAL or PAL AUTO system according to your TV system . - Page 24 Disc marker The CA-V808T’s Video CD Player has an Automatic Changer with 3 disc trays. You can use Continuous, Random, Program or Repeat Play for the discs in DISC-1, DISC-2 and DISC-3. Repeat Play can repeat all the tracks on all the CD’s, the tracks on one of the CD’s or one track on one CD.
-
Page 25: The Quickest Way To Start A Cd Is With The One Touch Operation
To put an 8 cm CD into a tray, insert it so that it is aligned with the groove in the tray’s center. “OPEN” appears in the display when a tray opens, and “CLOSE” when a tray closes. If a tray is open when the CA-V808T switches to Standby mode, the tray is closed automati- cally. -
Page 26: To Play A Disc
To Play a Disc —————————————————————————— This function plays the disc in the Unit continuously. Prepare the discs. DISC DISC Press the DISC button (1-3) of the disc you want to play. DISC DISC The first track of the selected disc will begin playing. When the selected disc finishes playing, the next disc will begin playing automatically. -
Page 27: To Select A Track
To Select a Track ————————————————————————— Using the Unit Select a track by adjusting the MULTI CONTROL stick left or right. The MULTI CONTROL stick adjustments step through the tracks on the CD one track at a time. • Moving the MULTI CONTROL stick to the right selects the next track. •... - Page 28 Select a disc with the DISC buttons (1 to 3). The display changes to the Program Entry display and the disc number and track number DISC sections blink for a few seconds. DISC DISC While the display is blinking, perform the operations in steps 3 to 4. When the blinking display changes to the “PROGRAM”...
-
Page 29: To Check The Program
SELECT The Unit plays the tracks in the order you have programmed them. If you try to program a 33rd step, the CA-V808T lets you know that the program is full by displaying the message “FULL” on the display. If you try to program an disc tray that is empty, or a track number that does not exist on a disc (for example, selecting track 14 on a disc that only has 12 tracks), the selected disc or track are skipped when the program is played. -
Page 30: Repeating A Track Or The Discs
Note: Press the DISC buttons (1-3) to cancel Random play and begin playback in Continuous Play mode. Press the REPEAT button before or during random play to instruct the CA-V808T to continue with a different random track selection after the last selection is played. -
Page 31: Playing A Multiplex Sound Cd
Playing a Multiplex Sound CD You can select playback channel(s) of a CD or replace the vocal to yours. (See also “Singing along with Multiplex Karaoke Video CDs or CD-Gs” on page 14.) MPX / V. REPLACE . Press the MPX/V.REPLACE/V .MASKING button until your desired mode appears on the display. Channel modes are cycled as shown below. -
Page 32: Display Of Operations Status
. To select one of the nine (9) segments, press the number key (1 to 9) of the segment which you want to play. Notes: • When you choose a highlight it will start from five (5) seconds before the shown time below each segment. -
Page 33: Operation Of Playback Control Function
Operation of Playback Control Function Playing Video CDs With Playback Control Function This Player provides a Playback Control function which utilizes a procedure (menu selection) programmed in a video CD. The playback operation procedure may differ depending on the disc you use. -
Page 34: Video Cd With Playback Control Function
Video CD with Playback Control Function What is Playback Control function? The Playback Control function, ushering a new video CD age, allows you to enjoy menu-driven operation and high-resolution still images having a resolution four times greater than moving pictures. •... -
Page 35: Using The Cassette Deck (Listening To A Tape)
Most tapes are now recorded with the Dolby NR system, so first check which type of the Dolby NR system has been used on the tape. Only Dolby B NR is incorporated into the CA-V808T. With Automatic Tape Detection, you can listen to type I or II tapes without changing any settings. -
Page 36: One Touch Play
Deck indicator DECK A/B, that tape starts to playback. If there is no tape in the deck corresponding to the Deck indicator, the CA-V808T automatically turns on the power and displays “TAPE” then the message “NO TAPE” and waits for you to insert a tape or select another function. -
Page 37: Music Scan
Music Scan To find the beginning of a music selection during play, use the Music Scan function. Music Scan searches for blank portions that usually separate selections, then plays the next selection. To Find the Beginning of the Current Selection ————————————— 1 or ¡... -
Page 38: Using The Cassette Deck (Recording)
The recording level, which is the volume at which the new tape is being made, is automatically set correctly, so it is not affected by the VOLUME control on the CA-V808T. Thus, during recording you can adjust the sound you are actually listening to without affecting the recording level. -
Page 39: Standard Recording
Standard Recording This is the basic method for recording any source. The CA-V808T also has special ways for recording CD to tape, and tape to tape, which save you time and effort, as well as give you some special effects. However, when you need to add a selection to a tape you have made, or are combin- ing selections from several sources on one tape, use the method described below;... -
Page 40: Cd Direct Recording
“CD REC” is displayed on the display then the Unit plays the CD and starts recording. START/STOP At the end of the tape, the CA-V808T automatically goes back to the beginning of the last selection and rerecords it, this time gently fading out at the end. If you selected Reverse Mode, “TAPE SIDE-B STANDBY”... -
Page 41: Auto Edit Recording
CD. When the tape is ready, to prevent the start of a selection being cut, the CA-V808T creates a blank period of 10 seconds before it starts to record the CD. While a blank period is being created, “TAPE SIDE-A STANDBY”... -
Page 42: Tape To Tape Recording (Dubbing)
To stop at any time while recording, press the 7 button (CD control or Cassette Deck control) or the REC START/STOP button. If you press the CD control 7 button, the Cassette Deck creates a four second blank space after the Video CD Player stops. If you press any other button to stop the recording, the Video CD Player and Cassette Deck stop at the same time. -
Page 43: Using The Timers
REC (Recording) Timer — Unattended recording of radio broadcasts. You can set the starting time and length of the recording. SLEEP Timer — Fall asleep and have your CA-V808T turn off automatically after a certain length of time. Setting the Clock The timers depend on the clock: the clock must be right for the timers to work as you expect. -
Page 44: Setting The Daily Timer
CAUTION: If there is a power failure, the clock loses its setting. The display shows “0:00”, and the clock must be reset. Setting the DAILY Timer With this timer you can wake up to music from a CD, tape, your favorite radio program, or other source. - Page 45 3. Press the SET/DEMO button. If you press the SET button without selecting a disc, the last disc played by the CA-V808T will be used. 4. Adjust the MULTI CONTROL stick up or down to the select the starting track of the CD.
-
Page 46: Turning The Daily Timer On And Off
DAILY Timer function may not work properly if you are doing other operation at the time you set in the DAILY Timer. CAUTION: If the CA-V808T is unplugged, or a power failure occurs, the timer setting will be erased in a few days. If the settings are erased in this way, reset the timer settings. -
Page 47: Setting The Rec (Recording) Timer
Turn the power off if you made the timer settings with the power turned on. A few seconds before the start time for the recording, the CA-V808T automatically turns on the power, and “REC TIMER” blinks on the display. When the start time is reached, recording starts using the selected source. -
Page 48: Turning The Rec Timer On And Off
Timer was set. CAUTION: If the CA-V808T is unplugged, or a power failure occurs, the timer setting will be erased in a few days. If the settings are erased in this way, reset the timer settings. -
Page 49: Timer Priority
Timer Priority Since each timer can be set independently, you may wonder what happens if the settings overlap. Here are the priorities for each timer: The REC Timer always has priority. This means that: • If another timer is set to come on during a time when the REC Timer is operating, the other timer just won’t come on at all, so you will always get the entire program on tape. -
Page 50: Care And Maintenance
Care and Maintenance Compact Discs Handle your compact discs, cassette tapes, and Cassette Deck carefully, and they will last a long time. • Remove the CD from the case by holding it at the edges while pressing the center hole lightly. •... -
Page 51: Troubleshooting
Troubleshooting • If you are having a problem with your CA-V808T, check this list for a possible solution before calling for service. • If you cannot solve the problem from the hints given here, or the Unit has been physically damaged, call a qualified person, such as your dealer, for service. -
Page 52: Specifications
Specifications Output Power (IEC 268-3/DIN) 45 watts per channel, min. RMS, both channels driven, into Input Sensitivity/Impedance (1 kHz) CD Automatic Changer Section Design and specifications are subject to change without notice. Amplifier Section 6 ohms at 1 kHz, with no more than 0.9% total harmonic distortion. - Page 53 Mains (AC) Line Instruction (not applicable for Europe, U.S.A., Canada, Australia, and U.K.) IMPORTANT for mains (AC) line BEFORE PLUGGING IN, do check that your mains (AC) line voltage corresponds with the position of the voltage selector switch provided on the outside of this equipment and, if different, reset the voltage selector switch, to prevent from a damage or risk of fire/electric shock.
