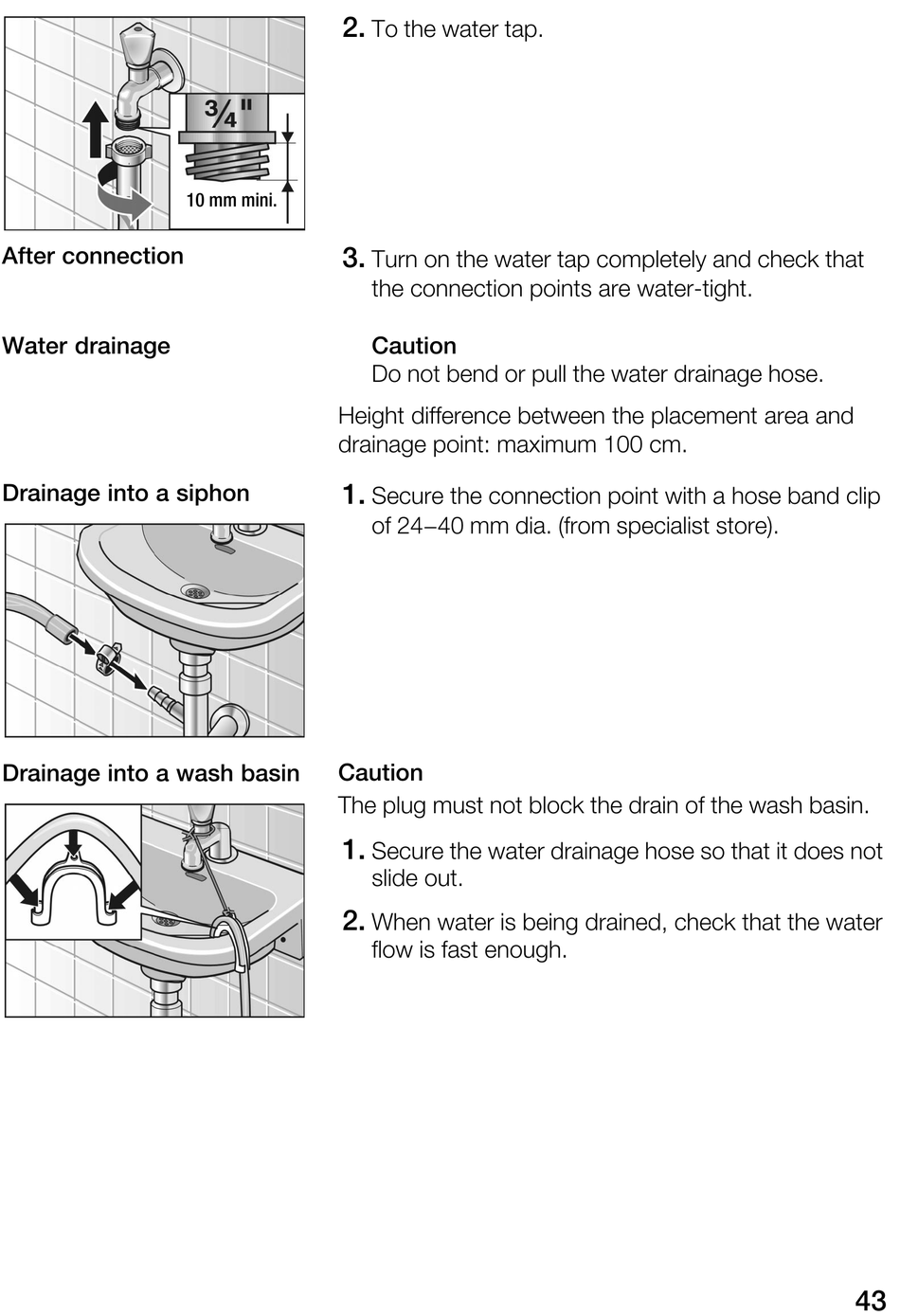

Bosch Classixx 1200 Instruction Manual page 43

After connection
Water drainage
Drainage into a siphon
Drainage into a wash basin
2.
10 mm mini.
3.
Height difference between the placement area and
drainage point: maximum 100 cm.
1.
Caution
The plug must not block the drain of the wash basin.
1.
2.
To the water tap.
Turn on the water tap completely and check that
the connection points are water tight.
Caution
Do not bend or pull the water drainage hose.
Secure the connection point with a hose band clip
of 24-40 mm dia. (from specialist store).
Secure the water drainage hose so that it does not
slide out.
When water is being drained, check that the water
flow is fast enough.
43
