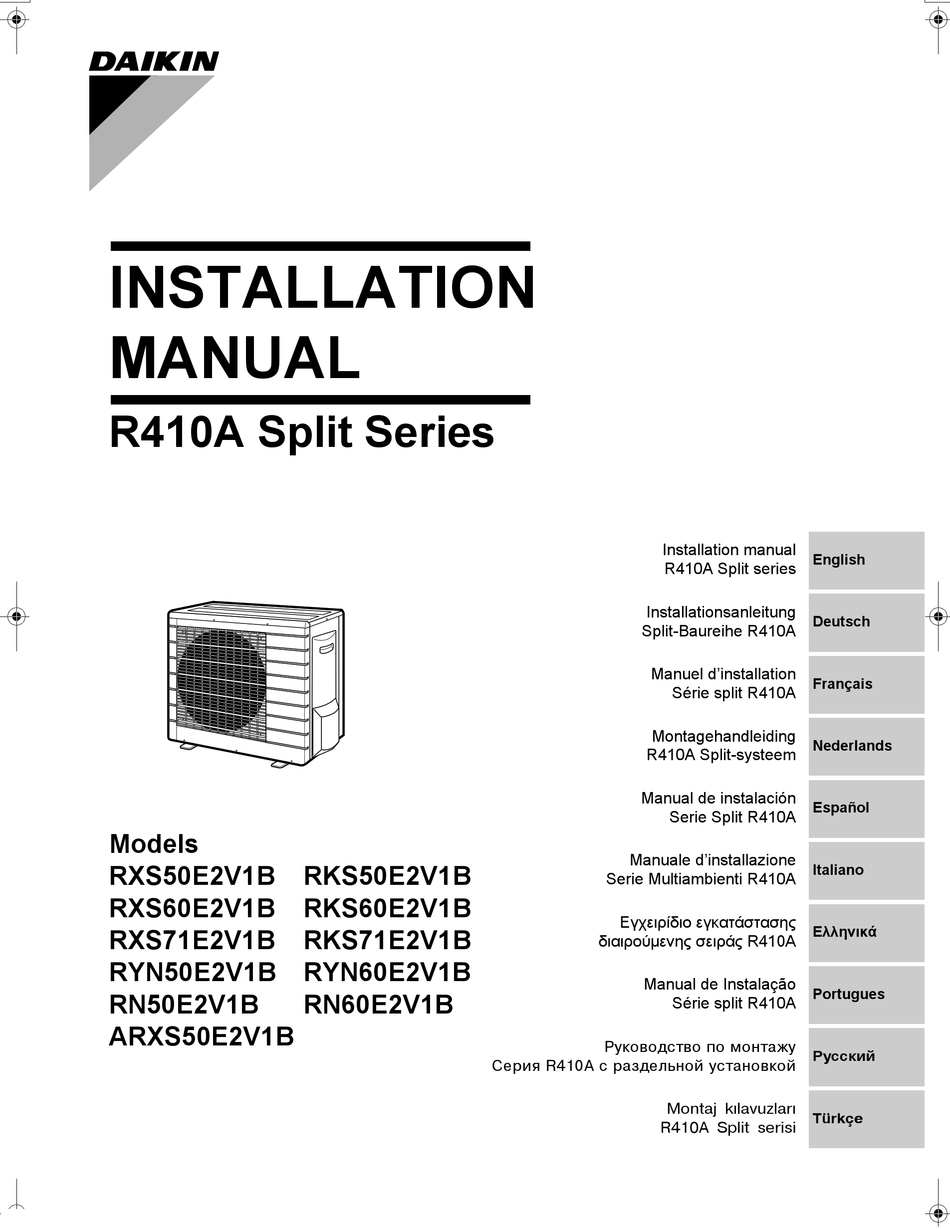

  • Page 1 Split-Baureihe R410A Manuel d’installation Français Série split R410A Montagehandleiding Nederlands R410A Split-systeem Manual de instalación Español Serie Split R410A Models Manuale d’installazione RXS50E2V1B RKS50E2V1B Italiano Serie Multiambienti R410A RXS60E2V1B RKS60E2V1B Εγχειρßδιο εγκατÜστασηò ΕλληνικÜ RXS71E2V1B RKS71E2V1B διαιροýìενηò σειρÜò R410A RYN50E2V1B RYN60E2V1B Manual de Instalação...
  • Page 2 2SB63475-5B...
  • Page 3: Safety Precautions

    Safety Precautions • Read these Safety Precautions carefully to ensure correct installation. • This manual classifies the precautions into WARNING and CAUTION. Be sure to follow all the precautions below: they are all important for ensuring safety. WARNING....Failure to follow any of WARNING is likely to result in such grave consequences as death or serious injury. CAUTION....Failure to follow any of CAUTION may in some cases result in grave consequences.
  • Page 4: Precautions For Selecting The Location

    Accessories Accessories supplied with the outdoor unit: (B) Drain plug (Heat pump-Models) (A) Installation Manual There is on the bottom packing case. Precautions for Selecting the Location 1) Choose a place solid enough to bear the weight and vibration of the unit, where the operation noise will not be amplified. 2) Choose a location where the hot air discharged from the unit or the operation noise will not cause a nuisance to the neighbors of the user.
  • Page 5: Outdoor Unit Installation Drawings

    Outdoor Unit Installation Drawings Wrap the insulation pipe with the finishing tape from bottom to top. Model 50 class 60 class 71 class Max. allowable length Min. allowable length 1.5m Max. allowable height Additional refrigerant required for refrigerant 20g/m pipe exceeding 10m in length.
  • Page 6: Precautions On Installation

    Installation Guidelines • Where a wall or other obstacle is in the path of outdoor unit’s intake or exhaust airflow, follow the installation guidelines below. • For any of the below installation patterns, the wall height on the exhaust side should be 1200mm or less. Wall facing one side Walls facing two sides More than 100...
  • Page 7: Flaring The Pipe End

    Outdoor Unit Installation Flaring the Pipe End 1) Cut the pipe end with a pipe cutter. (Cut exactly at right angles.) Remove burrs 2) Remove burrs with the cut surface facing down- ward so that the chips do not enter the pipe. Flaring Set exactly at the position shown below.
  • Page 8: Purging Air And Checking Gas Leakage

    Purging Air and Checking Gas Leakage • When piping work is completed, it is necessary to purge the air and check for gas leakage. WARNING 1) Do not mix any substance other than the specified refrigerant (R410A) into the refrigeration cycle. 2) When refrigerant gas leaks occur, ventilate the room as soon and as much as possible.
  • Page 9: Refrigerant Piping Work

    Outdoor Unit Installation Refilling The Refrigerant Check the type of refrigerant to be used on the machine nameplate. Precautions when adding R410A Fill from the liquid pipe in liquid form. It is a mixed refrigerant, so adding it in gas form may cause the refrigerant composition to change, preventing normal operation. 1) Before filling, check whether the cylinder has a siphon attached or not.
  • Page 10: Pump Down Operation

    Pump Down Operation In order to protect the environment, be sure to pump down when relocating or disposing of the unit. 1) Remove the valve lid from liquid shut-off valve and gas shut- off valve. Hexagonal wrench 2) Carry out forced cooling operation. 3) After five to ten minutes, close the liquid shut-off valve with a Close hexagonal wrench.
  • Page 11 Wiring WARNING 1) Do not use tapped wires, stand wires, extensioncords, or starbust connections, as they may cause overheating, electrical shock, or fire. 2) Do not use locally purchased electrical parts inside the product. (Do not branch the power for the drain pump, etc., from the terminal block.) Doing so may cause electric shock or fire.
  • Page 12: Test Run And Final Check

    CAUTION When connecting the connection wires to the terminal board using a single core wire, be sure to perform curling. Problems with the work may cause heat and fires. Stripping wire at terminal block 3) Pull the wire and make sure that it does not disconnect. Then fix the wire in place with a wire stop. Test Run and Final Check Trial Operation and Testing.
  • Page 13 3P159684-2F M05B071A (0601) HT...
