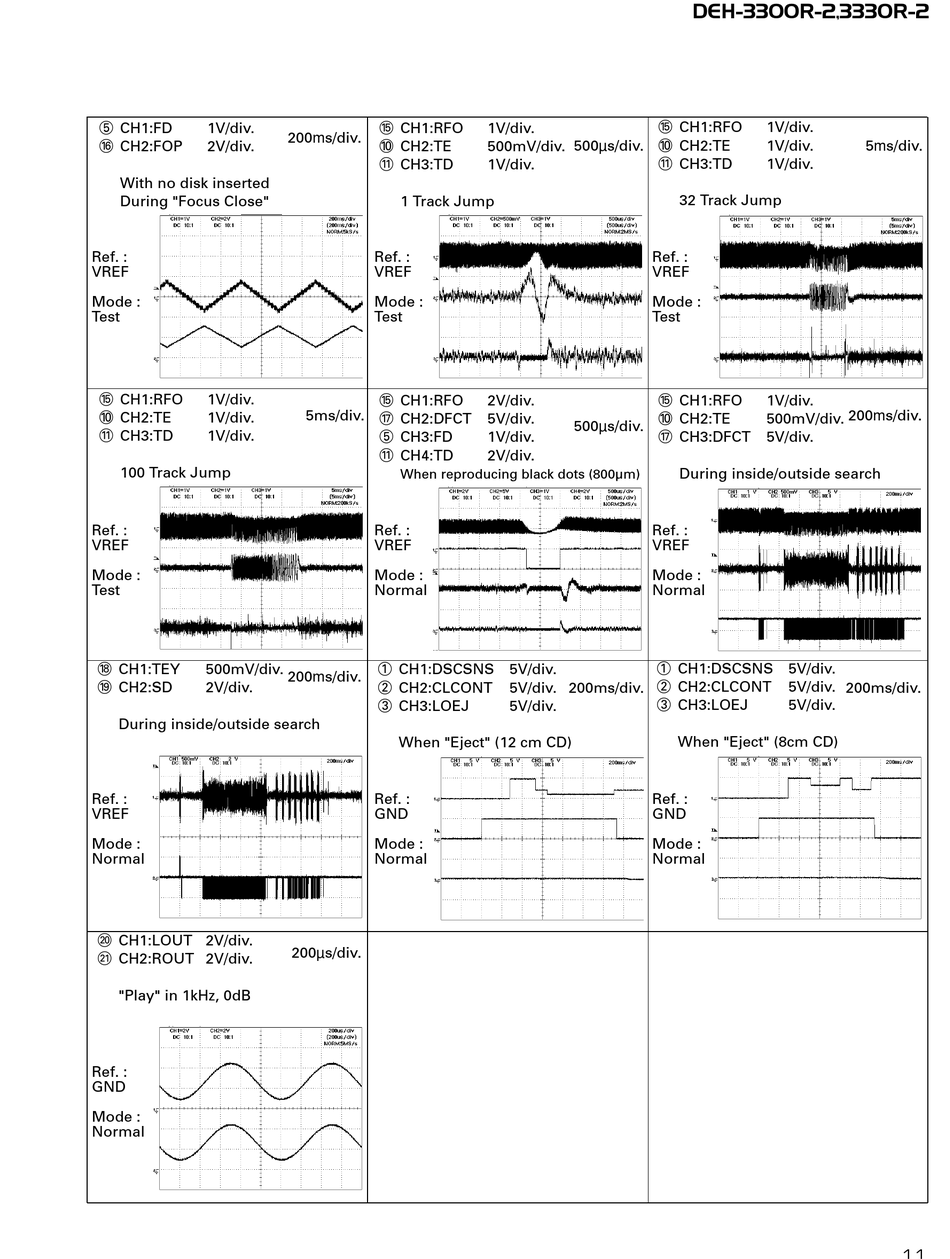

Pioneer DEH-3300R-2 Service Manual page 11

5 CH1:FD
1V/div.
^ CH2:FOP
2V/div.
With no disk inserted
During "Focus Close"
Ref. :
VREF
Mode :
Test
% CH1:RFO
1V/div.
0 CH2:TE
1V/div.
! CH3:TD
1V/div.
100 Track Jump
Ref. :
VREF
Mode :
Test
* CH1:TEY
500mV/div.
( CH2:SD
2V/div.
During inside/outside search
Ref. :
VREF
Mode :
Normal
) CH1:LOUT 2V/div.
⁄ CH2:ROUT 2V/div.
"Play" in 1kHz, 0dB
Ref. :
GND
Mode :
Normal
% CH1:RFO
200ms/div.
0 CH2:TE
! CH3:TD
1 Track Jump
Ref. :
VREF
Mode :
Test
% CH1:RFO
5ms/div.
& CH2:DFCT
5 CH3:FD
! CH4:TD
When reproducing black dots (800µm)
Ref. :
VREF
Mode :
Normal
1 CH1:DSCSNS 5V/div.
200ms/div.
2 CH2:CLCONT
3 CH3:LOEJ
When "Eject" (12 cm CD)
Ref. :
GND
Mode :
Normal
200µs/div.
% CH1:RFO
1V/div.
0 CH2:TE
500µs/div.
500mV/div.
! CH3:TD
1V/div.
Ref. :
VREF
Mode :
Test
% CH1:RFO
2V/div.
0 CH2:TE
5V/div.
500µs/div.
& CH3:DFCT 5V/div.
1V/div.
2V/div.
Ref. :
VREF
Mode :
Normal
1 CH1:DSCSNS 5V/div.
2 CH2:CLCONT
5V/div. 200ms/div.
3 CH3:LOEJ
5V/div.
Ref. :
GND
Mode :
Normal
DEH-3300R-2,3330R-2
1V/div.
1V/div.
1V/div.
32 Track Jump
1V/div.
200ms/div.
500mV/div.
During inside/outside search
5V/div.
200ms/div.
5V/div.
When "Eject" (8cm CD)
5ms/div.
11
