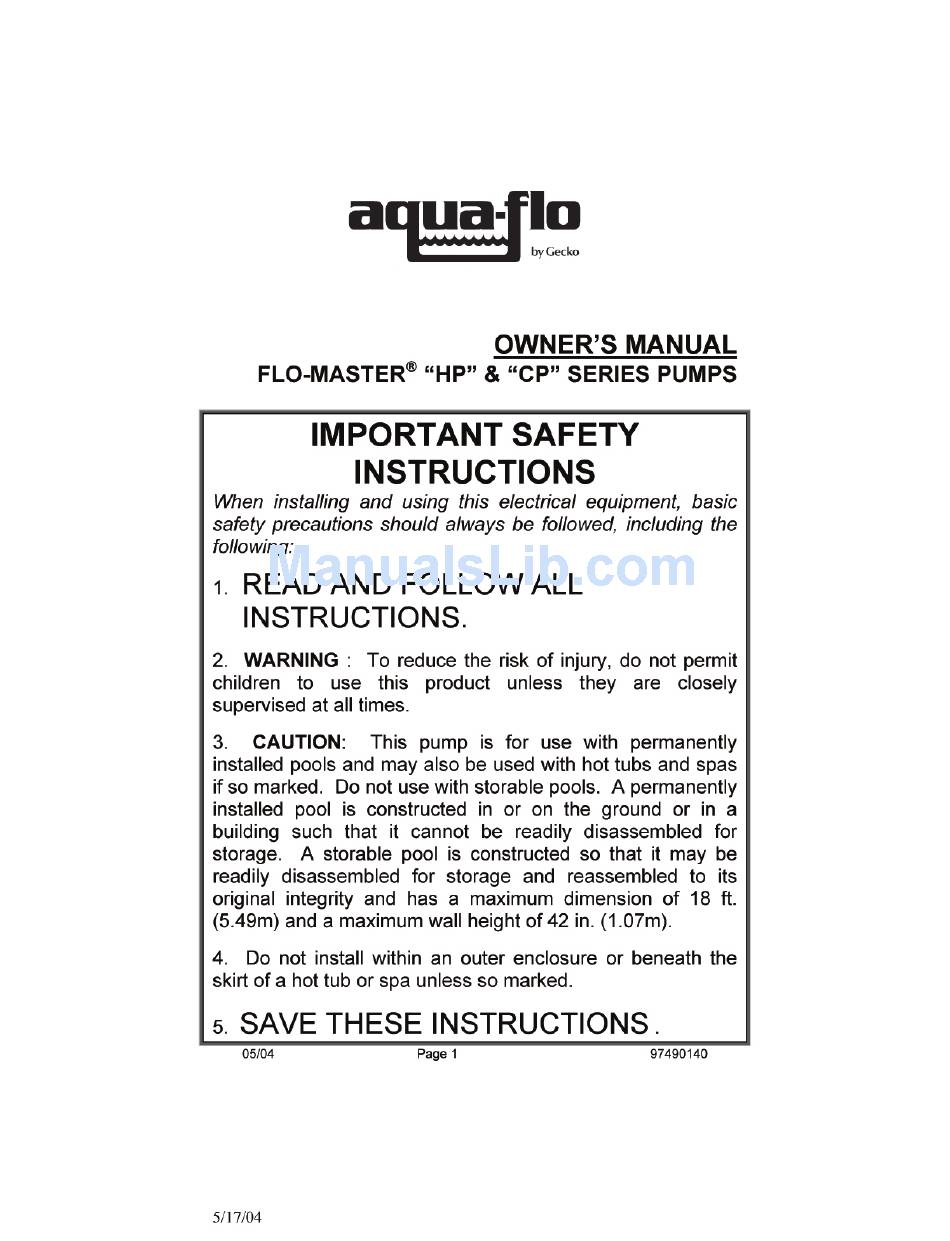

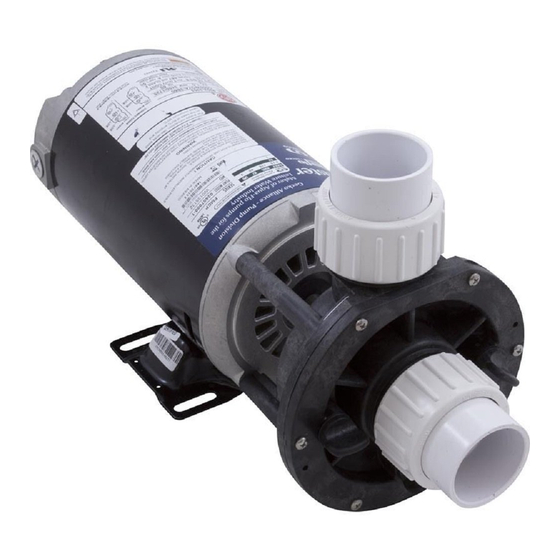

  • Page 2 INSTALLATION & OPERATING INSTRUCTIONS WARNING − RISK OF ELECTRIC SHOCK ONNECT ONLY TO A CIRCUIT PROTECTED BY A GROUND FAULT CIRCUIT INTERRUPTER HE UNIT SHOULD BE INSTALLED BY A QUALIFIED SERVICE REPRESENTATIVE LL ELECTRICAL WIRING OF THE MOTOR INSTALLATION MUST BE DONE BY A QUALIFIED ELECTRICIAN IN ACCORDANCE WITH APPLICABLE ELECTRICAL CODES ROUNDING IS REQUIRED EFORE WORKING ON ANY...
  • Page 3: Troubleshooting

    STARTING & PRIMING PUMP Do not run unit dry. Always be certain that the pump casing and/or trap is filled with water before starting the unit. Allow a reasonable amount of time for priming. If pump will not start or will not prime, see troubleshooting section in this manual.
  • Page 4: Assembly Instruction

    LOW WATER FLOW: Check for clogged plumbing lines. Check for worn or damaged impeller. Check for low voltage. Check filter pressure gauge, filter may need cleaning. WATER LEAKS: Check contamination or damage to shaft rotary seal. Replace if necessary. Check compression fittings (union connectors); make sure they are properly aligned and secured.
  • Page 5 The rest of the seal assembly should be free from cracks and should fit snugly with their respective mating parts. Use alcohol wipes or isopropyl alcohol with clean ‘lint free’ soft cloth to clean the carbon ring and the ceramic ring surfaces if reusing the same assemblies. T IS ADVISIBLE TO REPLACE THE COMPLETE SEAL ASSEMBLY BOTH THE CERAMIC AND CARBON SIDES...
  • Page 6 11. Cover can be mounted to the volute in one orientation only. An ‘aligning’ feature is built-in with each part to ensure proper mounting. When properly aligned, the cover should slide in easily. 12. Secure the cover to the volute with screws. Tighten all screws alternately (crisscrossing the cover) to achieve proper o-ring compression and cover seating.
  • Page 7 ® FLO-MASTER “FMHP” REPLACEMENT PARTS To Cross Reference: Refer to Diagram A Shown on Page 9. Ref. Part No. Description Motor 92770501 Volute, FMHP Series 92500150 Seal Replacement, #200 91693501 Impeller, .50 HP 91693551 Impeller, .75 HP 91693601 Impeller, 1.0 HP 91693651 Impeller, 1.5 HP 91693700...
  • Page 8 ® FLO-MASTER “FMCP” REPLACEMENT PARTS To Cross Reference: Refer to Diagram B Shown on Page 9. Ref. Part No. Description Motor 92770603 Volute, FMCP Series 92500150 Seal Replacement, #200 91693501 Impeller, .50 HP 91693551 Impeller, .75 HP 91693601 Impeller, 1.0 HP 91693651 Impeller, 1.5 HP 91693700...
  • Page 9 DIAGRAM A: FMHP: Refer to Reference Table Shown on Page 7 DIAGRAM B: FMCP: Refer to Reference Table Shown on Page 8...
