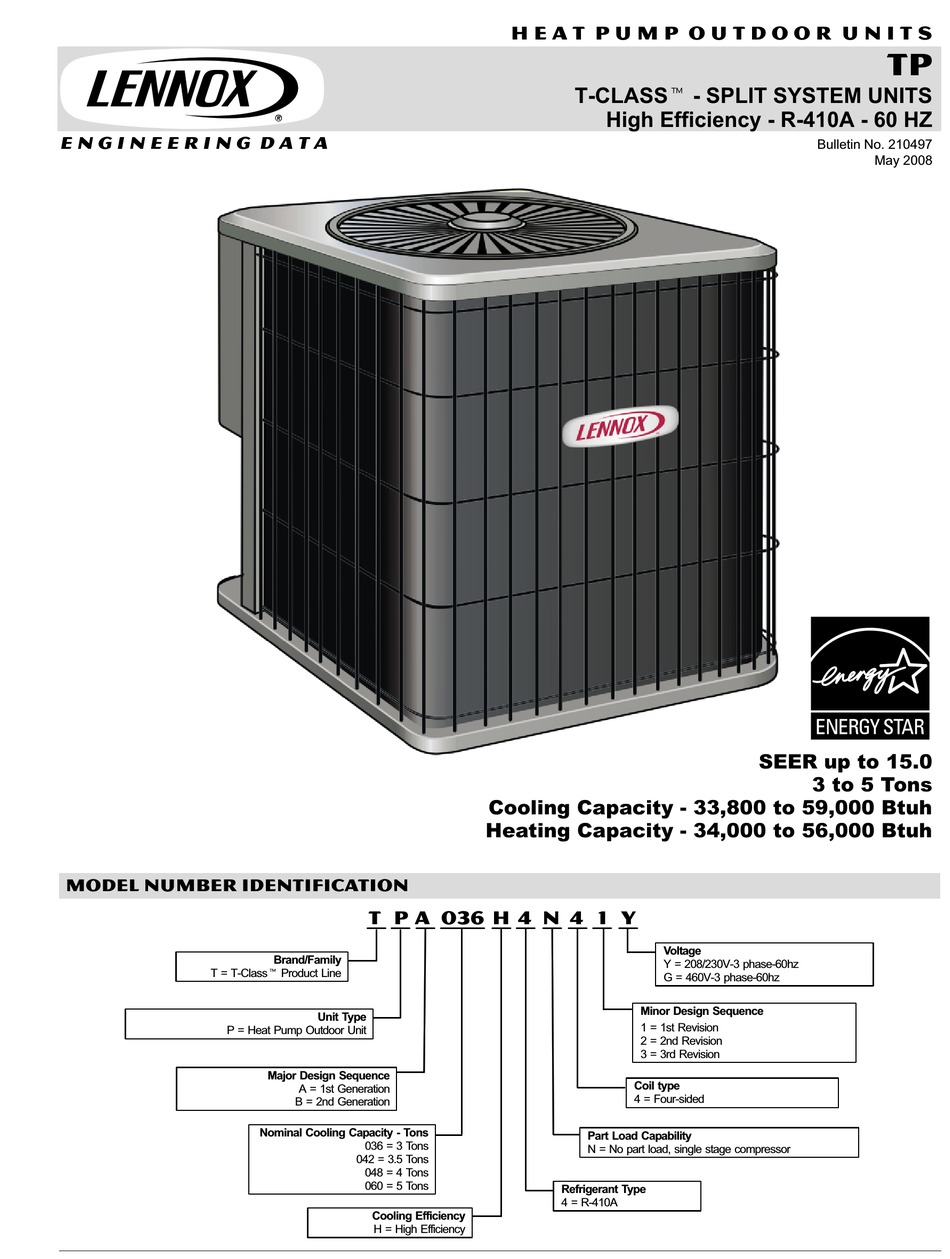

E N G I N E E R I N G D A T A
MODEL NUMBER IDENTIFICATION
T = T−Classt Product Line
P = Heat Pump Outdoor Unit
T P A
Brand/Family
Unit Type
Major Design Sequence
A = 1st Generation
B = 2nd Generation
Nominal Cooling Capacity − Tons
036 = 3 Tons
042 = 3.5 Tons
048 = 4 Tons
060 = 5 Tons
Cooling Efficiency
H = High Efficiency
H E A T P U M P O U T D O O R U N I T S
T−CLASSt − SPLIT SYSTEM UNITS
High Efficiency − R−410A − 60 HZ
Cooling Capacity − 33,800 to 59,000 Btuh
Heating Capacity − 34,000 to 56,000 Btuh
036 h
4 n
4
1
Y
Part Load Capability
N = No part load, single stage compressor
Refrigerant Type
4 = R−410A
SEER up to 15.0
3 to 5 Tons
Voltage
Y = 208/230V-3 phase-60hz
G = 460V-3 phase-60hz
Minor Design Sequence
1 = 1st Revision
2 = 2nd Revision
3 = 3rd Revision
Coil type
4 = Four−sided
TP
Bulletin No. 210497
May 2008
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Lennox TPA036H4
Summary of Contents for Lennox TPA036H4
-
Page 1: Model Number Identification
H E A T P U M P O U T D O O R U N I T S T−CLASSt − SPLIT SYSTEM UNITS High Efficiency − R−410A − 60 HZ E N G I N E E R I N G D A T A Bulletin No. - Page 2 Approvals Certified in Accordance with the USE certification program, which is based on ARI Standard 210/240−2005. Sound rated in Lennox reverberant sound test room in Accordance with test conditions included in ARI Standard 270-95. Tested in the Lennox Research Laboratory environmental test room.
- Page 3 Compressor Scroll Compressor Copper Tube/Enhanced Fin Coil Compressor features high Lennox designed and fabricated coil. efficiency with uniform suction Ripple-edged aluminum fins. flow, constant discharge flow Copper tube construction. and high volumetric efficiency Lanced fins provide maximum exposure of fin surface to and quiet operation.
- Page 4 Thermostat kit and mounting box must be ordered extra. Thermostat Thermostat not furnished with unit. See Thermostat bulletins in Controls Section and Lennox Price Book. Time Delay Relay Kit Delays the indoor blower−off time during the cooling cycle. See ARI Rating Tables for usage.
- Page 5 OPTIONAL CONVENTIONAL TEMPERATURE CONTROL SYSTEMS − FIElD INSTALLED COMMERCIAL TOUCHSCREEN THERMOSTAT C0STAT02AE1L Intuitive Touchscreen Interface − Two Stage Heating / Two Stage Cooling Conventional or Heat Pump − Seven Day Programmable − Four Time Periods/Day − Economizer Output − Title 24 ®...
-
Page 6: Specifications
SPECIFICATIONS General Model No. TPA036H4 TPA042H4 TPA048H4 TPA060H4 Data Nominal Tonnage Sound Rating Number Connections Liquid line o.d. − in. (sweat) (sweat) Vapor line o.d. − in. 1-1/8 Refrigerant R−410A charge furnished 9 lbs. 12 oz. 12 lbs. 7 oz. - Page 7 LOW AMBIENT CONTROL Option (Down to 0°F) Order one each: Speed Control Kit, Weatherproof Kit, Outdoor Fan Motor and Capacitor Model No. TPA036H4 TPA042H4 TPA048H4 TPA060H4 Speed Control Kit X5867 Weatherproof Kit 56N41 Motor 1/2 HP − 230V 69H75 460V...
- Page 8 LIQUID LINE CONNECTIONS ELECTRICAL INLETS 2-3/4 (70) 2 (51) OPTIONAL UNIT SIDE VIEW SIDE VIEW (19) STAND-OFF KIT (4) (Field Installed) Model No Model No. TPA036H4 32−1/4 29-1/4 28-1/2 TPA042H4 32-1/4 36−1/4 TPA048H4 TPA060H4 32−1/4 43-1/4 1099 42-1/2 1080 TP − 3 to 5 Ton High−Efficiency, R−410A Heat Pump / Page 8...
-
Page 9: Ari Ratings
Cool Heat Heat Heat Heat Heating SEER EER IV Heating TPA036H4 3 TON Air Handlers Air Handlers 34,400 35,400 21,400 14.00 12.00 8.20 7.20 2865 2790 2570 3.72 2.44 CBX32M−042 (Multi−Position) 49L25 34,400 35,600 21,400 14.00 12.00 8.20 7.20 2865 2785 2575 3.74 2.44 CBX32M−036 (Multi−Position) - Page 10 Cool Heat Heat Heat Heat Heating SEER EER IV Heating TPA036H4 3 TON Up−Flow Indoor Coils + Furnaces Up−Flow Coils + Furnaces 34,600 35,000 21,200 14.00 12.00 8.20 7.20 2885 2825 2575 3.64 2.42 CX34−38B−6F G61MPV−36B−070 49L25 34,600 35,000 21,200 14.00 12.00 8.20 7.20 2885 2825 2575 3.64 2.42 CX34−38B−6F G71MPP−36B−070...
- Page 11 Cool Heat Heat Heat Heat Heating SEER EER IV Heating TPA036H4 3 TON Down−Flow Indoor Coils Down−Flow Coils 33,800 35,200 21,400 13.00 11.00 7.70 6.70 3075 2980 2730 3.46 2.30 CR33−48B/C−F 49L25 34,800 35,600 21,600 13.00 11.00 7.70 6.70 3165 2875 2655 3.62 2.38 CR33−50/60C−F...
- Page 12 ARI RATINGS ARI Standard 210/240 Ratings Capacity − Btuh Efficiency Total Watts Expansion Expansion Indoor Unit Model No. U it M d l N Device High HSPF High Low High Low High High Cooling Cooling Temp. Temp Temp Temp. Cool Cool Heat Heat...
- Page 13 ARI RATINGS ARI Standard 210/240 Ratings Capacity − Btuh Efficiency Total Watts Expansion Expansion Indoor Unit Model No. U it M d l N Device High HSPF High Low High Low High High Cooling Cooling Temp. Temp Temp Temp. Cool Cool Heat Heat...
- Page 14 ARI RATINGS ARI Standard 210/240 Ratings Capacity − Btuh Efficiency Total Watts Expansion Expansion Indoor Unit Model No. U it M d l N Device High HSPF High Low High Low High High Cooling Cooling Temp. Temp Temp Temp. Cool Cool Heat Heat...
- Page 15 ARI RATINGS ARI Standard 210/240 Ratings Capacity − Btuh Efficiency Total Watts Expansion Expansion Indoor Unit Model No. U it M d l N Device High HSPF High Low High Low High High Cooling Cooling Temp. Temp Temp Temp. Cool Cool Heat Heat...
- Page 16 ARI RATINGS ARI Standard 210/240 Ratings Capacity − Btuh Efficiency Total Watts Expansion Expansion Indoor Unit Model No. U it M d l N Device High HSPF High Low High Low High High Cooling Cooling Temp. Temp Temp Temp. Cool Cool Heat Heat...
- Page 17 ARI RATINGS ARI Standard 210/240 Ratings Capacity − Btuh Efficiency Total Watts Expansion Expansion Indoor Unit Model No. U it M d l N Device High HSPF High Low High Low High High Cooling Cooling Temp. Temp Temp Temp. Cool Cool Heat Heat...
-
Page 18: Guide Specifications
GUIDE SPECIFICATIONS This specification specifies Lennox Industries TP outdoor heat pumps. Revise section number and title below to suit project requirements, specification practices and section content. Refer to CSI MasterFormat for other section numbers and titles. Optional text and text that requires a decision are indicated by bold brackets [ ]; delete text not needed in final copy of specification. - Page 19 Performance Requirements: Specifier Note: Refer to Lennox Engineering Handbook for specific heating and cooling capacities. Units using R22 refrigerant are available in 3, 4 and 5 ton models. Units using R410−a refrigerant are available in 3, 3.5, 4 and 5 ton models.
- Page 20 GUIDE SPECIFICATIONS PART 1.05 QUALITY ASSURANCE Qualifications: Installer experienced in performing work of this section who has specialized in installation of work similar to that required for this project. Manufacturer Qualifications: Manufacturer capable of providing field service representation during construction and approving application method.
- Page 21 PART 2.01 HEAT PUMP OUTDOOR UNITS/SPLIT SYSTEM UNITS Manufacturer: Lennox Industries. Contact: 2100 Lake Park Blvd., Richardson, TX 75080; Telephone: (800) 453−6669; website: www.lennox.com. Proprietary Products/Systems: TP, T−Class Split System Units, including the following equipment: Cabinet: Heavy gauge steel with 5 station metal wash preparation and powder paint finish.
- Page 22 GUIDE SPECIFICATIONS [Accessories:] [High Pressure Switch Kit: manual reset for system protection from high pressure conditions resulting from fan failure or blocked/dirty coil.] [Loss of Charge Kit : SPST, normally closed switch and automatic reset switch mounted on suction line.] [Refrigerant Line Kits: Factory cleaned, dried, pressurized and sealed for field fabrication.] Controls: Defrost Control:...
- Page 24 Contact us at 1−800−4−LENNOX NOTE − Due to Lennox’ ongoing committment to quality, Specifications, Ratings and Dimensions subject to change without notice and without incurring liability. Improper installation, adjustment, alteration, service or maintenance can cause property damage or personal injury.
