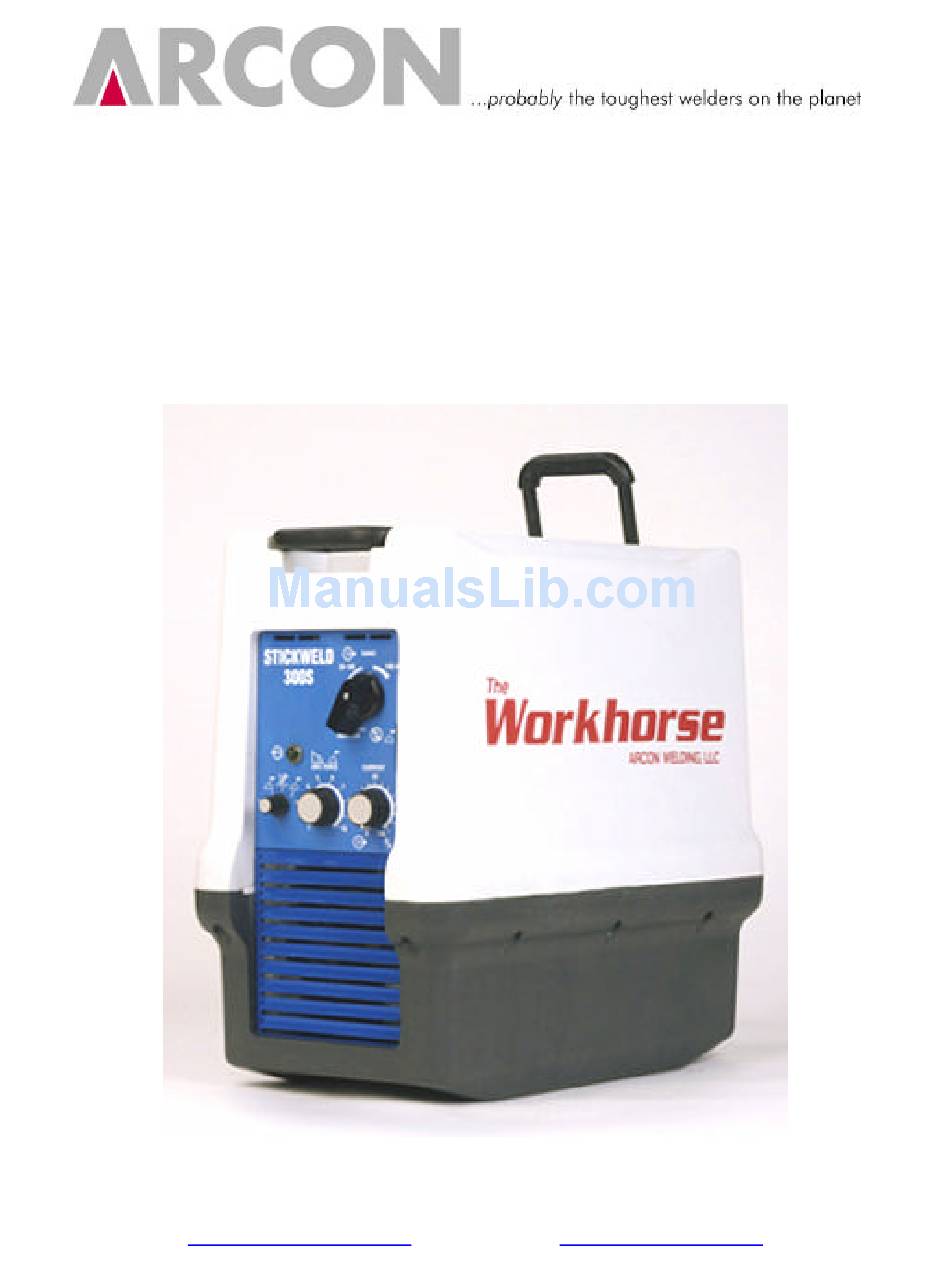

Arcon WORKHORSE 300S Operating Manual

Stick / lift start tig p/n 010300 240v, 400v, 480v, 575v, dual voltage 240v/480v

Advertisement

WORKHORSE 300S
Stick / Lift Start TIG P/N 010300
240V, 400V, 480V, 575V, Dual Voltage 240V/480V
OPERATING MANUAL
REVISED SEPTEMBER 2009
2203 Northwood Drive, Bldg.10
Salisbury, MD 21801
Phone: 410.572.6000 Toll Free: 888.512.7266
Fax: 410.572.6027
sales@arconweld.com
www.arconweld.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WORKHORSE 300S and is the answer not in the manual?

Questions and answers

Summary of Contents for Arcon WORKHORSE 300S

  • Page 1 WORKHORSE 300S Stick / Lift Start TIG P/N 010300 240V, 400V, 480V, 575V, Dual Voltage 240V/480V OPERATING MANUAL REVISED SEPTEMBER 2009 2203 Northwood Drive, Bldg.10 Salisbury, MD 21801 Phone: 410.572.6000 Toll Free: 888.512.7266 Fax: 410.572.6027 sales@arconweld.com www.arconweld.com...
  • Page 2: Declaration Of Conformity

    Declaration of Conformity Manufacturer's Name: ARCON Welding Equipment, LLC Manufacturer's Address: 2203 Northwood Drive, Building 10 Salisbury, Maryland 21801 USA Declares that the product: Product Name: Workhorse 300S Model Numbers: 010300-xxx, 010301-xxx, 010350-xxx Conforms to the following standards: Underwriters Laboratories Standard...
  • Page 3: Chassis Plate Drawing

    010301 = Workhorse 300S Stick 1 = Warhorse 2 = Low Open Circuit Voltage 2 = 480V 010303 = Workhorse 300S for Mining 7 = Robot control 4 = Digital Meter (if not standard) 3 = 240V 010310 = Workhorse 300MS MIG/Stick...
  • Page 4: Table Of Contents

    Workhorse 300S Operations and Service Manual Table of Contents CORROSION PROTECTION INFORMATION GENERAL INFORMATION User Responsibility Warranty Safety Standards 1. SAFETY 1.1 Safety Symbols 1.2 Safety Precautions 1.3 Electric Shock 1.4 Arc Rays and Eye Protection 1.5 Fumes and Oxygen Depletion 1.6 Welding Sparks...
  • Page 5 5. MAINTENANCE 6. ELECTRICAL SPECIFICATIONS AND DIAGRAMS 6.1 General Information 6.2 Product Specifcations 6.3 Block Diagram of the Inverter 6.4 Main Circuit Diagrams for Various Voltages 6.5 Front Panel 6.6 Rear Panel 6.7Chassis Plate Drawing 1 6.8 Chassis Plate Drawing 2 6.9 Inductor Plate Drawing 7.
  • Page 6: Corrosion Protection Information

    The Seahorse process used in this machine was developed and tested on oilrigs in the North Sea decades ago. This protection enhances reliability, prolongs component life and adds value to all of ARCON’s rugged line of portable welding power sources. Listed below are some of the steps ARCON...
  • Page 7: General Information

    ARCON Welding Equipment LLC or its Authorized Repair Center will perform warranty Repairs. The Workhorse 300S or any of its parts must not be altered without the prior written approval of ARCON Welding Equipment LLC. Any malfunction,...
  • Page 8: Safety

    1. SAFETY Safety is eveyone’s responsibility. ARCON designs every machine with safety in mind, and a safe work environment depends largely on you. Do not install, operate, or repair this equipment without carefully reading this manual and observing all of the safety precautions mentioned.
  • Page 9: Electric Shock

    ELECTRIC SHOCK Precautionary measures must be taken to provide maximum protection against electrical shock. Electric shock can injure or Kill WARNING 1. Do not touch live or energized electrical parts or store metallic objects near power. 2. Ground the work or metal to be welded to a good electrical (earth) ground. 3.
  • Page 10: Fumes And Oxygen Depletion

    FUMES and OXYGEN DEPLETION Only weld in areas or rooms where adequate ventilation of weld gases is possible, and where there are not fire, smoke or explosion hazards. When working in a confined space always have trained support personnel nearby. Welding fumes and gases can displace air and lower the oxygen level causing injury or death.
  • Page 11: Protect Yourself And Others

    PRODUCT DESCRIPTION AND INFORMATION 2.1 INTRODUCTION TO THE WORKHORSE 300S The Stickweld 300S is a portable welder using an inverter-type power supply to generate the output power.
  • Page 12: Product Specifications

    3.1 Handling and Unpacking the Welder Since the Workhorse 300S machine weighs approximately 90 pounds in the shipping carton, no fork lift or special handling equipment is necessary to move the machine. The shipping carton has built-in reinforced handles to enable two people to easily transport the machine.
  • Page 13: Selecting A Location

    3.3 Selecting Suitable Supply Cables The standard power input cable for the Workhorse 300S welder is a high quality #10 gauge that is 12.5 feet long. The secondary cables that connect the electrode holder or TIG torch vary in length according to needs, but are normally 1/0 gauge and 25 feet in length.
  • Page 14: Fuses (Table 3.0)

    3.5 F USES It is recommended that input fuse sizes be in accordance with the table below: Input Voltage Welder input Recommended Fuse Maximum Amperage Capacity 240 V Three-Phase 240 V Single-phase 400 V 480 V 575 V Table 3.0 3.6 O UTPUT CONNECTIONS The standard supplied output connector types are female Dinse type (manufactured by...
  • Page 15: Operation

    4. OPERATION WARNING! PLEASE READ CHAPTER REGARDING SAFETY 4.1 General Description The Workhorse power source combines time-proven technology with modern technology to provide high-quality performance. The digitally controlled SCR type inverter is very reliable in welding applications and able to deliver up to 400 Amps@29% Duty Cycle. 4.2 Design Features The Workhorse power source is designed to be portable and easily transported to provide many benefits.
  • Page 16: Arc Force

    4.3.5 Arc Force Control This control is used to adjust the Arc Force on constant current applications. The control is fully adjustable from 0 to 100%, with 0 being very soft and 100% being very hard. When adjusting the Arc Force, the low settings will produce a soft arc and the high settings will produce a more forceful or driving arc.
  • Page 17: Remote Control Connector

    4.3.8 Remote Control Connector Two different types of remote control connectors are available. Units come standard with a 14-pin panel mounted female socket plastic shell connector. Some units may be delivered with a 14-pin female socket metal shell connector. The remote control function is automatically activated when a pin compatible remote control is plugged into the connector.
  • Page 18: Welding Operation

    Welding Operation 4.4.1 Stick Welding 1. All secondary outputs must be connected to output terminals of the power source 2. After the primary input connections have been made, close the main wall disconnect switch or circuit breaker. 3. Place the primary power selector in the ON position. This will turn on the control circuitry. The Power-On light on the front panel will be lit.
  • Page 19: Maintenance

    Please note: Opening up the case voids the Warranty. Maintenance or repair should only be performed by an authorized ARCON Service Center, or by the factory. Do not permit untrained persons to inspect, clean, or repair The Workhorse. Please call the factory for the location of the Authorized ARCON Service center nearest you.
  • Page 20: General Information

    6. ELECTRICAL SPECIFICATIONS & DIAGRAMS 6.1 General Information Circuit breaker The 3 phase elecric input power is connected to the circuit breaker (K). When the welder is used for 240 V single phase, the brown conductor is not connected. If the correct phases are connected the fan will start and run for a few minutes and then stop.
  • Page 21: Product Specifications

    6.2 Product Specifications SINGLE & DUAL VOLTAGE Product Specifications - Primary Rated Input Amperes at Rated Open Welding Weight Input Welding Load Output* Circuit Ranges Current Voltage (Amps) (Amps) (50/60 Hz) Eff. Dimensions ±10% ±20% Ship 240V 480V 400V 575V 400 amps@ 36V, 29% Duty Cycle...
  • Page 22: Block Diagram Of The Inverter

    6.3 Block Diagram of The Inverter The Principle Of The Inverter Design The inverter function is perhaps easiest understood using the simplified block diagram below. AC INPUT MAIN RECTIFIER TRANSFORMER INVERTER RECTIFIER CONTROL BOARD OUTPUT FILTER WELDING AUXILIARY CONTROLLER OUTPUT TRANSFORMER CIRCUIT FIGURE 6.3...
  • Page 23: Main Circuit Diagrams For Various Voltages

    6.4 MAIN CIRCUIT DIAGRAM...
  • Page 24: Front Panel

    6.5 FRONT PANEL 1 of 1...
  • Page 25: Rear Panel

    6.6 REAR PANEL WITH PART NUMBER REFERENCE 1 of 1...
  • Page 26 6.7 ASSEMBLY DRAWING 1 WITH PART NUMBER REFERENCE...
  • Page 27 6.8 ASSEMBLY DRAWING 2 WITH PART NUMBER REFERENCE...
  • Page 28: Inductor Plate Drawing

    6.9 INDUCTOR PLATE DRAWING WITH PART NUMBER REFERENCE...
  • Page 29: Replacement Parts

    7.1 REPLACEMENT PARTS LIST NUMBER DESCRIPTION NOTE 010401-001 CASE BOTTOM, Dark Gray 010410-001 ASSY,CASE TOP w/ HANDLES 010420-001 ASSY,REAR PNL, METAL, CE 010420-002 ASSY,REAR PNL, METAL 010420-005 ASSY,REAR PNL, METAL, 575V 010420-006 ASSY,REAR PNL, METAL, DUAL VOLT 010420-101 ASSY,REAR PNL, METAL, WARHORSE 010490-001 MAIN CHASSIS 010511-001...
  • Page 30 011260-003 MAIN TRANSFORMER, 480V w/PTC 011260-004 MAIN TRANSFORMER, 575V w/PTC 011270-101 AUXILIARY TRANSFORMER, 400V 011270-102 AUXILIARY TRANSFORMER, 480V 011270-103 AUXILIARY TRANSFORMER, 240V 011270-104 AUXILIARY TRANSFORMER, DUAL VOLT 011270-105 AUXILIARY TRANSFORMER, 575V 011300-001 SHUNT, CALIBRATED 011400-001 OUTPUT DIODE & HEATSINK ASSY 011500-001 CAPACITOR PCB, 400V 011500-002...
  • Page 31 016702-001 TRANSFORMER PRIMARY LEAD SPACER 017001-001 KNOB, SMALL 017001-002 KNOB, LARGE 017102-001 OUTPUT CAPACITOR CLAMP 017102-003 INPUT CAPACITOR CLAMP w/ PTC PCB 017110-001 TRANSFORMER MOUNTING BRACKET 017200-001 LENS, FOR DIGITAL METER 018001-002 POWER CABLE, 10 AWG 018001-005 POWER CABLE, 12 AWG 5-COND 018001-008 POWER CABLE, 10 AWG, CE 018401-001...
  • Page 32: Accessories

    7.2 ACCESSORIES NUMBER DESCRIPTION NOTE WA300-001 ELECTRODE HOLDER w/ 25’ 2/0 CABLE WA300-011 WORK CLAMP w/ 25’ 2/0 CABLE WA300-021 REMOTE AMP HAND CONTROL, 25’ WA300-031 DINSE CONNECTOR, MALE, CABLE WA300-032 DINSE CABLE EXTENSION KIT WA300-033 DINSE TO TWECO ADAPTOR WA320-001 TIG TORCH, 150A, 25’, AIR-COOLED WA320-002...
  • Page 33: Trouble Shooting Guide

    8. TROUBLE SHOOTING GUIDE WARNING – PLEASE OBSERVE ALL SAFETY PRECAUTIONS TROUBLE PROBABLE CAUSE REMEDY Cooling fan does not start Incorrect input wiring. Switch the machine to ”Off”. within the first few seconds Check input wiring. For single after the machine is switched phase wiring, first use the two black wires and drop the brown wire.
