Akiles ProLamULTRA Operation Manual

6 roller photo pouch laminator
Hide thumbs

Advertisement

Table of Contents

ProLam ULTRA
6 Roller Photo Pouch Laminator
Professional Grade
Operation Manual
Make sure you read this manual before using the machine.
Store this guide safely, so that you can use it in the future.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ProLamULTRA and is the answer not in the manual?

Questions and answers

Related Manuals for Akiles ProLamULTRA

Summary of Contents for Akiles ProLamULTRA

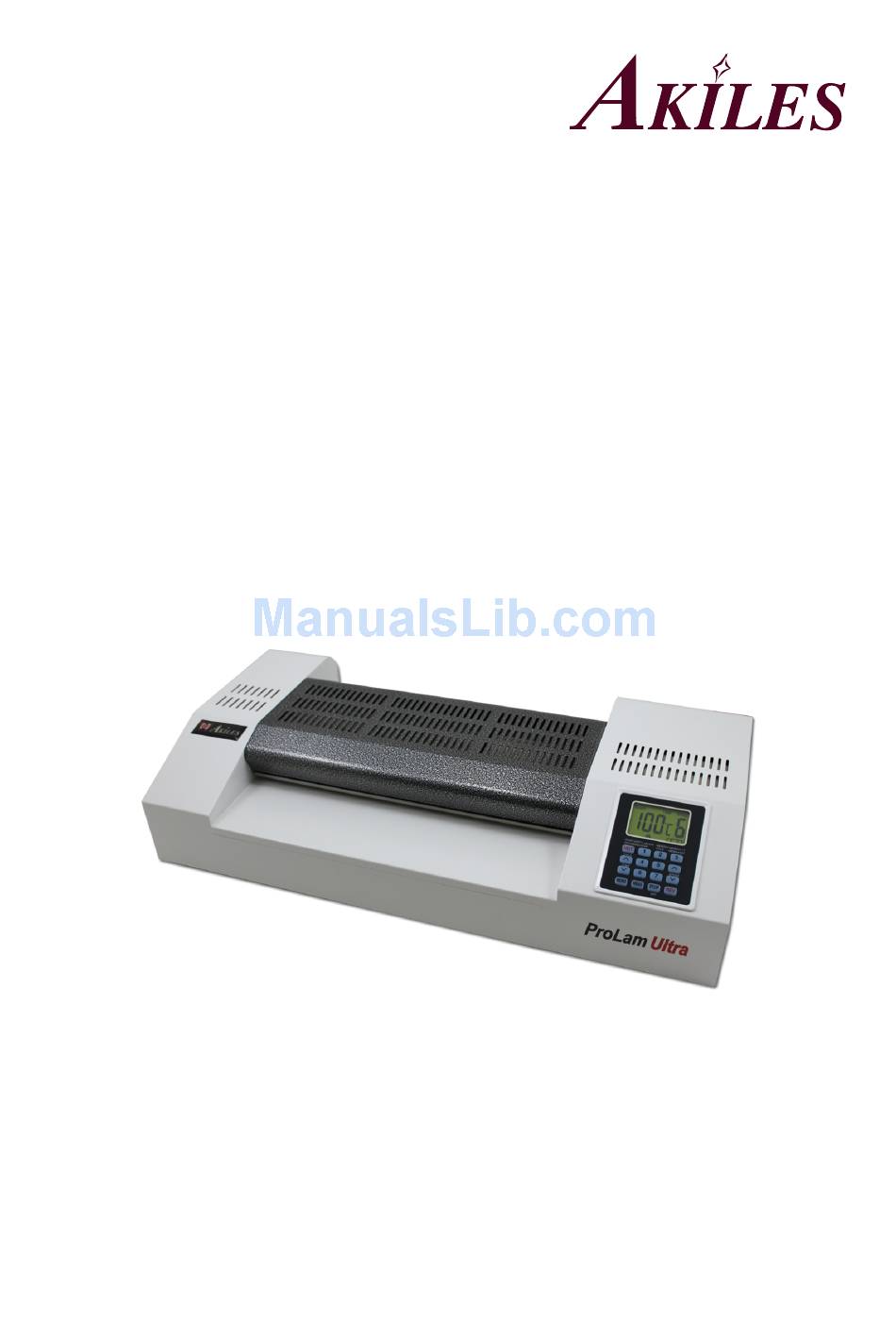

  • Page 1 ProLam ULTRA 6 Roller Photo Pouch Laminator Professional Grade Operation Manual Make sure you read this manual before using the machine. Store this guide safely, so that you can use it in the future.

  • Page 2: Table Of Contents

    Contents 1. Specifications............1 2. Safety Precautions..........2-3 3. Lamination Settings Guide........4 4. Control Layout & Functions........4 5. Operating Instructions........... 5-6 6. Troubleshooting............7 7. Warranty Policy............7 1. Specifications Max. Laminating Width 13” (330 mm) Max. Laminating Speed 53”/min (1350 mm/min) Max.

  • Page 3: Safety Precautions

    2. Safety Precautions WARNING Do not use broken, aging or self-made electrical wire. Do not bend, twist or tie the electrical wire, to avoid the fire or electric shock. If the power cord is damaged, it must be replaced by the manufacturer or our service agent or a similar qualified technician.
  • Page 4 AREA adequate airflow and to allow sufficient space for the laminating pouches to go in and out. This machines has been tested to be 100% compatible with Akiles brand laminating pouches. Using other brands may not achieve the same results.

  • Page 5: Lamination Settings Guide

    3. Lamination Settings Guide Film Without Carrier With Carrier Thickness Paper Temp°C Speed Temp°C Speed (mil) Letter (20 lb) 100 - 110 4 - 7 120 - 130 4 - 5 Letter (20 lb) 110 - 120 5 - 6 120 - 130 3 - 4 Letter (20 lb)

  • Page 6: Operating Instructions

    5. Operating Instructions 1. Plug the included power cord into the back of the machine and into a compatible power outlet. 2. Turn on the power switch behind machine 3. Hot Lamination - Hold the HOT / COLD button for 1 second and the LCD display will turn on. - Hot mode icon will flash.
  • Page 7 5. Operating Instructions 6. Shutting Down - Press MEMO and then the STOP button to initiate AUTO SHUTOFF. - Once the roller temperature reaches below 65°C, the machine will beep 5 times and the power will shut off automatically. - (Keep the temperature at 70°C and speed 2 for “STAND BY” mode.) Warning - Do not turn off the Power Switch as soon as you are finished laminating to prevent overheating.

  • Page 8: Troubleshooting

    ● ● Excessive noise Operation of the gears is Turn off the machine and not smooth contact Akiles Products. ● ● No increase in Check power plug Turn off the machine and temperature contact Akiles Products ●...
