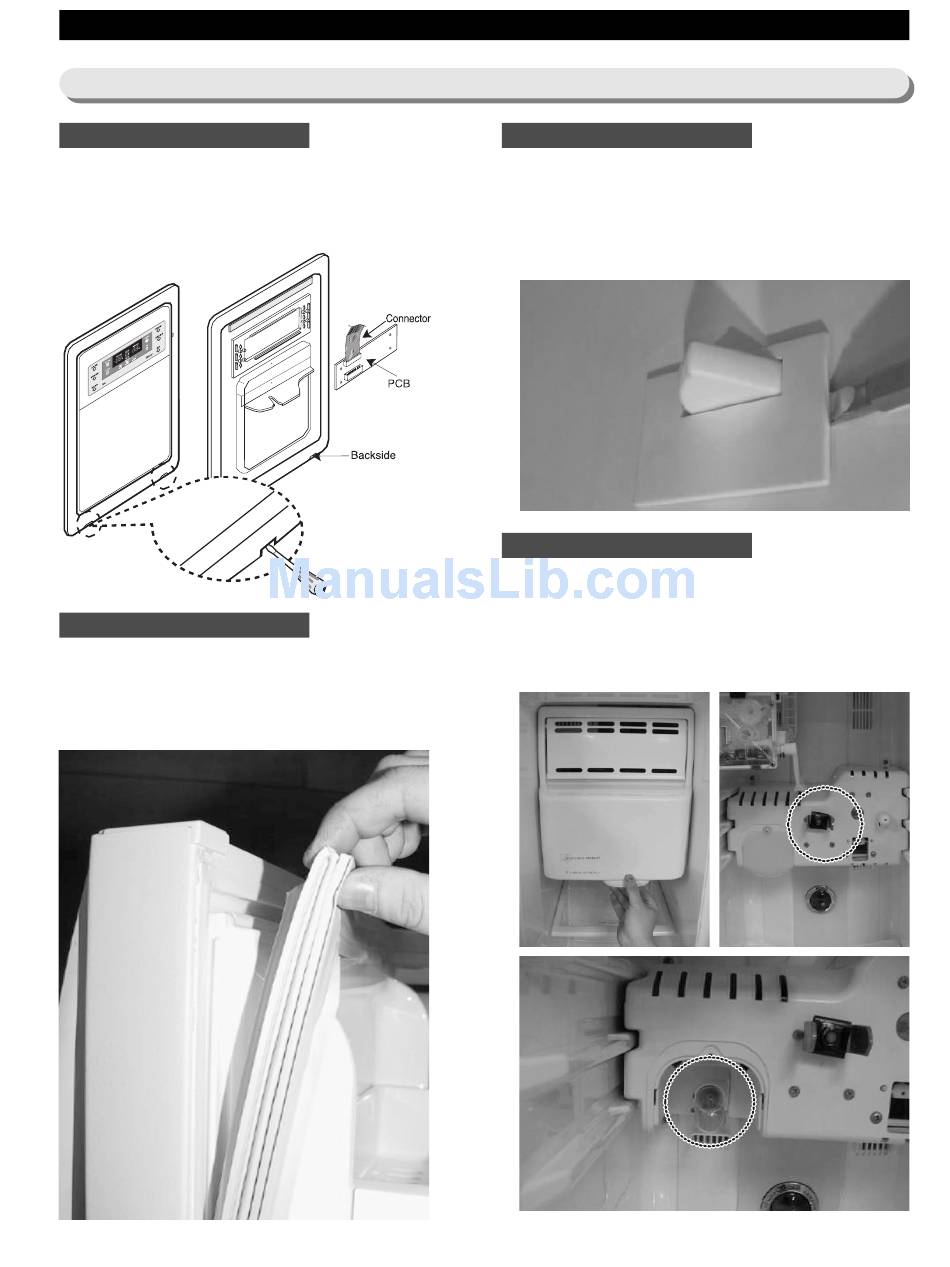

8-1. Freezer Disassembly

Control Panel
1. Insert a flat-blade screwdriver on the slot
as shown and unlock the tabs.
2. Disconnect the wire connector in the back of
control panel
Door Gasket
The door gasket is set into groove on door liner
1.Open the door.
2.Grasp the gasket and pull it out from
the door liner.
Light SWITCHES
The unit have two light switches on the side
wall of freezer & refrigerator.
1.Use a small flat-blade screw driver to unlock
the hook and pull the switch out until the wire
connector is exposed.
Lights (Dispenser MODEL)
The light of freezer is located at lower side
of Auger motor case.
1.Remove ice bucket.
2.Remove the lamp cover by releasing the screw.
3.Change the bulb(rated component)
