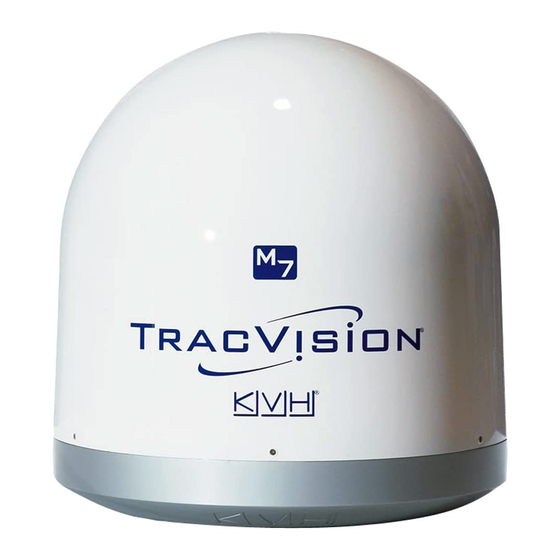

TracVision M7
Switchplate Configuration

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the M7 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for KVH Industries M7

  • Page 1 TracVision M7 Switchplate Configuration...
  • Page 2: Table Of Contents

    E-mail: techs@kvh.com E-mail: support@kvh.dk KVH, TracVision, and the unique light-colored dome with contrasting baseplate are registered trademarks of KVH Industries, Inc. All other trademarks are property of their respective companies. The information in this document is subject to change without notice.
  • Page 3: Inspect Parts And Get Tools

    Inspect Parts and Get Tools Before you begin, follow these steps to make sure Figure 1: TracVision M7 System Components you have everything you need to complete the Antenna installation. a. Unpack the box and ensure it contains everything shown on the Kitpack Contents List.
  • Page 4: Plan The Antenna Installation

    Look Angle (see Figure 4). The fewer obstructions, the better the system will perform. TracVision Antenna • Make sure the mounting surface is wide enough to accommodate the antenna’s base (see Figure 5). Also make sure it is flat, level Mast (within ±1°), strong enough to support the...
  • Page 5: Plan The Belowdecks Installation

    Plan the Belowdecks Installation Consider the following switchplate installation Figure 6: Switchplate Dimensions guidelines: • Select a switchplate mounting location in a dry, well-ventilated area belowdecks away from any heat sources or salt spray. • Be sure to leave enough room at the 2.96"...
  • Page 6: Prepare The Antenna Site

    Prepare the Antenna Site Once you have identified a suitable antenna Figure 8: Antenna Mounting Holes Layout mounting site, according to the guidelines provided on page 4, follow these steps to drill the mounting holes and cable access hole to prepare the site for installation.
  • Page 7: Remove The Restraint

    Remove the Restraint Inside the antenna, a foam block prevents the Figure 10: Removing the Radome antenna assembly from moving during shipment. Follow these steps to remove this shipping restraint. a. Remove the six #10-32 Phillips screws securing the radome to the baseplate (see Figure 10).
  • Page 8: Wire The Antenna

    Wire the Antenna Follow these steps to connect the data, power, Figure 12: Number of RF Coax Cables to Connect to Antenna and RF cables to the antenna. Connecting to: # RF Cables a. First determine the number of RF coax cables System with Circular Dual LNB you need to connect to the antenna for your 1 receiver...
  • Page 9: Mount The Antenna

    Mount the Antenna Follow these steps to mount the antenna to the Figure 15: Forward Arrow in Antenna Baseplate mounting surface. a. Place the antenna baseplate over the holes drilled in the mounting surface. Ensure the forward arrow inside the baseplate points toward the bow and is parallel to the vessel’s centerline (see Figure 15).
  • Page 10: Wire The Switchplate

    Wire the Switchplate Follow these steps to connect the switchplate to Figure 17: Switchplate Wiring - Antenna Data Cable the antenna. a. First dress the data and power cables from the antenna. Strip back the insulation of each wire approximately 1/4" (6 mm) and gently twist each wire to ensure a good electrical connection.
  • Page 11: Wire The Receiver(S)

    (circular) or page 26 (Sky Mexico). Secondary Receiver - Optional e. If you are connecting two receivers to the TV ANT/CABLE IN Satellite In TracVision system, decide which receiver OUT TO TV will be the primary receiver. The primary SATELLITE IN AUDIO...
  • Page 12 Antenna to the antenna, see Appendix A on page 27. a. If you are connecting two receivers to the TracVision system, decide which receiver will be the primary receiver. The primary receiver controls satellite selection. NOTE: The secondary receiver will be able to select...
  • Page 13: Connect Power

    Connect Power Follow these steps to connect power. The Figure 21: Switchplate Wiring - Vessel Power Cable switchplate supplies power to the antenna. Vessel Power a. Before you begin, disconnect vessel power. Ground +12 VDC CAUTION For your own safety, disconnect vessel power and make sure the circuit is dead before you connect any power wires.
  • Page 14: Mount The Switchplate

    Mount the Switchplate In Step 3 on page 5, you identified a suitable Figure 22: Mounting the Switchplate location for the switchplate and cut out the mounting hole in the mounting surface. Now follow these steps to mount the switchplate. NOTE: As an alternative, the switchplate includes two additional mounting holes for installing within an electrical panel.
  • Page 15: Enter Your Latitude & Longitude

    LNB skew angle. Connect a Laptop to the Antenna To enter data into the antenna, you will need to connect your laptop computer to the TracVision system then enter commands via Windows HyperTerminal (or equivalent).
  • Page 16 Continued Enter Your Latitude & Longitude c. Ensure the antenna has a clear, unobstructed Figure 26: Antenna Data Scrolling in Window view of the sky. d. Apply power to the satellite TV receiver(s) and the switchplate (see Figure 24 on page 15).
  • Page 17: Select Satellites

    Select Satellites Circular Systems Follow these steps to set up a circular system for the desired service provider and satellites. Figure 27: Recommended Areas for DISH 1000 Satellites IMPORTANT! The antenna is programmed at the factory for = DISH 1000/129 Recommended the following default satellite pair: = DISH 1000/61 Recommended DSS_101 &...
  • Page 18 Select Satellites Linear Systems Follow these steps to set up a linear system for the desired pair of satellites. Figure 29: Satellite Install Commands for Tri-Sat Modes IMPORTANT! The antenna is programmed at the factory for Satellites Command the following default satellite pair: A = Hotbird SATINSTALL,TRISAT, ASTRA &...
  • Page 19: Run Two Check Switch Tests

    Run Two Check Switch Tests DISH Network or ExpressVu Only If you set up the system for DISH Network or ExpressVu, follow these steps to run the Figure 31: Expected Check Switch Results Displayed on TV receiver’s Check Switch test twice. The first DISH 1000/129 Results Check Switch test finds the satellites;...
  • Page 20: Set The Lnb Skew Angle

    Set the LNB Skew Angle Linear Systems Follow these steps to set the antenna’s linear LNB to the correct skew angle for your selected Figure 32: Set Screws Securing the LNB to the Reflector satellite and vessel position. M4 Socket a.
  • Page 21: Educate The Customer

    Educate the Customer The installation process is complete! Figure 34: Example of Satellite Blockage Before you leave the vessel, test the system to verify the antenna works properly. Then give the Customer Welcome Kit to the customer and explain how to use the system. Also be sure the customer understands the following: •...
  • Page 22 Appendices This section provides supplemental instructions for wiring multiple receivers. It also provides a list of available satellites, system wiring diagrams, and a mounting template for the belowdecks equipment. Contents A. Wiring 3+ Receivers...25 B. Satellite Library...28 C. Position Grids...29 D.
  • Page 23: Wiring 3+ Receivers

    Wiring 3+ Receivers Circular Systems To connect three or more receivers to a circular system, follow these steps to install an Eagle Figure 35: Multiswitch Wiring - Antenna with Circular Dual LNB Aspen multiswitch (KVH part #72-0310) between the grounding block and the receivers, as shown in Figure 35.
  • Page 24 Wiring 3+ Receivers Sky Mexico Systems To connect three or more receivers to a system configured for Sky Mexico, follow these steps to Figure 36: Multiswitch Wiring - Sky Mexico install a Spaun model SMS 5602 NF multiswitch (KVH part #19-0413) between the grounding block and the receivers, as shown in Figure 36.
  • Page 25 LNB. Power NOTE: If you need to connect more than four receivers to the TracVision system, install an active Switchplate multiswitch that generates a 22 KHz tone (such as Spaun model SMS 5602 NF - KVH part #19-0413).
  • Page 26: Satellite Library

    Satellite Library The TracVision antenna can track a variety of DVB-compatible and DSS (DIRECTV) satellites. Most popular satellites are programmed in the antenna’s library (see the tables below). North America Europe Circular LNB Required Linear LNB Required Satellite, Longitude Name in Library...
  • Page 27: Position Grids

    Position Grids If the vessel is located in Europe or North America, you may use the appropriate grid and table below to determine your approximate latitude and longitude. Europe North America Grid # Latitude Longitude Grid # Latitude Longitude 7° W 67°...
  • Page 28: Basic System Wiring Diagram

    NOTE: If you are installing a Tri-Sat AutoSwitch Kit (KVH part #72-0301-07) for DIRECTV Ku-band Tri-Sat service, refer to the wiring instructions that came with the kit. This wiring diagram shows a basic linear system configuration. TracVision Antenna Switchplate (Optional) + – –...
  • Page 29 Basic System Wiring Diagram Linear Systems TracVision Antenna Switchplate + – – + – +12 VDC Vessel Power Primary Receiver (controls satellite selection) Satellite In TV ANT/CABLE IN OUT TO TV SATELLITE IN AUDIO VIDEO S-VIDEO PHONE JACK Second Receiver - Optional...
  • Page 30: Switchplate Mounting Template

    Switchplate Mounting Template...
  • Page 31 Phone: +1 401 847-3327 Fax: +1 401 849-0045 Phone: +45 45 160 180 Fax: +45 45 160 181 E-mail: info@kvh.com Internet: www.kvh.com E-mail: info@kvh.dk Internet: www.kvh.com © Copyright 2006 KVH Industries Inc. KVH and TracVision are registered trademarks of KVH Industries Inc.
