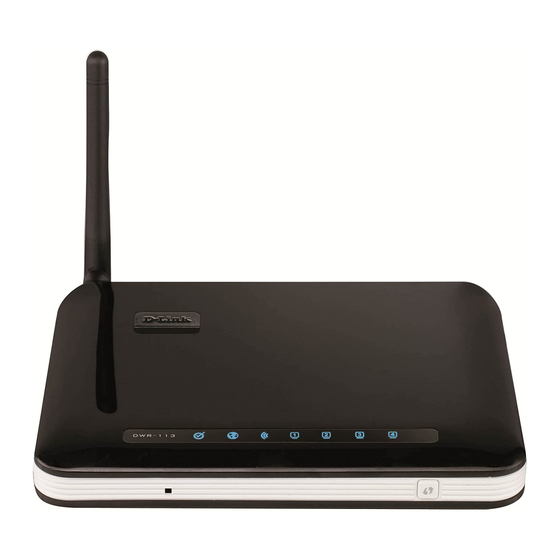

D-Link DWR Series Configuration Manual

Hide thumbs

Advertisement

Quick Links

CONFIGURATION GUIDE

For DWR Series Routers
www.d l ink.co.in

Advertisement

loading

  Also See for D-Link DWR Series

  Related Manuals for D-Link DWR Series

  Summary of Contents for D-Link DWR Series

  • Page 1: Configuration Guide

    CONFIGURATION GUIDE For DWR Series Routers www.d l ink.co.in...
  • Page 2: Wireless Setup

    Configuration Guide for DWR series routers UNBOXING & CONNECTING SETUP WIRELESS SETUP...
  • Page 3 Configuration Guide for DWR series routers...
  • Page 4: How To Access The Router

    HOW TO ACCESS THE ROUTER Unbox the router. Connect the Wi-Fi Antenna to the router. 3) Connect the power adaptor to device and power on the device. Power LED should be green. 4) If you have the computer with Wi-Fi then, go to wireless utility to display available Wireless networks &...
  • Page 5 HOW TO ACCESS THE ROUTER After getting connected to router. Open the browser (such as Internet Explorer, Mozilla, Crome etc.) Type http://192.168.0.1 in address bar and press enter to get the configuration page of the router. 8) You will be prompt for username and password.
  • Page 6 10) To setup the internet connection click on Setup. You will see the multiple options on Left side main configuration menus. Click on Internet. 11) In DWR series routers multiple types of internet connections are supported. Wired Connection:- a. DHCP Connection b.
  • Page 7 CONFIGURING INTERNET At first step Device administration password needs tobe configured. After password is provided Click on Next. 16) Setup the Time Zone, For India set the time to GMT+05.30 INDIA and Press Next. 19) Now Internet Setup is complete with DHCP type of connection.
  • Page 8 ISP. IP address is optional. Service Name will be your ISP name this is also Optional Click Next. 22) Now Internet Setup is complete with PPPoE type of connection. 23) DWR series supports PPTP and L2TP clients as Internet connection.
  • Page 9 CONFIGURING INTERNET 24) Connection Type 3G :- In this connection type, you can use your USB internet dongle to get the internet. 25) For this type of connection select 3G as option in step 3 & Click Next. 26) Select Dial-Up Profile:- Manual Access Username Password...
  • Page 10 CONFIGURING INTERNET 28) Static Ip Connection:- In static IP connection Service Provider provides an IP address, subnet mask default gateway details. For this in Step 3 Select Connection type as Static IP. 29) In next step provide all details and press Next.
  • Page 11: Wireless Configuration

    WIRELESS CONFIGURATION 32) To configure the Wireless Lan network, Click on Setup then Wire less Settings Tab on left side of the page. 33) Click on the Wireless Connection Setup Wizard. 34) There are three steps to configure the wireless Lan network. Click on NEXT.
  • Page 12 WIRELESS CONFIGURATION 37) Select Network Authentication As BEST and click Next. 38) In this step, provide the wireless security password. This password will be asked when there is new a user wants to connect to your network. This password should be minimum 8 Digit.
