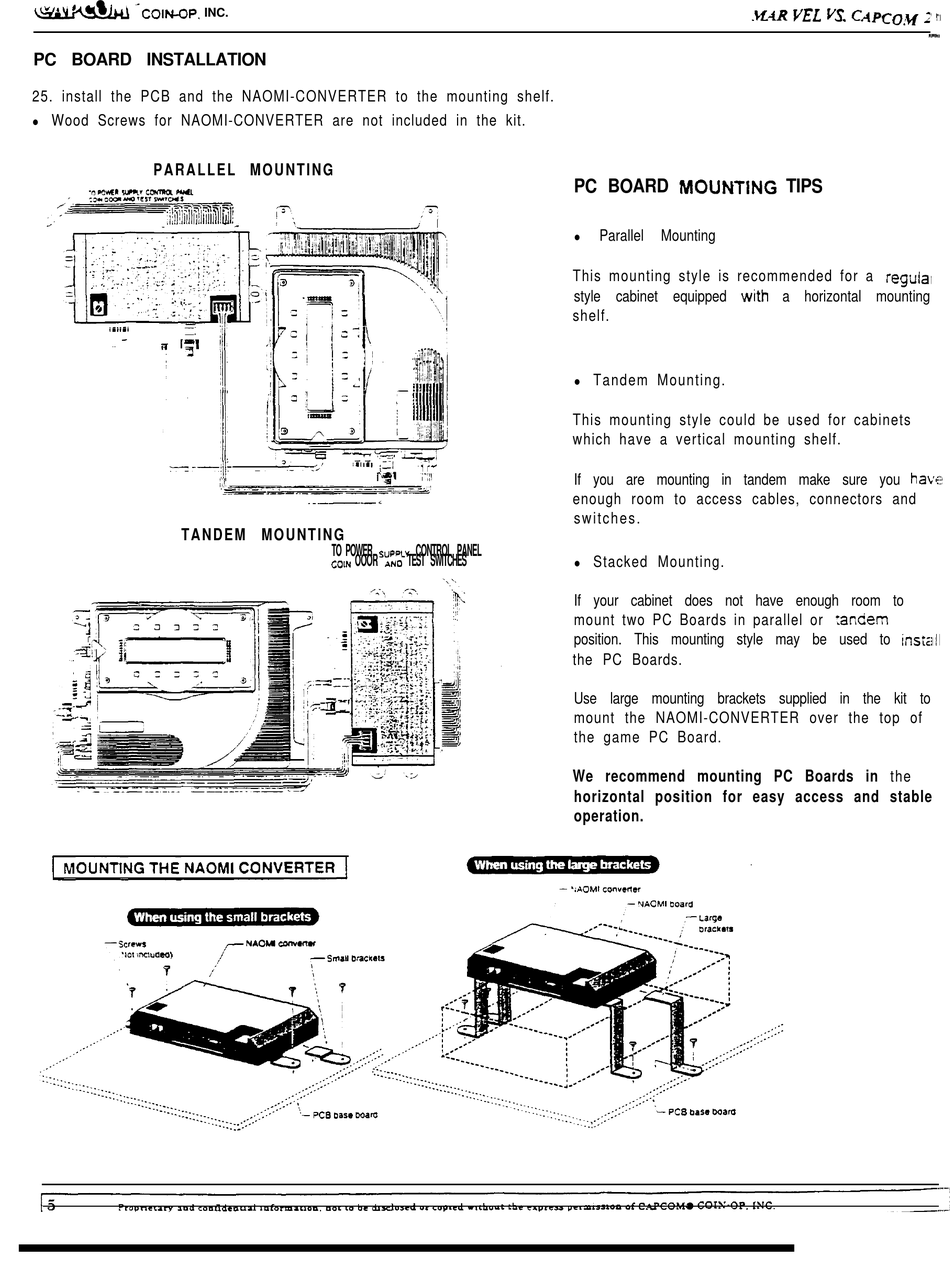

PC BOARD INSTALLATION
25. install the PCB and the NAOMI-CONVERTER to the mounting shelf.
Wood Screws for NAOMI-CONVERTER are not included in the kit.
l
P A R A L L E L M O U N T I N G
T A N D E M M O U N T I N G
- -
TO POWER SUPPL", CONTROL PANEL
PC BOARD MOUNTlNG TIPS
Parallel Mounting
l
This mounting style is recommended for a reguial
style cabinet equipped wtth
shelf.
Tandem Mounting.
l
This mounting style could be used for cabinets
which have a vertical mounting shelf.
If you are mounting in tandem make sure you havl?
enough room to access cables, connectors and
switches.
Stacked Mounting.
l
If your cabinet does not have enough room to
mount two PC Boards in parallel or
position. This mounting style may be used to Ins&II
the PC Boards.
Use large mounting brackets supplied in the kit to
mount the NAOMI-CONVERTER over the top of
the game PC Board.
We recommend mounting PC Boards in the
horizontal position for easy access and stable
operation.
a horizontal mounting
