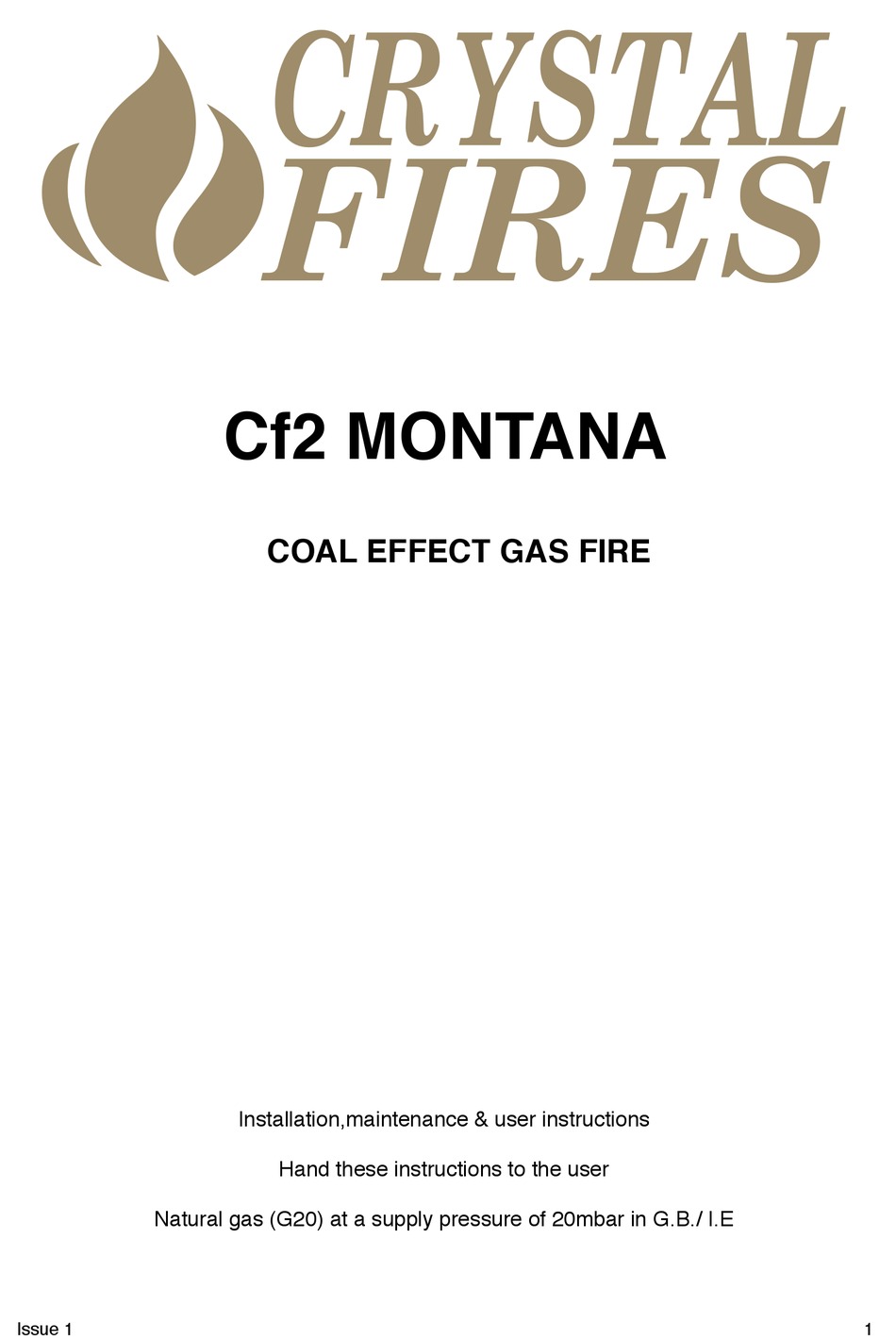

- Page 1 Cf2 MONTANA COAL EFFECT GAS FIRE Installation,maintenance & user instructions Hand these instructions to the user Natural gas (G20) at a supply pressure of 20mbar in G.B./ I.E Issue 1!
-
Page 2: Table Of Contents
Contents Section 1 information and requirements page appliance information ! conditions of installation flue and chimney suitability fireplace / surround suitability shelf position ! 1.5! chimney inspection fireplace opening /catchment space fitting to metal flue boxes hearths spillage monitoring system remove glass and fire tray Section 2 installing the fire... -
Page 3: Information And Requirements Page
Section 1 Information and requirements 1.0 appliance information Model cf2 montana HE Gas type G20 natural gas Injector Pilot type: S I T Max gross heat input : 5.2 kW Min gross heat input : 2.6 kW Cold pressure: 20.0 +/- 1.0 mbar... -
Page 4: Conditions Of Installation
Installation requirements 1.1 conditions of installation It is the law that all gas appliances are installed only by a competent person Ie:a registered installer in accordance with the current edition of the gas safety(installation and use )regulations or the rules in force.failure to do so could lead to prosecution The installer must be gas safe registered . -
Page 5: Fireplace / Surround Suitability
1.3 Fireplace / surround suitability The fire must only be installed on a hearth it must not be installed directly on to a carpet or other combustible floor materials. (this appliance may be installed without a hearth when fitted as a hole in the wall and is fitted so the bottom of the appliance is installed a minimum of 300mm from floor level) This fire is suitable for fitting to a non combustible fire place surrounds and proprietary fireplace surrounds with a temperature rating of at least 150º... -
Page 6: Fireplace Opening /Catchment Space
1.6 Fireplace opening and chimney catchment space The front opening of the fireplace must be between 400mm and 425mm wide and between 560mm and 570mm high.if the opening exceeds these dimensions then a surround must be constructed from suitable non - combustible material to produce correct size opening .any surround must be suitably sealed to the fireplace to prevent leakage See below fig 1 Fig 1... -
Page 7: Fitting To Metal Flue Boxes
1.7 fitting to metal flue boxes A DOUBLE WALLED SELKIRK RECESSED FLUE BOX BUILT TO THE REQUIREMENTS OF BS 715 BS EN 1856 WITH AN INSULATED FLUE HAVING A MINIMUM DIAMETER OF 125mm (5”) AND A MINIMUM EFFECTIVE OVERALL HEIGHT OF 3 METERS (10ft) 610mm 570mm 310mm... -
Page 8: Spillage Monitoring System
projection 300mm forwards from the opening 1.9 Spillage monitoring system This appliance is fitted with an atmosphere sensing device ,this is designed to shut off the appliance in the event of partial or complete blockage of the flue causing a build up of combustion products in the room in which the fire is operated The following are important warnings related to this spillage monitoring system 1.the spillage device must not be adjusted by the installer... -
Page 9: Installing The Fire Box
Section 2 installation of the fire installing the firebox Check that the chimney / flue conforms to the required specifications as previously stated. If this is so continue with the installation 2.2 Gas supply It is recommended a concealed connection is made using semi rigid tubing on the rear left side of the appliance taking into account the requirements of B.S 6891 1988 dealing with enclosed pipes An isolating valve is built in to the appliance as part of the pressure test point elbow 2.3secure to fireplace... -
Page 10: Gas Tightness And Inlet Pressure
Fit a screwed nipple on to each of the cables and pull hand tight up against the tensioning screw then secure each nipple with a screwdriver Evenly tighten the tensioning nuts to tension both cables and pull the fire snugly to the wall Do not over tighten ,it is only necessary to pull the seal against the wall and make an air tight seal ,check there are no gaps behind the seal With the fire securely in place the gas pipe can now be purged ensuring... -
Page 11: Fitting Fuel Bed And Commissioning
Section 3 Fitting fuel bed and commissioning 3.1 assembling the fuel bed PERIODICALLY SMALL DEPOSITS OF SOOT MAY GATHER ON THE FUEL BED AND BURNER, THIS MUST BE REMOVED BY REMOVING FUEL AND BRUSHING ANY DEPOSITS WITH A SOFT BRUSH AND VACUUMING THE BURNER, THEN REPLACE FUEL USING THE FOLLOWING PROCEDURE. - Page 12 Next 2 fit central as shown Final 3 sit central as shown Full operating instructions can be found at the users instructions Warning Only use the fuel pieces supplied with the fire and when replacing use only the same genuine replacement parts Under no circumstances add additional pieces Replace glass by inserting the glass piece with the glass seal towards the fire and ensure a good snug fit.
-
Page 13: Checking For Spillage
3.2 Checking for spillage Checking for clearance of combustion products Close all doors and windows in room Light the fire and allow to run for approximately 5 minutes on high position After approximately 5 minutes hold a smoke match inside the diverter as shown below ,(it is recommended that a suitable smoke match holder is used when checking for clearance of combustion )most of the smoke must be drawn into the flue If in doubt repeat the test after the fire has been burning for 10 minutes... -
Page 14: Maintenance
Section 4 Maintenance Servicing should be carried out annually by a competent person ,(gas safe engineer ) The service should include changing the oxypilot and visually checking the chimney and fire opening for debris,also carry out a smoke test to check for positive up draught in the chimney Check condition of coals and ceramics and if necessary replace the full set with genuine replacement parts... -
Page 15: Cleaning
REMOVE IGNITOR LEAD FROM PILOT ASSEMBLY UNDO SCREWS SECURING OXY PILOT TO FIRE TRAY RE-ASSEMBLE IN REVERSE ORDER TURN ON GAS SUPPLY,CHECK FOR SOUNDNESS AND RECOMMISION APPLIANCE 4.2 Cleaning Before cleaning any part of the appliance ensure the gas is turned off and the fire is not hot Remove trims from appliance before cleaning by pulling it free from magnets Brass/chrome trim can be cleaned with brasso or other brass cleaner Colored finishes need wiping with a damp cloth... -
Page 16: Users Instructions
Section 5 Users instructions 5.1 installation information 1.1 conditions of installation It is the law that all gas appliances are installed only by a competent person Ie:a registered installer in accordance with the current edition of the gas safety(installation and use )regulations or the rules in force.failure to do so could lead to prosecution The installer must be gas safe registered . - Page 17 checked for debris or blockages,the chimney should be checked for the clearance of flue products and the oxypilot replaced After installation or during a service a spillage test must always be carried out Rubbish of any type must never be thrown on to the fuel bed ,this could affect safe operation and damage the fire Any deposits and debris should be removed from the fuel bed periodically this may be carried out by referring to section 4.2 cleaning.
-
Page 18: Manual Users
OPERATING INSTRUCTIONS. MANUAL OPERATION THE APPLIANCE DATA BADGE IS POSITIONED ON THE FRONT BOTTOM SECTION OF THE APPLIANCE AND CARIES THE CONTROL KNOB POSITIONS.THE FULL LIGHTING PROCEDURE IS AS FOLLOWS. 1.PUSH CONTROL KNOB IN AS FAR AS POSSIBLE ON GAS CONTROL 2.TURN KNOB ANTI-CLOCKWISE TO IGNITION POSITION STILL KEEPING KNOB IN AS FAR AS POSSIBLE. -
Page 19: Mertik Remote Control
MERTIK MAXITROL REMOTE CONTROL SYSTEM Fig 1 Off position On position Ignition /pilot position THESE INSTRUCTIONS ARE FOR THE USE ON CRYSTAL FIRES REMOTE CONTROL RANGE OF GAS FIRES OPERATION LIGHTING PROCEDURE 1. TURN KNOB A (FIGURE 1) SLIGHTLY LEFT TOWARDS THE IGNITION POSITION... - Page 20 LOW AND OFF TO PRESS ON YOU MUST PRESS TOP BUTTON AND SMALL BUTTON ON LEFT SIMULTANEOUSLY BATTERY BOX SHUT OFF PROCEDURE 1.TURN KNOB A RIGHT UNTIL REACHING STOP. IN THIS POSITION ONLY PILOT GAS FLOWS 2.TO SHUT OFF VALVE COMPLETELY,PRESS DOWN SLIGHTLY AND CONTINUE TURNING RIGHT FROM PILOT POSITION TO THE OFF POSITION.THE SAFETY INTERLOCK PREVENTS RE-IGNITION OF THE PILOT FLAME...
-
Page 21: Bray/Sit Remote Control
Bray/sit ACS2T remote control Flame level indicator manual On /off Down LIGHTING THE APPLIANCE - S.I.T. ACS2T REMOTE CONTROL IMPORTANT : IF THE BURNER IS EXTINGUISHED FOR ANY REASON YOU MUST ENSURE THAT YOU WAIT A FULL FIVE MINUTES BEFORE ATTEMPTING TO RE- LIGHT THE FIRE. -
Page 22: Assembling The Fuel Bed
assembling the fuel bed PERIODICALLY SMALL DEPOSITS OF SOOT MAY GATHER ON THE FUEL BED AND BURNER, THIS MUST BE REMOVED BY REMOVING FUEL AND BRUSHING ANY DEPOSITS WITH A SOFT BRUSH AND VACUUMING THE BURNER, THEN REPLACE FUEL USING THE FOLLOWING PROCEDURE. THE MAIN FIBRE BASE IS LIABLE TO HAVE SURFACE CRACKS DUE TO THE HIGH TEMPERATURES OF THE FIBRE AND THE PAINT BEING DIFFERENT THIS IS QUITE NORMAL AND SHOULDN’T CAUSE CONCERN... -
Page 23: Cleaning Glass
Next 2 fit central as shown Next 3 fit central as shown Warning Only use the fuel pieces supplied with the fire and when replacing use only the same genuine replacement parts Under no circumstances add additional pieces Replace glass by inserting the glass piece with the glass seal towards the fire and ensure a good snug fit. -
Page 24: Troubleshooting Help
Troubleshooting help With todays homes having wooden floors dust can cause problems with gas fires please use your vacuum regular to keep your pilot light clean from dust,it is fitted with a gauze filter but if you can keep it clean it will assist with the long life of your fire Troubleshooting pilot light Left above a correct blue flame right above a incorrect yellow flame...
