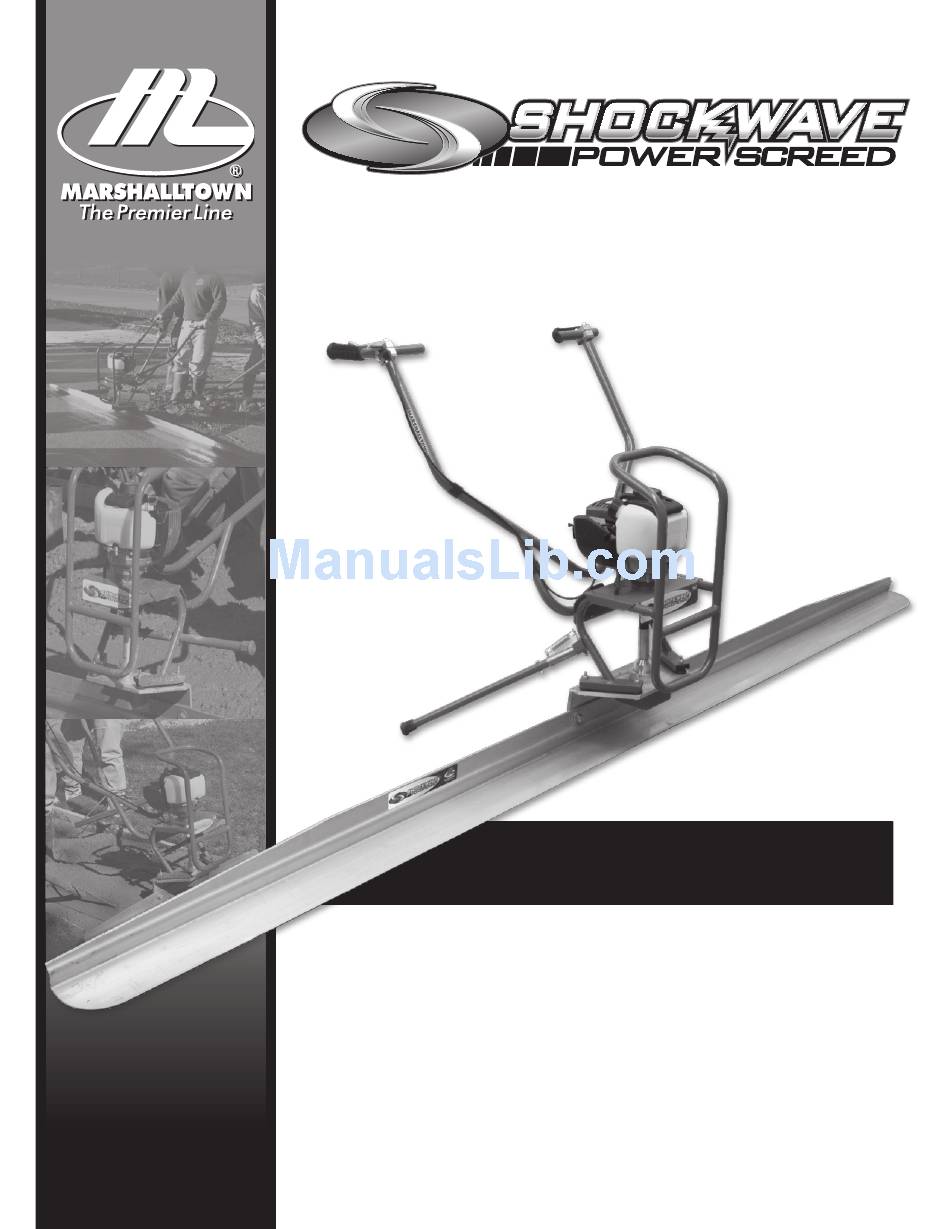

- Page 1 OPERATIONS MANUAL AND PARTS BOOK EDI-13261 PART# SW100H Marshalltown, IA Phone 800-888-0127 / 641-753-0127 Fax 800-477-6341 / 641-753-6341 www.marshalltown.com WS570 1 of 16 R10-15-12...
-
Page 2: Table Of Contents
TABLE OF CONTENTS Safety Precaution . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 Common Components . -
Page 3: Common Components
COMMON COMPONENTS 1. Start/Stop Switch 2. Engine 3. Recoil Starter 4. Oil Cap 5. Gas Cap 6. Throttle Lever 7. Handle Bar Mounting Blocks 8. Handle Bars 9. Adjustable Hand Grips 10. Kickstand 11. Drive Shaft 12. Vibration Dampeners 13. Blade 14. -
Page 4: Assembly Instructions
ASSEMBLY INSTRUCTIONS Your Shockwave™ Screed power unit ships in two boxes, one containing the handle bars and the other containing the power unit . Assembly is easy, following these steps: INSTALLING HANDLE BARS AND KICKSTAND: Step 1 – Remove the 4 hex screws (A) that hold down the two handle mounting blocks Step 2 –... - Page 5 ASSEMBLY INSTRUCTIONS INSTALLING THROTTLE CABLE: Step 2 – The throttle has a rotating silver peg (A) with a slot on one side of it . One end of the throttle cable has a metal Step 1 – Remove carburetor cover by pressing clips . barrel (B) that fits into this slot .
- Page 6 ASSEMBLY INSTRUCTIONS Step 5 – Thread the exposed metal end of the throttle cable Step 6 - Once cable is through throttle lever, return the into the throttle lever . The lever will need to be “opened” to lever to the “idle” position shown above . Using pliers, pull expose the hole it fits into .
-
Page 7: Machine Adjustments
MACHINE ADJUSTMENTS CAUTION HANDLES Your Shockwave™ screed has handles that can be Always make sure engine is stopped with switch in "OFF" adjusted for a customized fit . position before making adjustments . ECCENTRIC WEIGHTS The factory weight set- ting will provide sufficient board vibration for most jobs . -
Page 8: Parts Breakdown
PARTS BREAKDOWN DET. QTY. DESCRIPTION GX35 HONDA MOTOR HANDLEBAR CLAMP HANDLEBAR ASSEMBLY BASE EXTRUSION TACHOMETER KILL SWITCH VIBRATION ISOLATOR ECCENTRIC WEIGHT #1 ECCENTRIC WEIGHT #2 ECCENTRIC SHAFT ECCENTRIC WEIGHT BUSHING WEIGHT ADJUSTMENT CAP LOWER BEARING HOUSING COUPLING DRIVE SHAFT CLUTCH FLEX SHAFT HANDLEBARS, L-GRIP HANDLEBARS, T-GRIP... - Page 9 PARTS BREAKDOWN BLADE SIZE CHART Part # SIZE-FT. SIZE-M 13336 SWSBLADE4 1 .2 13281 SWSBLADE6 1 .8 13283 SWSBLADE8 2 .4 13284 SWSBLADE10 3 .0 13287 SWSBLADE12 3 .7 13290 SWSBLADE14 4 .3 13291 SWSBLADE16 4 .9 12950 SWSBLADE16P2 16 (2 sets of mounting holes) 4 .9 WS570 9 of 16...
-
Page 10: Wet Screeding
HOW TO WET SCREED Blade Length SETTING ELEVATION OF SLAB • Use grade pins (A) to set height of slab in the middle of the pour . 12-18 inches • Chalk line or expansion joint sets elevation around walls . •... -
Page 11: Form To Form Screeding
HOW TO SCREED FORM TO FORM Length of board should overlap form boards on both sides of the pour WIDTH OF SCREED BOARD WIDTH OF FORM Keep bottom of blade as flat as possible while striking off of forms To ensure the longest possible board life, use the lowest possible vibration setting in relationship to the slump of concrete being used . -
Page 12: Technical Data/Capacities
TECHNICAL DATA/CAPACITIES Model Number SW100H CAUTION Drive System Flexible Shaft Weight 33 . 5 lbs . (15 . 2 kg) Your Shockwave ships with a 4, 6, 8, 10, 12, 14, 16' Blade Lengths pre-measured bottle of oil (3 .5 oz) . 1 . -
Page 13: How To Operate
HOW TO OPERATE FUEL AND OIL Make sure gas tank has plenty of 86 octane or higher gasoline . Your 4 stroke Honda engine uses straight gasoline, NEVER USE A GAS/OIL MIX . Empty entire bottle of provided Honda engine oil into crank case . - Page 14 OPERATING ON WET CONCRETE Once the engine is warm and running by itself with the choke OPEN you can begin screeding concrete . For specific instructions on Wet Screeding and Form to Form screeding please see pages 10 and 11 . 1 .
-
Page 15: Warranty
ONE YEAR LIMITED WARRANTY Marshalltown Company (the Company) warrants, that for a period of twelve (12) months from the date of purchase, it will replace or repair, free of charge, for the original retail purchaser only, any part or parts, manufactured by the Company, found upon examination by the Company or its assigned representatives, to be defective in material or workmanship or both . - Page 16 Marshalltown, IA Phone 800-888-0127 / 641-753-0127 Fax 800-477-6341 / 641-753-6341 www.marshalltown.com WS570...
