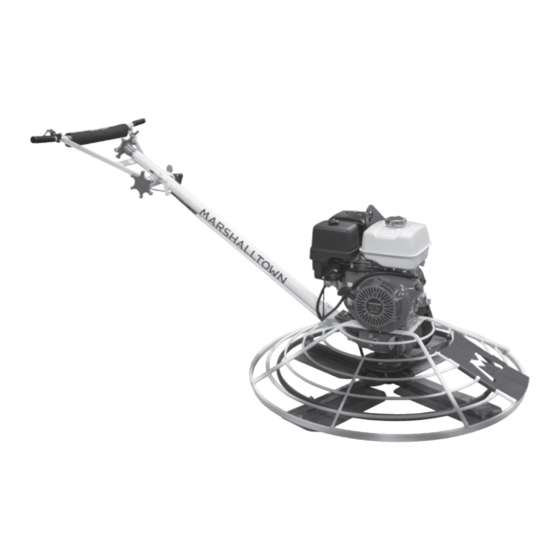

36" and 46" MARSHALLTOWN POWER TROWELS
Includes Models M4611(RP), M469(RP), M365E(RP), M365(RP), M369(RP)
104 S. 8th Ave. | Marshalltown, IA
Phone 800-888-0127 / 641-753-0127 | Fax 800-477-6341 / 641-753-6341
www.MARSHALLTOWN.com
WS1987

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the M4611 and is the answer not in the manual?

Questions and answers

Related Manuals for Marshalltown M4611

Summary of Contents for Marshalltown M4611

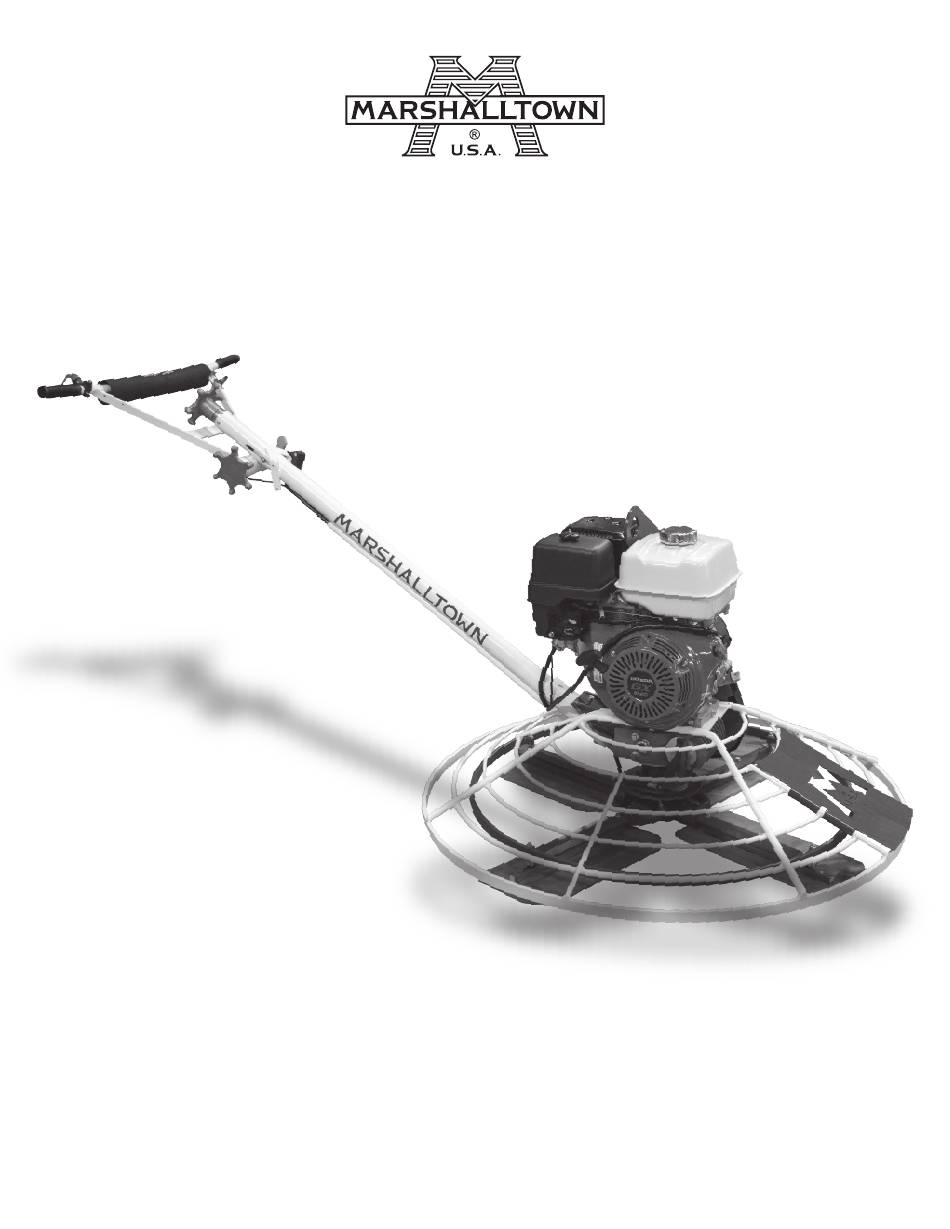

  • Page 1 36" and 46" MARSHALLTOWN POWER TROWELS Includes Models M4611(RP), M469(RP), M365E(RP), M365(RP), M369(RP) 104 S. 8th Ave. | Marshalltown, IA Phone 800-888-0127 / 641-753-0127 | Fax 800-477-6341 / 641-753-6341 www.MARSHALLTOWN.com WS1987...
  • Page 2 2 of 36 WS1987 104 S. 8th Ave. Marshalltown, IA Phone 800-888-0127 / 641-753-0127 • Fax 800-477-6341 / 641-753-6341 www.MARSHALLTOWN.com...

  • Page 3: Introduction

    This manual covers all MARSHALLTOWN power trowel models and options. For technical questions or repair parts, please call MARSHALLTOWN customer service at 1-800-888-0127, 641-753-6341 or visit www.MARSHALLTOWN.com. 3 of 36 WS1987 104 S. 8th Ave. Marshalltown, IA Phone 800-888-0127 / 641-753-0127 • Fax 800-477-6341 / 641-753-6341 www.MARSHALLTOWN.com...

  • Page 4: Table Of Contents

    36" & 46" GUARD RING ............................28 36" EDGER ROTATING RING ..........................29 UPPER HANDLE ASSEMBLY ..........................30 DRIVE ASSEMBLY ............................31-32 TROUBLESHOOTING............................33 4 of 36 WS1987 104 S. 8th Ave. Marshalltown, IA Phone 800-888-0127 / 641-753-0127 • Fax 800-477-6341 / 641-753-6341 www.MARSHALLTOWN.com...

  • Page 5: Safety Precautions

    Clear the work area around the machine to prevent tripping or falling onto the power trowel. • Do not operate the power trowel on extreme inclines. 5 of 36 WS1987 104 S. 8th Ave. Marshalltown, IA Phone 800-888-0127 / 641-753-0127 • Fax 800-477-6341 / 641-753-6341 www.MARSHALLTOWN.com...

  • Page 6: Safety Decals

    There are no warranties which extend beyond the description of this warranty. No employee or agent of MARSHALLTOWN Company has the authority to modify this warranty.

  • Page 7: Specifications

    36.94 (938) 41.64 (1058) 76.6 (1946) 50-130 M365ERP EDGER HONDA GX160 RAPID PITCH 35.06 (891) 41.64 (1058) 75.66 (1922) 50-130 7 of 36 WS1987 104 S. 8th Ave. Marshalltown, IA Phone 800-888-0127 / 641-753-0127 • Fax 800-477-6341 / 641-753-6341 www.MARSHALLTOWN.com...

  • Page 8: Common Components

    9. Pitch adjustment 21. Blades 10. Engine 22. Trowel arm 11. Recoil starter 23. Thrust plate 12. Air filter 24. Lifting plate 8 of 36 WS1987 104 S. 8th Ave. Marshalltown, IA Phone 800-888-0127 / 641-753-0127 • Fax 800-477-6341 / 641-753-6341 www.MARSHALLTOWN.com...

  • Page 9: Assembly

    35 ft-lbs. (Figure 1) alignment (Figure 2). Place bolts through the holes. Figure 3 Figure 4 Figure 5 9 of 36 WS1987 104 S. 8th Ave. Marshalltown, IA Phone 800-888-0127 / 641-753-0127 • Fax 800-477-6341 / 641-753-6341 www.MARSHALLTOWN.com...
  • Page 10 Attach the two red wires to the wiretaps near the engine’s on/off switch (Figure 10). Attach the two black wires to the wire studs under the valve cover. (Figure 11). 10 of 36 WS1987 104 S. 8th Ave. Marshalltown, IA Phone 800-888-0127 / 641-753-0127 • Fax 800-477-6341 / 641-753-6341 www.MARSHALLTOWN.com...

  • Page 11: Pre-Operation Checks

    Push the weight away from you so that it is closer to the engine before starting the trowel. 11 of 36 WS1987 104 S. 8th Ave. Marshalltown, IA Phone 800-888-0127 / 641-753-0127 • Fax 800-477-6341 / 641-753-6341 www.MARSHALLTOWN.com...
  • Page 12 The access panel screw can be found on the right side of the panel. Loosened the screw and swing the panel to the left to easily access the blades. Close the panel and tighten the screw before running the machine. 12 of 36 WS1987 104 S. 8th Ave. Marshalltown, IA Phone 800-888-0127 / 641-753-0127 • Fax 800-477-6341 / 641-753-6341 www.MARSHALLTOWN.com...

  • Page 13: Operation

    3. Switch the fuel valve lever on. 4. Pull the starter grip lightly until you feel resistance, then pull briskly. Repeat until engine starts. 13 of 36 WS1987 104 S. 8th Ave. Marshalltown, IA Phone 800-888-0127 / 641-753-0127 • Fax 800-477-6341 / 641-753-6341 www.MARSHALLTOWN.com...

  • Page 14: Floating/Finishing

    V-BELT (GX340 AND GX270) 28922 V-BELT (GX160) 28923 GEARBOX LUBRICANT 0.75L 28928 SEE HONDA MANUAL FOR SUGGESTED ENGINE SPARE PARTS 14 of 36 WS1987 104 S. 8th Ave. Marshalltown, IA Phone 800-888-0127 / 641-753-0127 • Fax 800-477-6341 / 641-753-6341 www.MARSHALLTOWN.com...

  • Page 15: Technical Data

    EVERY 300 HOURS OR 2 YEARS ELECTRONIC CONNECTIONS BEFORE EACH USE CHECK NUTS AND BOLTS BEFORE EACH USE CHECK SAFETY SWITCHES BEFORE EACH USE 15 of 36 WS1987 104 S. 8th Ave. Marshalltown, IA Phone 800-888-0127 / 641-753-0127 • Fax 800-477-6341 / 641-753-6341 www.MARSHALLTOWN.com...

  • Page 16: Changing The Blades

    Mark the location on the floor that was measured from. This is the distance the handle should be from the ground when all blades are rotated into the outlines marked. Figure 21 Blade Adjustment 16 of 36 WS1987 104 S. 8th Ave. Marshalltown, IA Phone 800-888-0127 / 641-753-0127 • Fax 800-477-6341 / 641-753-6341 www.MARSHALLTOWN.com...
  • Page 17 9. Repeat steps 5 through 8 until all blades have been in the outline and the height is within range. 17 of 36 WS1987 104 S. 8th Ave. Marshalltown, IA Phone 800-888-0127 / 641-753-0127 • Fax 800-477-6341 / 641-753-6341 www.MARSHALLTOWN.com...

  • Page 18: Gearbox

    GEARBOX (R4326) 18 of 36 WS1987 104 S. 8th Ave. Marshalltown, IA Phone 800-888-0127 / 641-753-0127 • Fax 800-477-6341 / 641-753-6341 www.MARSHALLTOWN.com...
  • Page 19 GEARBOX INPUT GASKET/SEAL KIT 28907 GEARBOX INPUT BEARING KIT 28908 10,12,18 GEARBOX OUTPUT GASKET/SEAL KIT 28909 GEARBOX OUTPUT BEARING KIT 28910 19 of 36 WS1987 104 S. 8th Ave. Marshalltown, IA Phone 800-888-0127 / 641-753-0127 • Fax 800-477-6341 / 641-753-6341 www.MARSHALLTOWN.com...

  • Page 20: 36" Spider Assembly

    PITCH ADJUSTMENT BOLT WR1280 RETAINING SCREW WX2343 ARM SPRING WX2333 ROLL PIN, 5/16 X 1 3/4 WR1299 HEX JAM NUT, 3/8-16 WR1197 20 of 36 WS1987 104 S. 8th Ave. Marshalltown, IA Phone 800-888-0127 / 641-753-0127 • Fax 800-477-6341 / 641-753-6341 www.MARSHALLTOWN.com...

  • Page 21: 46" Spider Assembly

    PITCH ADJUSTMENT BOLT WR1280 RETAINING SCREW WX2343 ARM SPRING WX2333 ROLL PIN, 5/16 X 1 3/4 WR1299 HEX JAM NUT, 3/8-16 WR1197 21 of 36 WS1987 104 S. 8th Ave. Marshalltown, IA Phone 800-888-0127 / 641-753-0127 • Fax 800-477-6341 / 641-753-6341 www.MARSHALLTOWN.com...

  • Page 22: Thrust Collar Assembly

    NYLOCK HEX NUT 3/ 8- 16 WR445 1-7, 11 THRUST COLLAR KIT R4513 8-10, 12, 13 PITCH BRACKET KIT R4119 THRUST BEARING KIT 28914 22 of 36 WS1987 104 S. 8th Ave. Marshalltown, IA Phone 800-888-0127 / 641-753-0127 • Fax 800-477-6341 / 641-753-6341 www.MARSHALLTOWN.com...

  • Page 23: 46" Stabilizer Assembly

    STABILIZER RING R4356 ROD END, 5/16 MA LE WR1298 HEX CAP SCREW 5/16-18 X 3/4 WR1309 JAM HEX NUT 5/16-24 WR1292 23 of 36 WS1987 104 S. 8th Ave. Marshalltown, IA Phone 800-888-0127 / 641-753-0127 • Fax 800-477-6341 / 641-753-6341 www.MARSHALLTOWN.com...

  • Page 24: Knob Style Handle Tube Assembly

    FULL KNOB STYLE HANDLE ASSEMBLY (R4341) CENTRIFUGAL SAFETY SWITCH ASSEMBLY BREAKDOWN 24 of 36 WS1987 104 S. 8th Ave. Marshalltown, IA Phone 800-888-0127 / 641-753-0127 • Fax 800-477-6341 / 641-753-6341 www.MARSHALLTOWN.com...
  • Page 25 4-6, 8, 11, KNOB STYLE HANDLE END KIT 28926 16, 23, 24 R4341 & FULL KNOB STYLE HANDLE ASSEMBLY R3888 R4373 25 of 36 WS1987 104 S. 8th Ave. Marshalltown, IA Phone 800-888-0127 / 641-753-0127 • Fax 800-477-6341 / 641-753-6341 www.MARSHALLTOWN.com...

  • Page 26: Rapid Pitch Handle Tube Assembly

    RAPID PITCH HANDLE TUBE ASSEMBLY (R4399) 28 29 26 of 36 WS1987 104 S. 8th Ave. Marshalltown, IA Phone 800-888-0127 / 641-753-0127 • Fax 800-477-6341 / 641-753-6341 www.MARSHALLTOWN.com...
  • Page 27 WR1292 HEX NUT 3/8-16 WR1291 HEX NUT 1/4 - 20 WR1289 HEX NUT 10-24 WR1290 HANDLE GROMMET AND SPACER 28917 27 of 36 WS1987 104 S. 8th Ave. Marshalltown, IA Phone 800-888-0127 / 641-753-0127 • Fax 800-477-6341 / 641-753-6341 www.MARSHALLTOWN.com...

  • Page 28: 36" Blades

    REF # NAME PART # LOCK WASHER 5/16 WR364 HEX CAP SCREW 5/16-18 X 1.5 WR1008 8X18 COMBO BLADE M6094 (4-PACK) 28 of 36 WS1987 104 S. 8th Ave. Marshalltown, IA Phone 800-888-0127 / 641-753-0127 • Fax 800-477-6341 / 641-753-6341 www.MARSHALLTOWN.com...
  • Page 29 R4371 BELT GUARD SCREW WR1279 FLAT HEAD SCREW, 3/8 -16 X 3/4 WR1302 ROUNDED HEAD SCREW 10-24 X 1/2 WR1158 29 of 36 WS1987 104 S. 8th Ave. Marshalltown, IA Phone 800-888-0127 / 641-753-0127 • Fax 800-477-6341 / 641-753-6341 www.MARSHALLTOWN.com...

  • Page 30: 36" & 46" Guard Ring

    PITCH SLEEVE R4397 GUARD RING MOUNT R4369 FLAT HEAD SCREW, 3/8 - 16 X 1.0 WR1302 3,6,7 BALL BEARING KIT 28927 30 of 36 WS1987 104 S. 8th Ave. Marshalltown, IA Phone 800-888-0127 / 641-753-0127 • Fax 800-477-6341 / 641-753-6341 www.MARSHALLTOWN.com...

  • Page 31: Upper Handle Assembly

    WR1158 CARRIAGE BOLT 3/8 - 16 X 4 1/2 WR1301 UPPER HANDLE SPACER R4379 SHOWN TETHER SAFETY ASSEMBLY 28920 SHOWN 31 of 36 WS1987 104 S. 8th Ave. Marshalltown, IA Phone 800-888-0127 / 641-753-0127 • Fax 800-477-6341 / 641-753-6341 www.MARSHALLTOWN.com...

  • Page 32: Drive Assembly

    DRIVE ASSEMBLY 32 of 36 WS1987 104 S. 8th Ave. Marshalltown, IA Phone 800-888-0127 / 641-753-0127 • Fax 800-477-6341 / 641-753-6341 www.MARSHALLTOWN.com...
  • Page 33 HEX CAP SCREW 5/16 - 24 X 7/8 WR1338 HEX CAP SCREW 5/16 - 24 X 1 1/2 WE1345 FLAT WASHER 5/16 WR236 LOCK WASHER 5/16 WR364 33 of 36 WS1987 104 S. 8th Ave. Marshalltown, IA Phone 800-888-0127 / 641-753-0127 • Fax 800-477-6341 / 641-753-6341 www.MARSHALLTOWN.com...

  • Page 34: Troubleshooting

    1. Check to see the blades are installed correctly. 2. Check to see that the pitch cable is attached and intact. 34 of 36 WS1987 104 S. 8th Ave. Marshalltown, IA Phone 800-888-0127 / 641-753-0127 • Fax 800-477-6341 / 641-753-6341 www.MARSHALLTOWN.com...
  • Page 35 35 of 36 WS1987 104 S. 8th Ave. Marshalltown, IA Phone 800-888-0127 / 641-753-0127 • Fax 800-477-6341 / 641-753-6341 www.MARSHALLTOWN.com...
  • Page 36 104 S. 8th Ave., Marshalltown, IA Phone 800-888-0127 / 641-753-0127 Fax 800-477-6341 / 64 1-753-6341 www.MARSHALLTOWN.com WS1987 36 of 36 WS1987 104 S. 8th Ave. Marshalltown, IA Phone 800-888-0127 / 641-753-0127 • Fax 800-477-6341 / 641-753-6341 www.MARSHALLTOWN.com...
