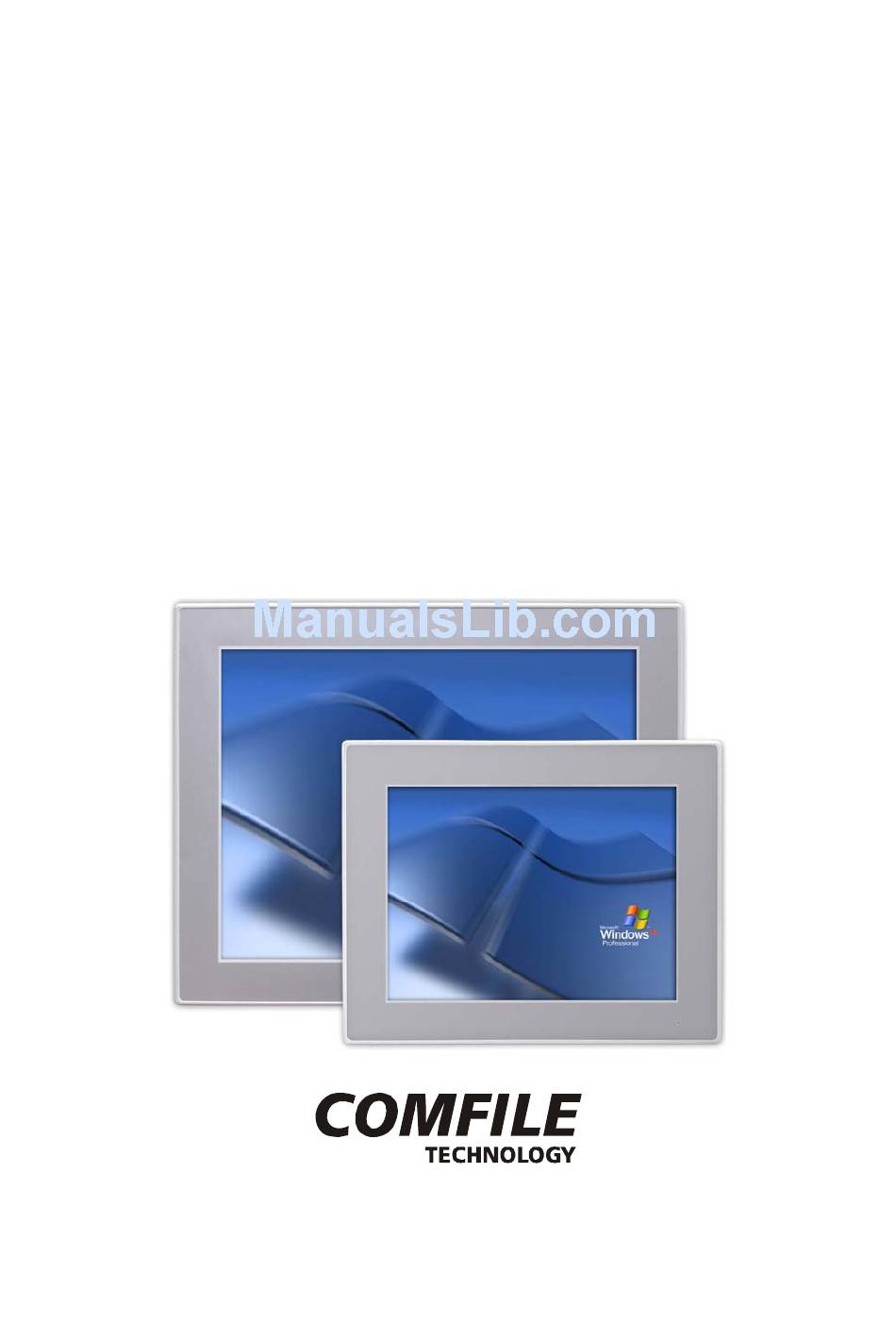

  • Page 1 CUPC-P200 Series User Manual (P200, P220) [Version 1.0] COMFILE Technology Inc. www.comfiletech.com...

  • Page 2: Table Of Contents

    CUPC P200 Series User Manual Table of Contents Chapter 1. Hardware Specification ..................3 Chapter 2. External Parts ....................4 Chapter 3. Dimensions ......................5 3-1. CUPC-P200 Dimensions..................... 5 3-2. CUPC-P220 Dimensions..................... 6 Chapter4. PANEL CUTOUT....................7 4-1 Installation Requirements and Installation............7 Chapter 5.

  • Page 3: Chapter 1. Hardware Specification

    CUPC P200 Series User Manual Chapter 1. Hardware Specification Model name Item CUPC-P200 CUPC-P220 Intel ATOM N270 1.6GHz Intel 945GSE + ICH7M Chipset 2GB SODIMM DDR2 SDRAM Memory Intel 945GSE Embedded Graphics Graphic & Display Support VGA CRT output Support Pivot 15inch 10.4inch 16.7M Colors,...

  • Page 4: Chapter 2. External Parts

    CUPC P200 Series User Manual Chapter 2. External Parts Name Description The green LED is turned on, when the power is supplied. Power/HDD LED The red LED is turned on, when the hard disk is read or written. ATX Power S/W ATX mode power switch.

  • Page 5: Chapter 3. Dimensions

    CUPC P200 Series User Manual Chapter 3. Dimensions 3-1. CUPC-P200 Dimensions Avoid using long bolts when assembling VESA mounts or add-on board. The inner maximum length is about 12mm. Back cover of product [Figure 1] CUPC-P200 Dimensions 5/27 1175 Chess Dr., Suite F, Foster city, CA 94404, USA www.comfiletech.com...

  • Page 6: Cupc-P220 Dimensions

    CUPC P200 Series User Manual 3-2. CUPC-P220 Dimensions Avoid using long bolts when assembling VESA mounts or add-on board. The inner maximum length is about 10mm. Back cover of product [Figure 2] CUPC-P220 Dimensions 6/27 1175 Chess Dr., Suite F, Foster city, CA 94404, USA www.comfiletech.com...

  • Page 7: Chapter4. Panel Cutout

    CUPC P200 Series User Manual Chapter4. PANEL CUTOUT 4-1 Installation Requirements and Installation [Installation Requirements] [Installation] CUPC X (Width) Y (Height) T (Thickness) Unit 1.6 to 12.0 P200 [13.98] [10.99] [0.06 to 0.47] [inch] 1.6 to 6.0 P220 [10.36] [8.27] [0.06 to 0.24] [inch] 7/27...

  • Page 8: Chapter 5. Bracket Installation

    CUPC P200 Series User Manual Chapter 5. Bracket Installation 5-1. CUPC-P200 Bracket Installation To fasten CUPC-P200 to an upright panel, the brackets (left, right) are supplied when you purchase P200. * Procedure * 1) Push and install the CUPC-P200 into your panel. 2) Press the bracket as the following directions in two steps.

  • Page 9: Cupc-P220 Bracket Installation

    CUPC P200 Series User Manual 5-2. CUPC-P220 Bracket Installation To fasten CUPC-P220 to an upright panel, the brackets (left 2ea, right 2ea) are supplied when you purchase P220. * Procedure * 1) Push and install the CUPC-P220 into your panel. 2) Press the bracket as the following directions in two steps.

  • Page 10: Chapter 6. Input/Output Connectors

    CUPC P200 Series User Manual Chapter 6. Input/Output Connectors 6-1. VGA Output Connector Connector Type * D-SUB 15Pin Female Pin Assignment Pin No. Signal Pin No. Signal GREEN BLUE DDC VCC (+5V) DDC DATA HSYNC VSYNC DDC CLK [Table 2] VGA Output Connector Type and Pin Assignment 6-2.

  • Page 11: Power Input Connector

    CUPC P200 Series User Manual 6-3. Power Input Connector * ø 2.5 Adaptor Jack Power Input Connector Type and Pin Assignment [Figure 3] CAUTION - Make sure the power supply is turned off when you begin wiring. - Before you turn on the power supply, please check the voltage of power supply and wiring is all ok.

  • Page 12: Chapter 7. System Restoration

    CUPC P200 Series User Manual Chapter 7. System Restoration CUPC provides a system restoration solution using Clonix ’ s WinClon, which is included when you purchase the OS Option Package. You can restore the CUPC to its original state or to any state you may have saved using the backup procedure.

  • Page 13: Rom Bios Configuration

    CUPC P200 Series User Manual 7-2. ROM Bios Configuration 7-2-1. Changing First Boot Device After turning on the power, if you press the [F2] key on the initial screen, the BIOS Setup Utility will open as shown in Figure 6. [Figure 6] BIOS SETUP Initial Screen Select the [Boot]...
  • Page 14 CUPC P200 Series User Manual Select the [USB KEY] and move it to the top of the list using key. Select [Exit Saving Changes] in the [Exit] menu. [Figure 8] BIOS SETUP Exit Screen Select [YES] in the [Setup Confirmation] screen.

  • Page 15: Booting With The Winclon Sdcard

    CUPC P200 Series User Manual 7-3. Booting with the WinClon SDCARD Insert the WinClon Recovery SDCARD and turn on the power. The System will begin booting into Windows PE as shown in [Figure10]. [Figure 10] WinPE Booting Screen After the system boots into Windows PE, WinClon will be executed as shown in [ Figure [Figure 11] WinClon Initial Screen 15/27...

  • Page 16: Restoration

    CUPC P200 Series User Manual 7-4. Restoration On the initial WinClon screen, click ‘ Restore ’ . Click [Figure 12] Restoring Menu Selection Select the restoration image according to the following steps. Click [Figure 13] Selecting Image 16/27 1175 Chess Dr., Suite F, Foster city, CA 94404, USA www.comfiletech.com...
  • Page 17 CUPC P200 Series User Manual Click on the folder icon. [Figure 14] Exploring image file [Figure 15] Select image file In the SD card you purchased, you will find an initial restoration image named by CUPC model. If you have performed a backup, you may see your own image, too. Select an image from the list. 17/27 1175 Chess Dr., Suite F, Foster city, CA 94404, USA www.comfiletech.com...
  • Page 18 CUPC P200 Series User Manual Select the partition you want to restore. In this example, we will restore the entire disk. Check [Figure 16] Selecting the restoring partition Click the ‘Next’ button and select the disk to restore. (Caution: Make sure that you confirm the disk information and check if it says ‘Hard Disk’) Check [Figure 17] Selecting the restoring disk 18/27...
  • Page 19 CUPC P200 Series User Manual Click ‘Next’. [Figure 18] Restoring Summary Screen Click ‘Process’. [Figure 19] Continue Screen 19/27 1175 Chess Dr., Suite F, Foster city, CA 94404, USA www.comfiletech.com...
  • Page 20 CUPC P200 Series User Manual Click ‘Yes’ to confirm. [Figure 20] Restoration Progress Screen The restoration process will begin. It will take about 4~5 minutes.. [Figure 21] Restoration complete After the restoration is complete, refer to the chapter 7-2-1 to change the CUPC First Boot Device IDE HDD and reboot.

  • Page 21: Backing Up

    [Figure 22] Selecting Backup Menu Select the disk or partition to back up. In this example we will backup the entire disk. (Caution: For CUPC-P200 series, Disk2 is the HDD. Check the disk size before selecting.) Click [Figure 23] Selecting the partition and disk to back up 21/27 1175 Chess Dr., Suite F, Foster city, CA 94404, USA...
  • Page 22 CUPC P200 Series User Manual Confirm the selected partition and/or disk. [Figure 24] Confirm the partition and disk to back up You are now ready to save the disk to an image file. Click the folder icon to locate the image file for saving. Click [Figure 25] Selecting folder icon 22/27...
  • Page 23 CUPC P200 Series User Manual Select the folder and enter a desired file name. Then click the ‘Save’button. [Figure 26] Input the image file name Click ‘Next’. [Figure 27] Image file determined 23/27 1175 Chess Dr., Suite F, Foster city, CA 94404, USA www.comfiletech.com...
  • Page 24 CUPC P200 Series User Manual If you want to protect your image, enter your password and click ‘Next’. [Figure 28] Password set Click ‘Process’. [Figure 29] Backup Summary Screen 24/27 1175 Chess Dr., Suite F, Foster city, CA 94404, USA www.comfiletech.com...
  • Page 25 CUPC P200 Series User Manual Click ‘Yes’ to confirm. [Figure 30] Backup Start Confirmation Screen The backup process will begin. It will take about 5~6 minutes. [Figure 31] Backup Progress Screen 25/27 1175 Chess Dr., Suite F, Foster city, CA 94404, USA www.comfiletech.com...
  • Page 26 CUPC P200 Series User Manual When the backup process is finished WinClon will display the newly created image file. To finish, click ‘OK’. [Figure 32] Backup Complete 26/27 1175 Chess Dr., Suite F, Foster city, CA 94404, USA www.comfiletech.com...

  • Page 27: Memo

    CUPC P200 Series User Manual MEMO 27/27 1175 Chess Dr., Suite F, Foster city, CA 94404, USA www.comfiletech.com...
