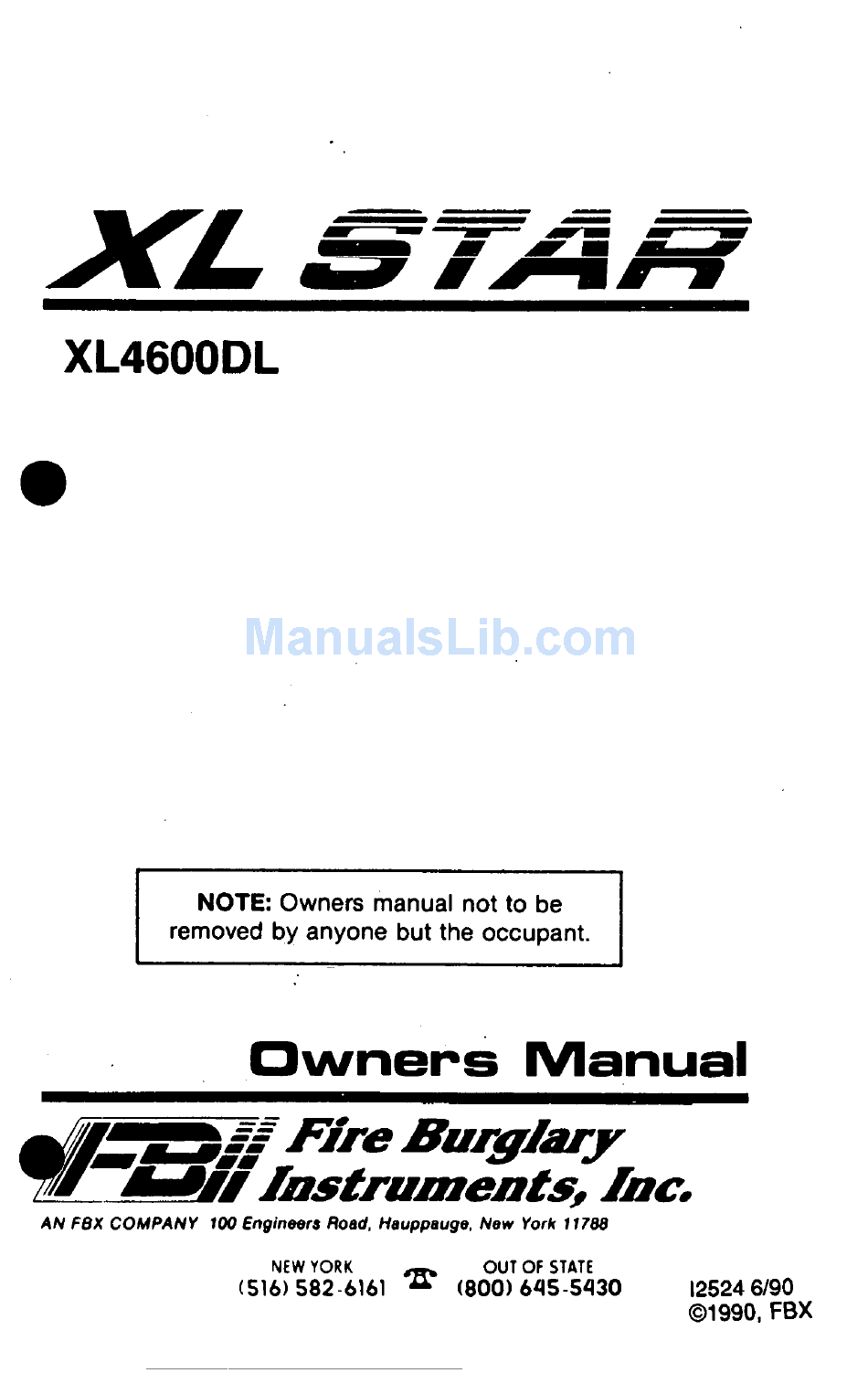

- Page 1 XL4600DL NOTE: Owners manual not to be removed by anyone but the occupant. Owners Manual AN FBX COMPANY Road, Hauppauge, New York 11788 Engineers NEW YORK OUT OF STATE (516) 582-6161 = (800) MS-5430 12524 6190 01990, FBX...
- Page 2 ’ KEYPAD LAYOUT The keypad is the arming station for the STAR XL46OODL. Three different versions are available, a metal plate flush mounted version (XL4600RM), a plastic cased surface mount version, and an LCD (liquid crystal display) version containing a two line readout.
- Page 3 1) ZONE STATUS INDICATORS - displays the current zone status as follows; ALARM Fast blinking. Slow blinking low intensity. BYPASS TROUBLE Slow pulse NOT READY Solid ON 2) ARM/DISARM INDICATOR -Shows whether the system is currently armed (ON) or disarmed (OFF). 3) STAY- shows the system has been armed with the interior zones bypassed.
-
Page 4: Arming The System
ARMING THE SYSTEM ARMING the system will activate all portions of your Security System. Arming can only be performed if all zones are READY. For example, if a protected door is open the system cannot be armed. SYSTEM READY The system is ready to be armed if the READY indicator light ON. On LCD keypads the following display will appear: BYSTEYREADY ‘. - Page 5 - Make the zone(s) ready. Determine which zones are not ready and perform what is necessary to ready the zone(s) (example, close the door or window, etc.),or - Bypass the zone(s) not ready. Bypassing should only be performed if the zone cannot be made ready or intentionally will remain not ready.
-
Page 6: Instant - Stay
In LCD keypads the following display will appear; pi51 In the STAY mode only themeter burglary protection is active. You are free to walk around the residence without activating any of the interior protection zones. >> Remember, you must DISARM the system to when you want to leave the premise. -
Page 7: User Definition
If the zone has already been bypassed, the sequence will unbypass the zone except if the system is armed and the unbypassed zone is still not ready. Unbypass means that the zone returns as an active burglary zone. After the bypass (or unbypass) command has been accepted the unit will emit a continuous beep and zone or zones that have been bypassed will appear In a slow blinking mode In the zone status area on LED keypads. -
Page 8: Keypad Emergency Conditions
11. KEYPAD EMERGENCY CONDITIONS The XL4600DL can also initiate three separate emergency conditions directly through the keypad. These conditions must be activated by your installer and can be initlated through simultaneous depression of two keys as follows: TION KEYSTOW Panic Fire .’... -
Page 9: Installation Layout
INSTALLATION LAYOUT Early warning fire detection is best achieved by the lnstallatlon of fire detection equipment the location as follows: Typical Smoke Detector Layout ~Pmposed) Preparation of an evacuation plan is of prime importance in fire prevention. Establish a household emergency evacuation plan in the event of fire. 1 - Evaluate possible escape routes from your home. -
Page 10: System Testing
It is recommended that you test your system once a week using the following procedure: Note: If your XL4600DL system is monitored by a Central Station then contact them prior to performing this test. 1 - Arm your security system. -
Page 11: Owner's Information
OWNERS INFORMATION NAME: ADDRESS: CITY, STATE, ZIP: TELEPHONE NUMBER: Date of Installation: EMERGENCY NUMBERS: CENTRAL STATION: FIRE DEPARTMENT: POLICE DEPARTMENT: NEIGHBOR: GAS/ELECTRIC DEPT: DOCTOR: HOSPITAL: EMERGENCY SERVICE INFORMATION: ALARM INSTALLING COMPANY:...
