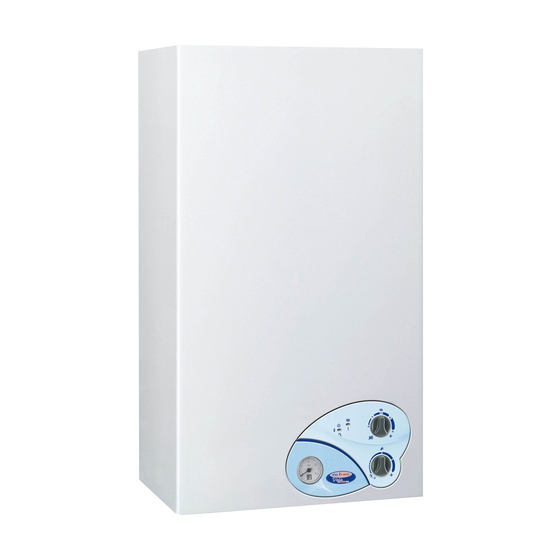

VELA
CTN 24/RTN 24 CTFS 24/RTFS 24
CTFS 28/RTFS 28
COMPACT
INSTALLATION
USE AND MAINTENANCE
GB
IST 04 C 167 - 02

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VELA COMPACT and is the answer not in the manual?

Questions and answers

Серега
May 10, 2025

Переключая на отопление не происжодит розжиг 3 сек моргает красный потом горит две зеленые. На горячую воду все работает.

1 comments:
Mr. Anderson
May 20, 2025

When the Nova Florida VELA COMPACT flashes red for 3 seconds and then shows two green lights when switching to heating, it indicates a normal transition during startup. The red flashing likely signals initial system checks or ignition, and the two green lights show that the boiler is operating in heating mode with a flame present.

This answer is automatically generated

Summary of Contents for Nova Florida VELA COMPACT

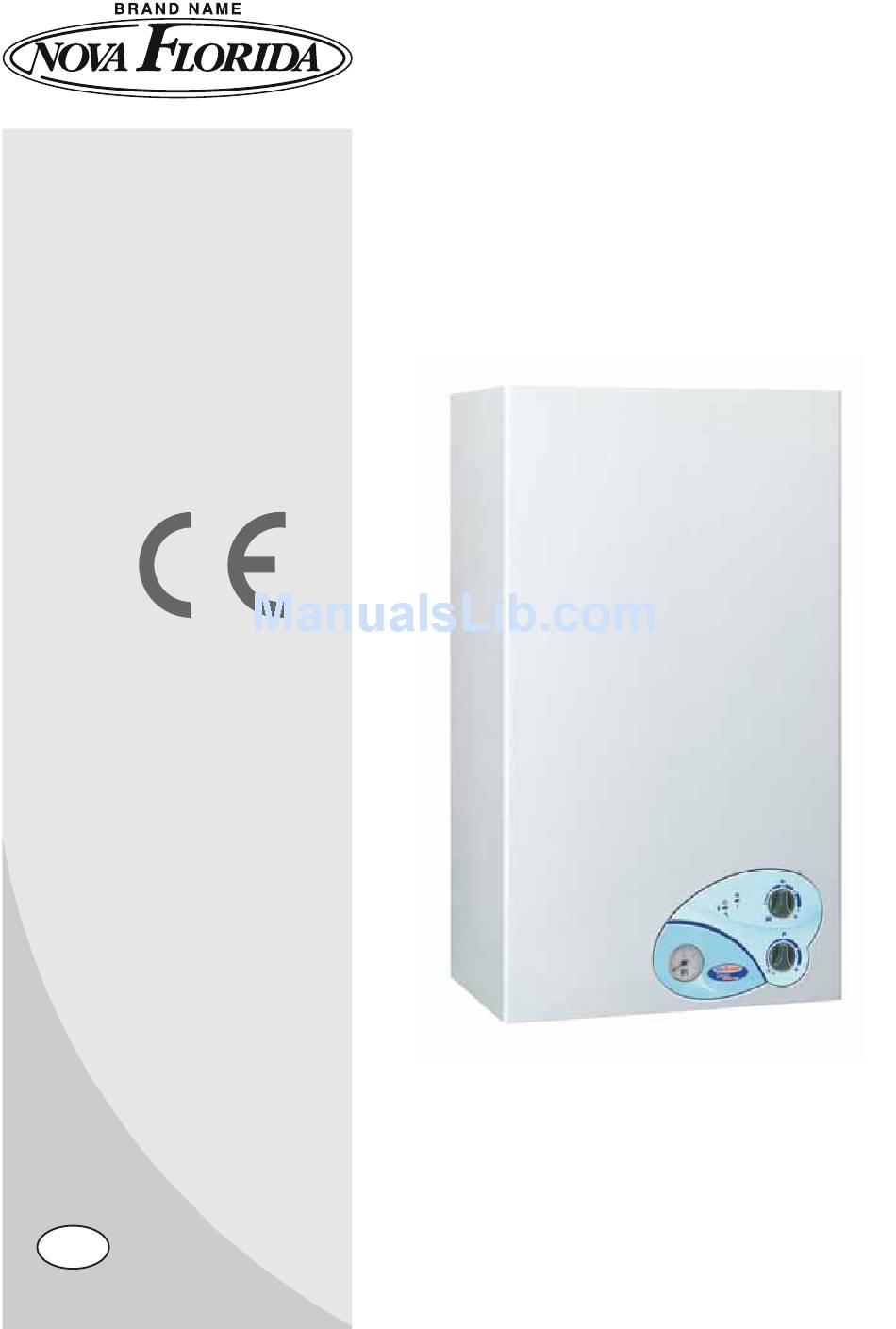

  • Page 1 VELA CTN 24/RTN 24 CTFS 24/RTFS 24 CTFS 28/RTFS 28 COMPACT INSTALLATION USE AND MAINTENANCE IST 04 C 167 - 02...
  • Page 2 Dear Customer, Thank you for choosing and buying one of our boilers. Please read these instructions carefully in order to install, operate, and maintain this equipment properly.
  • Page 3: General Information For The Installer, Maintenance Technician And User

    General information for fitters, maintenance technicians and users This INSTRUCTION MANUAL, which is an integral and indispensable part of the product, must be handed over to the user by the installer and must be kept in a safe place for future reference. The manual must accompany the boiler should it be sold or its pos- session transferred.
  • Page 4: Table Of Contents

    CONTENTS General information for the Installer, Maintenance Technician and User Page 3 1. Instructions for the User Page 6 1.1 Control panel Page 6 1.2 Operating the boiler Page 7 1.2.1 Switching on Page 7 1.2.2 Operation Page 7 1...3 Boiler shut-down Page 8 1.3.1 Burner shut-down Page 8...
  • Page 5 PICTURE INDEX Pic. 1 – Control panel Page 6 Pic. 2 – Loading tap Page 8 Pic. 3 – CTN model dimensions Page 11 Pic. 4 – CTFS model dimensions Page 12 Pic. 5 – CTN model hydraulic layout Page 13 Pic.
  • Page 6: Instructions For The User

    1. INSTRUCTIONS FOR THE USER 1.1 CONTROL PANEL Pic. 1 – Control panel 1. Boiler working mode led (multi-color) 4. DHW selector and boiler shutdown reset See no. 1 chart at the bottom of the page for further details on The knob sets the boiler to stand-by ( position, fully turned coun- color displayed by led in relation to boiler working mode.
  • Page 7: Operating The Boiler

    1.2 Operating the Boiler 1.2.1 Switching On The following procedures are to be implemented only after the boiler is installed, tested and its installation is certified by a qualified fitter. • Open the gas stop cock. • connect power mains to the boiler (no. 2 LED turns on displaying the green color); •...
  • Page 8: Boiler Shut-Down

    1.3. Boiler shut-down When any malfunction occurs, the boiler automatically shuts down. Refer to no. 1 chart (on page 6) in order to detect the boiler operation status. In order to identify plausible malfunction origin, see no. 6 paragraph “Troubleshooting” at the end of the manual. In relation to the type of malfunction, proceed as described hereafter.
  • Page 9: Maintenance

    1.4. Maintenance Have routine boiler maintenance performed according to the schedule indicated in the relevant section of this manual. Appropriate boiler maintenance ensures efficient operation, environment preservation, and safety for people, animals and objects. Only qualified personnel are to service the boiler. The manufacturer recommends Customers to contact authorized Service Centers for maintenance and repairs, they are best qualified for that procedure.
  • Page 10: Technical Characteristics And Dimensions

    2. Technical Characteristics and Dimensions 2.1. Technical Characteristics The boiler is equipped with an integrated gas atmospheric burner and the following versions are available: - CTN 24 AF: open chamber, natural draught boiler with electronic ignition and instantaneous DHW supply; - CTFS 24 AF: sealed chamber, forced draught boiler with electronic ignition and instantaneous DHW supply;...
  • Page 11: Dimensions

    2.2 Dimensions Model CTN top view bottom view G Gas inlet (1/2”) M CH flow (3/4”) C DHW flow (1/2”) F Cold water inlet (1/2”) R CH return (3/4”) Dimensions for connection to “plus” hydraulic kit (option) Dimensions for connection to base hydraulic kit (option) Pic.
  • Page 12: Pic. 4 - Ctfs Model Dimensions

    Model CTFS top view bottom view G Gas inlet (1/2”) M CH flow (3/4”) C DHW flow (1/2”) F Cold water inlet (1/2”) R CH return (3/4”) Dimensions for connection to “plus” hydraulic kit (option) Dimensions for connection to base hydraulic kit (option) Pic.
  • Page 13: Hydraulic Layouts

    2.3 Hydraulic layouts 1. DHW temperature probe 2. Modulating gas valve 3. CH temperature probe 4. Burner nozzles 5. Burner 6. Ignition/flame sensing electrode 7. Safety thermostat 8. Bi-thermal heat exchanger 9. Flue gas hood 10. Flue gas thermostat 11. Expansion vessel 12.
  • Page 14: Operating Data

    2.4 Operating Data Below indicated burner pressures are to be checked after a three minute boiler operation. CTN 24 AF Gas mains inlet Max. heat Max. heat Min. heat Diameter of Function Burner pressure input output output nozzles pressure (mbar) (kW) (kW) (kW)
  • Page 15: General Characteristics

    2.5 General Characteristics CTN 24 AF CTFS 24 AF Equipment category II2H3+ II2H3+ Number of burner nozzles installed n° Minimum CH flow rate Minimum CH pressure Maximum CH pressure Minimum DHW pressure Maximum CH pressure DHW specific capacity (∆t 30 °C) l/min 10.6 11.3...
  • Page 16: Instructions For The Installer

    3. INSTRUCTIONS FOR THE INSTALLER 3.1 INSTALLATION STANDARDS The boiler is designed as II2H3+ category and is to be installed in compliance with laws and standards in force in the country of instal- lation. 3.2. Installation Installation and maintenance procedures are to be implemented employing exclusively accessories and spare parts which are approved and supplied by the manufacturer.
  • Page 17: Positioning The Boiler

    3.2.3. Positioning the Boiler Each unit is supplied along with a paper template, in the package, allowing positioning the pipes connec- ting CH system, DHW system, gas supply, and air intake/flue gas discharge ducts to the boiler before installing the boiler itself. The template is made of highly resistant paper and is to be affixed to the wall on which the boiler is to be mounted using a carpenter’s level.
  • Page 18: Installing The Boiler

    3.2.4. Installing the Boiler Before connecting the boiler to the CH and DHW pipe systems, clean the pipes carefully and eliminate any metal left during manufacturing and welding process, any oil or grease that may be left and that could damage the boiler or alter its operation if it reaches the boiler.
  • Page 19: Pic. 8 - Connection To Chimney System Of Ctn Model

    Direct emission into the atmosphere Natural draught boilers can discharge flue gas directly into the atmosphere via a duct which goes through the outside walls of the buil- ding and ends with an anti-wind gust device terminal. The flue gas exhaust duct is to comply with the following requirements: - its sub-horizontal part inside the building must be as short as possible (not longer than 1,000 mm);...
  • Page 20: Forced Draught Boiler

    3.2.6.2. Forced draught boiler 3.2.6.2.1 Configuration of air intake and flue gas discharge ducts Type Type B22 This boiler is conceived for connection Type to an existing flue system either internal or external to the boiler room. Combustion air is taken directly from the boiler room itself while flue gas is conveyed to the outside.
  • Page 21: Air Intake And Flue Gas Discharge System Via 100/60 Mm Coaxial Pipes

    3.2.6.2.2. Air intake and flue gas discharge system via 100/60 mm coaxial pipes Type C12 Minimum permissible length of horizontal coaxial pipes is 1 meter, not counting the very first elbow connected to the boiler. Maximum permissible length of horizontal coaxial pipes is 4 meter, not counting the first elbow connected to the boiler. For each additional elbow maximum permissible length must be reduced by 1 meter.
  • Page 22: Air Intake And Flue Gas Discharge System Via 80/80 Mm Split Pipes

    3.2.6.2.3 Air intake and flue gas discharge system via 80/80 mm split pipes C42 – C52 – C82 installation category Air intake Minimum permissible length of air intake pipe is 1 meter. Each wide radius 90° elbow (R=D) equals a 1 meter long pipe section. Each narrow radius 90°...
  • Page 23: Checking Combustion Efficiency

    Example no. 2 Example no. 1 162 mm H min. = 150 mm 500 mm Pic. 14 – Split pipe installation samples Pic. 15 - Additional split pipe installation samples 3.2.7 Checking combustion efficiency In order to check combustion efficiency, turn no. 5 knob fully clockwise and completely open one or two domestic hot water taps so that the boiler will operate at max.
  • Page 24: Gas Mains Connection

    3.2.8. Gas mains connection Cross-section of gas supply pipe must be equal or greater than the boiler one. Cross-section size depends on its length, layout pat- tern, gas flow rate. It is therefore to be sized accordingly. Comply with installation standards enforced in the installation country. They are considered as an integral part of this booklet. Remember that before operate an internal gas distribution system and before connecting it to a meter, it must be checked for leaks.
  • Page 25: Power Mains Connection

    3.2.10. Power mains connections The boiler is supplied with a three-poled power cable, already connected to the electronic board and it is provided with an anti-ruptu- re firming clamp. The boiler is to be connected to a 230V-50Hz electric power supply. Comply with phase / neutral polarity sequence when power connecting the boiler.
  • Page 26: Starting The Boiler

    3.4 Starting the Boiler 3.4.1 Preliminary Checks Before starting the boiler it is necessary to perform the following checks: - flue gas discharge pipe and its terminal are installed in accordance to the instructions: when the boiler is running no products generated by combustion are to leak from any gasket;...
  • Page 27: Pic. 18 - Electric Layout

    Pic. 18 – Wiring diagram...
  • Page 28: No. 7 Chart - "Temperature - Nominal Resistance" Chart Of Temperature Probes

    Relation between temperature (°C) and nominal resistance (Ohm) of CH probe SR and DHW probe SS. T (°C) 27203 24979 22959 21122 19451 17928 16539 15271 14113 13054 12084 11196 10382 9634 8948 8317 7736 7202 6709 6254 5835 5448 5090 4758 4452...
  • Page 29: Adaptation To Other Gas Types And Burner Adjustment

    3.6 Adaptation to other gas types and burner adjustment The boilers are manufactured for the gas specified upon order. After sale transformation is to be exclusively implemented by qualified personnel, employing manufacturer designed accessories and following the procedure and adjustment instructions for an accurate boiler setting-up. Adapting the boiler from METHANE to LPG - Remove the main burner;...
  • Page 30: Testing The Boiler

    B) Minimum heat output adjustment - Disconnect electric wiring from D modulation coil (pic. 20); - turn the burner on and check minimum pressure value according to no. 2 and no. 3 charts on page 14; - in order to adjust pressure, hold nut B still by means of a 100 mm tool, and turn plastic screw C CLOCKWISE to increase and COUNTER-CLOCKWISE to decrease gas pressure;...
  • Page 31: Maintenance

    5. MAINTENANCE Routine boiler maintenance is to be scheduled according to current laws and regulations. Appropriate boiler maintenance ensures efficient operation, environment preservation, and safety for people, animals and objects. All maintenance and repair procedures are to be carried out by qualified personnel. The manufacturer recommends Customers to contact an authorized Service Centre for all maintenance and repair procedure as they are best trained for the purpose.
  • Page 32: Troubleshooting

    6. TROUBLESHOOTING BOILER STATUS MALFUNCTION PROBABLE CAUSE SOLUTION Check gas pressure Gas supply failure Check gas network stopcock or gas network safety valve intervention Burner does not ignite Gas valve has disconnected Reconnect it Gas valve is faulty Replace it PCB is faulty Replace it Ignition/flame sensing electrode is...
  • Page 33 BOILER STATUS MALFUNCTION PROBABLE CAUSE SOLUTION No. 1 led is flashing green and red. DHW probe is disconnected Reconnect it The boiler will automatically resume operation as soon as the malfunc- DHW probe is not working tion is corrected. DHW probe is faulty Replace it Check DHW system System insufficient pressure or...
  • Page 36 Fondital S.p.A. Via Mocenigo, 123 25078 VESTONE (Brescia) Italy Tel. +39 0365 878.31 - Fax +39 0365 596.257 e mail: info@fondital.it www.fondital.it The manufacturer reserves the right to implement any necessary and/or useful variation to products, without modifying fundamental characteristics.
