Model No. WETL59710.0
Serial No.
Write the serial number in the space
above for reference.
Serial Number
CUSTOMER CARE
UNITED KINGDOM
Call: 08457 089 009
From Ireland: 053 92 36102
Website: www.iconsupport.eu
E-mail: csuk@iconeurope.com
Write:
ICON Health & Fitness, Ltd.
c/o HI Group PLC
Express Way
CASTLEFORD
WF10 5QJ
UNITED KINGDOM
AUSTRALIA
Call: 1800 993 770
E-mail: australiacc@iconfitness.com
Write:
ICON Health & Fitness
PO Box 635
WINSTON HILLS NSW 2153
AUSTRALIA
CAUTION
Read all precautions and instruc-
tions in this manual before using
this equipment. Keep this manual
for future reference.
Decal
USER'S MANUAL
www.iconeurope.com
Advertisement
Table of Contents
Related Manuals for Weslo WETL59710.0
Summary of Contents for Weslo WETL59710.0
- Page 1 USER’S MANUAL Model No. WETL59710.0 Serial No. Write the serial number in the space above for reference. Serial Number Decal CUSTOMER CARE UNITED KINGDOM Call: 08457 089 009 From Ireland: 053 92 36102 Website: www.iconsupport.eu E-mail: csuk@iconeurope.com Write: ICON Health & Fitness, Ltd.
-
Page 2: Table Of Contents
Apply the decal in the location shown. Note: The decals may not be shown at actual size. WESLO is a registered trademark of ICON IP, Inc. -
Page 3: Important Precautions
IMPORTANT PRECAUTIONS WARNING: To reduce the risk of serious injury, read all important precautions and instructions in this manual and all warnings on your treadmill before using your treadmill. ICON assumes no responsibility for personal injury or property damage sustained by or through the use of this product. - Page 4 DANGER: 19. The pulse sensor is not a medical device. Always unplug the power Various factors, including the user’s move- cord immediately after use, before clean- ment, may affect the accuracy of heart rate ing the treadmill, and before performing the readings.
-
Page 5: Before You Begin

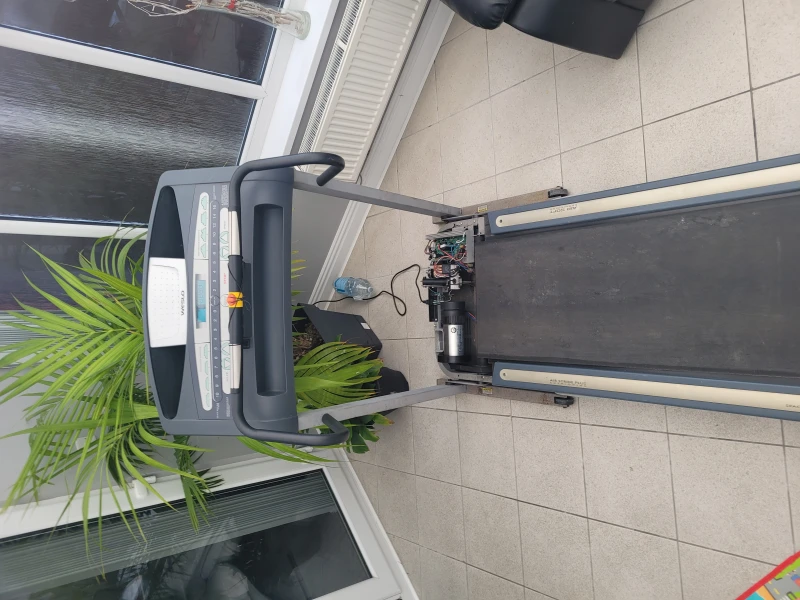

BEFORE YOU BEGIN Thank you for selecting the new WESLO CADENCE reading this manual, please see the front cover of this ® 26.0 treadmill. The CADENCE 26.0 treadmill offers a manual. To help us assist you, note the product model selection of features designed to make your workouts number and serial number before contacting us. -
Page 6: Assembly
ASSEMBLY Assembly requires two persons. Set the treadmill in a cleared area and remove the packing materials; do not dispose of the packing materials until assembly is completed. Note: The underside of the treadmill walking belt is coated with high-performance lubricant. During shipping, some lubricant may be transferred to the top of the walking belt or to the shipping carton. - Page 7 1. Have a second person hold the Base (85) in the position shown. Identify the Right Upright (78), which has a Bracket square hole near the lower end. Orient the Right Upright (78) as shown, and attach it to the Base (85) with two 3/8” x 2 1/4” Bracket Bolts (8) and two 3/8”...
- Page 8 4. See the left inset drawing. Identify the two Frame Spacers (79). Open the included packet of grease, and apply grease to both sides of both Frame Spacers. Then, identify the outer side of each Frame Spacer. Hold a Frame Spacer (79) between the Right Upright (78) and the Lift Frame (65), with the outer side of the Frame Spacer facing the Right Upright.
- Page 9 6. Have a second person hold the console assem- bly near the Right Upright (78). Connect the wire harness on the console assem- bly to the Upright Wire (74) as shown in the inset drawing. The connectors should slide together easily and snap into place.
- Page 10 9. Hold the Pulse Assembly (72) near the Handrail Bracket (70). Orient the Pulse Assembly so that the indicated plastic post will fit into the Pulse hole in the Right Handrail (71). Connect the Post Wires two Pulse Ground Wires (86) to the ground wires on the Pulse Assembly.
- Page 11 11. Partially tighten two 1/4” x 1 1/2” Bolts (3) with two 1/4” Washers (31) and two 1/4” Star Washers (11) into the Console Frame (92) and the Handrail Bracket (not shown). Do not fully tighten the Bolts yet. Next, partially tighten four 1/4” x 1/2” Bolts (6) with four 1/4”...
- Page 12 13. Attach the ground wire on the Upright Wire (74) to the indicated hole in the Base (85) with a #8 x 1/2” Screw (12). Press the indicated Grommet (21) into the Right Upright (78). Raise the Right Upright (78) and the Left Upright (not shown).
-
Page 13: Operation And Adjustment
OPERATION AND ADJUSTMENT THE PRE-LUBRICATED WALKING BELT 2. If you are plugging in the power cord in Australia, go to step 3. Your treadmill features a walking belt coated with high- performance lubricant. IMPORTANT: Never apply If you are plugging in the power cord in the UK, silicone spray or other substances to the walking first press the pins on the power cord into the metal belt or the walking platform. - Page 14 CONSOLE DIAGRAM Clip FEATURES OF THE CONSOLE IMPORTANT: If there is a sheet of plastic on the face of the console, remove the plastic. To prevent damage to the walking platform, wear clean athletic The treadmill console offers a selection of features shoes while using the treadmill.
- Page 15 HOW TO TURN ON THE POWER HOW TO USE THE MANUAL MODE IMPORTANT: If the treadmill has been exposed to 1. Insert the key into the console. cold temperatures, allow it to warm to room tem- perature before turning on the power. If you do not See HOW TO TURN ON THE POWER above.
- Page 16 4. Change the incline of the treadmill as desired. of calories you have burned, or the speed of the walking belt. Press the Display button repeatedly To change the incline of the treadmill, press the until the upper display shows the information that Incline increase and decrease buttons or one of you are most interested in viewing.
- Page 17 HOW TO USE A PRESET WORKOUT the speed setting for the current segment. At the end of each segment, a series of tones will sound 1. Insert the key into the console. and the next segment of the profile will begin to flash.
- Page 18 THE INFORMATION MODE An “M” for metric kilometers or an “E” for English miles will appear in the lower right display. Press the Speed The console features an information mode that keeps increase button to change the unit of measurement, if track of treadmill usage information and allows you to desired.
-
Page 19: How To Fold And Move The Treadmill
HOW TO FOLD AND MOVE THE TREADMILL HOW TO FOLD THE TREADMILL HOW TO MOVE THE TREADMILL To avoid damaging the treadmill, adjust the incline Before moving the treadmill, fold it as described at the to the lowest position before you fold the treadmill. left. -
Page 20: Troubleshooting
TROUBLESHOOTING Most treadmill problems can be solved by following the steps below. Find the symptom that applies, and follow the steps listed. If further assistance is needed, please see the front cover of this manual. PROBLEM: The power does not turn on SOLUTION: a. - Page 21 Locate the Reed Switch (46) and the Magnet (44) on the left side of the Pulley (43). Turn the Pulley until the Magnet is aligned with the Reed Switch. Make sure 1/8 in. that the gap between the Magnet and the Reed Switch is about 1/8 in.
-
Page 22: Exercise Guidelines
EXERCISE GUIDELINES Burning Fat—To burn fat effectively, you must exer- WARNING: cise at a low intensity level for a sustained period of Before beginning time. During the first few minutes of exercise, your this or any exercise program, consult your body uses carbohydrate calories for energy. -
Page 23: Part List
PART LIST Model No. WETL59710.0 R1013A Key No. Qty. Description Key No. Qty. Description 3/8” x 2 1/2” Bolt Power Cord Grommet 5/16” x 3/4” Bolt Walking Platform 1/4” x 1 1/2” Bolt Frame 1/4” Nut Idler Roller 5/16” Star Washer Left Rear Foot 1/4”... -
Page 24: Exploded Drawing
EXPLODED DRAWING A Model No. WETL59710.0 R1013A... - Page 25 EXPLODED DRAWING B Model No. WETL59710.0 R1013A...
- Page 26 EXPLODED DRAWING C Model No. WETL59710.0 R1013A...
- Page 27 EXPLODED DRAWING D Model No. WETL59710.0 R1013A...
-
Page 28: Ordering Replacement Parts
ORDERING REPLACEMENT PARTS To order replacement parts, see the front cover of this manual. To help us assist you, please be prepared to pro- vide the following information when contacting us: • the model number and the serial number of the product (see the front cover of this manual) •...
