ACTIVE SUBWOOFER SYSTEM: INSTRUCTIONS
Thank you for purchasing a JVC product. Please read all instructions carefully before operation, to ensure
your complete understanding and to obtain the best possible performance from the unit.
For Customer Use:
Enter the Model No. and Serial No. which
are located on the top or bottom of the cabinet.
Retain this information for future reference.

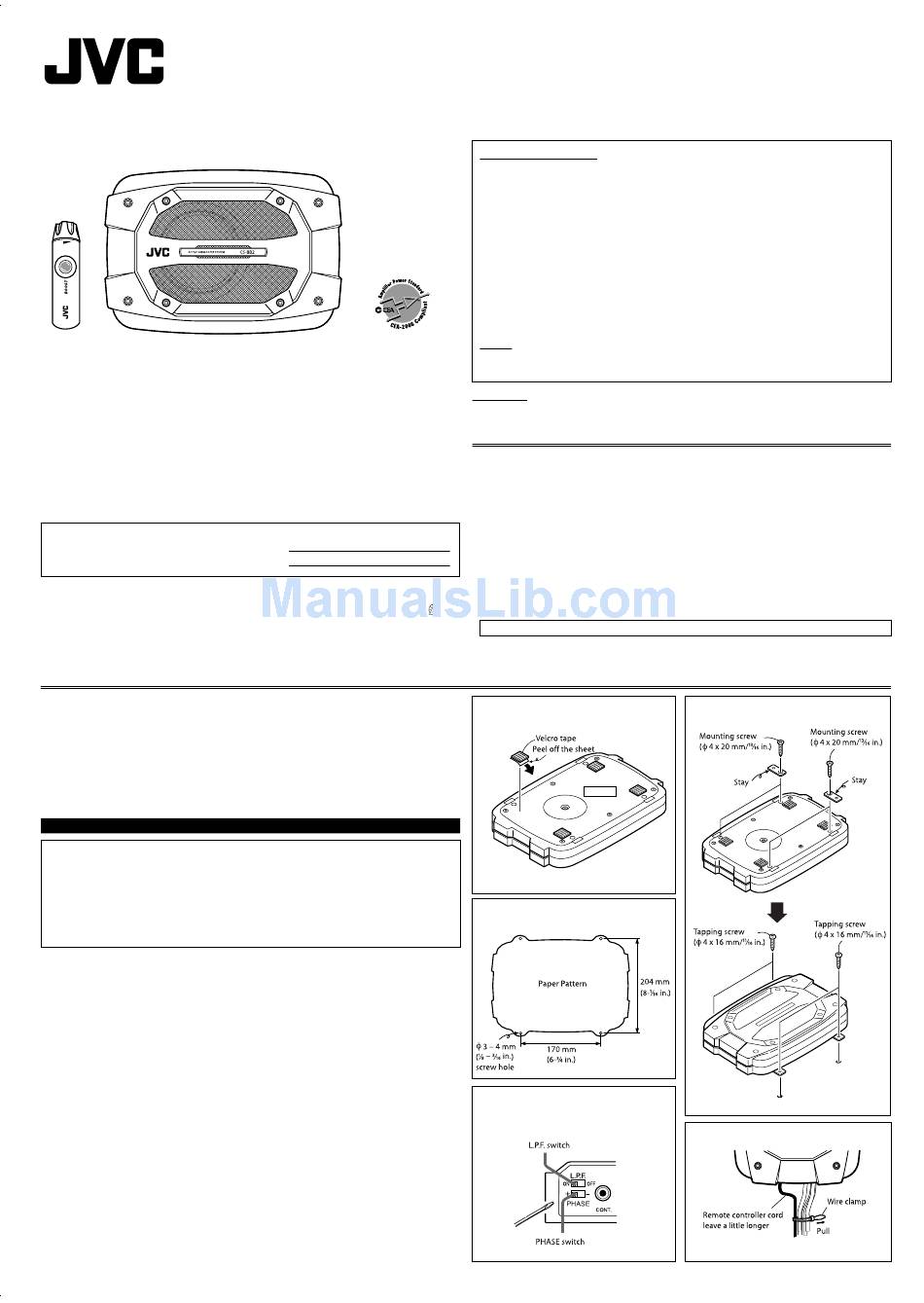

INSTALLATION
Mount this unit on a fi rm surface, such as on the fl oor.
• Since heat is generated in this unit, do not mount near fl ammable objects. In addition, mount in
an area that will not prevent the unit from dissipating heat.
• Do not mount the unit in the places subject to heat such as near a radiator, in a glove
compartment or under a car mat that will prevent the unit from dissipating heat.
Cautions
• Never try to install this unit only with the velcro tape (supplied for skid-proof attachment).
• Fix it with the tapping screws (supplied) fi rmly.
• When mounting this unit, be sure to use the screws provided. If any other screws are used,
there is a risk of loosening the unit or damaging internal parts.
– Before drilling holes on the fl oor to install the unit, make sure that there is a suffi cient
space under the fl oor so that you do not drill holes in the fuel tank, etc.
• This unit generates a strong magnetic fi eld. Never place cassette tapes or magnetic cards
nearby the unit; otherwise, data recorded in those media will be erased.
LVT1544-001A
[J/U]
Model No.
Serial No.
0106MNMMDWJSC
EN
© 2006 Victor Company of Japan, Limited
1
INFORMATION (For U.S.A.)
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This equipment
generates, uses, and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If
this equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
– Reorient or relocate the receiving antenna.
– Increase the separation between the equipment and receiver.
– Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
– Consult the dealer or an experienced radio/TV technician for help.
Caution
Changes or modifi cations not approved by JVC could void the user's authority to operate the
equipment.
For safety....
• Do not raise the volume level too much, as this will block outside sounds, making driving dangerous.
CAUTIONS AND NOTES
This unit is designed to operate on 12 V DC, NEGATIVE ground electrical systems.
• To prevent short circuits, we recommend that you disconnect the battery's negative terminal
and make all electrical connections before installing the unit.
• Cover the unused terminals with insulating tape to prevent them from short circuiting.
• When an extension lead is used, it should be as thick and short as possible; connect it fi rmly
with insulating tape.
• Be sure to leave an appropriate space between the antenna and the wires of this unit.
• When replacing the fuse, only use a 10 A fuse.
• Do not let foreign objects get inside the unit.
• To keep the heat dissipation mechanism running effectively, wipe the accumulated dust off periodically.
• Using this subwoofer system with the volume on loud for a long period of time will exhaust the
battery, while the engine is turned off or while the engine is idling.
• This unit becomes very hot. Be careful not to touch the unit not only when using but for a while
after using.
DO NOT disassemble the units since there are no user serviceable parts inside.
1
Attach the velcro tapes on the bottom
as illustrated.
Bottom
2
Drill the screw holes using the
supplied paper pattern.
3
After connections, adjust the phase
and volume of this unit.
• For details, see "CONNECTIONS
.
4
Install this unit with the supplied
screws.
"
How to use the supplied wire clamp
