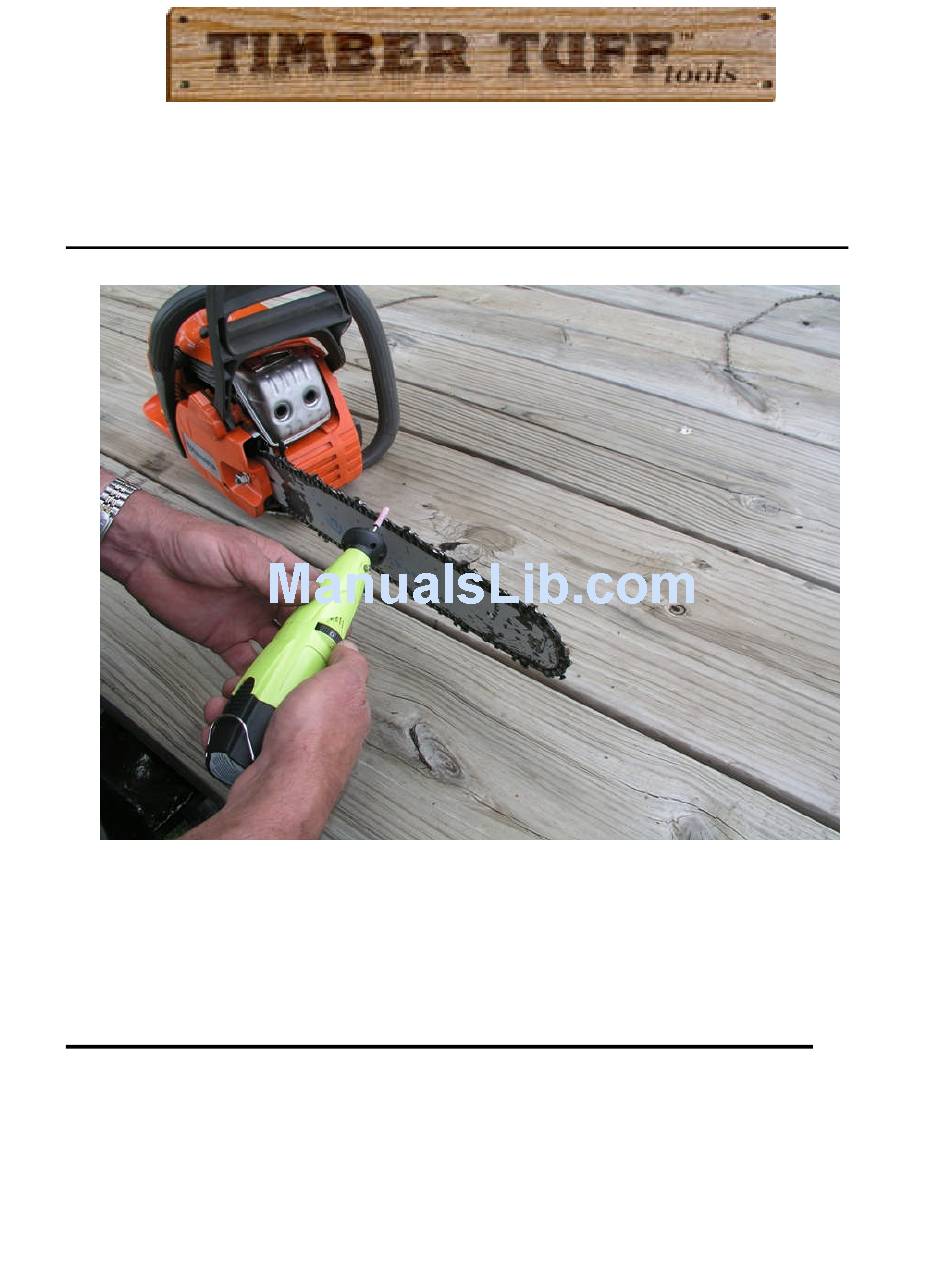

- Page 1 9.6V CORDLESS CHAINSAW SHARPENER MODEL #CS-96V IMPORTANT: READ THESE INSTRUCTIONS CAREFULLY TO ENSURE SAFE OPERATION OF THIS PRODUCT.
-
Page 2: Table Of Contents
………………………………………………………………………7 Operation and Use(CHAIN SHARPENING) ………………………………………………………………………7-10 Maintenance ………………………………………………………………………11 Disposal ………………………………………………………………………11 Explanation of Symbols/Pictograms ………………………………………………………………………12 SPECIFICATION Stock No: CS-96V Battery: Type: Ni-Cad Rated Voltage: 9.6V Rating: 750mAh Transformer: Type: Fail-Safe Safety Isolating Rated Supply Voltage: 110V Rated Supply Frequency: 60Hz Rated Output Voltage: 9.6V Rated Output: 6.0VA... -
Page 3: General Safety Instructions
GENERAL SAFETY INSTRUCIONS WARNING: Read all instructions. Failure to follow instructions listed below may result in electric shock, fire and/or serious injury. The term ”Power Tool” in all of the warnings listed below refers to hand operated power tool(corded) or battery operated(cordless) power tool. SAVE THESE INSTRUCTIONS 1.Work Area a. -
Page 4: Power Tool Use And Care
f. Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewelry or long hair can be caught in moving parts. g. If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. -
Page 5: Additional Safety Instructions
parts. This will ensure the safety of the power tool is maintained. ADDITIONAL SAFETY INSTRUCTIONS Specific to Battery Chargers - Before charging, read any additional instructions for charger. - Designed for indoor use ONLY. Do not expose charger to rain or wet conditions. - NEVER charge non-rechargeable batteries. -
Page 6: Parts Listing & Information
PARTS INFORMATION FOR 9.6V SHARPENER Spare parts No Description Product no Position CS-96V Sharpening stones pack (5/32”,3/16”,7/32”) CS-96V Battery pack(2pcs) CS-96V AC/DC Adapter CS-96V Chain Saw Sharpening Attachment CS-96V Charger Base CS-96V On/Off switch/Variable speed dial CS-96V Hook CS-96V Spindle Lock... -
Page 7: Assembly
ASSEMBLY NOTE: Always remove battery pack before making any adjustments, servicing, or maintenance to this product. ACCESSORY INSTALLATION/ REPLACEMENT (FIG.1): This product is designed for use with 3.2mm shank accessories. WARNING: Selection of the correct accessory, suitable for the intended application is vital. Seek guidance if uncertain of selection. - Page 8 VARIABLE SPEED DIAL (FIG.4) NOTE: Be sure the switch is in the “off” position before connecting the battery pack. STARTING TOOL: Rotate dial E round to one of the five speed settings STOPPING TOOL: Rotate dial E to the “O” position (off) to stop Variable speed dial allows you to alter speed of rotation.
- Page 9 FIG 5 FIG 6 FIG 7 Ref. Number Description Screws Metal Guide Spacers Plastic Guide Led worklight SHARPENING SAW CHAIN (SEE FIG.8,9,10) 1. Set your saw on a flat, solid surface so it will not slip while you are sharpening the chain.
- Page 10 the motor to your left. Sharpen the cutter teeth on the far side of the chain, from inside to outside, or away from you, as shown in figure. The guide should be laid flat on the tooth with the 30 degree index line parallel with the chain.
-
Page 11: Maintenance
MAINTENANCE & PARTS REPLACEMENT Regular inspection and cleaning reduces the necessity for maintenance operations and will keep your tools in good working condition. Motors must be ventilated during operation, avoid blocking any air inlets. After use remove the battery pack and clear any ventilation slots if applicable. Contact Customer Service: Phone 952-945-9058 or Fax 952-945-0066 for: If any missing or broken parts when unpacking, please have original receipt and purchase date... -
Page 12: Explanation Of Symbols/Pictograms
Hopkins, MN 55343 952-945-9058 BAC Industries or Timber Tuff Tools will not be held liable for any damages, losses or injury due to misapplication or misuse of this product or any other reason. Always wear approved safety glasses, protective clothing and proper hand and foot protection at all times. Keep all people,...
