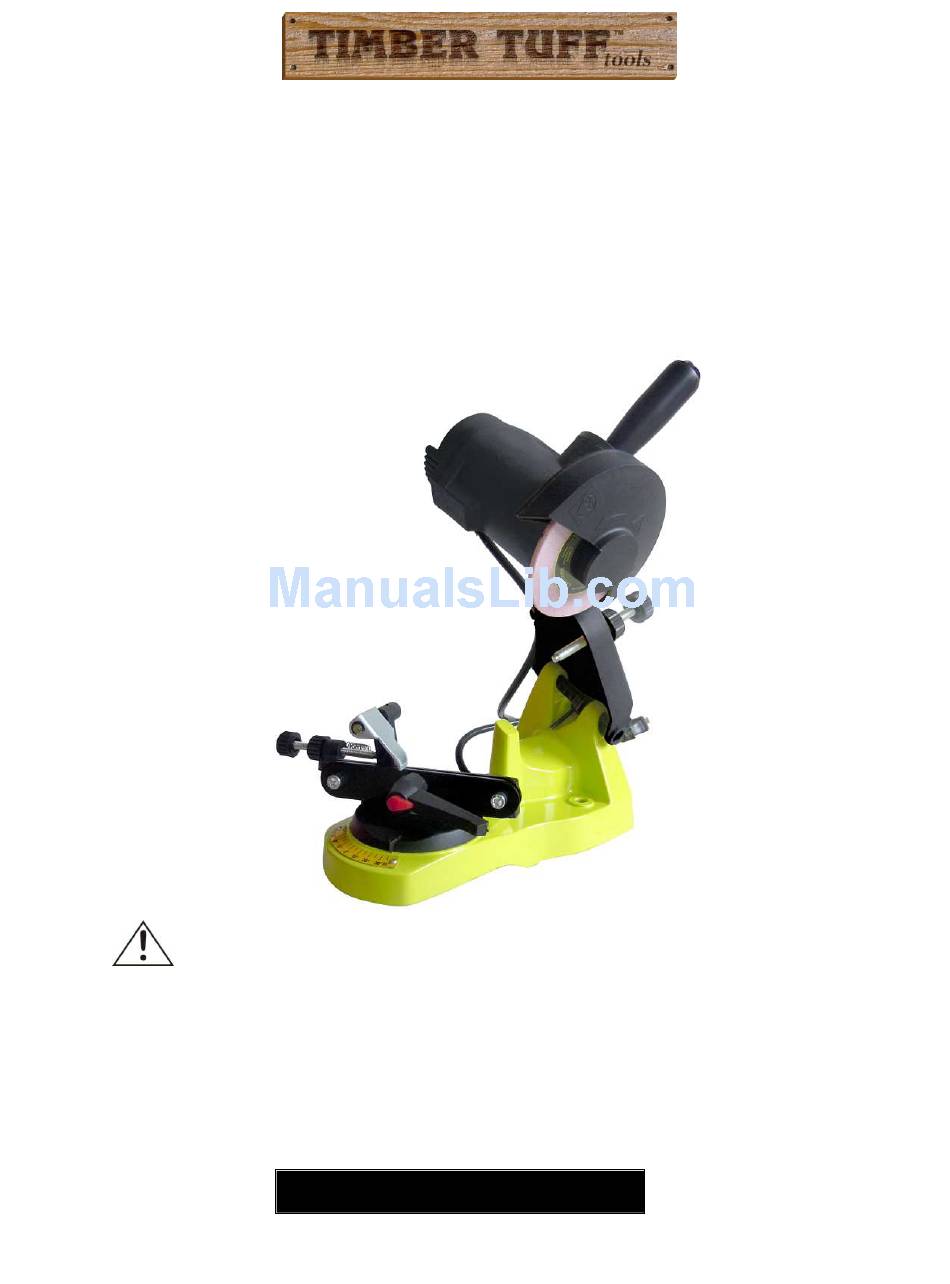

BENCH MOUNT

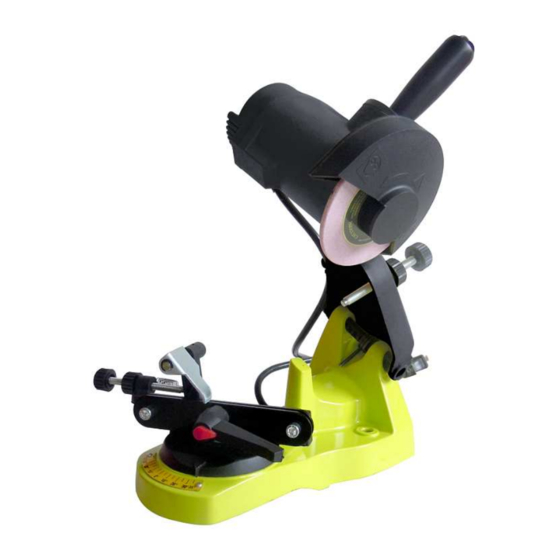

ELECTRIC SHARPENER FOR CHAINSAWS
ASSEMBLY & OWNER'S MANUAL
WARNING:
Read carefully and understand all ASSEMBLY AND OPERATION
INSTRUCTIONS before operating. Failure to follow the safety rules and other
basic safety precautions may result in serious personal injury.
Item# CS-MBCJR
10172012
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Timber Tuff Tools CS-MBCJR
Summary of Contents for Timber Tuff Tools CS-MBCJR
- Page 1 ELECTRIC SHARPENER FOR CHAINSAWS ASSEMBLY & OWNER’S MANUAL WARNING: Read carefully and understand all ASSEMBLY AND OPERATION INSTRUCTIONS before operating. Failure to follow the safety rules and other basic safety precautions may result in serious personal injury. Item# CS-MBCJR 10172012...
-
Page 2: Specifications
Motor input power: 125 Watt Maximum speed: 5800R/min Weight: 4.85 lbs. Product No.: CS-MBCJR Max. chain pitch: 3/8 in. WARNING: Read and understand all instructions. Failure to follow all instructions listed below may result in serious injury. CAUTION: Do not allow persons to operate or assemble this electric sharpener until they have read this manual and have developed a thorough understanding of how the electric sharpener for chainsaws works. - Page 3 properly installed and grounded in accordance with all local codes and ordinances. Grounding provides a path of least resistance for electric current to reduce the risk of electric shock in the event of a malfunction or breakdown. DO NOT modify the plug provided. If it does not fit the outlet, have the proper outlet installed by a qualified electrician.
- Page 4 • DISCONNECT TOOLS FROM POWER SUPPLY before servicing and when changing accessories, such as blades, bits, cutters, and the like. • REDUCE THE RISK OF UNINTENTIONAL STARTING. Ensure that the switch is off before plugging into power source. • USE RECOMMENDED ACCESSORIES. Consult the owner’s manual for recommended accessories.
-
Page 5: Assembly
• ALWAYS replace a cracked wheel immediately. • Always use guards and eye shields at all times. • Do not over tighten wheel nut. • Protect yourself from electric shock. Avoid any bodily contact with grounded objects such as pipes, radiators, stoves, and refrigerators. -
Page 6: Pre-Operation
4. After installing the sharpener properly, assemble the wheel. PRE-OPERATION: Fasten the sharpener onto a work bench or any work surface where carefully positioned to be clear from any other tools or distractions. GRINDING WHEEL CHECK Check the wheel you are about to use for damages prior to installation. To avoid injuries and accidents, only use grinding wheels that are free of defects. -
Page 7: Operation
CLAMPING THE SCREW SET UP 1. Before grinding begins, the chain should be secured between the guides. The tooth to be sharpened first should be placed against the stop. Watch that the sharpening angle corresponds to the guide position. 2. Set the guides to the chain width using the set screw (A) so that it is firmly fixed in the clamp screw by rotating the lever control. -
Page 8: Maintenance
CAUTION : Always wear gloves and use caution while performing this task. 3. The machine may now be switched on and the chain sharpening may begin by gently touching the wheel on the chain. Adjust the pressure as necessary. 4. Mark the start of sharpening (with a piece of chalk) and sharpen all the teeth in one direction, then turn the clamping screw and sharpen the teeth in the opposite direction. -
Page 9: Diagram & Parts List
DIAGRAM & PARTS LIST For replacement parts and technical questions, please call 1-952-938-5222. Part Part Description Description Handle Intermediate shaft Coach bolt M6*20 Screw M6 x 22 Adjustment screw M8*80 Clip chain plate Arbor flange Spacer bush Grinding wheel Step bolt Grinding wheel platen Ring M5 Wheel cover... -
Page 10: Warranty
WARRANTY One-year limited warranty PO BOX 5236 Hopkins, MN 55343 Made in CHINA Page of 10...
