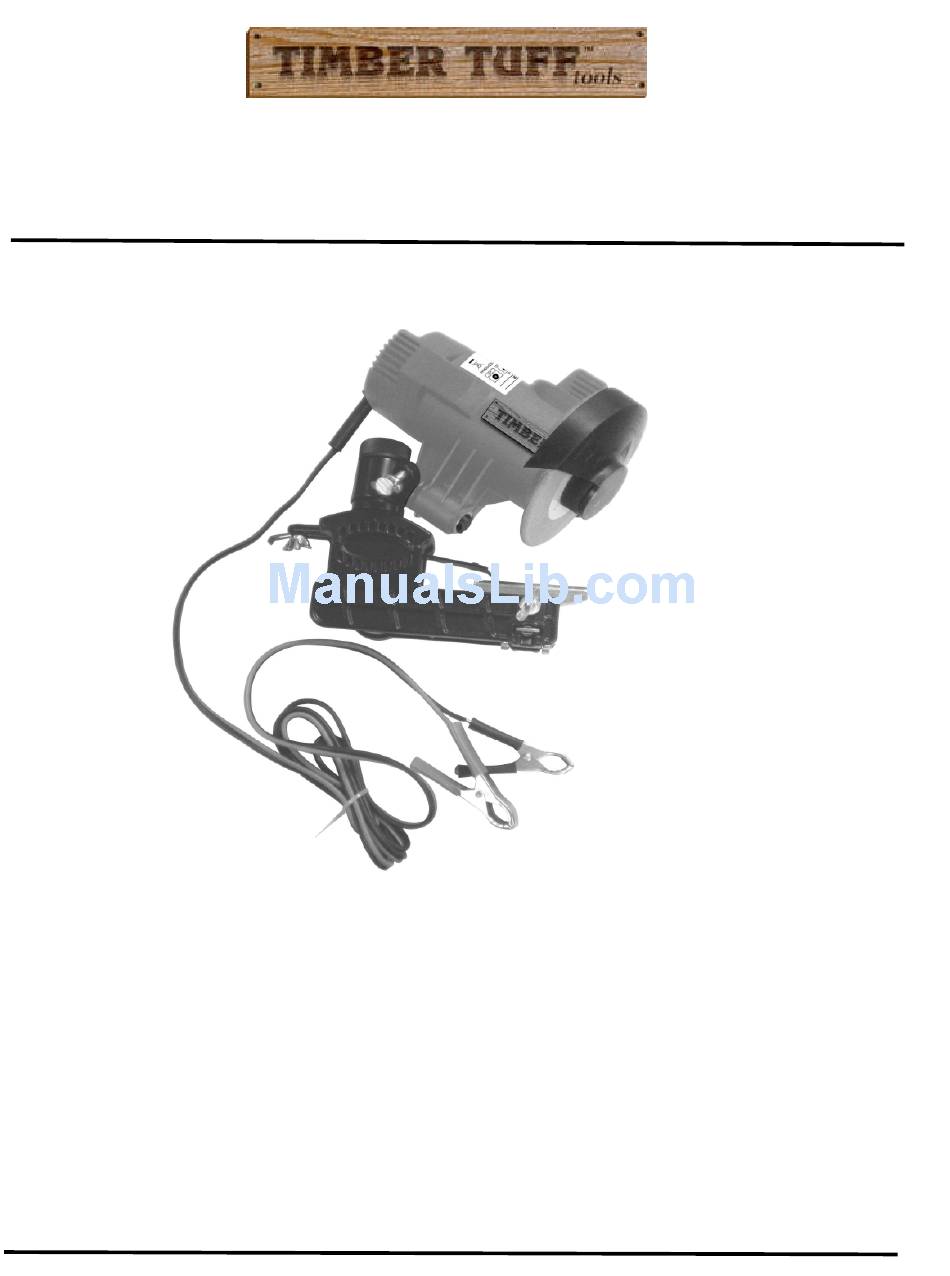

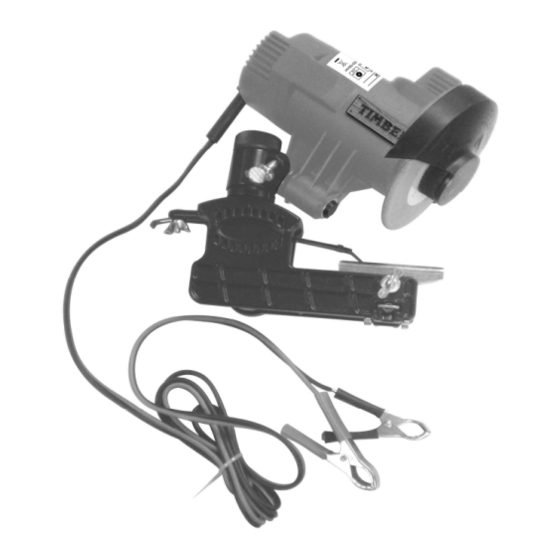

- Page 1 12-VOLT BAR MOUNT SHARPENER MODEL# CS-BM12 11182009...
-
Page 2: Specifications
SPECIFICATIONS: - Power supply: 12 volt DC supply - Wheel thickness: 1/8 inch (3.2mm) and 3/16 inch(4.7 mm) - Maximum speed: 5500 rpm - Type of chains: pitches 1/4” ; .325” ; 3/8” - Weight sharpener: 4.5 lbs (2 kg) - Accessories: 1 dressing stone;... - Page 3 ASSEMBLY AND WARNINGS ABOUT THE GRINDING WHEEL There are two types of grinding wheels, 1 / 8 "and 3 / 16" for sharpening chains from 1/4” to 3/8”pitch. To replace or change grinding wheels: Always disconnect from any power source Remove blade protective shield, by removing screw at top of shield then pulling upward (straight up).
-
Page 4: Troubleshooting
SHARPENING ALWAYS clean the chain before sharpening First: Find the correct cutting angles needed by referring to chart provided. You will need your chain pitch and gauge. Refer to your CHAIN mfg. specifications first, then use chart provided. Then adjust the cutting angle on the sharpener, using the black knob to obtain the correct angle. If possible, start grinding right-hand teeth first;... -
Page 5: Maintenance
MAINTENANCE - Always disconnect from power source before carrying out any maintenance, lubrication or cleaning operations - Keep sharpener clean using a cloth rag with soap and water. Always dry after cleaning ALWAYS keep safety labels clearly legible. - NEVER use compressed air for cleaning, it can cause wood or metal dust to reach small areas in the sharpener causing damage to essential components of the sharpener. - Page 6 DIAGRAM AND PARTS LIST Parts # Description Parts # Description Grinding wheel cover Cable Set Self-tapping screw lock nut Grinding wheel Reset spring Grinding wheel Adjustment bolt Grinding wheel cover Torsion limit board board Grinding wheel seat Torsion Axis Card Elastic clip chain plate Antifriction pad Rotating Seat...
- Page 7 .Sharpe Wheel Chain Depth Gauge ning Thickne Pitch Gauge Angle 1/4” 050”/1.3m 25AP 13RM 1/8”/3.2m .025”/0.63 30° 325” 050”/1.3m 33LG 23RS 50JG 920S 1/8”/3.2m .025”/0.63 25° 325” 058”/1.5m 34LG 25RS 58JG 928S 1/8”/3.2m .025”/0.63 25° 325” 063”/1.6m 35LG 26RS 63JG 963S 1/8”/3.2m .025”/0.63...
- Page 8 3/8” 050”/1.3m 72DG 33RM A1EP 1/8”/3.2m .025”/0.63 30° 3/16”/4.7m 3/8” 058”/1.5m 73DG 35RM A2EP 1/8”/3.2m .025”/0.63 30° 3/16”/4.7m 3/8” 063”/1.6m 75DG 36RM A3EP 1/8”/3.2m .025”/0.63 30° 3/16”/4.7m 3/8” 050”/1.3m 72DP 33RM1 50AG A1EP 1/8”/3.2m .025”/0.63 35° 3/16”/4.7m 3/8” 058”/1.5m 73DP 58AG A2EP 1/8”/3.2m...
- Page 9 404” 058”/1.5m 26/P B2EP 3/16”/4.7m .030”/0.76 35° 404” 063”/1.6m 27/P 46RSF B3EP 3/16”/4.7m .030”/0.76 35° 404” 063”/1.6m 59AC 46RM 63BC 3/16”/4.7m .030”/0.76 35° 404” 063”/1.6m 59CP 3/16”/4.7m .030”/0.76 35° 404” 063”/1.6m 46RMX 63BR B3HR 3/16”/4.7m .030”/0.76 10°-15° 404” 063”/1.6m 46RMH 757MK 35°...
