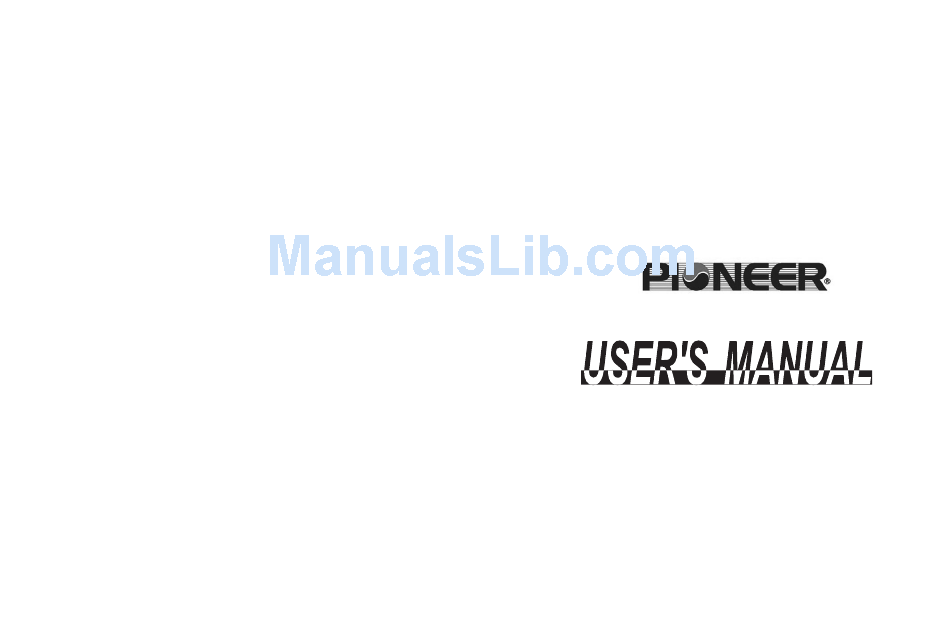

Pioneer WYE SERIES User Manual

Inverter split typeductless mini split system.
Hide thumbs

Advertisement

The design and specifications are subject to change without prior notice for
product improvement. Consult with the sales agency or manufacturer for details.
Before using your air conditioner, please read
this manual carefully and keep it for future reference.
INVERTER SPLIT TYPE
DUCTLESS MINI SPLIT SYSTEM
WYE SERIES HEAT PUMPS
CS156U-BP11D1
202000192477
20130906
-
Read This Manual
Keep this manual where the operator can easily
find them.Inside you will find many helpful hints
on how to use and maintain your air conditioner
properly. Just a little preventative care on your
part can save you a great deal of time and money
over the life of your air conditioner. You'll find many
answers to common problems in the chart of
troubleshooting tips. If you review the chart of
Troubleshooting Tips first, you may not need
to call for service.

Advertisement

Troubleshooting

   Related Manuals for Pioneer WYE SERIES

   Summary of Contents for Pioneer WYE SERIES

  • Page 1

    INVERTER SPLIT TYPE DUCTLESS MINI SPLIT SYSTEM WYE SERIES HEAT PUMPS Read This Manual The design and specifications are subject to change without prior notice for product improvement. Consult with the sales agency or manufacturer for details.

  • Page 2: Table Of Contents

    CONTENTS When using this air conditioner in the European countries, please read the following information: SAFETY PRECAUTIONS Warning .............................3 This appliance can be used by children aged from 8 years and above and persons with Caution ............................4 reduced physical, sensory or mental capabilities, or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

  • Page 3: Safety Precautions Information

    SAFETY PRECAUTIONS SAFETY PRECAUTIONS To prevent injury to the user or other people and property damage, the following instructions CAUTION must be followed. Incorrect operation due to ignoring of instructions may cause harm or damage. The seriousness is classified by the following indications. This symbol indicates the possibility of death or serious injury.

  • Page 4: Names Of Parts

    NAMES OF PARTS OPERATING INSTRUCTIONS Special functions Names of parts Refrigerant Leakage Detection With this new technology, the dipsplay area will appear EC and the indication lamps Indoor unit continue flashing when the outdoor unit detects refrigerant leakage. 1. Front panel 2.

  • Page 5: Operating Temperature

    OPERATING INSTRUCTIONS OPERATING INSTRUCTIONS NOTE: This manual does not include Remote Controller Operations, see the Airflow direction control <<Remote Controller Instruction>> packed with the unit for details. Adjust the air flow direction properly, otherwise it Operating temperature might cause discomfort or cause uneven room temperatures.

  • Page 6: How The Air Conditioner Works

    OPERATING INSTRUCTIONS CARE AND MAINTENANCE How the air conditioner works Care and Maintenance AUTO operation When you set the air conditioner in AUTO mode, it will SLEEP operation automatically select cooling, heating(cooling/heating 7 hours timer off Before mainatenance models only), or fan only operation depending on set Turn the system off before cleaning.

  • Page 7: Troubleshooting

    CARE AND MAINTENANCE TROUBLESHOOTING TIPS Normal function of the air conditioner 5. Install the air freshening filter back into position. 6. Insert the upper portion of air filter back into the The following events may occur during normal operation. unit, taking care that the left and right edges line up correctly and place filter into position.

  • Page 8: Troubleshooting Guide

    TROUBLESHOOTING TIPS TROUBLESHOOTING TIPS Troubleshooting guide 7. The air conditioner runs Anti-mildew function after turning off the unit. When turning off the unit under COOL(AUTO COOL, FORCED COOL) and DRY mode, the air The unit may stop operation or continue conditioner will run Anti-mildew function for 7-10 minutes,...
