Samwon Tech TEMI850 Instruction Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

TEMI880
- Color type
TEMI850
- Mono type
INSTRUCTION MANUAL
TEMPERATURE • HUMIDITY
PROGRAMMABLE CONTROLLER

Advertisement

Table of Contents
loading

Related Manuals for Samwon Tech TEMI850

Summary of Contents for Samwon Tech TEMI850

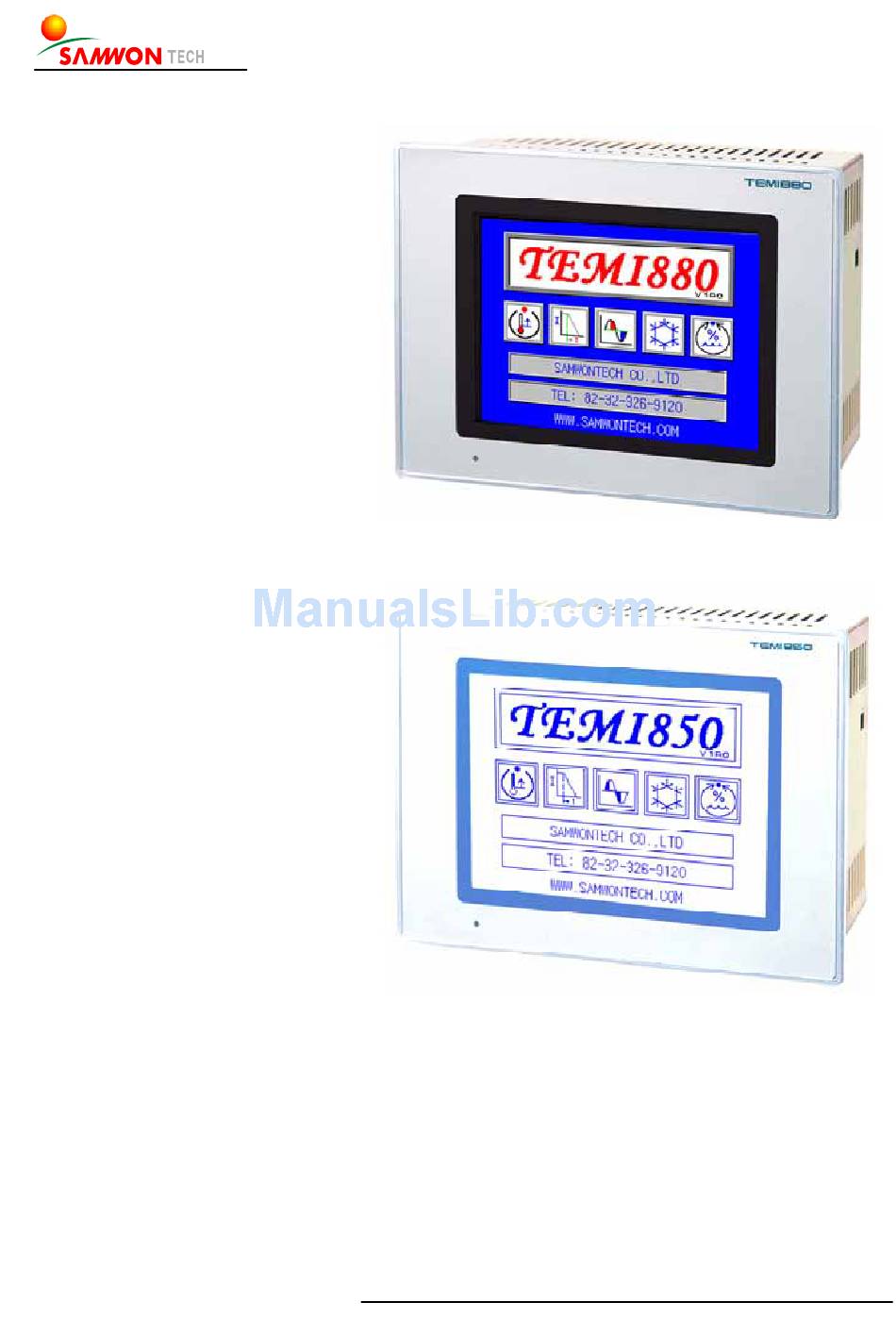

  • Page 1 TEMI880 - Color type TEMI850 - Mono type INSTRUCTION MANUAL TEMPERATURE • HUMIDITY PROGRAMMABLE CONTROLLER...

  • Page 2: Table Of Contents

    SAMWONTECH Contents 1 Installation Manual I n t r o d u c t i o n s … … … … … … … … … … … … … … … … … … … … … … … … … … … … … … … Package checklist …………………………………………………………………………………...

  • Page 3: Installation Manual

    SAMWONTECH This manual is used for the common use of the ※ TEMI880 and TEMI850( TEMI880 Marking is only used 1. Installation Manual 1.1 Introductions Thank you for purchasing our Industrial Controller. This manual explains suitable effective way of using and installing this product.
  • Page 4 SAMWONTECH Regarding Protection, Safety and Prohibition (1) In the interest of protecting and ensuring the safety of this product and the system, which is controlled by this product, ensure that all instructions and precautions and precautions in this manual relating to safety are strictly adhered to in the use of this product. (2) Take note that if you handle the product in contradiction to these instructions, we does not guarantee safety.

  • Page 5: Package Checklist

    SAMWONTECH 1.2 Package checklist ▶ Check the following when the controller opens from its package. Check the contents of the package against the Package List to make sure that all accessories are included in the package. 1.2.1 Model and Option codes ▶...
  • Page 6 SAMWONTECH 1.2.3 Missed or damaged items ▶ If any of these items are missed or damaged, please contact your agent or sales representative for assistance. Lifetime of the parts in the controller ▶ Check the lifetime for parts and we strongly recommend replace it if the lifetime is finished. ■...

  • Page 7: Installation

    SAMWONTECH 1.3 Installation 1.3.1 Location and Environment 음Important (1) NEVER touch the terminals or else you will get an electrical shock, if the unit is power-on. (2) To install the controller, select a location where : ■ No one may accidentally touch the terminals. ■...
  • Page 8 SAMWONTECH 1.3.3 External and Panel Cutout Dimensions 1.3.4 PANEL CUTTING ○ ○ 1 Normal Adhesion 2 Close Adhesion 4th Edition of TEMI880 IM : Jan. 29. 2007 Page 6 / 119...
  • Page 9 SAMWONTECH 1.3.5 Installation (Mount) PANEL Mount Screwdriver Insert ( ) : inch Panel Thickness: 1 (0.04) ~ 10 (0.39) mm ○ 1 Cut the mounting panel as Section.( See 1.3.4. PANEL CUTTING) ○ 2 Insert the unit from its back terminal board side. ○...
  • Page 10 SAMWONTECH 1.3.6 Installation (Wiring for ground) Chamber Case Circuit Breaker ● N1 N2 ● ○ ~ ● L1 L2 ● ● G1 G2 ● SSR/SCR, Recorder Relay Contact Output (Transmission Output) Contact Input : DI CAUTION(Wiring for ground) ▶ Make sure ground with Temp. and Humi. chamber case when install power injection. ▶...

  • Page 11: Wiring

    SAMWONTECH 1.4 Wiring CAUTION (Wiring) ▶ Before carrying out wiring, turn off the power to the controller and check that the cables to be connected are not alive with a tester or the like because there is a possibility of electric shock.
  • Page 12 SAMWONTECH 1.4.2 Terminal wiring diagram 1.4.2.1 TEMI880 Body Terminal STANDARD : TEMI880-10(RS232C + I/O1) OPTION1 : TEMI880-11(RS485 + I/O1) Additional UDC Option : TEMI880-10/UDC Additional UDC Option : TEMI880-11/UDC OPTION2 : TEMI880-20(RS232C + I/O1 + I/O2) OPTION3 : TEMI880-21(RS485 + I/O1 + 1/O2) Additional UDC Option : TEMI880-20/UDC Additional UDC Option : TEMI880-21/UDC 4th Edition of TEMI880 IM : Jan.
  • Page 13 SAMWONTECH 1.4.2.2 I/O1 RELAY BOARD RLY7_NC RLY7_NO COM4 RLY8_NC RLY8_NO RLY9_NC RLY9_NO COM5 RLY10_NC RLY10_NO External relay switch → It is operated with RLY 10 on the “AND” condition. AOUT1- AOUT1+ RLY6 Temp. control output AOUT2- AOUT2+ COM3 Humi. control output RET1- RET1+ RLY5 Temp.
  • Page 14 SAMWONTECH 1.4.2.4 Grounding and Power Wiring ▶ Use a cable 2 ㎟ or more thick for grounding with class 3 grounding(grounding resistance a 100Ω or less) or higher. Do not extend the grounding cable over 20m. ▶ Ground from the ground terminal with a one-point contact. Do not wire between ground terminals. ▶...
  • Page 15 SAMWONTECH 1.4.2.6 Control Output and Transmission Output Wiring CAUTION ▶ Before starting control output and transmission output wiring, be sure to turn off the system, or else you will get an electrical shock. ▶ When connecting, do not mix up the input polarity, Connecting with the wrong polarity can cause serious accidents.
  • Page 16 SAMWONTECH 1.4.2.7 External Contact Output(RELAY) Wiring CAUTION ▶ Before carrying out wiring, turn off the power to the controller and check that the cables to be connected are not alive with a tester because there is a possibility of electric shock. 30V DC 5A Less, 250V AC 5A Less 30V DC 5A Less, 250V AC 5A Less 30V DC 5A Less, 250V AC 5A Less...
  • Page 17 SAMWONTECH 1.4.2.8 External Contact Input : DI CAUTION ▶ Before starting external contact output : DI wiring, be sure to turn off the system, or else you will get an electrical shock. ▶ For the external contact, use a no-voltage contact(including relay contact) that can operate appropriately under the terminal voltage for a close contact(approximate..
  • Page 18 SAMWONTECH 1.4.2.9 Auxiliary Relay CAUTION ▶ If contact capacity is over 250V AC – resistance load 5A, 30V DC – resistance load 5A, use auxiliary relay for ON/OFF load. ▶ If you INDUCTANCE(L) load like as AUXILIARY RELAY or SOLENOIDE VALVE, It might make go to wrong or out of order relay, please make sure insert to parallel circuit with CR FILTER(AC) or DIODE(DC) by SURGE SUPPRESSOR of avoiding sparks.
  • Page 19 SAMWONTECH 1.4.2.10 Communication(RS485/RS232C) Wiring CAUTION ▶ Before starting communication wiring, be sure to turn off the system, or else you will get an electrical shock. 1.4.2.10.1 RS485 Wiring ▶ The slave side(TEMI880) can accommodate up to 99 units in a MULTIDROP connection. ▶...

  • Page 20: User Manual

    SAMWONTECH 2. User Manual 2.1 Setup Button ▶ TEMI880 is easy to install & modify by touch screen as well as the map type menu. User enables to grasp the operation of control system with easy through graph on vivid LCD screen. 2.1.1 Initial setup button ▶...
  • Page 21 SAMWONTECH ○ 3 Input key for the Time Signal setting Touch Key Unlock ▶ If KEY LOCK is ON, Not input setting value. Therefore, Input setting value after KEY LOCK ▶ convert OFF. ☞ For more information, See 2.7 Operation Setting Screen. 2.1.3 Input error ▶...

  • Page 22: Input Setting Value

    SAMWONTECH 2.2 Input Setting Value ▶ All of the Input value is setting by use setting value, pattern name and time signal input key. ▶ If user push setting value input button in the Table 1-1(General Setting Button), User can input data value.

  • Page 23: Block Diagram Of The Basic Processing

    SAMWONTECH 2.3 Block diagram of the basic processing Power On [PROG STOP] [Initial Screen] [FIX STOP] [Main Screen] [DI TROUBLE SCREEN] [PROGRAM SET] [SYSTEM SETUP] [SETUP PASSWORD] 4th Edition of TEMI880 IM : Jan. 29. 2007 Page 21 / 119...

  • Page 24: Initial Screen

    SAMWONTECH 2.4 Initial Screen ▶ Initial Screen(the Beginning Power On). ▶ After 3 seconds, Transfer 2.6.1 Program Stop Screen automatically. Figure 2-1. Initial Screen ○ ○ ○ ○ Contents Description Additional Description ○ Version Display present version information. ▶ V1R0 → VERSION 1, REVISION 0 ○...

  • Page 25: Main Screen

    SAMWONTECH 2.5 Main Screen ▶ This screen is center of the total screen transfer. ○ Figure 2-2. Main Screen ○ ○ ○ ○ ○ ○ ○ ○ Contents Description Additional Description ○ Operation Screen Transfer operation screen. ▶ See 2.6 Operation Screen Transfer function and FIX setting ○...

  • Page 26: Operation Screen

    SAMWONTECH 2.6 Operation Screen ▶ At the running TEMI880, Display status and information. 2.6.1 Program Stop Screen Figure 2-3. PROG STOP Screen ○ ○ ○ ○ ○ ○ ○ ○ Contents Description Additional Description ○ Main Button Transfer to 2.5 Main Screen. ○...
  • Page 27 SAMWONTECH Figure 2-4. PROG STOP – Confirm Figure 2-5. PROG STOP – Pattern End ○ ○ Figure 2-6. PROG STOP – Reserved ○ ○ ○ Contents Description Additional Description ▶ Clicked YES button : Program Start ○ Confirmable Box Program run or not. ▶...

  • Page 28: Program Run Screen

    SAMWONTECH 2.6.2 Program Run Screen ○ Figure 2-7. Program Run – First Screen ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ Contents Description Additional Description Display pattern name of the present ▶ See 2.10.6 Pattern Name Setting ○ Pattern Name running.
  • Page 29 SAMWONTECH Figure 2-8. Program Run – Second Screen ○ ○ ○ ○ ○ ○ ○ ○ Contents Description Additional Description ○ Next Button Transfer at Figure 2-9. ▶ Only using at TEMI880. Display program pattern and ○ Running Pattern segment number. Display pattern repeat status.
  • Page 30 SAMWONTECH ▶ Figure2-9 is used at TEMI880. Figure 2-9. Program Run – Third Screen ○ ○ ○ ○ ○ ○ ○ Contents Description Additional Description ○ Next Button Transfer at Figure 2-7. ▶ STP : In case sampling time is 60 ▶...

  • Page 31: Fix Stop Screen

    SAMWONTECH 2.6.3 Fix Stop Screen Figure 2-10. Fix Stop Screen Figure 2-11. Fix Stop – Confirm ○ ○ Figure 2-12. Fix Stop – Time End Figure 2-13. Fix Stop – Reserved ○ Contents Description Additional Description ○ Temp. SP Value Display present Temp.

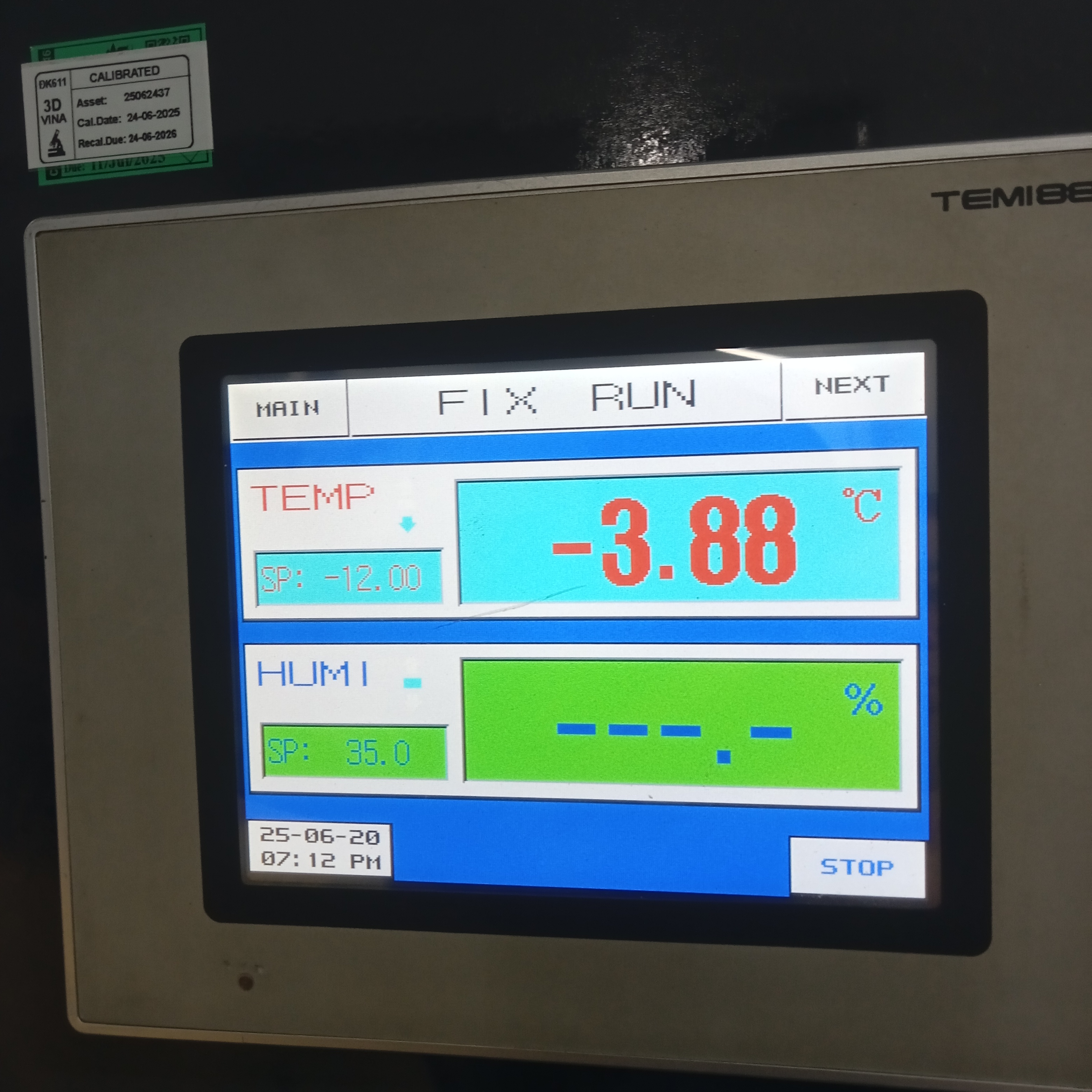

  • Page 32: Fix Run Screen

    SAMWONTECH 2.6.4 Fix Run Screen Figure 2-14. Fix Run – First Screen Figure 2-15. Fix Run – Second Screen ○ ○ ○ ○ Contents Description Additional Description ▶ T-AT button’s color transferred to ○ Temp. Tuning Temp. side : Auto Tuning On/Off. red at Auto Tuning of the Temp.

  • Page 33: Operation Setting Screen

    SAMWONTECH 2.7 Operation Setting Screen ▶ This is the screen about additional function of the general machine and additional setting at Fix Run. Figure 2-16. Operation Setting – First Screen Figure 2-17. Operation Setting – Second Screen ○ ○ ○ ○...
  • Page 34 SAMWONTECH FUZZY Operation ▶ When you have a heavy load variation or frequently change sp in operation, usually it causes overshoot, in this case you can control overshoot with fuzzy function effectively. ▶ Internal operation order of fuzzy function ○ 1 When PV closes SP, SUPER SP operates calculation.

  • Page 35: Reserve Setting Screen

    SAMWONTECH 2.8 Reserve Setting Screen ▶ This is the screen about time and reserved operation setting. Figure 2-18. Reserve Setting Screen ○ ○ ○ Contents Description Additional Description ○ Current Time Set and display present date & time. ○ Reserve Time Set and display reservation date &...

  • Page 36: Graph Setting Screen

    SAMWONTECH 2.9 Graph Setting Screen ▶ This is screen display graph for the input pattern at 2.10.1 Edit Pattern Screen. Figure 2-19. Graph Setting Screen ○ ○ ○ ○ ○ ○ Contents Description Additional Description ○ UDC Button Move UDC Setting page. ▶...
  • Page 37 SAMWONTECH ▶ Set graph storage(UDC100 : Data Storage Recorder). ☞ Graph storage function is possible that you purchase UDC100. Figure 2-20. Graph Storage Setting Screen ○ ○ ○ ○ ○ ○ ○ ○ Contents Description Additional Description ▶ You can “RUN” operation when ▶...

  • Page 38: Pattern Setting Screen

    SAMWONTECH 2.10 Pattern Setting Screen ▶ This is the screen about pattern setting. Figure 2-21. Pattern Setting Screen ○ ○ ○ ○ ○ ○ Contents Description Additional Description ○ Set Pattern Move edit pattern screen. ▶See 2.10.1 Edit Pattern Screen ○...

  • Page 39: Edit Pattern Screen

    SAMWONTECH 2.10.1 Edit Pattern Screen Figure 2-22. Edit Pattern Screen ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ Contents Description Additional Description ☞ Change pattern number of ○ Pattern No. Set pattern number. 2.10.2 Repeat Setting Screen. ○...
  • Page 40 SAMWONTECH 2.10.1.1 Insert Method of the Segment ▶ Example => Insert segment. Figure 2-23. Before Insert Segment Figure 2-24. After Insert Segment 1) Clicked dot-rectangle areas of Figure 2-23, “02” character color is changed red. ○ Clicked insert button( 9 ) of Figure 2-22. Edit Pattern Screen, a segment of the same value is inserted.
  • Page 41 SAMWONTECH 2.10.1.4 Set Method of the Time Signal ▶ This is the screen about time signal setting. (TS2 : TYPE “1”, TS3 : TYPE “2”, TS4 : TYPE “7”) Figure 2-27. Before Time Signal Setting Figure 2-28. Time Signal Setting Key ○...

  • Page 42: Repeat Setting Screen

    SAMWONTECH 2.10.2 Repeat Setting Screen Figure 2-30. Repeat Setting Screen ○ ○ ○ ○ ○ ○ ○ Contents Description Additional Description ☞ Change pattern number of ○ Pattern No. Set pattern number. 2.10.1 Edit Pattern Screen. Pattern Repeat ○ Set pattern repeat number. ☞...
  • Page 43 SAMWONTECH 2.10.2.2 Process Order about Setting Method of the Repeat Parts(Segment Repeat) ▶ 1 segment ~ 8 segment(01 → 02 → 03 → 04 → 05 → 06 → 07 →08) Example Set value of the repeat parts Process order ○...

  • Page 44: Edit File Screen

    SAMWONTECH 2.10.3 Edit File Screen Figure 2-31. Edit File Screen ○ ○ ○ ○ ○ ○ ○ ○ Contents Description Additional Description ○ Source Pattern Set source pattern number. Destination ○ Set destination pattern number. Pattern ○ Delete Pattern Set pattern number for elimination. Pattern Copy ▶...

  • Page 45: Time Signal Setting Screen

    SAMWONTECH 2.10.4 Time Signal Setting Screen Figure 2-32. TS Setting – First Screen Figure 2-33. TS Setting – Second Screen ○ ○ Contents Description Additional Description Set wait time for the time signal ○ On Time output. ▶ See Figure 2-28. Time Signal Setting Key ▶...
  • Page 46 SAMWONTECH Time Signal Operation ▶ Set value of the program pattern ▶ Set value of the time signal ▶ Time signal operation within segment Setting Time signal operation OFF TIME ON TIME = 00.00 TIME (Time Signal SIGNAL1 NO : 04) N SEG TIME >= ON TIME + OFF TIME...

  • Page 47: Wait Operation Setting Screen

    SAMWONTECH 2.10.5 Wait Operation Setting Screen Figure 2-34. Wait Operation Setting Screen ○ ○ ○ ○ Contents Description Additional Description ○ Wait Mode Set On/Off for using Wait. ▶ “OR” Condition → Temp. or Humi. PV does not reach the wait area before Wait Time. ○...
  • Page 48 SAMWONTECH The relation of the wait operation and wait time ▶ WAIT ZONE : Temperature → TEMP ZONE, Humidity → HUMI ZONE. ○ 1 A case where wait release within Wait Time WAIT TIME WAIT ZONE WAIT ZONE The point of the wait release wait operation process segment (n+1) (time stop)

  • Page 49: Pattern Name Setting Screen

    SAMWONTECH 2.10.6 Pattern Name Setting Screen Figure 2-35. Pattern Name Setting Screen ○ ○ Contents Description Additional Description Pattern Name ○ Set pattern name. ▶ Max : use 10 character. Button Page Move ○ Move pattern page. ▶ 1 Page : Display 5 pattern name. Button 2.10.6.1 The Method of the Pattern Name Setting ▶...

  • Page 50: Display Setting Screen

    SAMWONTECH 2.11 Display Setting Screen ▶ This is the screen of the display setting. Figure 2-38. Display Setting Screen ○ ○ ○ Contents Description Additional Description ▶ Display or hide T-AT/H-AT button of the ○ Tuning Key Display or hide AT button. Figure 2-14.

  • Page 51: System Setting Screen

    SAMWONTECH 2.12 System Setting Screen ▶ This is the screen about the initial setting. ▶ Set password : See 2.12.8 Initial Display and Status Display Lamp Setting Screen Figure 2-39. System Setting Screen ○ ○ ○ ○ ○ ○ ○ ○...

  • Page 52: Input And Input Compensation Setting Screen

    SAMWONTECH 2.12.1 Input and Input Compensation Setting Screen 2.12.1.1 Temperature Input Setting Figure 2-40. Temp. Input Setting – PT_1 Figure 2-41. Temp. Input Setting - DCV ○ ○ ○ ○ ○ Contents Description Additional Description ○ SENSOR TYPE Select sensor type. ▶...
  • Page 53 SAMWONTECH 2.12.1.2 Humidity Input Setting Figure 2-42. Humi. Input Setting – PT Figure 2-43. Humi. Input Setting - DCV ○ ○ ○ ○ ○ ○ Contents Description Additional Description ○ SENSOR TYPE Select sensor type. ▶ PT : -10.0 ~ 110.0 ℃ ○...
  • Page 54 SAMWONTECH 2.12.1.3 Input Display Screen Figure 2-44. Input Display Screen ○ ○ ○ ○ ○ ○ ○ ○ Contents Description Additional Description ○ DRY TEMP PV Display dry temperature PV. ▶ PT : -10.0 ~ 110.0 ℃ ○ WET TEMP PV Display wet temperature PV.
  • Page 55 SAMWONTECH Engineering Units – EU, EUS ▶ The explanation of the EU and EUS. ☞ EU( ) : Engineering unit’s value in a range of instrument. ☞ EUS( ) : Engineering unit’s range in a span of instrument. | RH - RL | EU -100~100% EU 0~100% EUS 0~100%...
  • Page 56 SAMWONTECH 2.12.1.4 Sensor BIAS Setting ▶ This is the screen about sensor bias setting. Figure 2-45. Sensor BIAS Setting – Humi. PT Figure 2-46. Sensor BIAS Setting – Humi. DCV ○ ○ ○ ○ ○ ○ ○ ○ ○ Contents Description Additional Description DRY TEMP...
  • Page 57 SAMWONTECH Sensor BIAS Setting ▶ This is a range input correction into dry temperature. ▶ Wet temperature and humidity have The same range input correction. ▶ S.PV = Sensor Temperature, B.PV = The temperature after correction, RL = Range Low, RH = Range High ▶...

  • Page 58: Control Output And Transmission Setting Screen

    SAMWONTECH 2.12.2 Control Output and Transmission Setting Screen 2.12.2.1 Control Output Setting Figure 2-47. Temp. Control Output Setting Figure 2-48. Humi. Control Output Setting ○ ○ ○ ○ ○ Contents Description Additional Description ○ OUTPUT TYPE Set control output type. Select of PID direction ○...
  • Page 59 SAMWONTECH CYCLE TIME ▶ It is only for SSR(Solid State Relay) type. ▶ 1 Cycle : from ON to OFF. ▶ Cycle time : 10 seconds Control output : 30% Control output : 50% Control output : 70% 10 Sec 10 Sec 10 Sec 7 Sec...
  • Page 60 SAMWONTECH ANTI RESET WIND-UP ▶ Effective method for the control at the external shock. ▶ Not running ( I = 0 ). External Shock chamber ▶ control output(MV) MV = P + I + D Open Door TIME Elimination Closed Door External Shock ☞...
  • Page 61 SAMWONTECH 2.12.2.2 Transmission Output Setting Figure 2-49. Transmission Output Setting ○ ○ ○ ○ Contents Description Additional Description ○ TEMP RET. Select type of the temperature transmission. TEMP RET. ▶ Not display, if temperature ○ Set range of the temperature transmission. RANGE transmission type is “MV”.

  • Page 62: On/Off Signal And Inner Signal Setting Screen

    SAMWONTECH 2.12.3 ON/OFF Signal and Inner Signal Setting Screen 2.12.3.1 ON/OFF Signal ▶ Set 4 ON/OFF Signal. Figure 2-50. ON/OFF Signal Setting Screen ○ ○ ○ ○ ○ ○ Contents Description Additional Description ○ NEXT BUTTON Move next page. ▶ See 2.12.3.2 Inner Signal ○...
  • Page 63 SAMWONTECH ON/OFF Signal Action ▶ DELAY TIME is setting at Figure 2.12.5 DO CONFIG Setting Screen. ☞ DELAY TIME applys to Power On in the first place. ▶ LSP = LOW SP, MSP = MIDDLE SP, HSP = HIGH SP, NPV = NOW PV, NSP = NOW SP ▶...
  • Page 64 SAMWONTECH 2.12.3.2 Inner Signal ▶ Set 8 Inner Signal. Figure 2-51. Inner Signal Setting Screen ○ ○ ○ ○ ○ ○ ○ Contents Description Additional Description Move ON/OFF signal setting ○ NEXT BUTTON ▶ See 2.12.3.1 ON/OFF Signal screen. ○ RANGE LOW Set low value of the inner signal.
  • Page 65 SAMWONTECH Inner Signal Action ▶ Inner Signal Action Setting Inner Signal Action SEG1 SEG2 SEG3 SEG4 SEG5 ▶ INPUT = 0.0 ~ 100.0 → EUS 0.5% = 0.5 50.5 ▶ OPER. MODE = PROG 50.0 ▶ ITEM = HUMI 30.0 ▶...

  • Page 66: Pid Setting Screen

    SAMWONTECH 2.12.4 PID Setting Screen 2.12.4.1 PID Range Setting ▶ It is composed of 6 Temp./Humi. PID and 3 Temp. PID. Figure 2-52. PID Range Setting Screen ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○...
  • Page 67 SAMWONTECH ▶ A case DRY LIMIT LOW of DRY LIMIT 2.12.1.3 Input Display Screen ○ Set dry limit low. is changed, it is changed. ☞ Not modify. ▶ A case DRY LIMIT LOW or HIGH of TEMP 2.12.1.3 Input Display Screen is ○...
  • Page 68 SAMWONTECH AUTO TUNING and TUNING POINT ▶ Auto tuning is the function that controller is set up most suitable PID number automatically. ▶ Auto tuning is calculated with P, I, D as a cycle and amplitude. ▶ Auto tuning is possible at Fix RUN only and set P, I, D vaule automatically. ▶...
  • Page 69 SAMWONTECH 2.12.4.2 PID Group(PID1~PID9) Setting ▶ It is possible that you set with user manual. Figure 2-53. PID Group – Control Temp.&Humi. Figure 2-54. PID Group – Control Temp. ○ ○ ○ ○ ○ Contents Description Additional Description PROPORTIONAL ○ Set proportional band.

  • Page 70: Do Config Setting Screen

    SAMWONTECH 2.12.5 DO CONFIG Setting Screen ▶ This is the screen about the DO CONFIG Setting. Figure 2-55. DO CONFIG Setting – 1 Screen Figure 2-56. DO CONFIG Setting – 2 Screen ○ ○ ○ Figure 2-57. DO CONFIG Setting – 3 Screen Figure 2-58.
  • Page 71 SAMWONTECH Contents Description Additional Description INNER Set relay number for the inner ▶ See 2.12.3 ON/OFF Signal and Inner ○ SIGNAL signal output. Signal Setting Screen Set relay number for the time ○ TIME SIGNAL ▶ See 2.10.4 Time Signal Setting Screen signal output.
  • Page 72 SAMWONTECH ▶ When Fix running, status lamp of the running screen is display but relay output is not occurred. HUMI SOAK Set relay number for the humidity ○ ▶ When Program running, status lamp SIGNAL Soak signal output. of the running screen and relay is “ON”...
  • Page 73 SAMWONTECH UP, SOAK, DOWN Signal ▶ INPUT = TEMP(PT_1), RANGE = -50.00℃ ~ 150.00℃ ▶ UP, DOWN SIGANL RANGE → [EUS 0% ~ EUS 10% ] = [0.00 ℃ ~ 20.00 ℃ ] Setting UP, SOAK, DOWN Relay Action ▶ OPER. MODE SOAK DOWN SOAK...

  • Page 74: Alarm And Di Error Name Setting Screen

    SAMWONTECH 2.12.6 Alarm and DI Error Name Setting Screen 2.12.6.1 Alarm Setting Figure 2-62. Alarm Setting Screen ○ ○ ○ ○ ○ Contents Description Additional Description ITEM Select alarm ○ SELECT mode. ALARM TYPE Select alarm ○ Display Alarm Type Direction Wait SELECT...
  • Page 75 SAMWONTECH Upper-and-Lower-Limit Range Alarm DI.FS Reverse of Deviation with Standby Absolute-Value Upper-Limit Alarm AH.RS Reverse with Standby Absolute-Value Lower-Limit Alarm AL.RS Reverse with Standby ALARM Set alarm ○ POINT point. ALARM Set alarm ○ HYSTERESIS hysteresis. Move DI error NEXT ○...
  • Page 76 SAMWONTECH 2.12.6.2 DI Error Name Setting Figure 2-63. DI Error Name Setting Screen ○ ○ ○ ○ Contents Description Additional Description ▶ Buzzer occurs 1 minute even if buzzer ○ BUZZER TIME Set buzzer time. time set “0”. Select running status(Run/Stop) ○...

  • Page 77: Communication Setting Screen

    SAMWONTECH 2.12.7 Communication Setting Screen ▶ This is the screen about communication setting. Figure 2-65. Communication Setting Screen ○ ○ ○ ○ ○ ○ ○ Contents Description Additional Description ▶ TEMI880 monitoring program uses ○ PROTOCOL Set communication protocol. PC LINK1(Check Sum). ○...

  • Page 78: Initial Display And Status Display Lamp Setting Screen

    SAMWONTECH 2.12.8 Initial Display and Status Display Lamp Setting Screen 2.12.8.1 Initial Display Setting Figure 2-66. Initial Display Setting Screen ○ ○ ○ ○ ○ ○ ○ ○ Contents Description Additional Description ○ RUN TIME Total process time. ▶ Initial value is “0”. Change password for the enter ○...
  • Page 79 SAMWONTECH 2.12.8.2 Status Display Lamp Setting Figure 2-67. Status Display Lamp Setting Screen ○ ○ ○ ○ ○ ○ Contents Description Additional Description ○ IS1 ~ IS8 Inner signal display lamp. ○ TS1 ~ TS4 Time signal display lamp. ○ T1 ~ T4 ON/OFF signal display lamp.

  • Page 80: Password Input Screen

    SAMWONTECH 2.13 Password Input Screen ▶ This is the screen about password input. Figure 2-68. Password Input Screen – SETUP Figure 2-69. Password Input Screen – BIAS ○ ○ Contents Description Additional Description ▶ Initial password is “0”. INPUT ○ Setup password.

  • Page 81: Simple Example

    SAMWONTECH ▪ Simple Example ▶ The Example of the Pattern, Inner Signal and Time Signal Setting. 1 Seg 2 Seg 3 Seg 4 Seg 5 Seg 6 Seg 7 Seg 30 min 40 min 30 min 40 min 30 min 40 min 30 min 100.0℃...
  • Page 82 SAMWONTECH ○ 1 Set Pattern. ○ 2 Set Inner Signal. ○ 3 Set Time Signal. 4th Edition of TEMI880 IM : Jan. 29. 2007 Page 80 / 119...

  • Page 83: Parameter Setting Table

    SAMWONTECH 3. Parameter Setting Table ▶ This tables display setting range and initial value of the each parameters. 2.7 Set Operation Symbol Parameter Setting Range Unit Init. Value OPER. MODE OPERATION MODE PROG, FIX PROG POWER MODE POWER MODE STOP, COLD, HOT STOP FUZZY SELECT FUZZY SELECT...
  • Page 84 SAMWONTECH 2.10.1 Edit Pattern Symbol Parameter Setting Range Unit Init. Value PATTERN NO PATTERN NUMBER 1~120 TEMP SEGMENT TEMP SP T.EU(0~100%) T.EU T.EU(0%) HUMI SEGMENT HUMI SP H.EU(0~100%) H.EU H.EU(0%) -0.01(OFF)~99.59 TIME SEGMENT TIME -0.01(OFF) (HOUR.MIN) TS1~TS4 TIME SIGNAL1~4 0(OFF) 2.10.2 Set Repeat Symbol Parameter...
  • Page 85 SAMWONTECH 2.10.6 Set Pattern Name Symbol Parameter Setting Range Unit Init. Value 0~9, A~Z, PATTERN NAME PROG PT001 PTNO 1~120 Special character 1~120 ~ PROG PT120 (Max 10 characters) 2.11 Select Screen Symbol Parameter Setting Range Unit Init. Value TUNING KEY TUNING KEY HIDE, DISP DISP...
  • Page 86 SAMWONTECH 2.12.1.4 Set Range Input Correction Symbol Parameter Setting Range Unit Init. Value POINT1.DDV DRY TEMP POINT2.DDV DIFFERENCE T.EUS(-10~10%) T.EUS T.EUS(0%) POINT3.DDV VALUE1~4 POINT4.DDV DRY TEMP POINT1.DPV REFERENCE T.EU T.EU(0%) POINT1 T.EU(0~100%) DRY TEMP POINT2.DPV REFERENCE T.EU T.EU(100%) ≤DRY RL POINT2 ≤...
  • Page 87 SAMWONTECH 2.12.2.1 Set Control Output Symbol Parameter Setting Range Unit Init. Value TEMP OUTPUT OUTPUT TYPE SSR, SCR TYPE TEMP OUTPUT DIRECTION REV, FWD DIRECTION TEMP SSR CYCLE TIME 1~300 SEC CYCLE TIME TEMP ANTI RESET TEMP ARW SET 0.0(AUTO), 0.0~200.0 100.0 WIND-UP TEMP AUTO...
  • Page 88 SAMWONTECH 2.12.3.1 Set ON/OFF Signal Symbol Parameter Setting Range Unit Init. Value T.EU(0~100%) LOW SP T.EU T.EU(0%) TEMP RL ≤ LOW SP MIDDLE SP T.EU T.EU(0%) < MIDDLE SP < HIGH SP HIGH SP T.EU T.EU(0%) ≤ TEMP RH HIGH DIFFERENCE T.EUS(0~10%) T.EUS T.EUS(0%)
  • Page 89 SAMWONTECH 2.12.4.2 Set PID Group(PID1~PID9) Symbol Parameter Setting Range Unit Init. Value PROPORTIONAL 0.1~999.9 BAND INTEGRAL TIME 0~6000 DERIVATIVE TIME 0~6000 OUTPUT 100.0 LIMIT HIGH 0.0~100.0 OL < OH OUTPUT LIMIT LOW 2.12.5 Set DO CONFIG Symbol Parameter Setting Range Unit Init.
  • Page 90 SAMWONTECH HUMI UP H.UP CPARA H.EUS(-10~10%) H.EUS H.EUS(0%) RANGE HUMI SOAK H.SK RELAY 0(OFF)~20 RELAY HUMI SOAK H.SK CPARA 0~999 MIN TIME HUMI DOWN H.DN RELAY 0(OFF)~20 RELAY HUMI DOWN H.DN CPARA H.EUS(-10~10%) H.EUS H.EUS(0%) RANGE DRAIN RELAY DRAIN RELAY 0(OFF)~20 DRAIN CPARA DRAIN TIME...
  • Page 91 SAMWONTECH 2.12.6.2 Set DI Error Name Symbol Parameter Setting Range Unit Init. Value BUZZER TIME BUZZER TIME 0~99 MIN DI2:DRY HEAT DI3:WET HEAT 0~9, A~Z, DI4:FAN MOTOR DI2~DI8 NAME DI2~DI8 NAME Special character DI5:REF ERR1 (Max 10 characters) DI6:REF ERR2 DI7:WATER PRE DI8:NO WATER 2.12.7 Set Communication...

  • Page 92: Communication Manual

    SAMWONTECH 4. Communication Manual 4.1 Communication Specification ▶ TEMI880 is designed to establish a communication between upper-level computer and display via RS232C and RS485 communication interface. (RS232C – 1:1, RS485 – 1:99) ▶ As below, there are some parameters when the TEMI880 communicates. PARAMETER VALUE FUNCTION...

  • Page 93: Communication Terminal Arrangement

    SAMWONTECH 4.2 Communication Terminal Arrangement ▶ TEMI880 communication terminal arrangement is depends on option(RS232C or RS485). Detail in as below. 4.2.1 Terminal RS232C and TEMI880 9 Pin connector TEMI880 Master Station SHIELD D-Sub 9Pin Female 4.2.2 Terminal RS485 and TEMI880’s terminal Master Station TEMI880 TEMI880...

  • Page 94: Communication Command

    SAMWONTECH 4.3 Communication Command 4.3.1 The composition of communication command ▶ It is basic communication command structure between upper-level computer and TEMI880. ○ ○ ○ ○ ○ ○ ○ ○ Address Command Data by Command rule ○ 1 STX(Start of Text) This code indicates the start of a command string.
  • Page 95 SAMWONTECH 4.3.2 Communication Commands ▶ There are two kinds of commands, Self-information and Read/Write commands in the TEMI880. ○ 1 Self-information command Command Process Display model name & version. ○ 2 Read/Write command Command Process Reading D-Register orderly. Reading D-Register random. Writing D-Register의...
  • Page 96 SAMWONTECH 4.3.4 RSD Command ▶ This command for reading D-Register orderly. ▶ Transmission Format Byte Command Para. Addr D-Reg. No. element number ▶ Response Byte … Command Addr dddd-1 dddd-2 … element dddd-(n-1) dddd-(n) - Para. number : 1~32. - dddd : Indicates a character string in hexadecimal format. ex) When reading the D-Register from Temp.
  • Page 97 SAMWONTECH 4.3.5 RRD Command ▶ This command for reading D-Register random. ▶Transmission Format Byte … Command Para. Addr D-Reg. No1 D-Reg. No2 … element number D-Reg. No(n-1) D-Reg. No(n) ▶ Response Byte … Command Addr dddd-1 dddd-2 … element dddd-(n-1) dddd-n - Para.
  • Page 98 SAMWONTECH 4.3.6 WSD Command ▶ This command for writing D-Register orderly. ▶ Transmission Format Byte … Command Para. Addr D-Reg. No1 dddd-1 … element number dddd-(n-1) dddd-(n) ▶ Response Byte Command Addr element - Para. number : 1~32. - dddd : Indicates a character string in hexadecimal format. ex) When the writing Temp.
  • Page 99 SAMWONTECH 4.3.7 WRD Command ▶ This command for writing D-Register random. ▶ Transmission Format Byte … Command Para. Addr D-Reg. No1 dddd-1 … element number D-Reg. No(n) dddd-(n) ▶ Response Byte Command Addr element - Para. number : 1~32. - dddd : Indicates a character string in hexadecimal format. ex) When the writing Temp.
  • Page 100 SAMWONTECH 4.3.8 STD Command ▶ This command is register D-Register which you want to using at the TEMI880. ▶ Transmission Format Byte … Command Para. Addr D-Reg. No1 D-Reg. No2 … element number D-Reg. No(n-1) D-Reg. No(n) ▶ Response Byte Command Addr element...
  • Page 101 SAMWONTECH 4.3.9 CLD Command ▶ This command is reading D-Register, which was registered by STD Command at the TEMI880. ▶ Transmission Format Byte Command Addr element ▶ Response Byte … Command Addr dddd-1 dddd-2 … element dddd-(n-1) dddd-(n) - Para. number : 1~32. - dddd : Indicates a character string in hexadecimal format.

  • Page 102: D-Register Explanation

    SAMWONTECH 4.4 D-Register Explanation ▶ D-Register is group of data which can use with communication all of TEMI880’s condition. Each group has 100 registers and these are classified as follows. D-Register Range Group Name Description Read Write D0001~D0099 PROCESS Basic process display ○...
  • Page 103 SAMWONTECH 4.4.1 PROCESS ▶ Process group has basic data. It has Bit Map(Display data by Bit) as follow. NOWSTS OTHERSTS ISSTS TSSTS ALSTS (D0010) (D0011) (D0012) (D0013) (D0014) RESET PROG HOLD WAIT T.RUN TEMP AT H.RUN HUMI AT T.WAIT ERROR H.WAIT DRAIN 1.REF...
  • Page 104 SAMWONTECH ▶ Share running D-Register D-Reg. Symbol Description D0001 TEMP_NPV Present Temp. PV D0002 TEMP_NSP Present Temp. SP D0003 WET_NPV Present wet part Temp. PV D0004 WET_NSP Present wet part Temp. SP D0005 HUMI_NPV Present Humi. PV D0006 HUMI_NSP Present Humi. SP D0007 TEMP_MVOUT Output of Temp.
  • Page 105 SAMWONTECH 4.4.2 FUNCTION ▶ Function group is consisted of D-Registers for operation ▶ PROGRAM running D-Register D-Reg. Symbol Description D0100 SET_PTNO Set pattern number D0121 WAITMD Select using WAIT function ( 0 : OFF 1 : ON ) D0122 TEMP_WATE_ZONE Set wait zone of Temp.
  • Page 106 SAMWONTECH 4.4.3 RESERVATION ▶ Reservation group is consisted of confirmation time, setting & reservation time D-Register. ▶ Setting Time D-Register D-Reg. 기 호 내 용 Read Write D0201 NOW_YEAR TEMI880 Present Time (year) ○ × D0202 NOW_MONTH TEMI880 Present Time (month) ○...
  • Page 107 SAMWONTECH 4.4.4 Set Program Pattern 4.4.4.1 Program ▶ Program group is consisted of program pattern setting D-Registers. ▶ How to set a program pattern is : Set one by one with changing number of segment on TEMI880. ▶ Program pattern setting D-Register D-Reg.
  • Page 108 SAMWONTECH 4.4.4.2 Reading program pattern ▶ There is how to read program pattern on TEMI880 ○ 1 Set program pattern number on D1000 ○ 2 Set segment number on D1002 ○ 3 Set READ TRIGGER('2') on D1003 ○ 4 Read D1004 data and then wait until DONE('1') ○...
  • Page 109 SAMWONTECH 4.4.4.4 Pattern copy/delete & Segment insert/delete ▶ Program pattern copy ○ 1 Set object pattern number on D1000 ○ 2 Set target pattern number on D1001 ○ 3 Set PT COPY TRIGGER('4') on D1003 ○ 4 Read D1004 data and then wait until DONE('1') ▶...

  • Page 110: D-Register Table

    SAMWONTECH D-Register 0000~0599 PROCESS FUNCTION RESERVATION ON OFF / IS ALARM / TS TEMP_PID SET_PTNO RESERVE AL1_ITEM TEMP_PB1 TEMP_NPV STATUS_MODE NOW_YEAR IS1_ITEM AL2_ITEM TEMP_TI1 TEMP_NSP FIX_TEMP_SP NOW_MONTH IS1_TYPE AL3_ITEM TEMP_TD1 WET_NPV FIX_HUMI_SP NOW_DAY IS1_HIGH AL4_ITEM TEMP_OH1 WET_NSP OP_MODE NOW_HOUR IS1_LOW TEMP_OL1 HUMI_NPV PWR_MODE...
  • Page 111 SAMWONTECH D-Register 0000~0599 PROCESS FUNCTION RESERVATION ON OFF / IS ALARM / TS TEMP_PID NOW_TEMP_TSP IS6_BAND TEMP_PB7 PREV_HUMI_TSP IS7_ITEM TEMP_TI7 NOW_HUMI_TSP IS7_TYPE TEMP_TD7 NOW_SEG_TIME IS7_HIGH TEMP_OH7 IS7_LOW TEMP_OL7 IS7_DELAY_TM TEMP_MR7 IS7_BAND TEMP_PB8 IS8_ITEM TEMP_TI8 IS8_TYPE TEMP_TD8 IS8_HIGH TEMP_OH8 IS8_LOW TEMP_OL8 IS8_DELAY_TM TEMP_MR8 IS8_BAND...
  • Page 112 SAMWONTECH D-Register 0000~0599 PROCESS FUNCTION RESERVATION ON OFF / IS ALARM / TS TEMP_PID T3_LD T4_LD 4th Edition of TEMI880 IM : Jan. 29. 2007 Page 110 / 119...
  • Page 113 SAMWONTECH D-Register 0600~1199 HUMI_PID COMM OUTPUT INPUT PROGRAM RESERVED 1000 1100 HUMI_PB1 PROTOCOL TEMP_OT TEMP_IN P_PTNO HUMI_TI1 BAUD_RATE TEMP_DR TEMP_RH DEST_PTNO HUMI_TD1 PARITY TEMP_CT TEMP_RL P_SEGNO HUMI_OH1 STOP_BIT TEMP_ARW TEMP_BIAS TRIGGER HUMI_OL1 DATA_LENGTH TEMP_FILTER ANSWER HUMI_MR1 ADDRESS TEMP_SH PTN_NAME1 HUMI_PB2 RESPONSE TEMP_ATGAIN TEMP_SL...
  • Page 114 SAMWONTECH D-Register 0000~0599 HUMI_PID COMM OUTPUT INPUT PROGRAM RESERVED 1000 1100 DO_IS1 DO_IS2 DO_IS3 DO_IS4 DO_IS5 DO_IS6 DO_IS7 DO_IS8 DO_TS1 DO_TS2 DO_TS3 DO_TS4 DO_AL1 DO_AL2 DO_AL3 DO_AL4 DO_T1 DO_T1PARA DO_T2 DO_T2PARA DO_T3 DO_T3PARA DO_T4 DO_T4PARA DO_RUNPARA DO_HRUNPARA DO_RUN DO_HRUN 4th Edition of TEMI880 IM : Jan. 29. 2007 Page 112 / 119...
  • Page 115 SAMWONTECH D-Register 0000~0599 HUMI_PID COMM OUTPUT INPUT PROGRAM RESERVED 1000 1100 DO_TUP DO_TUPPARA DO_TSK DO_TSKPARA DO_TDN DO_TDNPARA DO_HUP DO_HUPPARA DO_HSK DO_HSKPARA DO_HDN DO_HDNPARA DO_DRAIN DO_DRAINPARA DO_DRAINRNGL DO_DRAINRNGH DO_ERROR DO_ERRORPARA DO_PTEND DO_PTENDPARA DO_1REF DO_1REFPARA DO_2REF DO_2REFPARA 4th Edition of TEMI880 IM : Jan. 29. 2007 Page 113 / 119...
  • Page 116 SAMWONTECH D-Register 1200~1799 RESERVED FILE1 FILE2 FILE3 PROG_INFO FILE4 1200 1300 1400 1500 1600 1700 C_TSP1 C_HSP1 C_TM1 C_TS11 C_TSP2 C_HSP2 C_TM2 C_TS12 C_TSP3 C_HSP3 C_TM3 PT_REPEAT C_TS13 C_TSP4 C_HSP4 C_TM4 RPT_SEG_S1 C_TS14 C_TSP5 C_HSP5 C_TM5 RPT_SEG_E1 C_TS15 C_TSP6 C_HSP6 C_TM6 RPT_SEG_C1 C_TS16...
  • Page 117 SAMWONTECH D-Register 0000~0599 RESERVED FILE1 FILE2 FILE3 PROG_INFO FILE4 1200 1300 1400 1500 1600 1700 C_TSP36 C_HSP36 C_TM36 C_TS136 C_TSP37 C_HSP37 C_TM37 C_TS137 C_TSP38 C_HSP38 C_TM38 C_TS138 C_TSP339 C_HSP39 C_TM39 C_TS139 C_TSP40 C_HSP40 C_TM40 C_TS140 C_TSP41 C_HSP41 C_TM41 C_TS141 C_TSP42 C_HSP42 C_TM42 C_TS142...
  • Page 118 SAMWONTECH D-Register 0000~0599 RESERVED FILE1 FILE2 FILE3 PROG_INFO FILE4 1200 1300 1400 1500 1600 1700 C_TSP72 C_HSP72 C_TM72 C_TS172 C_TSP73 C_HSP73 C_TM73 C_TS173 C_TSP74 C_HSP74 C_TM74 C_TS174 C_TSP75 C_HSP75 C_TM75 C_TS175 C_TSP76 C_HSP76 C_TM76 C_TS176 C_TSP77 C_HSP77 C_TM77 C_TS177 C_TSP78 C_HSP78 C_TM78 C_TS178...
  • Page 119 SAMWONTECH D-Register 1800~2399 FILE5 FILE6 FILE7 RESERVED RESERVED RESERVED 1800 1900 2000 2100 2200 2300 C_TS21 C_TS31 C_TS41 C_TS22 C_TS32 C_TS42 C_TS23 C_TS33 C_TS43 C_TS24 C_TS34 C_TS44 C_TS25 C_TS35 C_TS45 C_TS26 C_TS36 C_TS46 C_TS27 C_TS37 C_TS47 C_TS28 C_TS38 C_TS48 C_TS29 C_TS39 C_TS49 C_TS210...
  • Page 120 SAMWONTECH D-Register 0000~0599 FILE5 FILE6 FILE7 RESERVED RESERVED RESERVED 1800 1900 2000 2100 2200 2300 C_TS236 C_TS336 C_TS436 C_TS237 C_TS337 C_TS437 C_TS238 C_TS338 C_TS438 C_TS239 C_TS339 C_TS439 C_TS240 C_TS340 C_TS440 C_TS241 C_TS341 C_TS441 C_TS242 C_TS342 C_TS442 C_TS243 C_TS343 C_TS443 C_TS244 C_TS344 C_TS444 C_TS245...
  • Page 121 SAMWONTECH D-Register 0000~0599 FILE5 FILE6 FILE7 RESERVED RESERVED RESERVED 1800 1900 2000 2100 2200 2300 C_TS272 C_TS372 C_TS472 C_TS273 C_TS373 C_TS473 C_TS274 C_TS374 C_TS474 C_TS275 C_TS375 C_TS475 C_TS276 C_TS376 C_TS476 C_TS277 C_TS377 C_TS477 C_TS278 C_TS378 C_TS478 C_TS279 C_TS379 C_TS479 C_TS280 C_TS380 C_TS480 C_TS281...
  • Page 122 SAMWONTECH CO.,LTD. Further information contact Samwontech 202-703, Buchon Techno-park, Yakdae-dong, Wonmi-gu, Buchon, Gyeonggi-do, Korea 420-773 TEL : +82-32-326-9120,9121 FAX : +82-32-326-9119 http://www.samwontech.com E-mail:webmaster@samwontech.com The contents of this document are subject to change without prior notice. Printed in Korea : Feb. 2005(A) All Rights Reserved.
