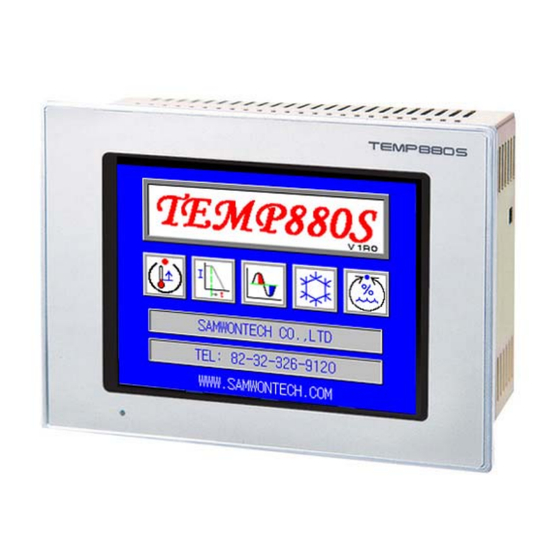

Samwon Tech TEMP880S Instuctions For Installation And Use

Thermal shock test controller
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

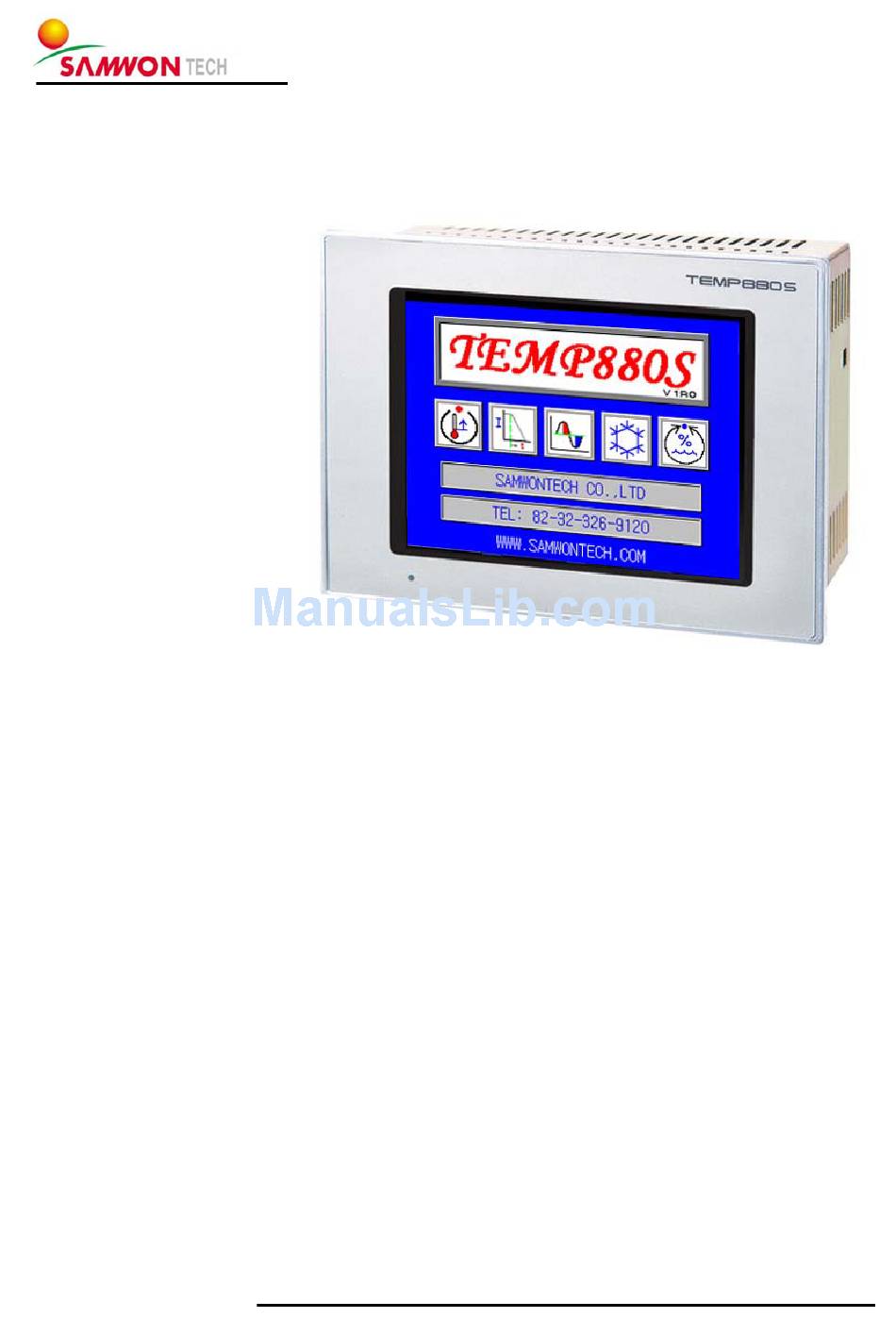

TEMP880S
INSTRUCTION MANUAL
THERMAL SHOCK TEST CONTROLLER

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TEMP880S and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Samwon Tech TEMP880S

Summary of Contents for Samwon Tech TEMP880S

  • Page 1 TEMP880S INSTRUCTION MANUAL THERMAL SHOCK TEST CONTROLLER...

  • Page 2: Table Of Contents

    3 Parameter Setting Table ……………………………………………………………………………………… 73 4 Communication Manual Communication Specification ……………………………………………………………………………… 79 Communication Wiring ……………………………………………………………………………………… 80 Communication COMMAND………………………………………………………………………………… 81 D-REGISTER Explanation ………………………………………………………………………………… 89 ▪ D-REGISTER TABLE …………………………………………………………………………………………… 96 1st Edition of TEMP880S IM : Sep. 21. 2005 Page 1 / 1...

  • Page 3: Installation Instruction

    SAMWONTECH ※This is a manual for a Thermal Shock Test Controller(TEMP880S). 1. Installation Instruction 1.1 Instructions(Cautions) for Safety Thank you for purchasing our Thermal Shock Test Controller(TEMP880S). This instruction manual explains how to install and use the product. 음Safety Symbol Mark (A) Represents “Handle with care”...
  • Page 4 (4) Breakdown from disassembling, remodeling or damaging (5) Breakdown from power supply such as unstable electricity (6) And others. (F) Contact the company’s business department if any repair is needed. 1st Edition of TEMP880S IM : Sep. 21. 2005 Page 2 / 101...

  • Page 5: The Exterior Inspection And Accessories Identification

    I/O2 BOARD (10 POINT : addition) TEMP880S RS232C (basis) RS485 (option) /UDC UDC100 (option) ☞ In the case of generic model, the code is TEMP880S-10 (I/O 10POINT + RS232C). 1.2.2 Contents confirmation ▶ Confirm the following contents are included. TEMP880S mainframe Fixed mount Manual...
  • Page 6 ☞ For batteries, use the identical product or the ones with same capacity to prevent explosion. ☞ Also, separate used batteries from other garbage when you dispose them. 1st Edition of TEMP880S IM : Sep. 21. 2005 Page 4 / 101...

  • Page 7: Installation

    (N) Overvoltage protection is Category II, and environment for usage is Degree Ⅱ. 1st Edition of TEMP880S IM : Sep. 21. 2005 Page 5 / 101...
  • Page 8 SAMWONTECH 1.3.3 EXTERIOR SIZE 1.3.4 PANEL CUTTING SIZE ○ ○ 1 General Adhesion 2 Close Adhesion 1st Edition of TEMP880S IM : Sep. 21. 2005 Page 6 / 101...
  • Page 9 ○ (by the use of a driver). Cautions on the fixation of a fixed mount ▶ When you fix the fixed mount, do not tighten it intensely. 1st Edition of TEMP880S IM : Sep. 21. 2005 Page 7 / 101...
  • Page 10 ▶ Power source should be supplied to the inner part of TEMP 880S through the power cutoff. ▶ Use the power cutoff after it is earthed evenly. 1st Edition of TEMP880S IM : Sep. 21. 2005 Page 8 / 101...

  • Page 11: Wiring

    (C) Please lay wires after twisting the input wire with a narrow interval according to electronic inducement. (D) Refer to the use of 1.4.2.9 supplementary RELAY as you need. 1st Edition of TEMP880S IM : Sep. 21. 2005 Page 9 / 101...
  • Page 12 OPTION2 : TEMP880S-20(RS232C + I/O1 + I/O2) OPTION3 : TEMP880S-21(RS485 + I/O1 + 1/O2) I/O2 LINK I/O2 LINK RS232C RS485 RS485 RTX+ RTX- Add UDC Option : TEMP880S-20/UDC Add UDC Option : TEMP880S-21/UDC 1st Edition of TEMP880S IM : Sep. 21. 2005 Page 10 / 101...
  • Page 13 DI_COM DI7 DI5 DI3 DI1 1.4.2.3 I/O2 RELAY BOARD TERMINAL GND +24V I/O2 I/O2 BOARD LINK COM4 RLY20 RLY19 COM3 RLY18 RLY17 COM2 RLY16 RLY15 RLY14 COM1 RLY13 RLY12 RLY11 1st Edition of TEMP880S IM : Sep. 21. 2005 Page 11 / 101...
  • Page 14 You must earth FRAME GROUND(FG). 1.4.2.5 WIRING ANALOG INPUT Caution ▶ Turn off the mainframe of Temp880S and external power source due to potential electric ▶ shocks. ▶ Use input wire that is adhere to shield. Also, shield should be done as 1point ground ▶...
  • Page 15 1.4.2.6 Control Output (Voltage pulse Output, Electric Present Output) and Wiring Transmission Output Caution ▶ Turn off TEMP880S mainframe power and external power supply when wiring the control output (SSR, SCR) and transmission output due to danger of electric shocks.
  • Page 16 SAMWONTECH 1.4.2.7 External Contact Point Output (RELAY) Wire Caution ▶ Turn off TEMP880S mainframe power and external power supply when wiring the external ▶ contact point output due to danger of electric shocks. Below 30VDC 5A, Below 250VAC 5A Below 30VDC 5A, Below 250VAC 5A...
  • Page 17 SAMWONTECH 1.4.2.8 External contract point (DI) wiring Caution ▶ Turn off TEMP880S mainframe power and external power supply when wiring the external ▶ contact point input due to danger of electric shocks. ▶ Use voltage free contact point (relay contact point) for external contact point.
  • Page 18 AC RELAY EXTERNAL ALTERNATING POWER METER CR FILTER RELAY (Connect to RELAY COIL (Use RELAY COIL that is below ground directly.) connection capacity of controller) 1st Edition of TEMP880S IM : Sep. 21. 2005 Page 16 / 101...
  • Page 19 1.4.2.10.1 Wiring RS485 ▶ It is possible for slave (TEMP880S) to connect multidrop maximum of 99. ▶ For TEMP880S or MASTER (PC, PLC), connect division resistance(200Ω 1/4W) on both sides of ▶ communication channel.

  • Page 20: Instruction Manual

    Used for choosing setting value. Choice Button Setting Value Switch to setting value input Input screen. Button Setting Value Used for changing more than Change two setting values. Button 1st Edition of TEMP880S IM : Sep. 21. 2005 Page 18 / 101...
  • Page 21 ▶ Do not press general setting button and setting value input key with sharp thing(such as ▶ pencil) or nail. Or, the product may show bad operation or touch swich may be damaged. 1st Edition of TEMP880S IM : Sep. 21. 2005 Page 19 / 101...

  • Page 22: How To Enter Setting Value

    → Press following numbers with such order ( 1 → 2 → 3 → 4 → 5 → 6 ), and finally "ENT" key( ○ ○ ○ ○ ○ ○ ○ 1st Edition of TEMP880S IM : Sep. 21. 2005 Page 20 / 101...

  • Page 23: General Operation Setting Flow Chart

    2.3 General Operation Setting Flow Chart ▶ The picture below roughly diagrammatize the flow. Input Power [Program Stop] [Initial Screen] [Main Screen] [DI Error Occurred] [Program Setting] [System Setting] [Password Setting] 1st Edition of TEMP880S IM : Sep. 21. 2005 Page 21 / 101...

  • Page 24: Initial Screen

    Indicates name of the company. ▶ It may be edited at 2.12.8 INITIAL ○ Phone Indicates contact phone number. ▶ DISPLAY SETTING. ○ Webpage Indicates webpage address. 1st Edition of TEMP880S IM : Sep. 21. 2005 Page 22 / 101...

  • Page 25: Main Screen

    A , press B to Shifts to system internal setting ▶ display for 2.13 PASSWORD INPUT ○ Hidden Key screen. ▶ screen ▶ Refer to 2.12 SYSTEM SETTING 1st Edition of TEMP880S IM : Sep. 21. 2005 Page 23 / 101...

  • Page 26: Operation Screen

    Displays low temperature ○ Temperature TSP(Target Set Point) of program pattern which is set up. Displays program pattern type ○ Pattern Type ▶ Four types which is set up. 1st Edition of TEMP880S IM : Sep. 21. 2005 Page 24 / 101...
  • Page 27 ☞ 1,2,3,4) as for Damper Type. The pattern type can be set up in 2.10 PATTERN SETTING. ☞ Refer to 2.10 PATTERN SETTING. Type-1 Type-2 Type-3 Type-4 1st Edition of TEMP880S IM : Sep. 21. 2005 Page 25 / 101...
  • Page 28 ☞ This window reconfirms the motion when you press a certain ☞ button. EX) Program stop ↔ Program operation, Defrost setting ON ↔ OFF, HOLD, STEP, TUNING OFF ↔ HOLD, STEP, TUNING ON, AND ETC. 1st Edition of TEMP880S IM : Sep. 21. 2005 Page 26 / 101...
  • Page 29 ▶ If you press the button reserved ○ Cancel Button Cancels reserved operation state. ▶ operation is canceled and return as ▶ diagram 2-3. ○ Close Button Closes the defrost condition 1st Edition of TEMP880S IM : Sep. 21. 2005 Page 27 / 101...

  • Page 30: Program Preparation Screen

    Part LAMP ▶ completed of preheating and ▶ precooling stops blinking and maintain Normal Displays operation state of normal ○ ▶ lamp “off”. Temperature temperature part. Part LAMP 1st Edition of TEMP880S IM : Sep. 21. 2005 Page 28 / 101...
  • Page 31 ▶ Refer to 2.12.8 INITIAL SIGN AND Condition ON : Showing red light ○ ▶ CONDITION SIGH LAMP SETTING Signlay Lamp OFF: Showing dark grey light ☞ Able to display total 16 lamps. 1st Edition of TEMP880S IM : Sep. 21. 2005 Page 29 / 101...

  • Page 32: Program Operation Screen

    Diagram 2-15. Program Operation-1screen (Low temperature room operation) (Turning key display) ○ Diagram 2-16. Program Operation-1screen Diagram 2-17. Program Operation-1screen (when turning high temperature room) (when holding) 1st Edition of TEMP880S IM : Sep. 21. 2005 Page 30 / 101...
  • Page 33 Preheating SP : Setting value for preheating high temperature room Preheating Deviation : Deviation value for preheating SP Precooling SP : Setting value for precooling low temperature room Precooling Deviation : Deviation value for precooling SP 1st Edition of TEMP880S IM : Sep. 21. 2005 Page 31 / 101...
  • Page 34 Accordingly, when you intend to operate ▶ auto tuning, please discuss it with a heat shock tetster manufacturing company without fail. 1st Edition of TEMP880S IM : Sep. 21. 2005 Page 32 / 101...

  • Page 35: Motion Setting Screen

    ▶ Control low temperature room during It is used when defrost control is ○ Defrost ▶ defrost time with defrost SP. manually done. Switch ▶ RELAY is on during defrost operation. 1st Edition of TEMP880S IM : Sep. 21. 2005 Page 33 / 101...
  • Page 36 ▶ output (MV). ☞ Overshoot is repressed. ▶ Changes of pointer value (PV) according to the function of fuzzy. Fuzzy OFF Fuzzy ON SUPER SP Fuzzy ON 1st Edition of TEMP880S IM : Sep. 21. 2005 Page 34 / 101...
  • Page 37 H.TSP DEFROST SP (20℃) L.TSP Precooling SP CYCLE-4 Operation CYCLE-5 CYCLE-6 DEFROST Time (10 min) Under operation preparation DEFROST Control CYCLE-3(DEFROST CYCLE) Diagram-26. Defrost Control Motion Example 1st Edition of TEMP880S IM : Sep. 21. 2005 Page 35 / 101...

  • Page 38: Reserve Set Screen

    Sets displays reserve ○ Reserve Time operation time (Year, month, day, hour, minute). ○ Reserve Set Turns on/off reservation. ▶ Refer to diagram 2-7 1st Edition of TEMP880S IM : Sep. 21. 2005 Page 36 / 101...

  • Page 39: Graph And Graph Record Set Screen

    Shifts to back/next stage of X axis ○ Button (time scale). Displays the time progress of the ○ Time Graph ▶ Displays red as time progresses. program operation. 1st Edition of TEMP880S IM : Sep. 21. 2005 Page 37 / 101...
  • Page 40 ▶ It is impossible to switch screen ○ Transmission Transmits data ▶ during transmission. ○ Memory Use Displays currently using memory. ☞ To use UDC100, format the memory stick to FAT16. 1st Edition of TEMP880S IM : Sep. 21. 2005 Page 38 / 101...

  • Page 41: Pattern Set Screen

    Sets time signal of segment to operate. ○ Time Signal Set ▶ Refer to 2.10.2 Time Signal Setting. Moves to time signal set screen ○ when 10 is touched. 1st Edition of TEMP880S IM : Sep. 21. 2005 Page 39 / 101...
  • Page 42 SAMWONTECH Program Pattern Type ▶ There are four program pattern types in TEMP880S. ▶ As for Elevator Type, there are two types(Type-1,2), and as for Damper Type, there are ▶ four types(Type-1,2,3,4). ○ ▶ You can set program pattern type by using ‘Pattern Set Screen((Diagram 2-29)- 5 )’...
  • Page 43 Room Room Room Room Room Room TIME TIME TIME TIME TIME TIME TIME TIME CYCLE - 1 CYCLE - n Diagram 2-35. Operation of Program Pattern Type-4 1st Edition of TEMP880S IM : Sep. 21. 2005 Page 41 / 101...

  • Page 44: File Edit Screen

    Displays copy and delete info. Message Action Copy and Delete Complete Complete ○ Pattern Button Shifts to diagram 2-30. ※ It is impossible to enter file edit screen under operation. 1st Edition of TEMP880S IM : Sep. 21. 2005 Page 42 / 101...

  • Page 45: Time Signal Setting Screen

    8 → 6 → 4 → 9 of the Diagram 2-40. Time Signal Setting Input Key. ☞ Refer to 2.10.2 Time Signal Setting for input time signal type. 1st Edition of TEMP880S IM : Sep. 21. 2005 Page 43 / 101...
  • Page 46 < ON TIME ON TIME +OFF TIME ○ TIME Time ≠00.00 Signal 3 (Time signal NO :07 Setting point) Low Temp. High Temp. Normal Temp. Room(8HOUR) Room(8HOUR) Room(8HOUR) ZONE 1st Edition of TEMP880S IM : Sep. 21. 2005 Page 44 / 101...

  • Page 47: Pattern Name Set

    3 → 3 → 8 → 3 → 3 → ○ ○ ○ 3 → 7 → 4 of the Diagram 2-42. Pattern Name Setting Input Key. 1st Edition of TEMP880S IM : Sep. 21. 2005 Page 45 / 101...

  • Page 48: Display Set

    Error ○ Occurrence Displays error occurrence name. Name Error ○ Occurrence Displays error occurrence time. Time Error History ○ Delete all error history. Delete 1st Edition of TEMP880S IM : Sep. 21. 2005 Page 46 / 101...

  • Page 49: System Setting Screen

    ELEVATOR TYPE with TSP ○ CHAMBER TYPE tester is DAMPER TYPE or ▶ concerned. ELEVATOR TYPE. ☞ Preheating SP and precooling SP ▶ will proceed in other zone. 1st Edition of TEMP880S IM : Sep. 21. 2005 Page 47 / 101...

  • Page 50: Input And Input Revision For Sections

    ▶ Refer to 2.12.1.2 SECTION INPUT ▶ REVISION SETTING ☞ cannot change sensor kind during operation. ☞ Displays “S.OPN“ when sensor is disconnected. Displays PRESET OUTPUT for Control Output (MV). 1st Edition of TEMP880S IM : Sep. 21. 2005 Page 48 / 101...
  • Page 51 -200.0~900.0 -300.0~1600.0 TC-L -200.0~1300.0 -300.0~2400.0 TC-N -200.0~400.0 -300.0~750.0 TC-U 0.0~2300.0 32~4200.0 TC-W Platinel Ⅱ 0.0~1390.0 -32.0~2500.0 TC-P ☞ Display : -5% ~ +105% of the above range 1st Edition of TEMP880S IM : Sep. 21. 2005 Page 49 / 101...
  • Page 52 - 200.0℃ EUS -100 ~ 100% 0 ~ 600.0℃ 300.0℃ EUS -100 ~ 100% - 600.0 ~ 600.0℃ 0.0℃ ☞ ABS doesn’t change along input of absolute value. 1st Edition of TEMP880S IM : Sep. 21. 2005 Page 50 / 101...
  • Page 53 Sets revision temperature at each ○ DIFFERENCE standard temperature.. VALUE DRY TEMP ○ REFERENCE Sets each standard temperature. POINT BIASED DRY Display temperature input revision ○ TEMP PV is applied. 1st Edition of TEMP880S IM : Sep. 21. 2005 Page 51 / 101...
  • Page 54 ( P8(D) – P7(D) ) = S.PV + ( S.PV – P7(P) ) X + P7(D) ( P8(P) – P7(P) ) ▶ B.PV at POINT8 ~ RH = S.PV + P8(D) 1st Edition of TEMP880S IM : Sep. 21. 2005 Page 52 / 101...

  • Page 55: Control Output And Transmission Setting Screen

    ○ WIND-UP operation, and sets point of resuming PID operation as deviation range. WAIT SP ○ Sets deviation value for WAIT SP. DEVIATION 1st Edition of TEMP880S IM : Sep. 21. 2005 Page 53 / 101...
  • Page 56 Control Output: 30% Control Output: 50% Control Output: 70% 10 sec 10 sec 10 sec 5 sec 3 sec 7 sec 5 sec 7 sec 3 sec 1st Edition of TEMP880S IM : Sep. 21. 2005 Page 54 / 101...
  • Page 57 ☞ MV starts changing from|PV-SP|= P BAND point Ex) Setting Point(SP): 70.0 Control Output(MV) starts changing from PV:50.0℃ if PV is ℃. → Since |PV-SP|= P BAND, |50.0 -70.0|=20.0 1st Edition of TEMP880S IM : Sep. 21. 2005 Page 55 / 101...
  • Page 58 Please use it after attaching 250Ω RN-TYPE resistance (precision resistance) at the Transmission ☞ output terminal. Output Based on Transmission Output Kind 4.0mA 12.0mA 20.0mA RET RANGE LOW (RL + RH) / 2 RET RANGE HIGH 1st Edition of TEMP880S IM : Sep. 21. 2005 Page 56 / 101...

  • Page 59: Inner Signal Setting Screen

    Operating Direction of Inner Signal RL(℃,%) RNG.LOW RNG.HIGH RH((℃,%) RL(℃,%) RNG.LOW RNG.HIGH RH((℃,%) IS Operating IS Operating IS Operating [ BAND = INB ] [ BAND = OUTB ] 1st Edition of TEMP880S IM : Sep. 21. 2005 Page 57 / 101...
  • Page 60 ▶ TYPE = SP 30.0 ▶ RANGE LOW = 30.0℃ OUTB ▶ RANGE HIGH = 50.0℃ ▶ DIRECT = OUT BAND ▶ DELAY TIME = 00.10 DELAY TIME 1st Edition of TEMP880S IM : Sep. 21. 2005 Page 58 / 101...

  • Page 61: Pid Set Screen

    High Temperature Sets deviation value when ○ Room choosing high temperature PID. REFERENCE DEVIATION Temperature Sets deviation value when ○ Room choosing low temperature PID. REFERENCE DEVIATION 1st Edition of TEMP880S IM : Sep. 21. 2005 Page 59 / 101...
  • Page 62 H.RDV : High temperature room deviation L.RDV : Low temperature room deviation H.RDV deviation PID : Deviation PID applied with H.RDV value L.RDV deviation PID : Deviation PID applied with L.RDV value 1st Edition of TEMP880S IM : Sep. 21. 2005 Page 60 / 101...
  • Page 63 (TSP) is ▶ faster than D.DV control time. ▶ Suitable for a device which responses ▶ slowly upon output (MV) changing rate.) 1st Edition of TEMP880S IM : Sep. 21. 2005 Page 61 / 101...
  • Page 64 OUTPUT LIMIT Sets control output operation ○ HIGH range limit high. ▶ OH > OL OUTPUT LIMIT Sets control output operation ○ range limit low. 1st Edition of TEMP880S IM : Sep. 21. 2005 Page 62 / 101...

  • Page 65: Do Config Setting Screen

    Diagram 2-58. DO CONFIG Setting – 5screen Diagram 2-59. DO CONFIG Setting – 6screen ○ ○ ○ ○ ○ ○ ○ ○ Diagram 2-60. DO CONFIG Setting – 7screen ○ ○ ○ ○ 1st Edition of TEMP880S IM : Sep. 21. 2005 Page 63 / 101...
  • Page 66 DAMPER OFF to output. Sets relay number of DAMPER ON Temperature ○ signal of low temperature room to Room output. DAMPER ON 1st Edition of TEMP880S IM : Sep. 21. 2005 Page 64 / 101...
  • Page 67 Sets relay number of speedy ○ N2GAS cooling value to output. ☞ Case where relay numbers are overlapped: If any signal is displayed, relay operates (“OR” condition). 1st Edition of TEMP880S IM : Sep. 21. 2005 Page 65 / 101...

  • Page 68: Alarm And Di Error Name Setting Screen

    Within the range of upper DI.FS Right Existent and lower limit deviation AH.RS High Limit Pointing Value Reverse Existent AL.RS Low Limit Pointing Value Reverse Existent 1st Edition of TEMP880S IM : Sep. 21. 2005 Page 66 / 101...
  • Page 69 Out of Lower and DEV=0 Upper Limit ▲ △ ▲ OFF▶ ◀OFF Deviation ◀ON ON▶ Within Lower and DEV=0 Upper Limit ▲ △ ▲ ◀OFF OFF▶ Deviation 1st Edition of TEMP880S IM : Sep. 21. 2005 Page 67 / 101...
  • Page 70 ☞ It becomes green after error is which has error. ☞ removed. ☞ Operation stops if DI2~DI4 error occurs ☞ It operates by DO CONFIG DI Mode when DI5~DI8 error occurs. 1st Edition of TEMP880S IM : Sep. 21. 2005 Page 68 / 101...

  • Page 71: Communication Set Screen

    ▶ It can be used by connecting and ○ ADDRESS Sets address. ▶ designating different addresses up to ▶ 99 when communicating via RS485. RESPONSE ○ Sets response time. TIME 1st Edition of TEMP880S IM : Sep. 21. 2005 Page 69 / 101...

  • Page 72: Initial Display And Status Display Lamp Set

    English combined. Moves to Status Display Lamp ▶ Refer to 2.12.8.2 Status Display Lamp ○ NEXT BUTTON Setting Screen. ▶ Setting ○ CLEAR BUTTON Delete total Operation Time. 1st Edition of TEMP880S IM : Sep. 21. 2005 Page 70 / 101...
  • Page 73 Low temperature room DAMP OFF LD.OFF displaying lamp ○ Signal displaying lamp for the 1st 1.REF cooler operation. Signal displaying lamp for the 2nd 2.REF cooler operation. 1st Edition of TEMP880S IM : Sep. 21. 2005 Page 71 / 101...

  • Page 74: Password Input Screen

    Inputs password for entering ○ ☞ Switch password at 2.12.8.1 sec PASSWORD System Setting Screen ☞ Display Setting. INPUT Inputs password for entering input ○ PASSWORD revision screen. 1st Edition of TEMP880S IM : Sep. 21. 2005 Page 72 / 101...

  • Page 75: Parameter Setting Table

    STOP, RUN STOP SAMPLING TIME SAMPLING TIME 1~59 TIME UNIT TIME UNIT SEC, MIN BACKUP ITEM SELECT BACKUP ITEM PTN, PARA, ALL DIRECTION SELECT DIRECTION DNLOAD, UPLOAD DNLOAD 1st Edition of TEMP880S IM : Sep. 21. 2005 Page 73 / 101...
  • Page 76 EU(100%) EU(0~100%) N.TEMP SP SP.RL < SP.RH TEMP SP LOW EU(0%) L.TEMP SP DEFROST SP HIGH 100.0 EU(0~100%) DEFROST SP SP.RL < SP.RH DEFROST SP LOW -10.0 1st Edition of TEMP880S IM : Sep. 21. 2005 Page 74 / 101...
  • Page 77 INNER SIGNAL RANGE RANGE-H EU(0%) HIGH INNER SIGNAL DELAY 00.00~99.59 TIME 00.00 TIME (HOUR.MIN) TYPE INNER SIGNAL TYPE SP, PV INNER SIGNAL BAND BAND INB, OUTB DIRECT 1st Edition of TEMP880S IM : Sep. 21. 2005 Page 75 / 101...
  • Page 78 P(1~4) PROPORTIONAL BAND 0.1~999.9% 5.0% I(1~4) INTEGRAL TIME 0~6000S 120S D(1~4) DERIVATIVE TIME 0~6000S OH(1~4) OUTPUT LIMIT HIGH 100.0 0.0~100.0 OL < OH OL(1~4) OUTPUT LIMIT LOW 1st Edition of TEMP880S IM : Sep. 21. 2005 Page 76 / 101...
  • Page 79 HIGH FAN RELAY R.FAN RELAY ROOM FAN RELAY 0(OFF)~20 L.FAN RELAY LOW FAN RELAY N2GAS RELAY N2GAS SIGNAL RELAY 0(OFF)~20 N2GAS CPARA N2GAS SIGNAL CPARA 0~999 SEC 1st Edition of TEMP880S IM : Sep. 21. 2005 Page 77 / 101...
  • Page 80 (Max. 9 Characters) 0~9, A~Z, Special TELEPHONE TEL: 82-32-326- INFO2 Character INFORMATION 9120 (Max. 9 Characters) 0~9, A~Z, Special HOMEPAGE WWW.SAMWONTECH. INFO3 Character INFORMATION (Max. 9 Characters) 1st Edition of TEMP880S IM : Sep. 21. 2005 Page 78 / 101...

  • Page 81: Communication Manual

    SAMWONTECH 4. Communication Manual 4.1 Communication Specification ▶ TEMP880S adopts the Half-Duplex type of Communication Interface (RS232C or RS485). ▶ In case the Communication Option is RS232C, it is possible to communicate by one to one with a ▶ superior rank of communication equipment such as PC. Especially the model of RS485 , it can be used ▶...

  • Page 82: Communication Wiring

    Class 3 Ground Class 3 Ground ☞ MULTIDROP is possible up to the number of 99 in case of SLAVE(TEMP880). ☞ Make sure to connect the vertical section resistance (200Ω 1/4W) in case of the TEMP880S or ☞ MASTER(PC, PLC etc.) 1st Edition of TEMP880S IM : Sep.

  • Page 83: Communication Command

    Indicate the inferior rank of 2-byte to D by adding all letters from the letter of after STX to the letter before SUM using the Ascii code and Use only when the protocol of TEMP880S is “the basic protocol of “PCL!”...
  • Page 84 STD/CLD when its power source’s off because the registered contents ☞ are initialized. 4.3.3 Error Response ▶ TEMP880S transmits a message as below in case of Error during a Communication. The number of Byte Contents Address numbers ☞...
  • Page 85 ※ The process of transforming the PV value of received 16 number data to display on screen. ○ 1 Transformation to decimal number : 01F4(16 number-D-) → 500(decimal number) ○ 2 Multiply 0.1 to the transformed value. : 500 * 0.1 → 50.0 1st Edition of TEMP880S IM : Sep. 21. 2005 Page 83 / 101...
  • Page 86 - Transmission (Including Check Sum ) : [stx]01RRD,02,0001,0002B2[cr][lf] In case the value of D0001 is 50.0 and the value of D0002 is 30.0 - Reception : [stx]01RRD,OK,01F4,012C[cr][lf] - Reception (including Check Sum) : [stx]01RRD,OK,01F4,012C18[cr][lf] 1st Edition of TEMP880S IM : Sep. 21. 2005 Page 84 / 101...
  • Page 87 : Data without a point of decimal number (16 number D) ex) In case of using defrost SP(D0100) and defrost time(D0111) - Reception : [stx]0101WSD,02,0110,0001,0002[cr][lf] - Reception (including Check Sum) : [stx] 01WSD,02,0110,0001,0002A6[cr][lf] 1st Edition of TEMP880S IM : Sep. 21. 2005 Page 85 / 101...
  • Page 88 : Data without a point of decimal number (16 number D) ex) In case of using data to Outage Mode(D0105) and Outage Time(D0125) - Transmission : [stx] 01RRD,02,0001,0002[cr][lf] - Transmission (Including Check Sum) : [stx]01WRD,02,0105,0001,0125,00039E[cr][lf] 1st Edition of TEMP880S IM : Sep. 21. 2005 Page 86 / 101...
  • Page 89 SAMWONTECH 4.3.8 STD Command ▶ STD Command is used for registering preferable D-Register to TEMP880S in advance. ▶ Format of Transmission The number … of Byte Numb Contents Addr D-Reg. No1 D-Reg. No2 … D-Reg. No(n-1) D-Reg. No(n) ▶ Response...
  • Page 90 SAMWONTECH 4.3.9 CLD Command ▶ CLD Command is used for reading & bring the D-Register which is already registered at TEMP880S by ▶ STD Command. ▶ Formate of Transmission The number of Byte Contents Addr ▶ Response The number …...

  • Page 91: D-Register Explanation

    SAMWONTECH 4.4 Explanation of D-REGISTER ▶ D-Register is a group of gathering all the data which is provided to check all the condition of TEMP880S. ▶ D-Register is grouped by each 100 unit, basically, depending on the contents and the contents are as below.
  • Page 92 SAMWONTECH 4.4.1 PROCESS ▶ PROCESS group has basic data from the operation of TEMP880S Among these, here’s Bit Map Information which indicates all the conditions by the unit of Bit and the contents are as below. NOWSTS OTHERSTS ISSTS TSSTS...
  • Page 93 Temperature TSP(Target Set Point) of high D0033 HTEMP_TSP temperature room D0034 NTEMP_TSP Temperature TSP(Target Set Point) of laboratory D0035 LTEMP_TSP Temperature TSP(Target Set Point) of low temperature room 1st Edition of TEMP880S IM : Sep. 21. 2005 Page 91 / 101...
  • Page 94 SAMWONTECH 4.4.2 FUNCTION ▶ FUNCTION Group is consist with a D-Register which is related to the motions of TEMP880S. ▶ D-Register related to PROGRAM Driving D-Reg. Signs Contents D0100 SET_PTNO Set up the No. of a pattern which is for driving a Program...
  • Page 95 SET_MIN Set up the time (min) × ○ ▶ Reservation Work ON/OFF D-Reg. Signs Driving contents Setting Value Contents Cancellation of reservation D200 RESERVE Setting of reservation 1st Edition of TEMP880S IM : Sep. 21. 2005 Page 93 / 101...
  • Page 96 4.4.4 Set up the Pattern of Program 4.4.4.1 PROGRAM ▶ PROGRAM group is consist of D-Register for making Program Pattern with Communication. ▶ PROGRAM pattern should be set up at TEMP880S by changing the segment number one by one. ▶ D-Register related to PROGRAM Pattern Setting D-Reg.
  • Page 97 SAMWONTECH 4.4.4.2 Reading a Program Pattern ▶ The following order should be performed to read the program pattern which is set up at TEMP880S. ○ 1 Set up the Pattern No. of Program at D1000 ○ 2 Set up the READ TRIGGER (‘2’) at D1003 ○...

  • Page 98: D-Register Table

    IS4_LOW RUN_CYCLE IS4_DELAY_TM TOTAL_CYCLE TUNING_KEY IS4_BAND SET_SEGTIME_H BLGT_TM SET_SEGTIME_M BUZZER_TM IS5_TYPE RUN_SEGTIME_H IS5_HIGH RUN_SEGTIME_M IS5_LOW IS5_DELAY_TM CONTROL_MODE IS5_BAND REMAIN_SEGTIME_H REMAIN_SEGTIME_M IS6_TYPE HTEMP_TSP IS6_HIGH NTEMP_TSP IS6_LOW LTEMP_TSP IS6_DELAY_TM 1st Edition of TEMP880S IM : Sep. 21. 2005 Page 96 / 101...
  • Page 99 SAMWONTECH D-Register 0000~0599 PROCESS FUNCTION RESERVATION ALARM HTEMP_WSP IS6_BAND LTEMP_WSP IS7_TYPE IS7_HIGH IS7_LOW IS7_DELAY_TM IS7_BAND IS8_TYPE IS8_HIGH IS8_LOW IS8_DELAY_TM IS8_BAND 1st Edition of TEMP880S IM : Sep. 21. 2005 Page 97 / 101...
  • Page 100 SAMWONTECH D-Register 0000~0599 PROCESS FUNCTION RESERVATION ALARM 1st Edition of TEMP880S IM : Sep. 21. 2005 Page 98 / 101...
  • Page 101 RET2_SL LOW_SH HTEMP_TS3 DO_DI5 LOW_SL NTEMP_TS1 DO_DI5OUT NTEMP_TS2 DO_DI5MODE DFR_SH NTEMP_TS3 DO_DI6 DFR_SL LTEMP_TS1 DO_DI6OUT LTEMP_TS2 DO_DI6MODE LTEMP_TS3 DO_DI7 DO_DI7OUT DO_DI7MODE PATTERN_TYPE DO_DI8 CYCLE DO_DI8OUT END_MODE DO_DI8MODE 1st Edition of TEMP880S IM : Sep. 21. 2005 Page 99 / 101...
  • Page 102 PROGRAM RESERVED 1000 1100 DO_IS1 PTNAME_WORD1 DO_IS2 PTNAME_WORD2 DO_IS3 PTNAME_WORD3 DO_IS4 PTNAME_WORD4 DO_IS5 PTNAME_WORD5 DO_IS6 DO_IS7 DO_IS8 DO_TS1 DO_TS2 DO_TS3 DO_DFR DO_AL1 DO_AL2 DO_AL3 DO_AL4 DO_RUN DO_RUNPARA 1st Edition of TEMP880S IM : Sep. 21. 2005 Page 100 / 101...
  • Page 103 DO_END DO_ENDPARA DO_HDON DO_HDONPARA DO_HDOFF DO_HDOFFPARA DO_RDON DO_RDONPARA DO_RDOFF DO_RDOFFPARA DO_LDON DO_LDONPARA DO_LDOFF DO_LDOFFPARA DO_ERROR DO_ERRORPARA DO_SOLV DO_SOLVPARA DO_1REF DO_1REFPARA DO_2REF DO_REFPARA DO_HFAN DO_RFAN DO_LFAN DO_N2GAS DO_N2GASPARA 1st Edition of TEMP880S IM : Sep. 21. 2005 Page 101 / 101...
  • Page 104 SAMWONTECH CO.,LTD. Further information contact Samwontech 202-703, Buchon Techno-park, Yakdae-dong, Wonmi-gu, Buchon, Gyeonggi-do, Korea 420-773 TEL : +82-32-326-9120,9121 FAX : +82-32-326-9119 http://www.samwontech.com E-mail:webmaster@samwontech.com The contents of this document are subject to change without prior notice. Printed in Korea : Sep. 2005(A) All Rights Reserved.
