1.3 Mechanical Design Description
Hotswap unit
The Network Power Switch consists of two modules.
The fixed unit consists of the input and output connections and manual bypass transfer control switch.
The second module is hot swappable plug-in type with removable electronics & static switching module.
The Manual Bypass switch is located on the right side of the cabinet with a key lock to restrict access to qualified or
designated operators. The Hotswap contains locked latches to prevent unauthorized removal of the module. The
Network Power Switch is designed to allow replacement of the removable electronics /switching module without
having to de-energize the load equipment.
The Entire power static switch module is detachable. Before removing this module the load is transferred without break
to any one of the source directly. After replacing the static switch module, the load is again transferred back to Network
Power Switch without break. Refer to section 3.4 for safe removal and fixing of Hotswap unit on page 3-5.
(08/10)
N
e
t
w
N
e
t
w
Fixed unit

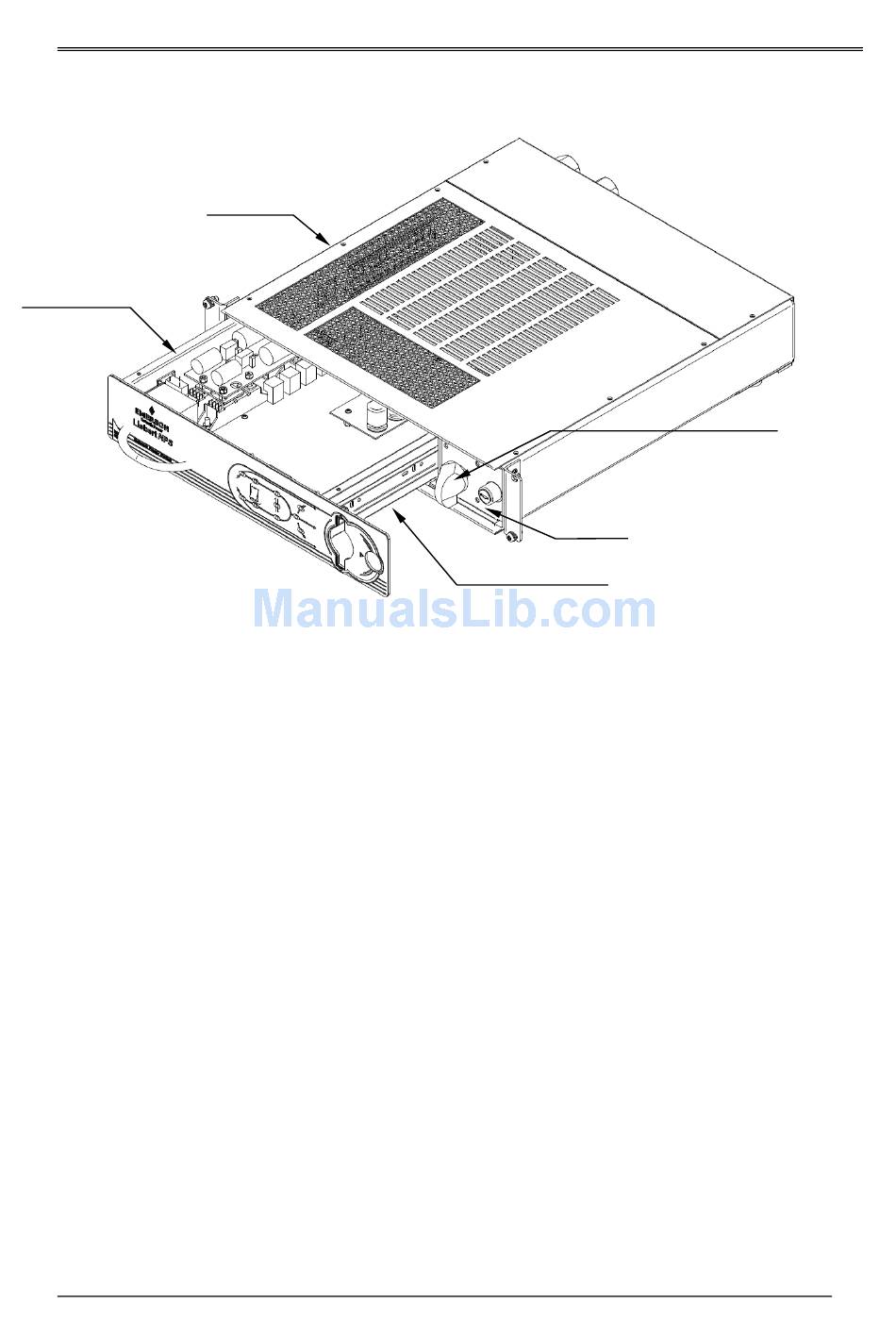

Fig 1.3 – Hotswap and Fixed Unit
o
r
k
P
o
w
e
r
S
w
i
t
c
h
2
o
r
k
P
o
w
e
r
S
w
i
t
c
h
2
Telescopic Slides
Chapter 1 - General Description
Manual Bypass
Switch
Lock
Page 1-2
