Quick Start Guide: RL78G14 Motor Control Starter Kit
Document Contents
1.0
Introduction
2.0

Board Layout

3.0
Stand Alone Demonstration Mode
4.0
Installation
5.0
Using the GUI
6.0
RL78/G14 Programming
7.0
RL78/G14 Debugging
8.0
Next Steps
9.0
Support
1.0
Introduction
This quick start guide is provided to assist the user in connecting and using up the RL78G14 motor control
starter kit for the first time. The RL78G14 microcontroller flash memory on the board is supplied pre-
programmed with the motor control demonstration project. Please check the contents of the kit using the
supplied package contents list and notify your supplier if anything is missing
Note: PLEASE DO NOT CONNECT THE BOARD TO THE HOST PC BEFORE INSTRUCTED
2.0

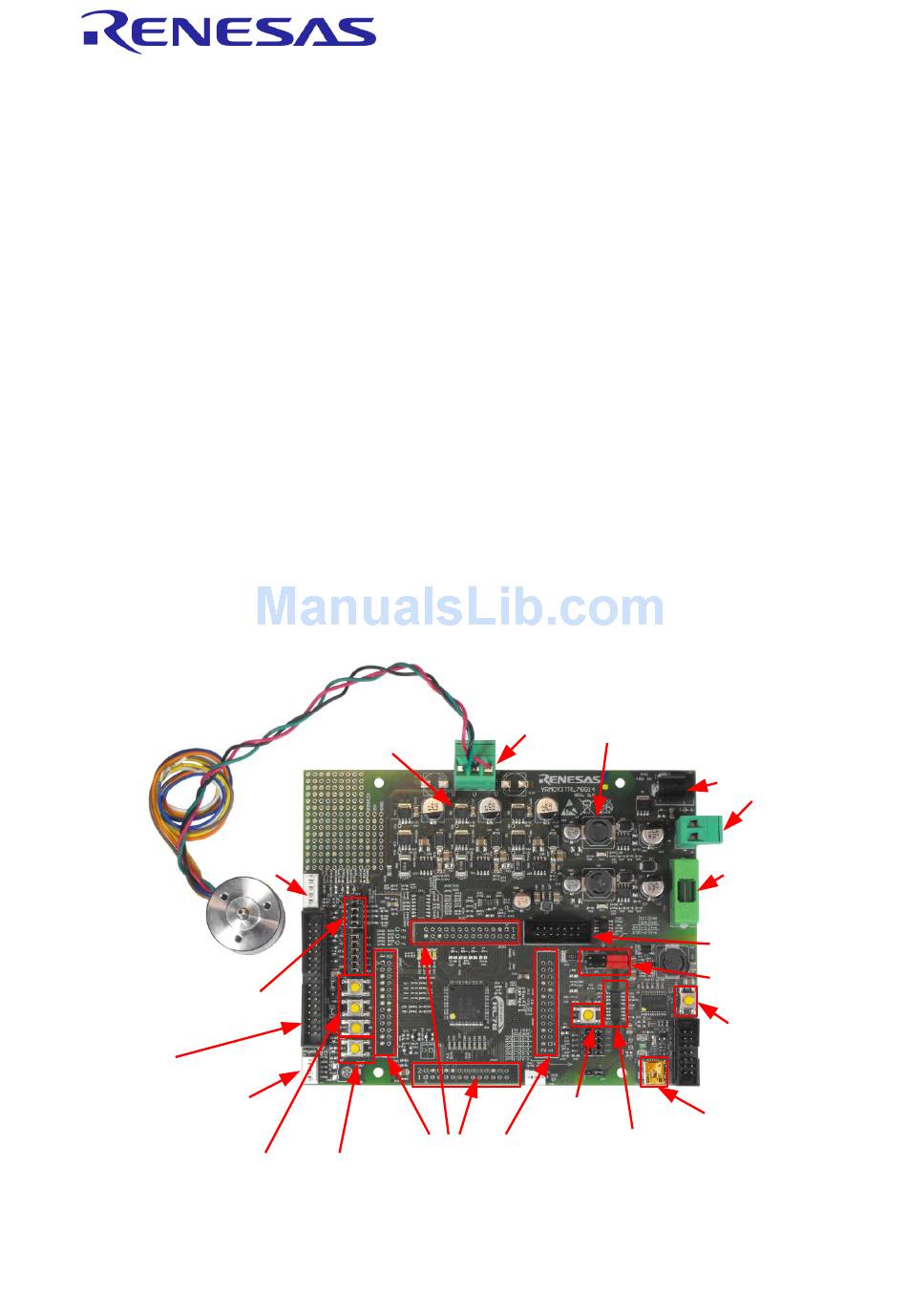

Board Layout
J8: Hall
Sensor
Connector
BLDC
Demonstration
Motor
J10-J19:
Inverter
selection
jumpers
J10: Ext.
inverter
and power
interface
J9: Encoder
connector
P1-P3: User
programmable
For further details, please refer to chapter 2 of the YRMCKITRL78G14 Motor Control Starter Kit user manual.
YRMCKITRL78G14 Kit Quick Start Guide
Internal
inverter
JPUP1-4: RL78/G14
P4: Demo
IO Pinout
start/stop
1
J7: Motor
Int. Power
Connector
supplies
P6: RL78/G14
Reset
Isolation
Barrier
1
1
2
3
4
6
7
8
8
J3-J4: Ext.
Power supply
connectors
5A Fuse
J5 – E1
Connector
JP1 / JP2
P5 USB
reset
J1: USB
Interface &
Power
D011044-11 V0101
