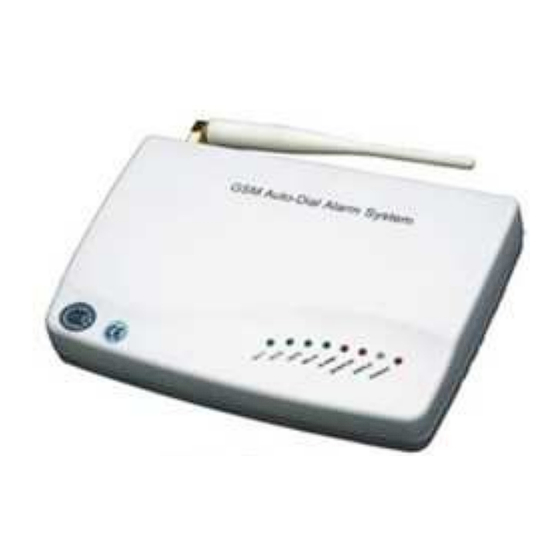

GSM Home Alarm System
KL-H21B
Installation and User Guide

Advertisement

loading
Need help?

Need help?

Do you have a question about the KL-H21B and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Konlen KL-H21B

Summary of Contents for Konlen KL-H21B

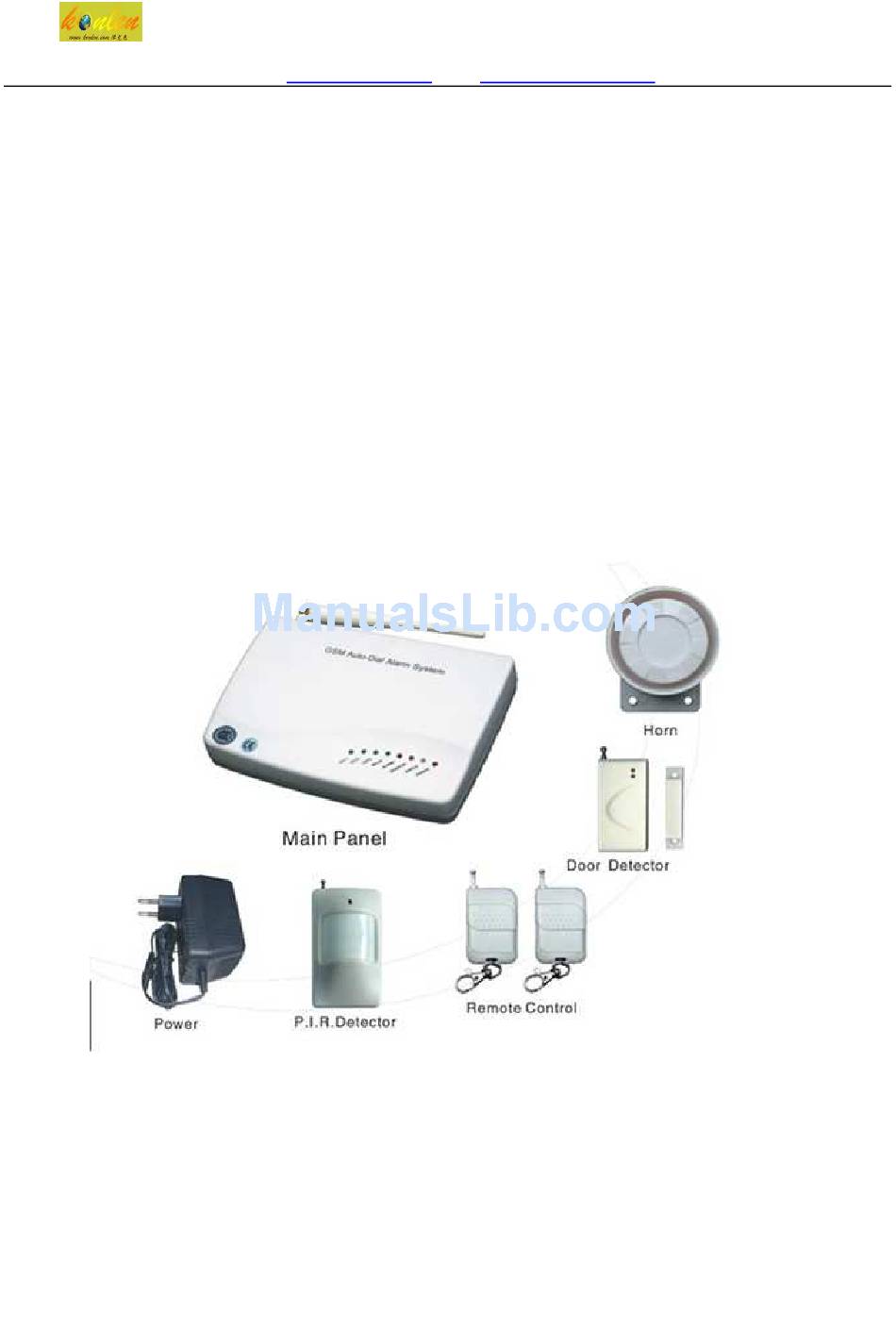

  • Page 1 KONLEN TECHNOLOGY LIMITED Website: www.konlen.com U1 building, Oriental Garden, NanShan District, Shenzhen City, Guangdong Province,China Tel: +86-(0)755-86082432 E-mail: klalarm@konlen.com MSN: konlensales@hotmail.com Skype: securitykonlen GSM Home Alarm System KL-H21B Installation and User Guide...

  • Page 2: Brief Introduction

    KONLEN TECHNOLOGY LIMITED Website: www.konlen.com U1 building, Oriental Garden, NanShan District, Shenzhen City, Guangdong Province,China Tel: +86-(0)755-86082432 E-mail: klalarm@konlen.com MSN: konlensales@hotmail.com Skype: securitykonlen Brief Introduction: ◆ GSM 900/1800/1900 bands, can be used in most parts of the world ◆ Full duplex communication with the host ◆...
  • Page 3 KONLEN TECHNOLOGY LIMITED Website: www.konlen.com U1 building, Oriental Garden, NanShan District, Shenzhen City, Guangdong Province,China Tel: +86-(0)755-86082432 E-mail: klalarm@konlen.com MSN: konlensales@hotmail.com Skype: securitykonlen dial in the host or send SMS to program the phone number. 4. Connect the siren to alarm system. Connect the black wire to GND port and red wire to siren port.
  • Page 4 KONLEN TECHNOLOGY LIMITED Website: www.konlen.com U1 building, Oriental Garden, NanShan District, Shenzhen City, Guangdong Province,China Tel: +86-(0)755-86082432 E-mail: klalarm@konlen.com MSN: konlensales@hotmail.com Skype: securitykonlen GND, +12V DC wires to be connected with a 12V DC (Power supply) Configuration of the host There are 10 connector ports on top of the host: GND;...
  • Page 5 KONLEN TECHNOLOGY LIMITED Website: www.konlen.com U1 building, Oriental Garden, NanShan District, Shenzhen City, Guangdong Province,China Tel: +86-(0)755-86082432 E-mail: klalarm@konlen.com MSN: konlensales@hotmail.com Skype: securitykonlen 123456#82#Middle door open#: save second group message into the host as second wireless detector is triggered. 123456#83#Back door open#: save third group message into the host as third wireless detector is triggered. 123456#84#Front window open#: save fourth group message into the host as fourth wireless detector is triggered.
  • Page 6 KONLEN TECHNOLOGY LIMITED Website: www.konlen.com U1 building, Oriental Garden, NanShan District, Shenzhen City, Guangdong Province,China Tel: +86-(0)755-86082432 E-mail: klalarm@konlen.com MSN: konlensales@hotmail.com Skype: securitykonlen How to control the host 1. Sending message to the host phone number (SIM Card number) Send the message to the host: enter password 123456#, add the following command to set the host; 2.
  • Page 7 KONLEN TECHNOLOGY LIMITED Website: www.konlen.com U1 building, Oriental Garden, NanShan District, Shenzhen City, Guangdong Province,China Tel: +86-(0)755-86082432 E-mail: klalarm@konlen.com MSN: konlensales@hotmail.com Skype: securitykonlen In the above SMS operation, you will receive a reply message for confirmation after sending message command to the host.
  • Page 8 KONLEN TECHNOLOGY LIMITED Website: www.konlen.com U1 building, Oriental Garden, NanShan District, Shenzhen City, Guangdong Province,China Tel: +86-(0)755-86082432 E-mail: klalarm@konlen.com MSN: konlensales@hotmail.com Skype: securitykonlen The coding mode ends 20 seconds later automatically, and system enters into working mode, status LED light on panel will change to yellow, then to green.
  • Page 9 KONLEN TECHNOLOGY LIMITED Website: www.konlen.com U1 building, Oriental Garden, NanShan District, Shenzhen City, Guangdong Province,China Tel: +86-(0)755-86082432 E-mail: klalarm@konlen.com MSN: konlensales@hotmail.com Skype: securitykonlen The following sensors can be optional: -Additional wireless products Optional sensors/detectors are packed separately. It includes remote controllers, wireless PIR, wireless gap sensor, wireless gas detector, wireless smoke detector, panic button, baluster, etc.
