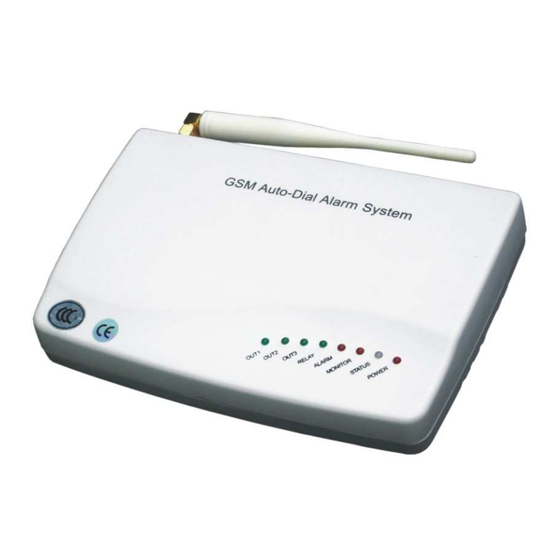

GSM Home Alarm System
KL-H21A
Installation and Users' guide
- 1 -

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the KL-h21a and is the answer not in the manual?

Questions and answers

Related Manuals for Konlen KL-h21a

Summary of Contents for Konlen KL-h21a

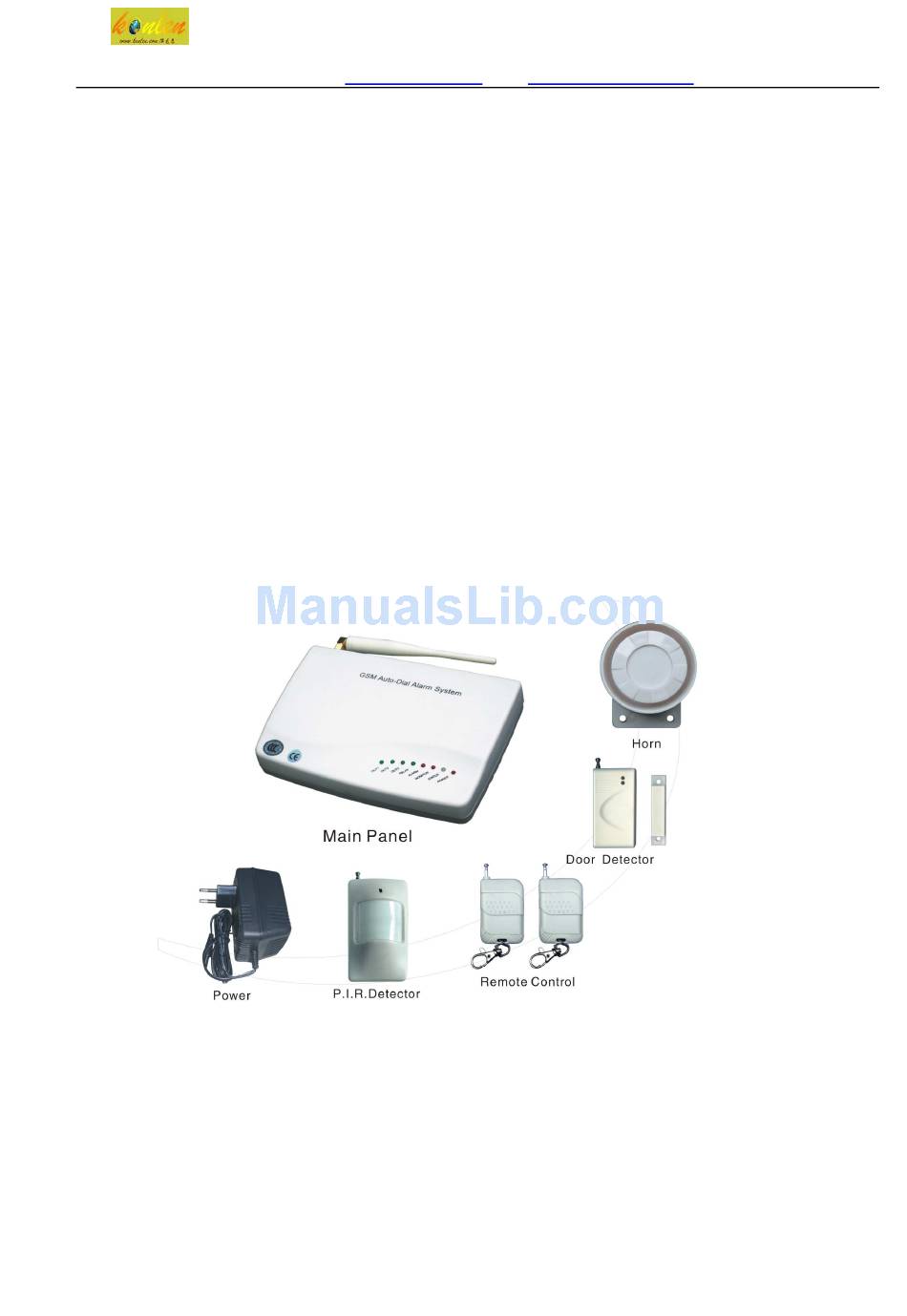

  • Page 1 KONLEN TECHNOLOGY LIMITED Website: www.konlen.com U1 building, Oriental Garden, NanShan District, Shenzhen City, Guangdong Province,China Tel: +86-(0)755-86082432 E-mail: klalarm@konlen.com MSN: konlensales@hotmail.com Skype: securitykonlen GSM Home Alarm System KL-H21A Installation and Users’ guide - 1 -...

  • Page 2: General Information

    KONLEN TECHNOLOGY LIMITED Website: www.konlen.com U1 building, Oriental Garden, NanShan District, Shenzhen City, Guangdong Province,China Tel: +86-(0)755-86082432 E-mail: klalarm@konlen.com MSN: konlensales@hotmail.com Skype: securitykonlen General information: 1. Is a one-zone alarm system, very suitable for small office and home appliance. 2. Alarm system uses a GSM communicator, so is no distance limits to receive alarms or dial out to control the alarm system.
  • Page 3 KONLEN TECHNOLOGY LIMITED Website: www.konlen.com U1 building, Oriental Garden, NanShan District, Shenzhen City, Guangdong Province,China Tel: +86-(0)755-86082432 E-mail: klalarm@konlen.com MSN: konlensales@hotmail.com Skype: securitykonlen 1. Insert SIM in alarm unit. Press yellow point gently with a pencil tip. SIM tray will come out.

  • Page 4: Operating The System

    KONLEN TECHNOLOGY LIMITED Website: www.konlen.com U1 building, Oriental Garden, NanShan District, Shenzhen City, Guangdong Province,China Tel: +86-(0)755-86082432 E-mail: klalarm@konlen.com MSN: konlensales@hotmail.com Skype: securitykonlen STATUS: It shows the signal status. At the first beginning, it is red which shows that the system is searching for GSM network and it will turn green when it finds GSM network.

  • Page 5: Reset Procedure

    KONLEN TECHNOLOGY LIMITED Website: www.konlen.com U1 building, Oriental Garden, NanShan District, Shenzhen City, Guangdong Province,China Tel: +86-(0)755-86082432 E-mail: klalarm@konlen.com MSN: konlensales@hotmail.com Skype: securitykonlen a. 1# - set output 1(open collector) on b. 1* - set output 1 off c. 2# - set output 2(open collector) on d.
  • Page 6 KONLEN TECHNOLOGY LIMITED Website: www.konlen.com U1 building, Oriental Garden, NanShan District, Shenzhen City, Guangdong Province,China Tel: +86-(0)755-86082432 E-mail: klalarm@konlen.com MSN: konlensales@hotmail.com Skype: securitykonlen STATUS light will be red for 20 seconds. During this time make sensors to work (press any button on remote controller, make PIR and gap sensors (move the two parts of door sensor) to work).
  • Page 7 KONLEN TECHNOLOGY LIMITED Website: www.konlen.com U1 building, Oriental Garden, NanShan District, Shenzhen City, Guangdong Province,China Tel: +86-(0)755-86082432 E-mail: klalarm@konlen.com MSN: konlensales@hotmail.com Skype: securitykonlen Open collector outputs can be used directly, if your equipment allows this, or can operate a relay.

  • Page 8: Technical Parameters

    KONLEN TECHNOLOGY LIMITED Website: www.konlen.com U1 building, Oriental Garden, NanShan District, Shenzhen City, Guangdong Province,China Tel: +86-(0)755-86082432 E-mail: klalarm@konlen.com MSN: konlensales@hotmail.com Skype: securitykonlen Technical Parameters GSM Alarm Module Operating voltage: DC6V Average power: AC/DC exchanger 2A. Wireless receiving distance: ≥ 100m Operating Frequency: 315 or 433.92 MHZ, GSM 900-1800MHZ.
  • Page 9 KONLEN TECHNOLOGY LIMITED Website: www.konlen.com U1 building, Oriental Garden, NanShan District, Shenzhen City, Guangdong Province,China Tel: +86-(0)755-86082432 E-mail: klalarm@konlen.com MSN: konlensales@hotmail.com Skype: securitykonlen Static Current: ≤20 mA Transmission Current: ≤15mA Transmission Frequency: 315/433MHZ±0.5MHZ Transmission Distance: No obstacle 80m Internal Distance: 15 mm 10℃+ 40 ℃...
