Four PDUs can be mounted vertically in the back of the T00 and T42 racks. See Figure 1-4
for the placement of the four vertically mounted PDUs. In the rear of the rack, two additional
PDUs can be installed horizontally in the T00 rack and three in the T42 rack. The four vertical
mounting locations will be filled first in the T00 and T42 racks. Mounting PDUs horizontally
consumes 1U per PDU and reduces the space available for other racked components. When
mounting PDUs horizontally, use fillers in the EIA units occupied by these PDUs to facilitate
proper air-flow and ventilation in the rack.
Rack Rear View
3
1

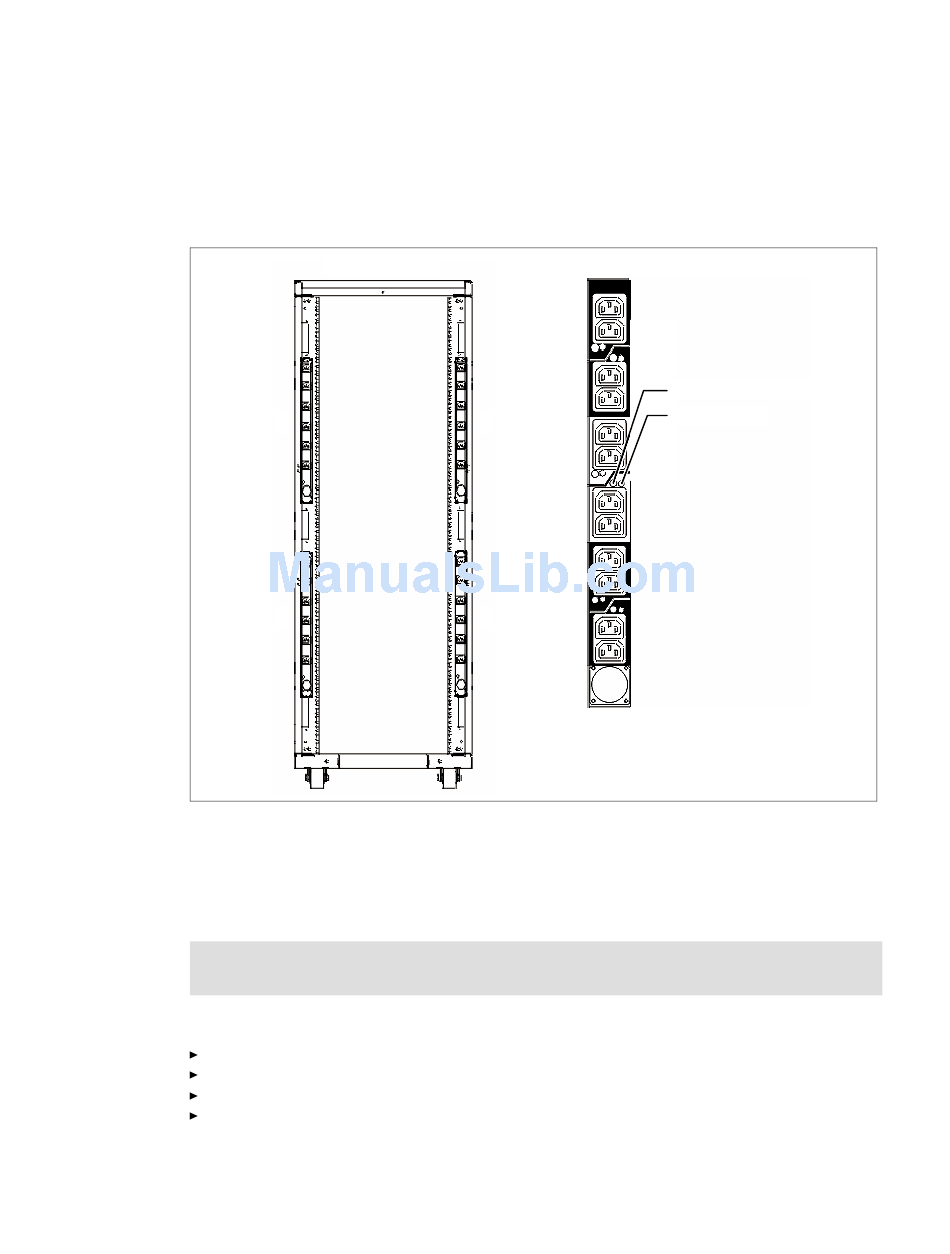

Figure 1-4 PDU placement and PDU view
For detailed power cord requirements and power cord feature codes, see the IBM Power
Systems Hardware Information Center at the following website:
http://publib.boulder.ibm.com/infocenter/systems/scope/hw/index.jsp
Important: Ensure that the appropriate power cord feature is configured to support the
power being supplied.
A wide range of country requirements and electrical power specifications are supported by:
The Intelligent PDU+, base option, 1 EIA Unit, Universal, UTG0247 Connector (#5889)
The Base/Side Mount Universal PDU (#9188)
The optional, additional, Universal PDU (#7188)
The Intelligent PDU+ options (#7109) support
4
2
Chapter 1. General description
Circuit breaker reset
Status LED
