Gigaset AS200 User Manual

As200; as200a; as300; as300a
Hide thumbs

Advertisement

Quick Links

x
Download this manual
5
Setting up the Handset for Use
See also: Instruction Manual
Table of Contents

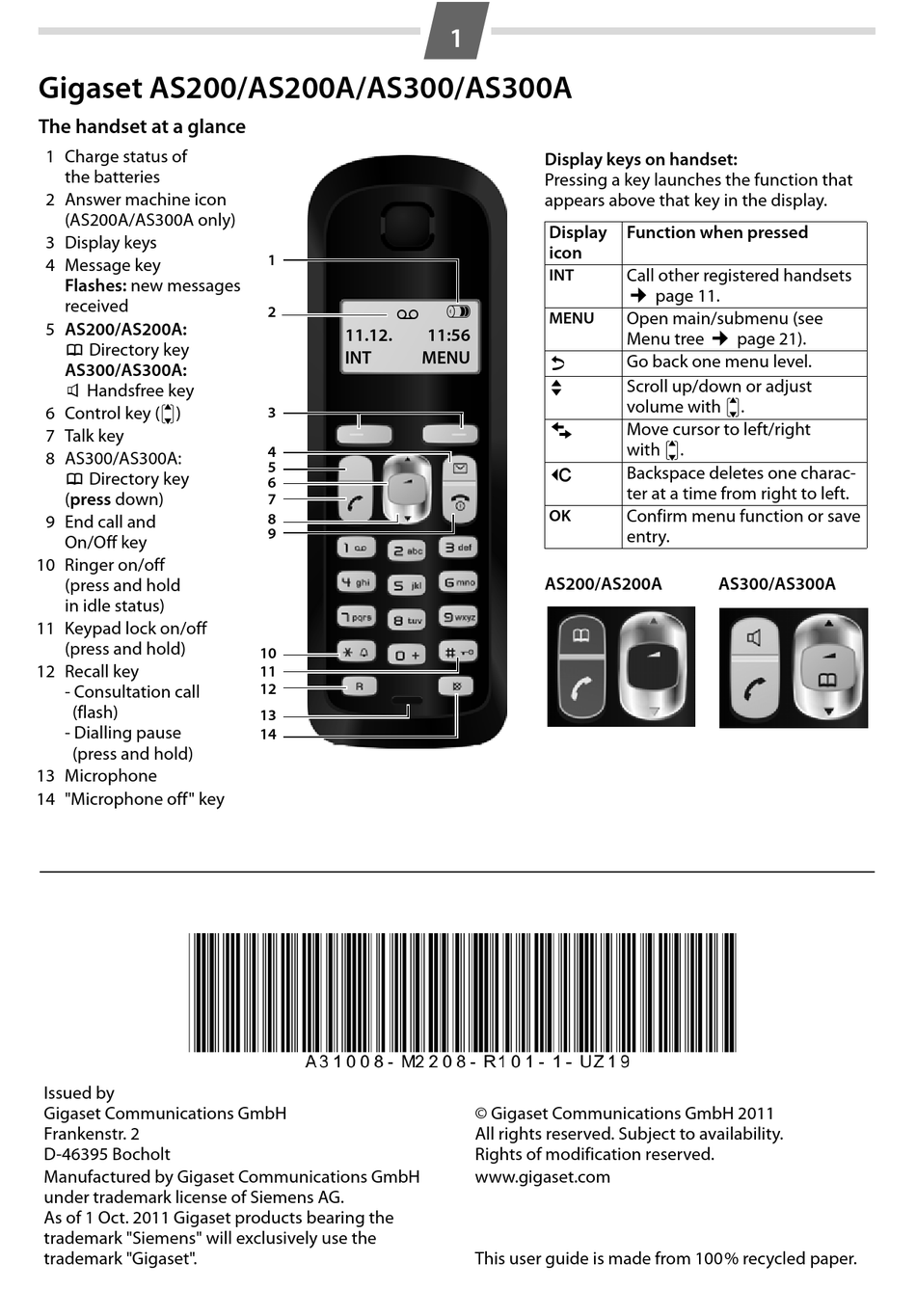

Gigaset AS200/AS200A/AS300/AS300A
The handset at a glance
1 Charge status of
the batteries
2 Answer machine icon
(AS200A/AS300A only)
3 Display keys
4 Message key
Flashes: new messages
received
5 AS200/AS200A:
h
Directory key
AS300/AS300A:
d
Handsfree key
6 Control key (u)
7 Talk key
8 AS300/AS300A:
h
Directory key
(press down)
9 End call and
On/Off key
10 Ringer on/off
(press and hold
in idle status)
11 Keypad lock on/off
(press and hold)
12 Recall key
- Consultation call
(flash)
- Dialling pause
(press and hold)
13 Microphone
14 "Microphone off" key
Issued by
Gigaset Communications GmbH
Frankenstr. 2
D-46395 Bocholt
Manufactured by Gigaset Communications GmbH
under trademark license of Siemens AG.
As of 1 Oct. 2011 Gigaset products bearing the
trademark "Siemens" will exclusively use the
trademark "Gigaset".
1
±
2
11.12.
11:56
INT
MENU
3
4
5
6
7
8
9
10
11
12
13
14
1
Display keys on handset:
Pressing a key launches the function that
appears above that key in the display.
Display
icon
INT
V
MENU
"
U
T
˜
OK
AS200/AS200A
© Gigaset Communications GmbH 2011
All rights reserved. Subject to availability.
Rights of modification reserved.
www.gigaset.com
This user guide is made from 100 % recycled paper.
Function when pressed
¢
Call other registered handsets
page 11.
¢
Open main/submenu (see
Menu tree
page 21).
Go back one menu level.
Scroll up/down or adjust
volume with u.
Move cursor to left/right
with u.
Backspace deletes one charac-
ter at a time from right to left.
Confirm menu function or save
entry.
AS300/AS300A

Advertisement

loading

  Also See for Gigaset AS200

Gigaset AS200 Instruction Manual
Gigaset AS200 Instruction Manual 15 pages

  Related Manuals for Gigaset AS200

  Summary of Contents for Gigaset AS200

  • Page 1 Rights of modification reserved. Manufactured by Gigaset Communications GmbH www.gigaset.com under trademark license of Siemens AG. As of 1 Oct. 2011 Gigaset products bearing the trademark "Siemens" will exclusively use the trademark "Gigaset". This user guide is made from 100 % recycled paper.
  • Page 2 Play back messages from the answer machine, or cancel playback. Flashes: there is at least one new message or message is in the process of being recorded. AS200/AS300 base station Flashes very quickly: memory is full. During message playback: 5 Delete current message.

  • Page 3: Safety Precautions

    Gigaset AS200/AS200A/AS300/AS300A. Reduced energy consumption ƒ If you give your Gigaset to someone else, make sure you also give them the user guide. Your telephone has a power-saving adapter plug and uses less power.

  • Page 4: First Steps

    ◆ Never expose the telephone to the influence of heat sources, direct sunlight or other elec- trical devices. ◆ Protect your Gigaset from moisture, dust, corrosive liquids and vapours. Connecting the base station ¤ First connect the mains adapter 1.

  • Page 5: Connecting The Charging Cradle (If Included)

    ¢ Use only the rechargeable batteries ( page 13) recommended by Gigaset Communica- tions GmbH. Never use conventional (non-rechargeable) batteries, as this could result in significant health risks and damage to property. For example, the outer casing of the bat- teries could be destroyed or the batteries could explode.
  • Page 6 Placing the handset in the base station and registering Before you can use the phone, you must first register the handset to the base station. Put into base MENU ¤ Place the handset with the display facing up in the base station. The handset registers automatically.
  • Page 7 Please note ◆ After the first battery charge and discharge you may replace your handset in the base station or charging cradle after every call. ◆ Always repeat the charging and discharging procedure if you remove the batteries from the handset and reinsert them. ◆...

  • Page 8: Making Calls

    Making calls Handsfree talking (AS300/AS300A only) Making external calls and ending calls To activate while dialling: Enter the number and press the handsfree key External calls are calls using the public telephone net- Switching between earpiece and handsfree mode: work. ¢...

  • Page 9: Last Number Redial List

    The following functions can be selected with Calls list/voicemail (network mailbox) list New Entry Save new phone number. Show Number Display the phone number. An advisory tone sounds and the message key Use Number Edit or add to the number. flashes as soon as a new entry appears in the calls Then dial or select other list/voicemail list.

  • Page 10: Setting Up The Answer Machine

    Voicemail list (AS200A/AS300A only) Please note: Recording ends automatically when the max. record- You can use the voicemail list to listen to the mes- ing time of 170 seconds is reached or if there is a sages that are on the answer machine. break in speaking of more than 2 seconds.

  • Page 11: Locating A Handset ("Paging")

    Registering handsets Assigning key 1 for fast access to the answer machine (network mailbox) You can register up to four handsets on your base sta- tion (Gigaset AS200H/AS300H recommended). Simply press and hold key on the handset and you Please note: will be connected directly to the answer machine (network mailbox).

  • Page 12: Setting The Alarm Clock

    Phone settings Internal consultation call/connecting a call ¢ For details on how to set audio settings, see Menu tree page 21. You are in conversation with an external participant. ¢ For details on how to set the system PIN on the base Press the key and call one or all handsets.

  • Page 13: Entering Letters/Characters

    Operating the base station on Standard characters the PABX 1x 2x 3x 4x 5x 6x 7x 8x 9x 10x11x12x13x14x £ ¥ ¤ The following settings are only necessary if your PABX ä á à â ã ç requires them, see the user guide for your PABX. ë...

  • Page 14: Questions And Answers

    Environmental conditions +5°C to +45°C, 20% to in operation 75% relative humidity We, Gigaset Communications GmbH, declare that this device meets the essential requirements and other Questions and answers relevant regulations laid down in Directive 1999/5/ If you have any queries about the use of your...

  • Page 15: Customer Service & Assistance

    Customer Service & Assistance Do you have any questions? As a Gigaset customer, you can find help quickly in this User Manual and in the service section of our Gigaset online portal www.gigaset.com/service. In our constantly updated online service you can find: ◆...
  • Page 16 Mexico Bulgaria ....+359 2 9710666 ..01800 999 4442738 (01800 999 GIGASET) (0.50 евро на минута от всички държави за Netherlands ....0900-3333102 стационарни...
  • Page 17 Manufacturer warranty (Middle East) On the purchase of your new Gigaset product, we guarantee that this equipment is a genuie man- ufacturer’s product and extend the following warranty: We guarantee this product against manufacturing defects for two full years from the date of pur- chase, unless specified otherwise.
  • Page 19 Service Centres (Midde East) Qatar Modern Home, 51-East - Salwa Road, Customer Service Hotline UAE Al-Maha Complex, Doha TEL: 00971-4-4458255 / 00971-4-4458254 Tel: 00974-4257844 / 00974-4257777 Service Collection Point Fax: 00974-4314700 www.technocare-prodigy.com Bahrain KARAMA Authorized Service Center, Sea Shell Electronics Bldg: 211, Rd: 339, Block: 321, Opp.
  • Page 20 Kuwait Customer Service Hotline Kuwait Tel: 00965-22458737 / 00965-22458738 Al-Baptain Service Center Shop #: 247 Qibla, Block 11, Avenue 11, Souk al Kabeer, Fahad Al Salem Street, Tel: 00965-2464993 Jordan SEDR Home & office Electronics Co - Tronicom Wasfi Al-Tal St., Building No.

  • Page 21: Menu Tree

    Activating/deactivating the alarm clock 1-2 Wake-up time Input format: HHMM Audio Settings 2-1 Handset Volume Can be set to one of 3 levels (AS200/AS200A) 2-1 Handset Volume 2-1-1 Earpiece Can be set to one of 3 levels (AS300/AS300A) 2-1-2 Speaker...
  • Page 22 3-5 Message Length 3-5-1 Maximum Do not limit the recording time for each call. 3-5-2 1 Minute Limit the recording time to 1 minute per call. 3-5-3 2 Minutes Limit the recording time to 2 minutes per call. 3-5-4 3 Minutes Limit the recording time to 3 minutes per call.
