- Page 1 Echo MiniTech T Aid for Living Personal Listener...
-
Page 2: Table Of Contents
1. Safety Instructions and Precautions 2. Accessories Picture 3. Installation Instructions 4. IMPORTANT 5. Conformity 6. Replacement Parts 7. Technical Specifications Echo MiniTech T Aid for Living Personal Listener Please read and follow the safety instructions before using the product... -
Page 3: Safety Instructions And Precautions
Please follow the step-by-step instructions carefully! ● Do not use in an environment that is damp, wet, very hot or very cold. ● To clean the MiniTech T and its accessories, use only a soft cloth and an inorganic cleaner. -
Page 4: Accessories Picture

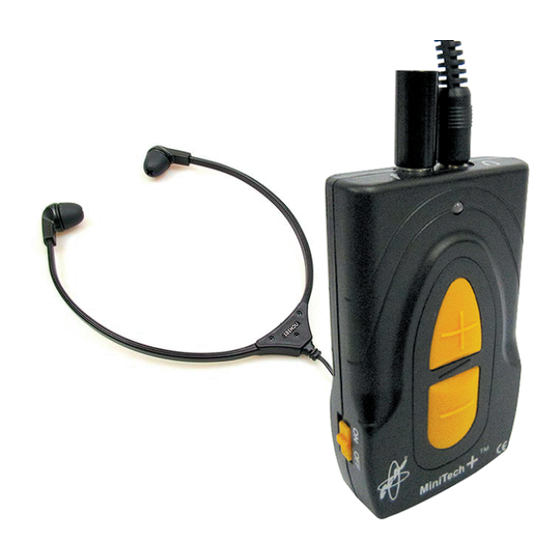

Accessories Picture: a) MiniTech T Amplifier h) Carry pouch b) Headset with beltclip g) 2×1.5v AA c) "Stubby" (LR6)Drycells Microphone 3 metre Microphone d) Microphone on 1 metre Extension lead lead with velcro b) NeckLoop... -
Page 5: Installation Instructions
8. To adjust tone, turn wheel (7) Anti-clockwise for treble boost. Clockwise for bass boost (figure 1). 9. Echo MiniTech T™ has the addition of a built in Telecoil allowing it to be used to listen to loop systems through the headphones supplied. - Page 6 FIG1 FIG2...
- Page 7 FIG3...
-
Page 8: Important
Optional Combination Audio Lead (Purchased separately): The combination lead can be used to connect the Echo MiniTech T directly to the SCART, Phono/Phono or headphone sockets on a TV, CD, and Radio etc. instead of using a microphone. Care must be taken in positioning the leads to avoid the danger of tripping etc. - Page 9 combination lead...
-
Page 10: Conformity
Replacement Parts: Frequency response: 65Hz-6.5KHz Maximum Gain: 45dB Maximum power output: 110 dB 10 dB range 300Hz, 10 db range Tone control: 5KHz 30mA with 32ohm headphones and Current consumption: no signal AGC: Attack time 0.3ms, Release time 3ms EC Conformity: EN 50081-1 and EN 50082-1 Technical Specifications: Physical size:... - Page 12 Hearing Products International Limited Echo House, 26/27 Haigh Park, Stockport, SK4 1QR, England Tel. +44 (0) 161 480 8003 Fax +44 (0) 161 480 8006 RoHS www.hear4you.com E & O.E 01/01/11 UK: Waste electrical products and batteries should not be disposed of with household waste.
