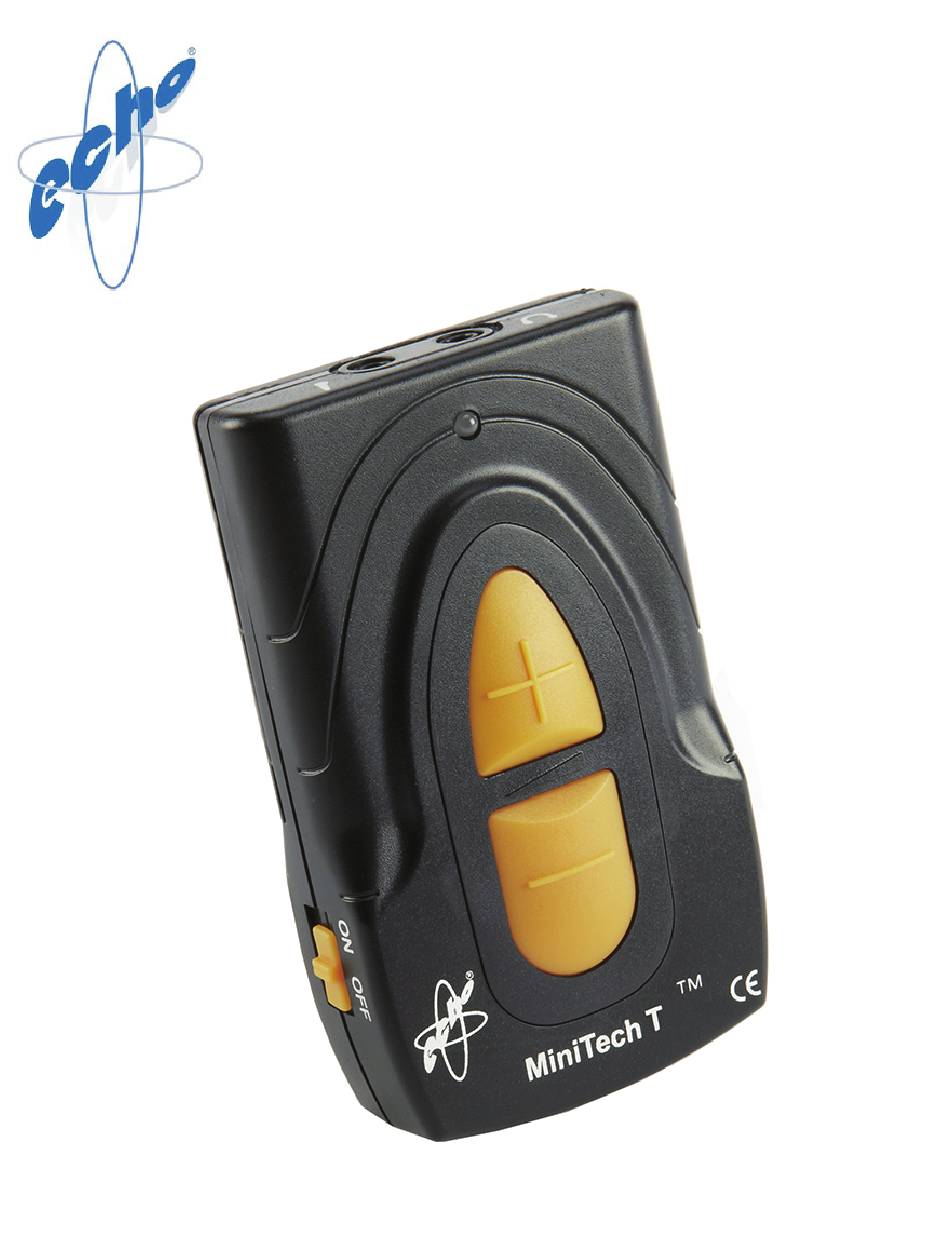

- Page 1 ® Echo MiniTech T Portable Personal Listener Product Code: 751...
-
Page 2: Table Of Contents
4. Installation Diagrams 5. Installation Diagrams 6. Installation Instructions continued 7. Television Set Up Procedure 8 . Technical Specification 9. Replacement Parts ® Echo MiniTech T Portable Personal Listener. Please read and follow the safety instructions before using the product. -
Page 3: Safety Instructions And Precautions
● Do not use in an environment that is damp, wet, very hot or very cold. ● To clean the MiniTech T ™ and its accessories, use only a soft cloth and an inorganic cleaner. -
Page 4: Accessories Picture
Accessories Picture: a) 1 x Amplifier b) 1 x NeckLoop c) 1 x Headset e) 1 x 202M – Including Velcro & clip d) 1 x Pouch f) 1 x Ext Lead g) 1 x Stubby Mic h) 2 x Batteries... -
Page 5: Installation Instructions
8. To adjust tone, turn wheel (7) anti-clockwise for treble boost. Clockwise for bass boost (figure 1). 9. Echo MiniTech T™ has the addition of a built in telecoil allowing it to be used to listen to loop systems through the headphones supplied. -
Page 6: Installation Diagrams
Installation Diagrams FIG1 FIG2... - Page 7 Installation Diagrams i t e FIG3 FIG4...
- Page 8 Optional Combination Audio Lead ( purchased separately): The combination lead can be used to connect the Echo MiniTech T directly to the SCART, Phono/Phono or headphone sockets on a TV, CD, and radio etc. instead of using a microphone. Care must be taken in positioning the leads to avoid the danger of tripping etc.
-
Page 9: Television Set Up Procedure
Television Set Up Procedure... -
Page 10: Technical Specification
Technical Specifications Frequency response: 65Hz-6.5KHz Maximum gain: 45dB Maximum power output: 110 dB 10 dB range 300Hz, 10 db range Tone control: 5KHz 30mA with 32ohm headphones and Current consumption: no signal AGC: Attack time 0.3ms, release time 3ms EC conformity: EN 50081-1 and EN 50082-1 Physical size: 95mm x 55mm x 22mm... -
Page 11: Replacement Parts
Replacement Parts Descr iption 1003 Echo MiniTech New Black pouch with belt clip Dry Cell 490-1000-01 Echo MiniTech Color Carton 940-1000-01 Echo MiniTech Instruction Headset under chin Stubby mic 202/M New microphone on lead 202/C Microphone on a 1.5m lead... - Page 12 Hearing Products International Limited declares that the Echo® MiniTechT™ complies with all relevant EU directives. The full EU declaration of conformance for the Echo® MiniTechT™ is available from Hearing Products International Ltd. Hearing Products International Limited Echo House, 26/27 Haigh Park, Stockport, SK4 1QR, England Tel.
