Zubri

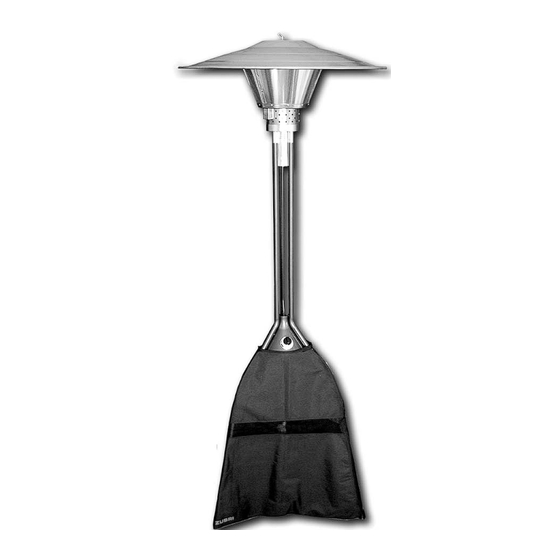

Portable Heater
Propane Gas Heater - 40,000 BTU
USER'S MANUAL
WARNING
Important safety precautions are described in
these instructions! They must be read before
using the Zubri Z1-12 patio heater or handling
gas/propane cylinders.
Z1-12
800-779-3267
sales@schaeferfan.com • www.schaeferfan.com
©2008 Schaefer Ventilation Equipment
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Schaefer Zubri Z1-12
Summary of Contents for Schaefer Zubri Z1-12
- Page 1 Propane Gas Heater - 40,000 BTU USER'S MANUAL WARNING Important safety precautions are described in these instructions! They must be read before using the Zubri Z1-12 patio heater or handling gas/propane cylinders. Z1-12 800-779-3267 sales@schaeferfan.com • www.schaeferfan.com ©2008 Schaefer Ventilation Equipment...
-
Page 2: Parts Identification
Parts Identification Emitter Folding Spring Wing Nut Clip (attached) Emitter Burner Head Threaded Wing Nut & Washer Body U Bracket Legs Gas Valve Regulator Hose Thermocoupler Reflector Skirt Control Cone Knob... - Page 3 Z1-12 Assembly Instructions STEP 2 ATTACH LEG * IMPORTANT NOTE * STEP 1 ATTACH LEGS TO STABILIZER BRACE CONTROL CONE IF THE REGULATOR HOSE IS NOT The three sections are held together by a CONNECTED INSIDE THE CONTROL Depress spring clip on leg and slide CONE, a thin layer of teflon tape should fastener in the center.
- Page 4 Z1-12 Lighting Instructions STEP 1 TURN ON GAS SUPPLY AT PROPANE CYLINDER Ignite High STEP 2 POSITION FLAME AS SHOWN STEP 3 PUSH IN CONTROL KNOB AND TURN COUNTER-CLOCKWISETO IGNITE GAS KEEP THE CONTROL KNOB PUSHED IN FOR AT LEAST 15 SECONDS This will allow the thermocouple safety device to heat up.
- Page 5 Case/Pad Assembly Instructions FOLLOW THESE INSTRUCTIONS TO ASSEMBLE A NEW CASE Included in Zubri heater case: Four - V foam pads Two - center foam pads To attach V pads (see Figure 1): Carefully note the location to adhere each pad. Two of the V pads are to be attached approximately one inch below the second indented slots from the top.
-
Page 6: Safety Guide
Safety Guide PLEASE READ THESE INSTRUCTIONS BEFORE USING ANY ZUBRI PATIO HEATER AND KEEP FOR FUTURE REFERENCE. The following paragraph does not apply to any country where such provisions are inconsistent with local law. This publication is provided "as is" without warranty of any kind, either express or implied, including, but not limited to, the implied warranties of merchantability or fitness for a particular purpose. -
Page 7: Maintenance
Safety Guide Cont'd FOR YOUR SAFETY If you smell gas, shut off gas supply to appliance and extinguish open flame. Do not store or use gasoline or other flammable vapors or liquids near this or any other gas appliance. For outdoor use only. Improper installation, adjustment, service or maintenance can cause injury or property damage. -
Page 8: Troubleshooting
Troubleshooting The most common cause for the heater not working correctly is an inadequate or non-existent gas supply. Therefore, if the heater will not light you should check the following: • There is gas in the cylinder. • The gas valve on the cylinder is fully open. •... -
Page 9: Warranty
Warranty Schaefer Ventilation Equipment, LLC. warrants to the original purchaser that our products which prove to be defective in material or workmanship within one year (unless otherwise specified) from date of purchase will be repaired or replaced at the option of Schaefer Ventilation Equipment, LLC. - Page 10 800-779-3267 www.schaeferfan.com ©2008 Schaefer Ventilation Equipment 4-1-08...
