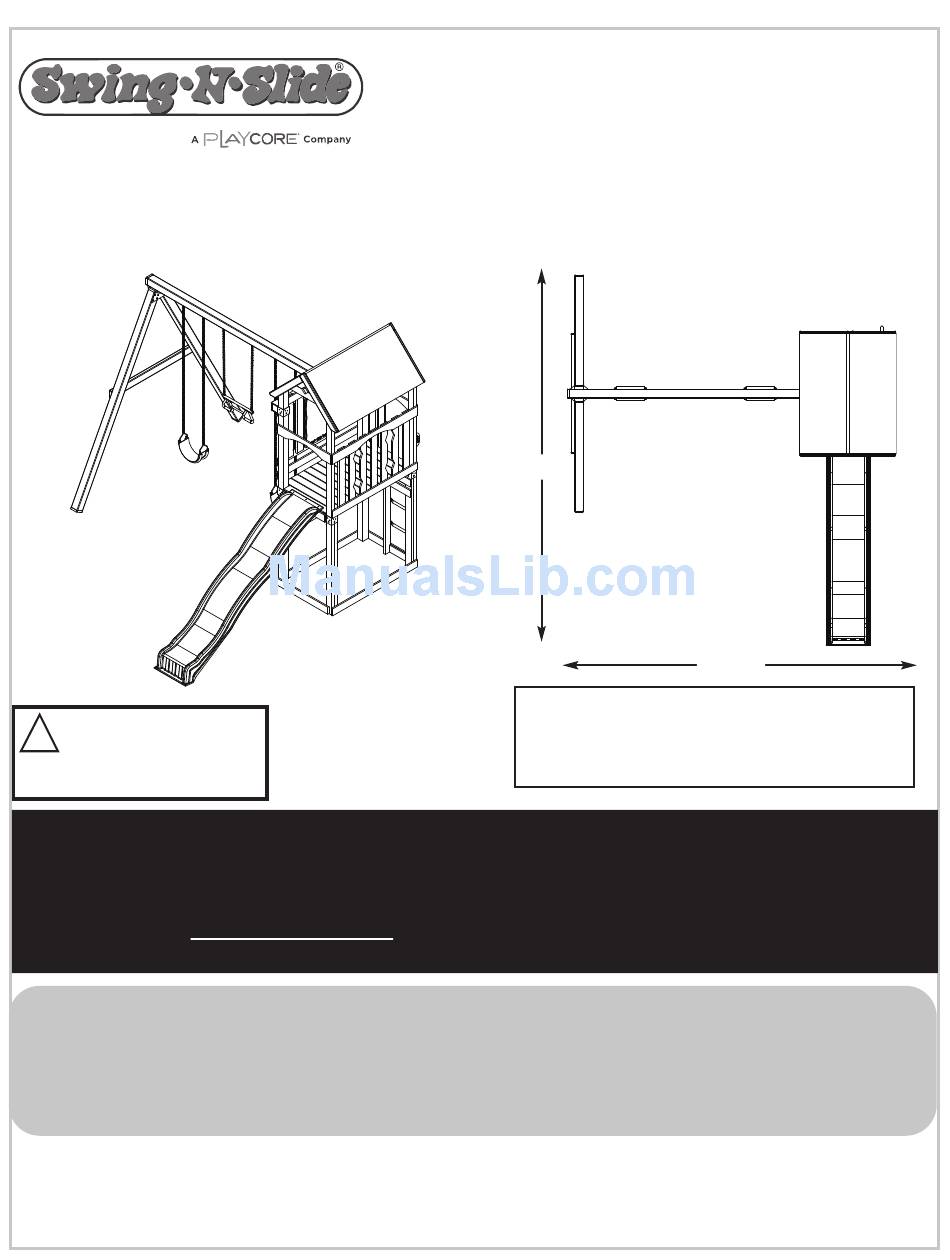

Pb 8140
AssEMbly INsTRUcTIONs
29'
23'
No. of children: Up to 6
Min. Use Zone: 23 ' x 29 '
WARNING:
!
set Dim. 11 'W x 12 'L x 10'H
Est. building Time: 4-6 hrs.
Assembly by an adult.
IMPORTANT!!
PLEASE READ BEFORE BEGINNING ASSEMBLY!!
Please make sure all lumber, hardware and accessory parts are accounted for. If you are missing
DO NOT RETURN
anything, please
to the store where purchased. Please call our Customer
Service Department at the number below.
To register your product visit:
http://www.swing-n-slide.com
Other benefits include information on product warranties, assembly plan updates, joining our mailing
list for new products and promotions, receiving our newsletter, and providing feedback on products.
Swing•N•Slide • 1212 Barberry Drive • Janesville, Wisconsin 53545
Visit our web site at: www.swing-n-slide.com or call us at
1-800-888-1232

Advertisement

loading
Need help?

Need help?

Do you have a question about the PB 8140 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Swing-N-Slide PB 8140

Summary of Contents for Swing-N-Slide PB 8140

  • Page 1 Other benefits include information on product warranties, assembly plan updates, joining our mailing list for new products and promotions, receiving our newsletter, and providing feedback on products. Swing•N•Slide • 1212 Barberry Drive • Janesville, Wisconsin 53545 Visit our web site at: www.swing-n-slide.com or call us at 1-800-888-1232...
  • Page 2 Safety Checklist for Swing-N-Slide Play Sets and ccessories Observing the following statements and warnings reduces the likelihood of serious or fatal injury Installation Safety – Have You: Consulted the assembly instructions supplied with your particular model? Noted this accessory is to be used only on Swing•N•Slide approved designs? (Do not alter its design or add/remove components.) Made sure all hardware is tightened securely? (Supplied bolt covers must also be fastened securely.)
  • Page 3 Swing-N-Slide® will repair, or at its discretion, replace any part within the stated warranty period which is defective in workmanship or materials. This decision is subject to verification of the defect upon delivery of the defective part to Swing-N-Slide® at 1212 Barberry Drive, Janesville, Wisconsin, 53545. Any part(s) returned to Swing-N- Slide®...

  • Page 4: Tools Required

    TOOLS REQUIRED • HERR MIENT S REQUERID S • OUTILS REQUIS TOOLS REQUIRED ElEcTRIc DRIll 3/8'' DRIll bIT HAMMER 1/2" sOcKET & WRENcH sAFETy GlAssEs cARPENTER's sQUARE PHIllIPs bIT TAPE MEAsURE & DUsT MAsK (212) 2-1/2'' Wood Screw (2) 1/2'' Panhead Screw (2) 1/4'' Flat Washer (22) 1-1/4'' Lag Screw (10) 3/4'' Pan Head Screw...
  • Page 5 (4) Shelf-Loc (6) Wrap-Loc (1) RH Split Beam bracket (1) LH Split Beam bracket (2) 3X3 TO 4X4 Shelf-Loc (2) Abrazaderas EZ Frame (1) Playful Chalet Tarp (1) Chalk Board PB 8140 Plan (4) Anchor-It Straps (4) Anchor-Its (1) Plan...
  • Page 6 INTENDED FOR USE BY CHILDREN FROM AGES 2-10 YEARS For Home / Residential Use ONLY 1212 Barberry Drive Janesville, WI 53545 1-800-888-1232 www.swing-n-slide.com (4) 58'' Coated Chain (1) ID Tag (2) Swing Seat (6) Swing Hangers weight limit: 115 lbs.

  • Page 7: Board List

    ssembly Instructions board list (2) 1-1/2'' x 3'' x 47-1/4'' [PF 3633] (1) 1'' x 4'' x 11-3/8'' [PF 3611] (2) 1-1/2'' x 3'' x 94'' [PF 3634] (1) 1'' x 4'' x 11-5/8'' [PF 3612] (1) 1'' x 4'' x 12-3/4'' [PF 3613] (1) 2'' x 4'' x 3-1/2'' [PF 3635] (2) 1'' x 4'' x 13-1/2'' [PF 3614] (1) 2'' x 4'' x 17-1/4'' [PF 3419]...
  • Page 8 ssembly Instructions How to select the correct fastener Use these 2 pictorial guides to help select the correct fastener(s) for the lumber attachment you are making. Each diagram will highlight the correct number of fasteners to use, and where to attach them. 1'' x 4'' to 3'' x 3'' or 2'' x 4'' 2-1/2'' screws pply 2-1/2'' screws to the 1'' x 4'' boards...
  • Page 9 ssembly Instructions ASSEMBLY INSTRUCTIONS • INSTRUCCIONES PARA ARMAR • DIRECTIVES D’ASSEMBLAGE Understanding how the Bracket System Works Example of a Shelf-Loc bracket connection. Shelf-Loc Bracket cORREcT! Wrap-Loc WRONG! brackets ''clipped'' brackets NOT interlocked! Example of a Shelf-Loc bracket connection. Look for ''TOP'' stamp on bracket for correct orientation.
  • Page 10 ssembly Instructions Look for ‘’TOP’’ stamp on brackets while installing. DO NOT UsE lAG scREWs HERE Use Lag Screws Only Where Brackets Attach Fig. 1 Fig. 1a 1-1/4'' Lag Screws per joint FLUSH 1-1/4'' Lag Screws per bracket 2-1/2'' screws per board Frame 1 Frame 1...
  • Page 11 ssembly Instructions Look for ‘’TOP’’ stamp on brackets while installing. DO NOT UsE lAG scREWs HERE Use Lag Screws Only Where Brackets Attach Fig. 2 2'' Lag Screws per joint 2'' Lag Screws 84-1/2'' per bracket DO NOT UsE lAG scREWs HERE Use Lag Screws Only Where Brackets Attach...
  • Page 12 ssembly Instructions •W RNING• void splitting your 2-1/2'' screws Fig. 3 per joint lumber by offsetting your screws at least 3/4’’ from edge. Tip: Flex brackets to make installation of 2'' x 4'' easier 78'' Double check to make sure structure is square Fig.
  • Page 13 ssembly Instructions Fig. 4 Fig. 4a 2-1/2'' screws per joint 2'' screws per joint 2-1/2'' screws 3/4'' Offset per joint 78'' 2-1/2'' screws per joint Frame 2 Frame 2 Frame 1 3/4'' Offset Frame 1 & 2 Completion: 2'' Wood Screw 1.
  • Page 14 ssembly Instructions Fig. 5 Fig. 5a 2-1/2'' screws per joint NOTE: 5/16'' Gap Typical (2) 1'' x 4'' x 23-1/2'' [PF 3617] (11) 1'' x 4'' x 30'' [PF 3620] 2-1/2'' screws per joint 2-1/2'' screws per joint Support Boards and Deck: 1.
  • Page 15 ssembly Instructions Fig. 6 2'' lag screws per joint Tip: Flex brackets to make installation of 4'' x 4'' easier Fig. 6a Fig. 3a Approx. 1/4'' ATTENTION: Unit has been rotated 1/4 turn counter clockwise for this view. Swing Beam Support: 1.
  • Page 16 ssembly Instructions TOP VIEW Fig. 7 3/8'' Hole Locations 1-1/2 " 1-1/2" A-Frame 6" 7-1/2" 9-7/8" 17-3/8" SWING 16" 33-3/8" 9-7/8" 43-1/4" 16" RING TRAP 59-1/4" ElEcTRIc DRIll 9-7/8" 69-1/8" SWING 16" 85-1/8" 10-7/8" 3/8" DRIll bIT 1-3/4" (6'' Min.) 3-1/2"...
  • Page 17 ssembly Instructions Hammer Fig. 8 3/8'' hole cORREcT! T-nut Bottom Beam Clamp (4) 2'' screws Use Screwdriver to aid in tightening Swing Hanger 2'' Wood Screw Swing Hanger ssembly 1. Tap T-nut into 3/8’’ hole as shown in Step 1. 2.
  • Page 18 ssembly Instructions Fig. 9 -Frame ssembly (8) 2-1/2’’ Screws 1. layout 4'' x 4’’s and 2'' x 4'' as shown in (Fig. 9). 2. Align EZ Frame Bracket with face of 4'' x 4''s. 3. Secure EZ Frame Bracket with (8) 2-1/2'' screws to 4'' x 4''s making sure they are flush with each other.
  • Page 19 ssembly Instructions Fig. 10 T-nut Washer 2-1/2'' screws Hex Bolt 3-1/2'' Hex Bolt 2-1/2'' Wood Screw -Frame ssembly cont. 1. Attach A-Frame to Swing Beam using (2) hex bolts and 4 screws as shown in (Fig. 10). 2. Tighten hex bolt to flush with top of T-nut. Repeat on second bracket.
  • Page 20 ssembly Instructions Fig. 11 -Frame ssembly cont. 1. With the help of others, lift A-Frame and Swing Beam Assembly and center onto unit as shown in (Fig. 11). 2. Secure Swing Beam with Hardware shown in (Fig. 11a). Fig. 11a View from Deck x 8 (each bracket) 2'' Lag screw...
  • Page 21 ssembly Instructions ssembly Instructions Fig. 12 Fig. 12a 2-1/2'' screws per board 12-3/4'' 2-1/2'' screws (4) places 1-1/4'' screws per joint 6-3/8'' 10-7/8'' Barrier ssembly: 1. Attach (2) Barrier Support Boards as shown in (Fig. 12). 1-1/4'' Wood Screw 2. Install (4) Barrier Boards as shown in (Fig. 12a). 2-1/2'' Wood Screw...
  • Page 22 ssembly Instructions FLUSH Fig. 13 1-1/4'' screws per board (4)Tarp Washer (4) 3/4'' Pan Head Screw Fig. 13a 1-1/2'' Barrier ssembly Cont. 1. Install (1) Barrier Support Board as shown in (Fig. 13). 2. Install Chalk Board as shown in (Fig. 13a). 3/4'' Pan Head Screw 1-1/4'' Wood Screw...
  • Page 23 ssembly Instructions Fig. 14 2-1/2'' screws Evenly Space Fig. 14a Barrier Boards 1-1/4'' screws per joint Ladder Barrier ssembly: 1. Attach Barrier Support Board as shown in (Fig. 14). 2. Attach Barrier Boards as shown in (Fig. 14a). 1-1/4'' Wood Screw 2-1/2'' Wood Screw...

  • Page 24: Underside View

    ssembly Instructions Fig. 15 Fig. 15b 2-1/2'' screws per board Fig. 15a 1-1/4'' screws 1-1/4'' screws per joint (3) 1'' x 4'' x 30'' [PF 3619] (4) 1'' x 4'' x 30'' [PF 3621] UNDERsIDE VIEW NOTE: There must be a 2-5/8'' Standard Gap between all barrier boards.
  • Page 25 ssembly Instructions Fig. 16 Fig. 16a PF 3627 PF 3616 1-1/4'' screws (3) 5/4'' x 3-1/2'' x 47-1/2'' PF 3632 2-1/2'' screws per joint Fig. 16b Fig. 16c Washer 2'' screws per joint 3 Per Side 3/4'' Screw 3/4'' Pan Head screw Tarp Roof ssembly: 1-1/4'' Wood Screw...
  • Page 26 ssembly Instructions Fig. 17 Fig. 17a 2-1/2'' screws per joint 43-5/8'' (2) 1'' x 4'' x 15-3/8'' [PF 3615] 38-1/2'' 11-3/8'' 1'' x 4'' x 11-3/8'' [PF 3611] 1-1/4'' screws 2-1/2'' screws Fig. 17c per joint Fig. 17b 1-1/4'' Lag Screws per rung 1-1/4'' Lag Screws per rung...
  • Page 27 ssembly Instructions Fig. 18 Fig. 18a 1-1/4'' screws per joint 2'' x 4'' x 17-1/4'' PF 3419 1-1/4'' Wood Screw Slide Installation. 1. Install Slide centered in the provided opening as shown in (Fig. 18). 2. Attach Stake to end of slide as shown in (Fig. 18a). 1'' Truss screw Use truss head screws to to secure slide to deck.

  • Page 28: Name Plate

    ssembly Instructions Swing Guard Fig. 19 2-1/2'' Wood Screw Swing Guard: 1. Attach Swing Guard Board as shown in 2-1/2'' screws per joint (Fig. 19). 22" Name Plate Fig. 19a 1/2'' Pan Head screw THIS PRODUCT IS INTENDED FOR USE BY CHILDREN FROM AGES 2-10 YEARS For Home / Residential...

  • Page 29: Safety Handle

    ssembly Instructions Safety Handle Fig. 20 Safety Handle: 1/4'' washer 1. Mount safety handle in the climber openings 1 - 3/4 Panhead screw approximately 11'' above the deck surface (Fig. 20). 11" 1 - 3/4 Panhead screw Deck Surface Anchor-It Fig.
  • Page 30 ssembly Instructions...
  • Page 31 ssembly Instructions...
  • Page 32 Questions???... Call our Customer Service Department at 1-800-888-1232 © PlayCore Inc. 2014 Printed In USA LA 7132...
