OPERATION
DETAILED CONTROLS AND GAUGES

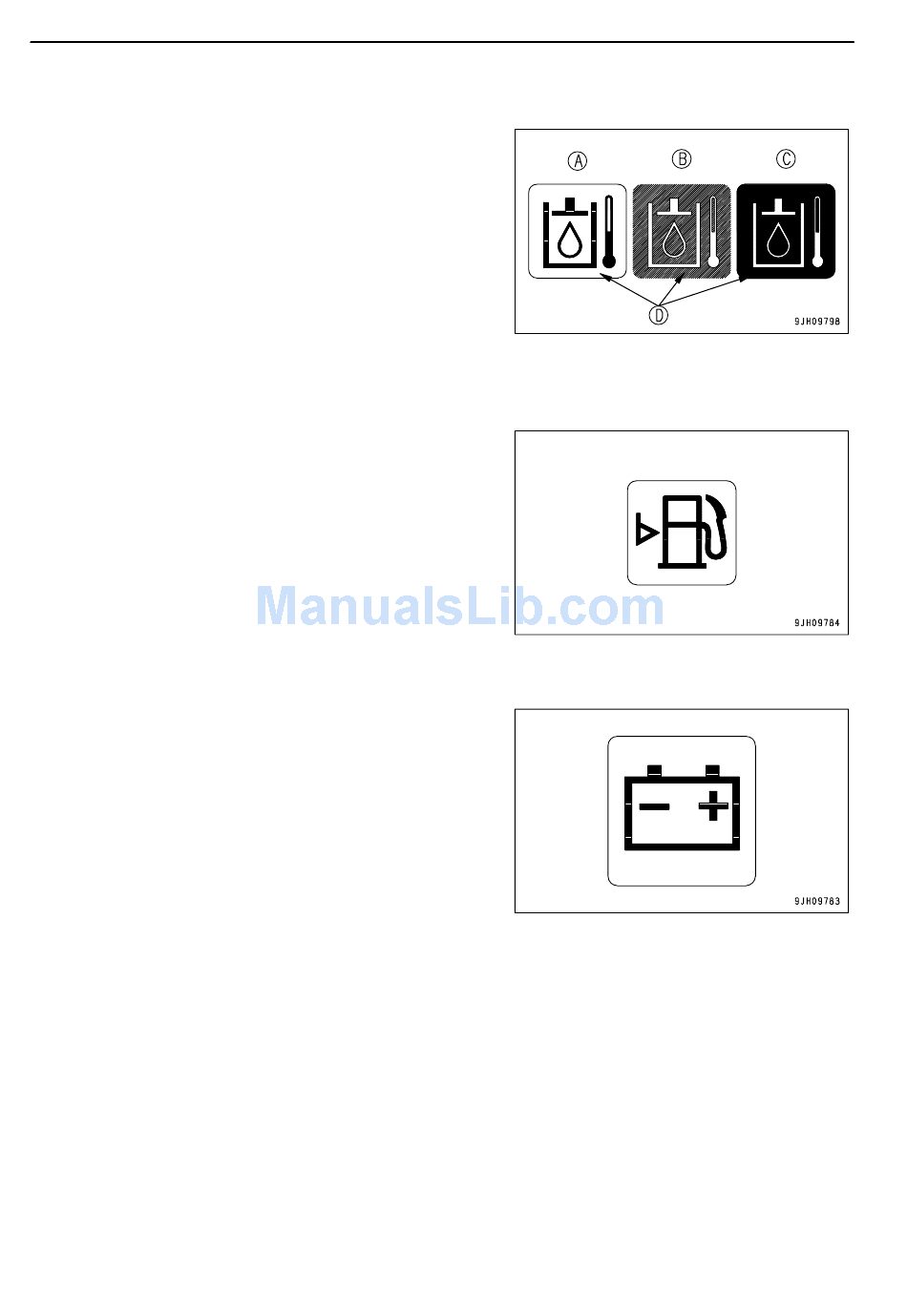

Hydraulic Oil Temperature Monitor
If this monitor (2) shows low-temperature display (A), carry out the
warm-up operation. For details, see "Hydraulic Equipment Warm
Up (PAGE 3-141)".
Carry out the warm-up operation for the hydraulic equipment until
monitor (2) shows normal display (B).
Display (A) at low temperatures: Monitor background (D) is white
Display (B) at correct temperatures: Monitor background (D) is
blue
Display (C) when condition is abnormal: Monitor background (D)
is red
Fuel Level Monitor
This monitor (3) lights up to warn that the operator that the level in
the fuel tank is low.
When the remaining fuel level reaches approx. 33 liters (8.72 US
gal), the monitor lamp lights up red, so add fuel as soon as
possible.
Charge Level Monitor
This monitor (4) warns the operator that there is an abnormality in
the charging system when the engine is running.
If the battery is not being charged properly while the engine is
running, monitor (1) lights up red.
If monitor lights up red, check the V-belt for looseness. If any
abnormality is found, perform the necessary actions. For details,
see "OTHER TROUBLE (PAGE 3-201)".
3 - 14
