HM-12RGB8A3-DMX512 USER MANUAL

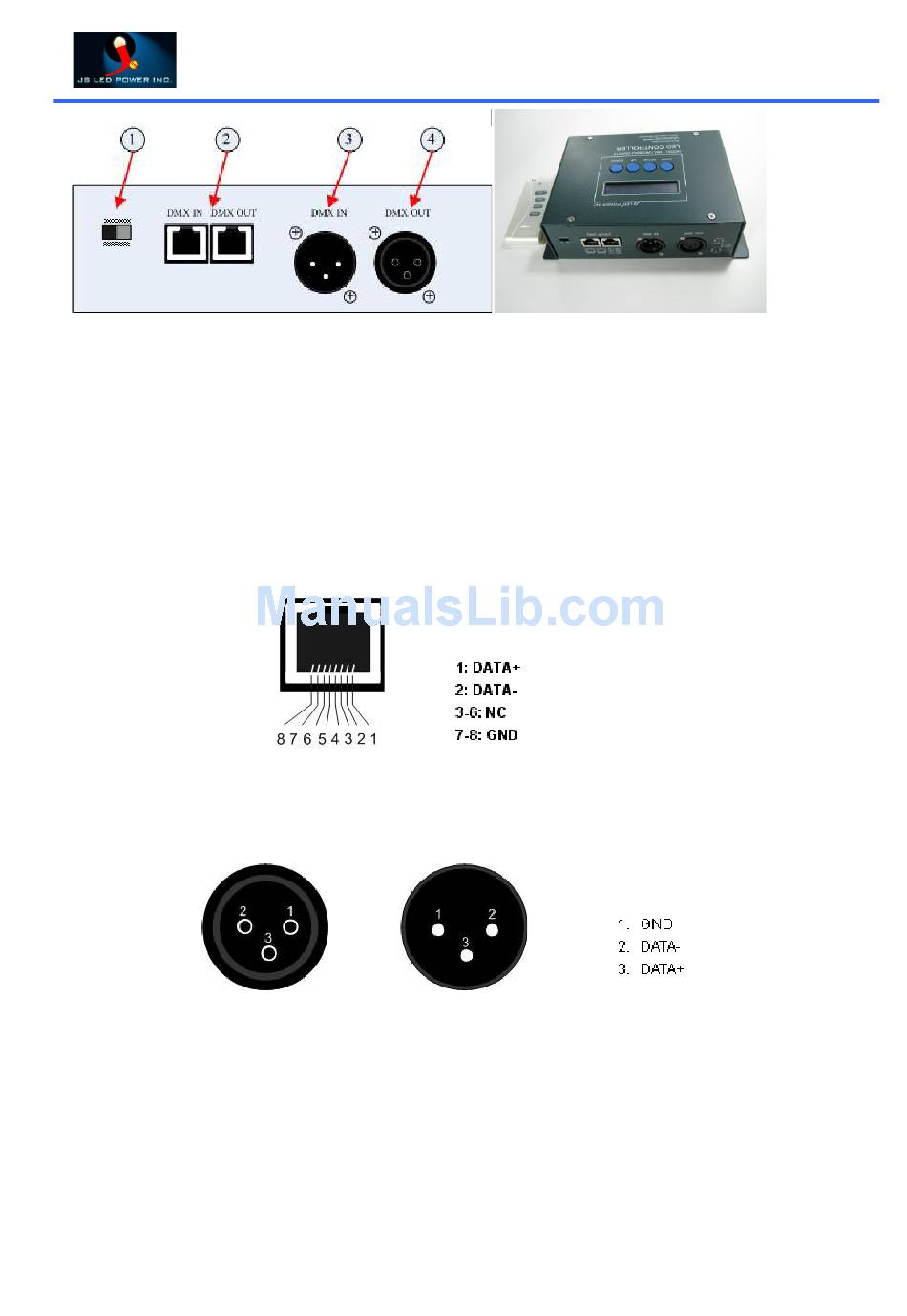

① Switch of DMX512 signal terminator, turn to "on" to terminate DMX512 signal.
② RJ45 input/output interface: connect to DMX512 signal cable
③ XLR-3 male input/output interface: connect to DMX512 signal cable
④ XLR 3 Female output interface: connect to DMX512 signal cable
VII. Signal Interface Instruction
A. RJ45 interface
B. XLR 3 interface
