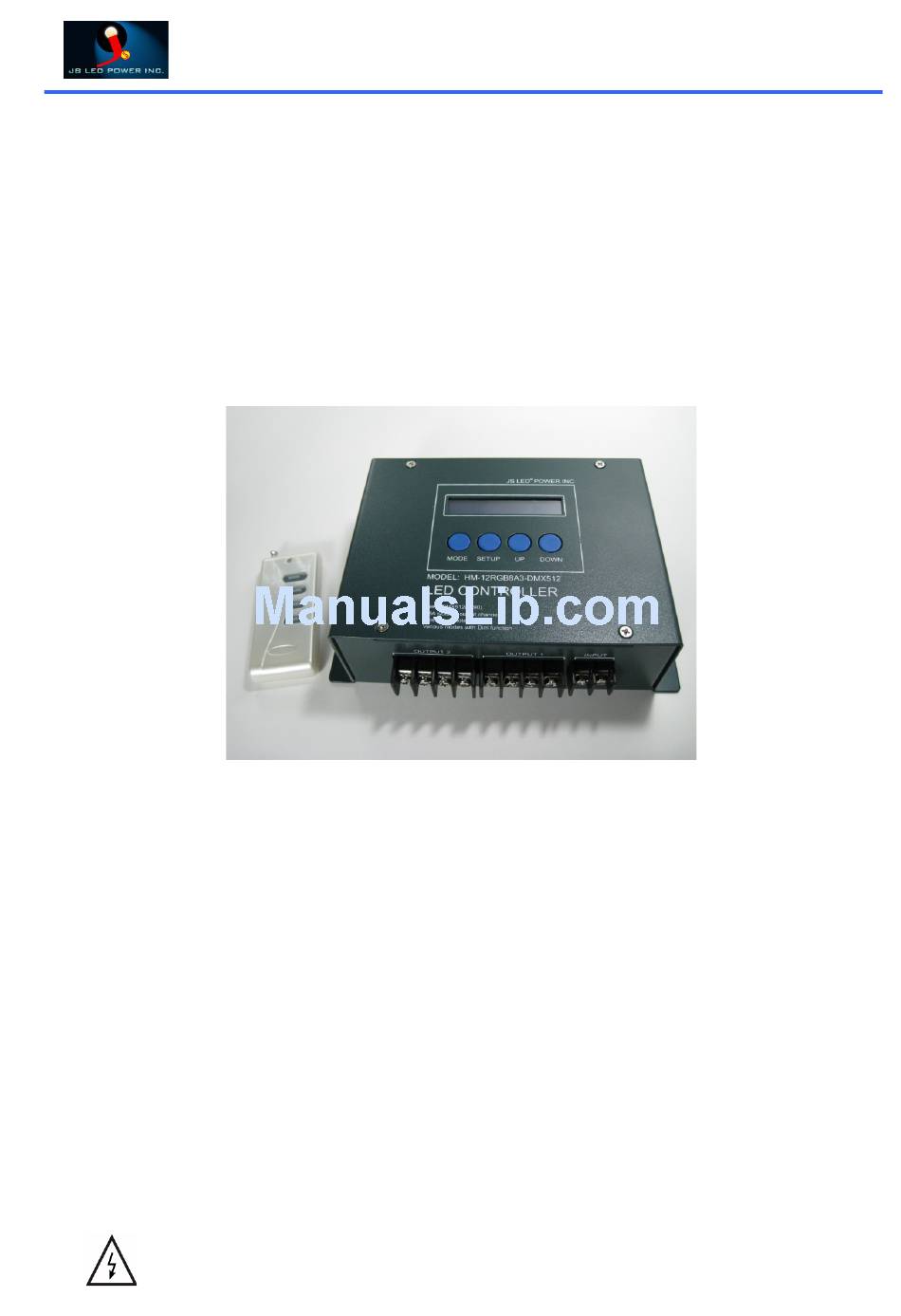

HM-12RGB8A3-DMX512 USER MANUAL
HM-12RGB8A3-DMX512
Controller Manual
(Version V5.00)
Overview
Thanks for choosing JS LED POWER INC. Multifunctional LED Controller. We strongly
recommend you to read this manual carefully before the installation and usage. Make sure
you have completely understood the instructions so as to ensure normal working of the
controller, be familiar with all of the operating skills.
Before opening the package, please check if there's damage or defect during transportation,
if damage occurs, please don't use it and inform your supplier immediately.
Safety
In order to ensure a perfect quality of the product and a safe usage, please kindly follow the
instructions.
Suppliers don't take charge of any problems or damages that occur due to mishandling such
as an operation not permitted in this manual.
In order to avoid careless damages and bringing you loss, please read the
1
