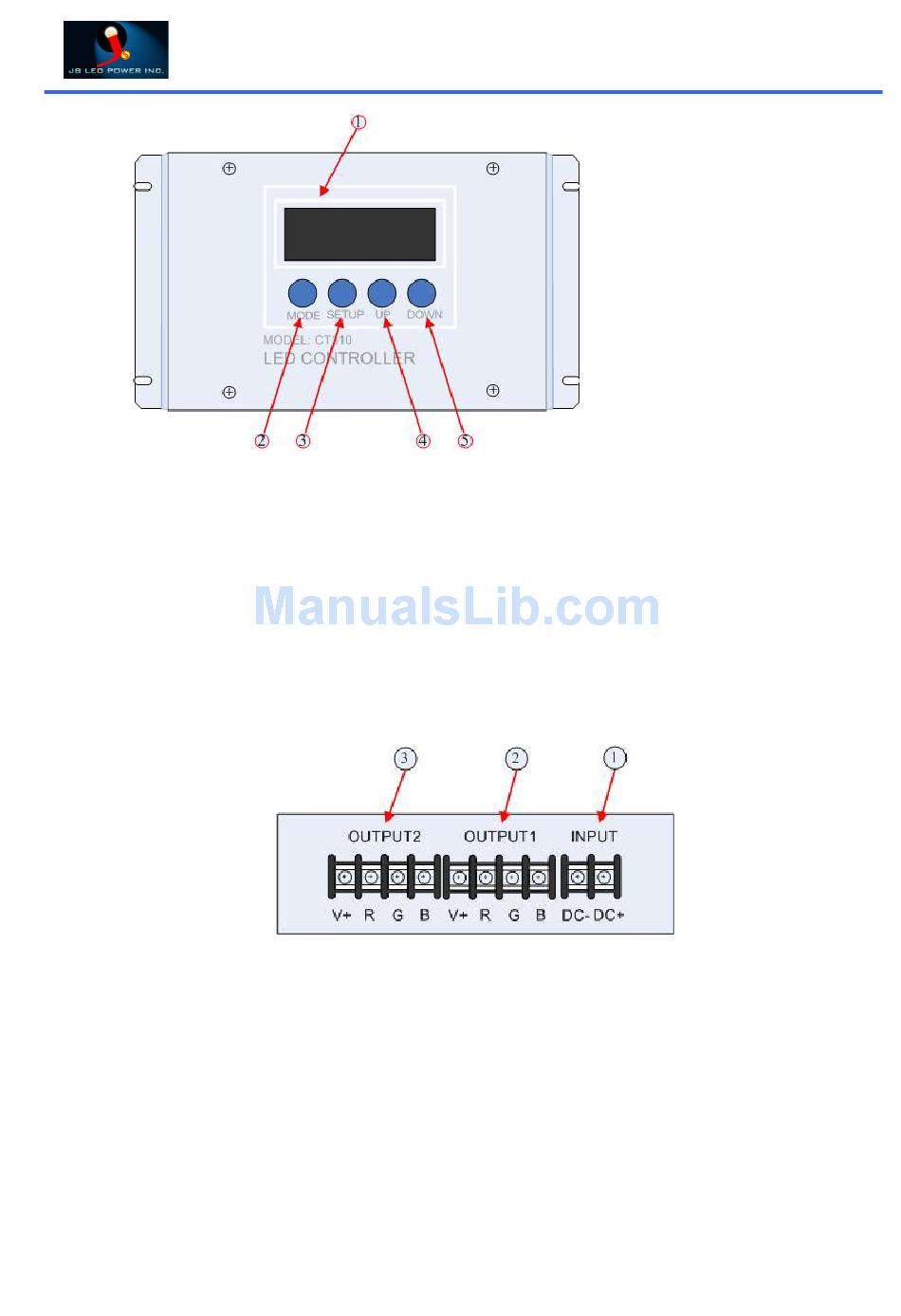

① LCD screen
② MODE: Change mode by pressing this button
③ SETUP: Press this button to set the program according to user's need
④ UP: Press this button to increase the parameter value of currently item ( keep pressing to
increase continuously), or choose next changing mode or reload default setting
⑤ DOWN: Press this button to decrease the parameter value of currently item (keep
pressing to decrease continuously), or choose last changing mode or reload default
setting.
V. Front Panel Instruction
① Power input terminals: 12V/24V DC. Make sure the right connection.
② Drive output terminals 1: Connect to LED modules.
③ Signal output terminals 2: Connect to LED modules.
Remark: the signal of output port 1 is same with output port 2.
VI. Back Panel Instruction
HM-12RGB8A3-DMX512 USER MANUAL
4
