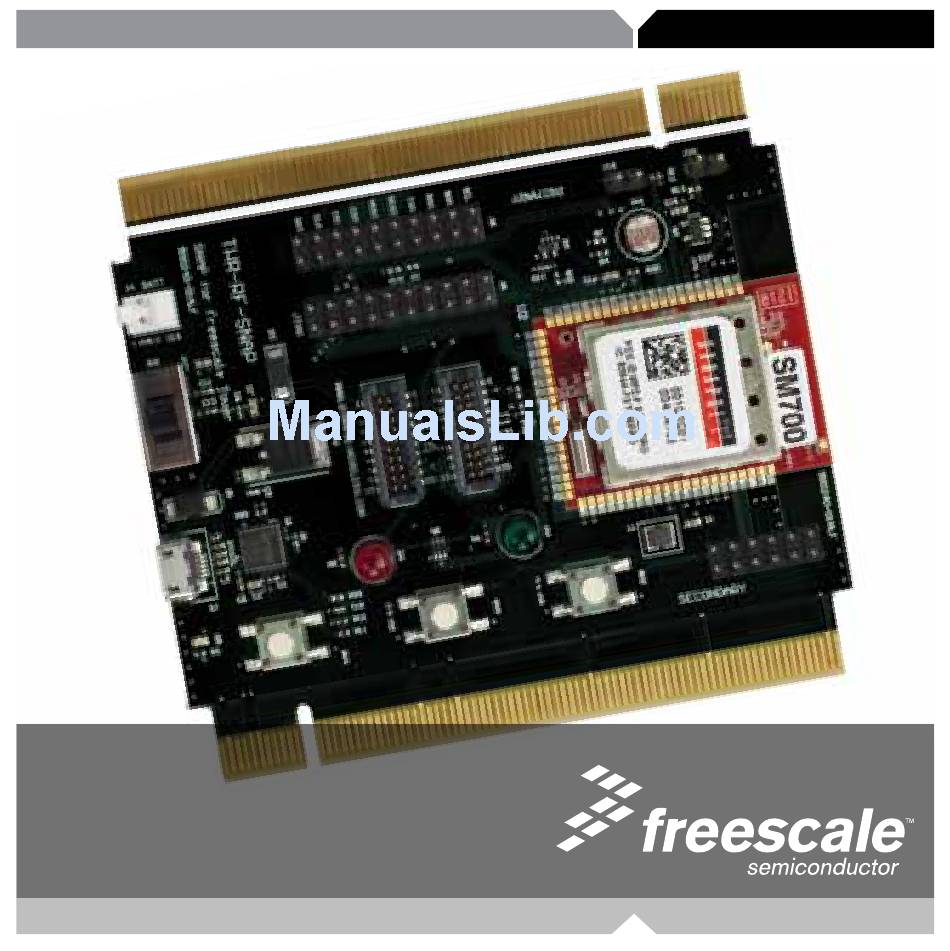

- Page 1 Featuring the SM700 RF Engine from Synapse TOWER SYSTEM Quick Start Guide Wireless Mesh Networking Module featuring SNAP Technology ® (TWR-RF-SNAP)
- Page 2 Elevator Connection Primary Elevator Jumpers Connector Battery Connector Temperature Sensor 3-position Power Light Sensor Switch (Battery > Off > USB/Elevator) SM700 802.15.4 RF Engine (based MicroUSB on the Freescale MC13224) Red LED Green LED Power LED Push Button Switch 2...
- Page 3 Featuring the SM700 RF Engine from Synapse TOWER SYSTEM TWR-RF-SNAP Features • Features the SM700 802.15.4 RF Engine from Synapse Wireless, based on the Freescale MC13224 module • Pre-loaded with SNAP Network Operating System • Push button inputs and user controlled LEDs • On-board low-power linear active thermistor and light sensor • On-board TWRPI connector for the addition of standard Freescale TWRPI modules • Configurable access to Tower Elevator connector allows for interaction with other Freescale Tower modules (UART, SPI and I • MicroUSB connector provides power and serial connectivity • Multiple powering options • Access to additional GPIOs on SM700 via header block...
- Page 4 TOWER SYSTEM Step-by-Step Installation Instructions STEP STEP Powering the Using the Default TWR-RF-SNAP Application Attach the included microUSB cable The TWR-RF-SNAP Tower System to the USB interface on the TWR-RF- module comes pre-loaded with a SNAP Tower System module. Insert the simple application to demonstrate user opposite end of the microUSB cable in interaction with the module. Once power either a USB port or USB wall adapter. is supplied to the Tower System module, Slide the power switch to the right the program will blink the red LED.
-
Page 5: System Module
Featuring the SM700 RF Engine from Synapse TOWER SYSTEM STEP Download/Install the SNAP network, but also provides the PC and Portal software a bridge into the Synapse Wireless’ SNAP network. Refer to the Lab Tutorials Portal associated with the TWR-RF-SNAP Tower System module for more about the Visit freescale.com/Tower and select the USB dongle. TWR-RF-SNAP from the list of available Tower System modules. Download and... -
Page 6: Configuration Instructions
TOWER SYSTEM Configuration Instructions In this Quick Start Guide, you will learn • SPI Connectivity: jumper the following pins to enable SPI access how to configure the various settings on the TWR-RF-SNAP module for use from the Tower MCU module in the Tower System. J5 Pin 9-10 (MISO) J5 Pin 11-12 (MOSI) Tower System J5 Pin 13-14 (CS0) or Communication Modes J5 Pin 15-16 (CS1) - Page 7 Switch connects SM700 GPIO 22 to GND when pressed. Pin can Switch 2 Pressed Push Button be used as an interrupt pin to wake the SM700 from sleep. User Switch connects SM700 GPIO 23 to GND when pressed. Pin can Switch 3...
- Page 8 TOWER SYSTEM TOWER SYSTEM Go to freescale.com/Tower to find pertinent information for the TWR-RF-SNAP module, including: • TWR-RF-SNAP User’s Manual • TWR-RF-SNAP Schematics • TWR-RF-SNAP Lab Tutorials And more To learn more about the TWR-RF-SNAP and other modules within the Tower System, go to freescale.com/Tower. To become a member of the online Tower Geeks community, go to towergeeks.org. Freescale and the Freecale logo are trademarks or registered trademarks of Freescale Semiconductor, Inc. Reg. U.S. Pat. & Tm.
